Honeycomb Structure Geocell for Steep Slopes Retaining Wall

The  Honeycomb Structure Geocell  is honeycombed three-dimensional grid structure which is welded by high-strength HDPE sheet.

The geocell is easy to stretch.

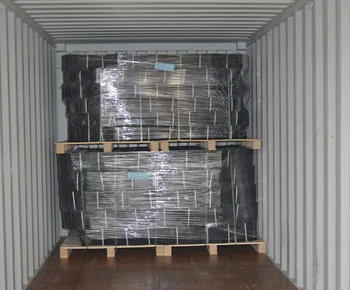

It can be folded up when transport and opened to fill the earth or concrete when use it.

 Honeycomb Structure Geocell  will constitute a strong lateral and large stiffness of the structure when use it.

In the geotechnical engineering, soil, sand, stone, concrete and other fill together constitute a different cohesion, different reinforcement strength, different depth of the cushion.

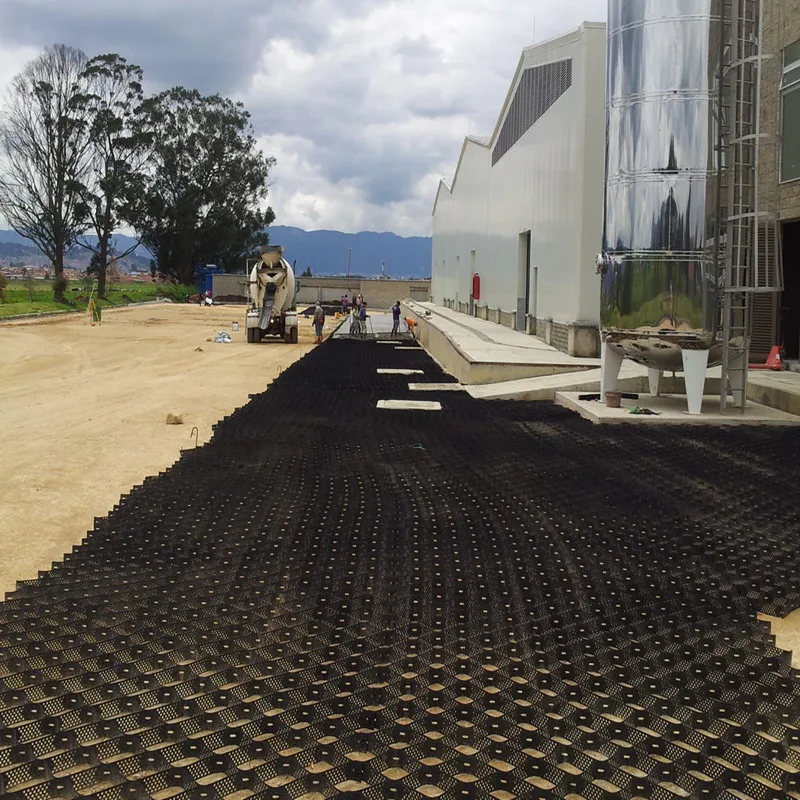

The cushion can be placed in the required position accordance with the requirements of the project for Reinforcement of roads, railways and soft soil foundation, slope protection, green structure, the construction of retaining walls and so on.

The most important feature is can solve and complete a variety of difficult problems which can’t be dealed with use conventional method in geotechnical engineering,such as bridge jumping, soft base subsidence, fouling, landslides and desert subgrade.

Geocell geosynthetic cellular confinement system is a matrix of lightweight, expandable and flexible thermoplastic strips that are ultrasonically bonded to form a strong, dimensionally stable and inert honeycomb structure.

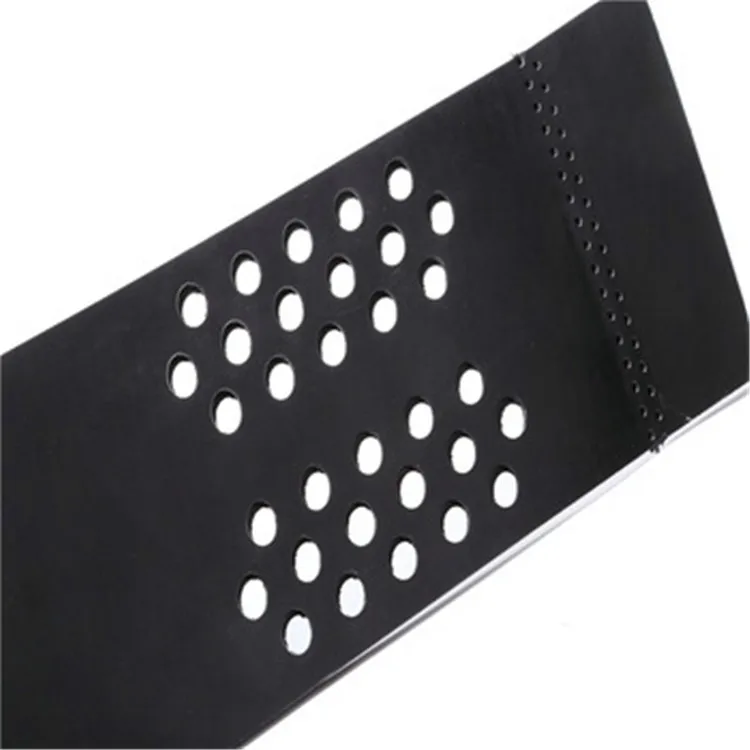

1.Forms a Long Lasting Structural Barrier Geocell is fabricated from High Density Polyethylene (HDPE), which is mad of high-strength HDPE sheet. The cell walls are perforated creating permeable walls to allow water to drain through the system. When filled with granular materials, the system creates a three dimensional erosion barrier and structural bridge that uniformly distributes weight-bearing loads. The cellular nature of Geocell enhances drainage and prevents build-up of hydrostatic pressure. 2.Easily Dismantled and Re-used Suitable for the construction of temporary site access. Once operations are complete the installation can be removed or left in place if a sub-base confinement is required.

Perforated or not are all ok .

Size can be  made  in accordance with your need.

Advantages

 • Provides cost effective, long-term slope and channel protection and stabilization

• Easy in transportation and on site handling due to collapsible cells

• Rapid and simple installation conforms to most terrain profiles

• Ultrasonic welding of cell joints ensures maximum strength

• Easily dismantled and subsequently re-used

• Withstands high weight bearing loads

• Resistant to biological attack and a wide range of soil borne chemicals

Application

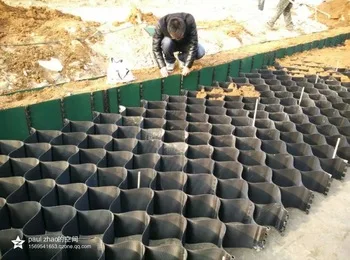

 1) Soil Retention •Earth walls

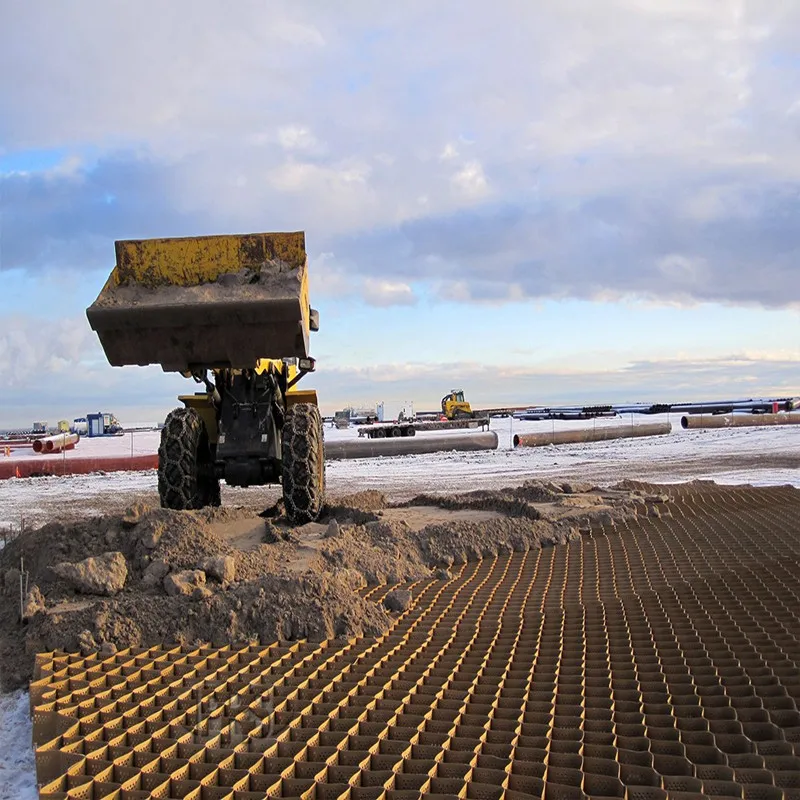

2) Load Support •Roadways & Verges •Pathways •Railway bases

3) Slope Protection •Vegetative slopes •Road-side banks •Embankments

4) Channel Protection •Embankment walls •Waterway channels
