Depth Gasoline Diesel Portable Nail Anchor Drilling Rig 80M Ground Drill Machine

Product Overview

Description

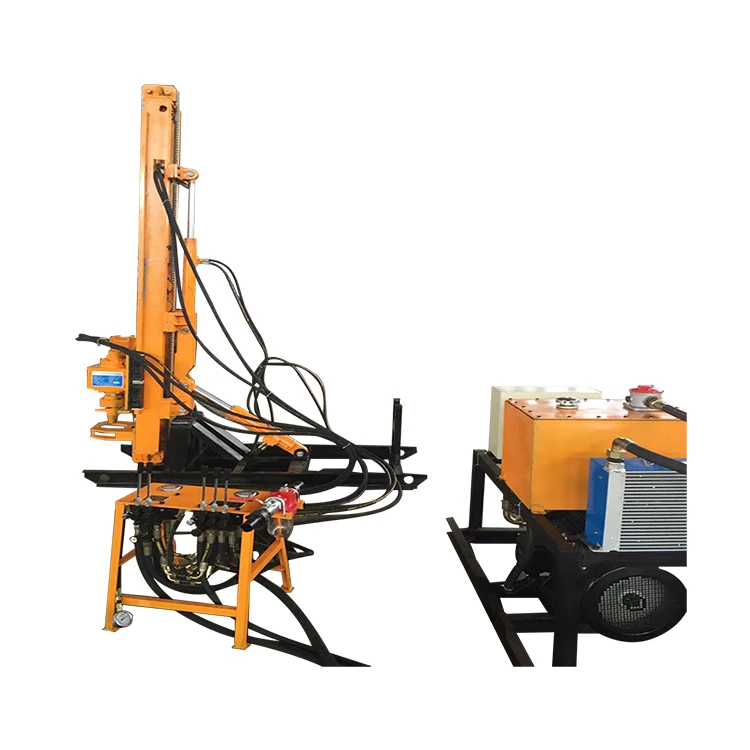

YXZ-50A is a full hydraulic anchor drilling rig, mainly used for the construction of anchor holes, drainage holes, grouting holes in railway, highway, water conservancy, hydropower station landslide control projects and dangerous rock anchoring projects, as well as blast holes and tunnel pipe shed support for blasting projects The construction of protection holes; it can also be used for the construction of deep foundation pits and geothermal holes for workers and civilians.

Rig performance characteristics
YXZ-50A full hydraulic anchor drilling rig is a high performance drilling rig independently designed and independently developed by Chengdu Hama. It is an ideal rig that combines the advantages of reliability, practicality, ease of use and durability. This series of rigs have the following characteristics:
1. Compact structure, novel design, beautiful appearance, low noise, high efficiency, convenient use and maintenance, etc., and the use of full hydraulic control, convenient and flexible operation, saving time and effort.
2. The pumping station provides hydraulic driving force, including slewing, propulsion, lifting arm actions, etc., and provides all power except the DTH impactor.
3. The only component of the rig that consumes compressed air is the down-the-hole impactor, so the parameter requirements for the air compressor are significantly reduced.
4. Imported motor makes the whole machine stable, reliable and long life.
5. Wide application range, strong drilling capacity; long stroke of power head, high drilling efficiency.

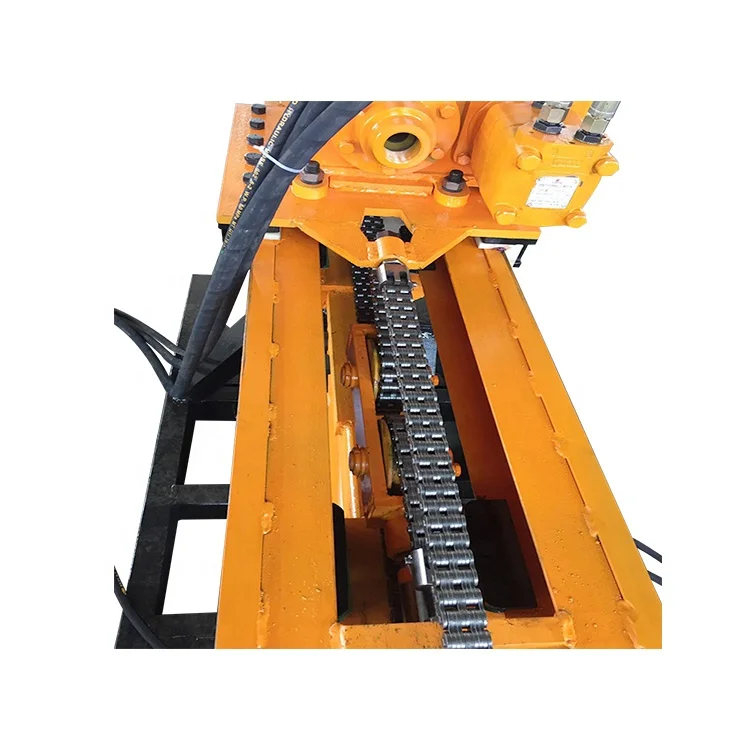

6. The power head and the guide rail are connected by a wear-resistant plate, and the guide rail wears very little.
7. The track can slide back and forth along the chassis frame to increase the propulsion distance.
8. It is applicable to various drilling processes.

long	2950 mm
width	900 mm
high	1340 mm
weight	1200 kg
Drilling diameter	Φ90 ~ Φ180 mm
Drilling depth	80 ~ 40 m
Drilling angle	—90 ~ 90 °
Power head output speed	50 rpm
Maximum output torque of power head	4000 N · m
Maximum travel of power head	1800 mm
Maximum lifting force of power head	45 kN
Maximum feed force of power head	0 ~ 30 (continuously adjustable) kN
System rated pressure	20 MPa
Sub-track travel	500 mm
Main motor	18.5 kW
