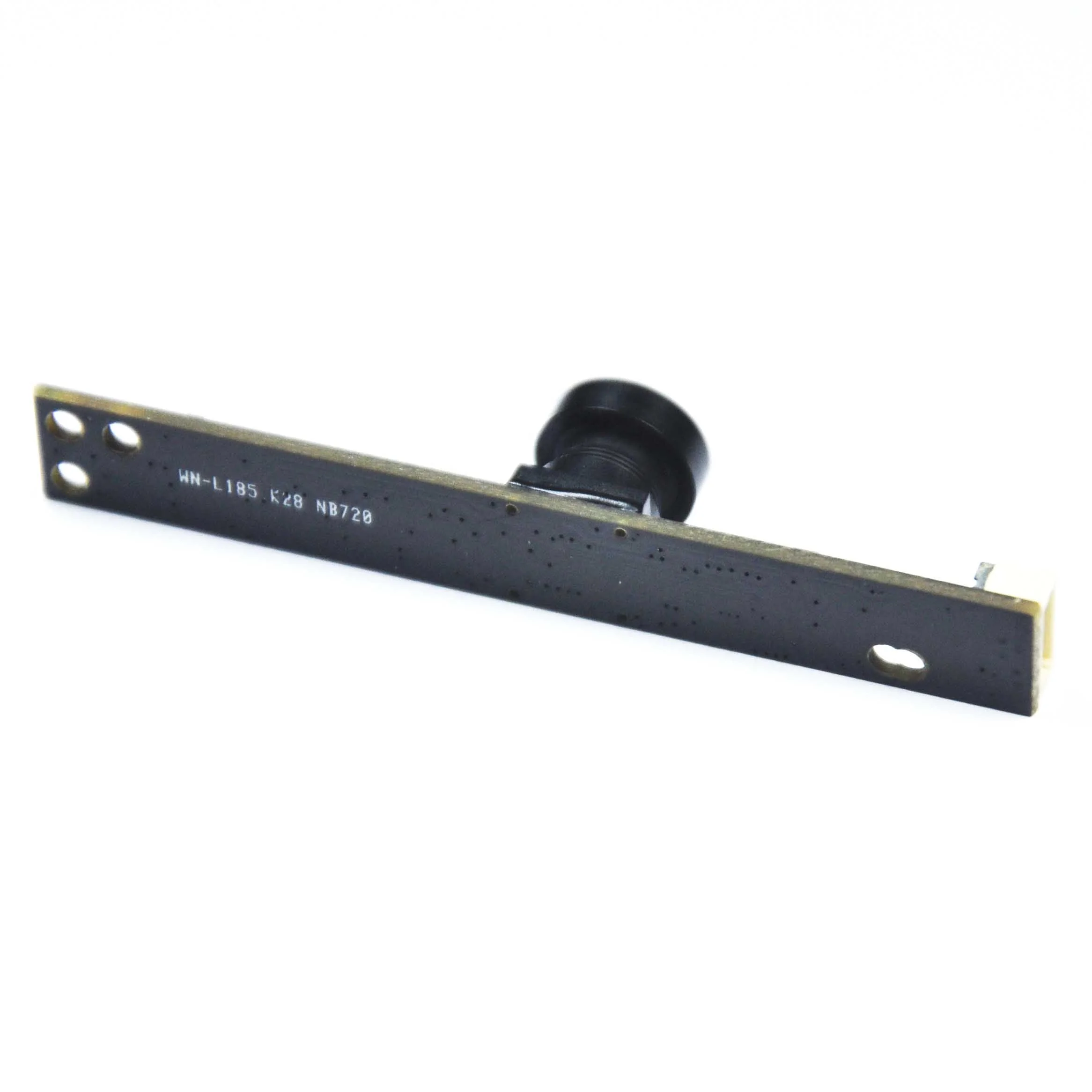

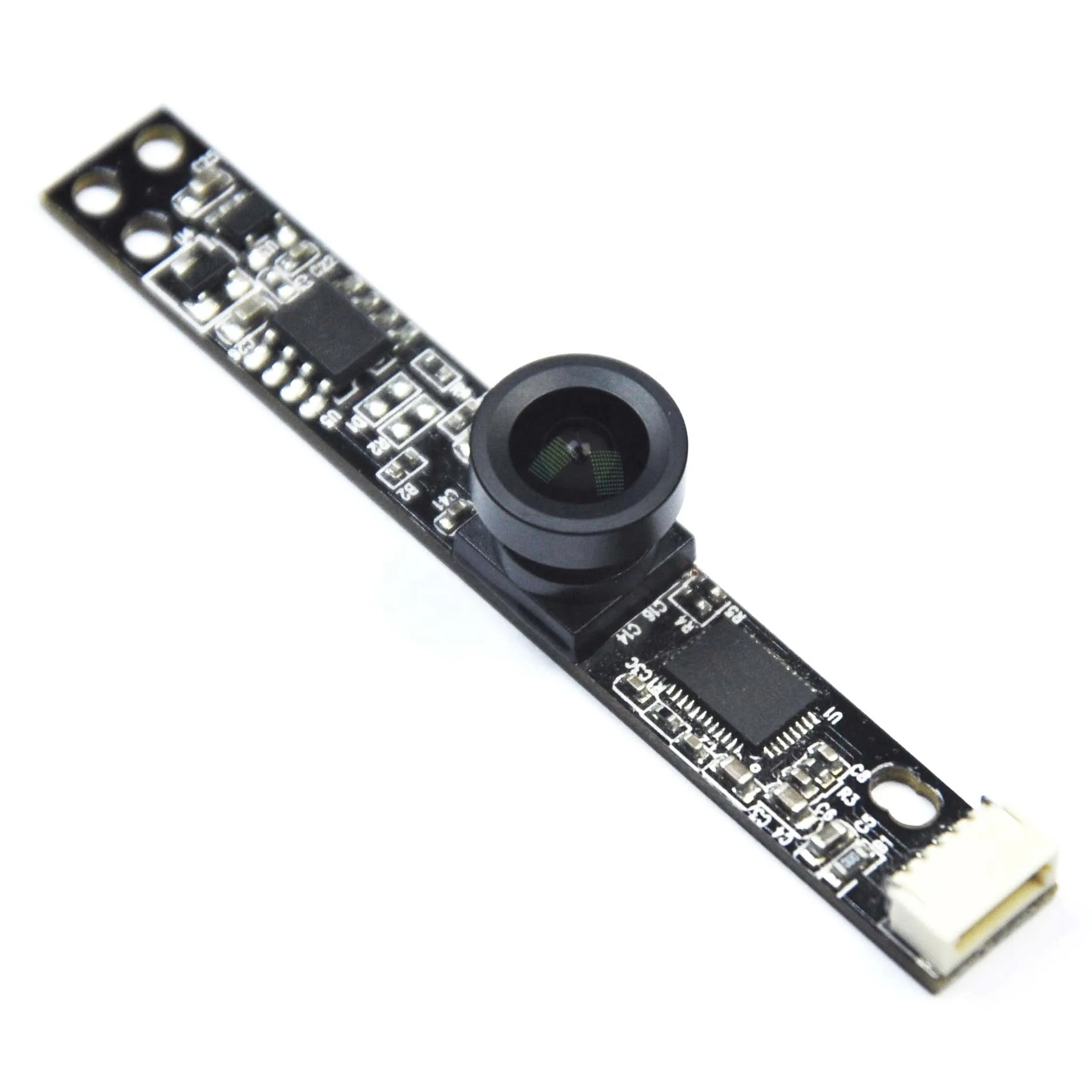

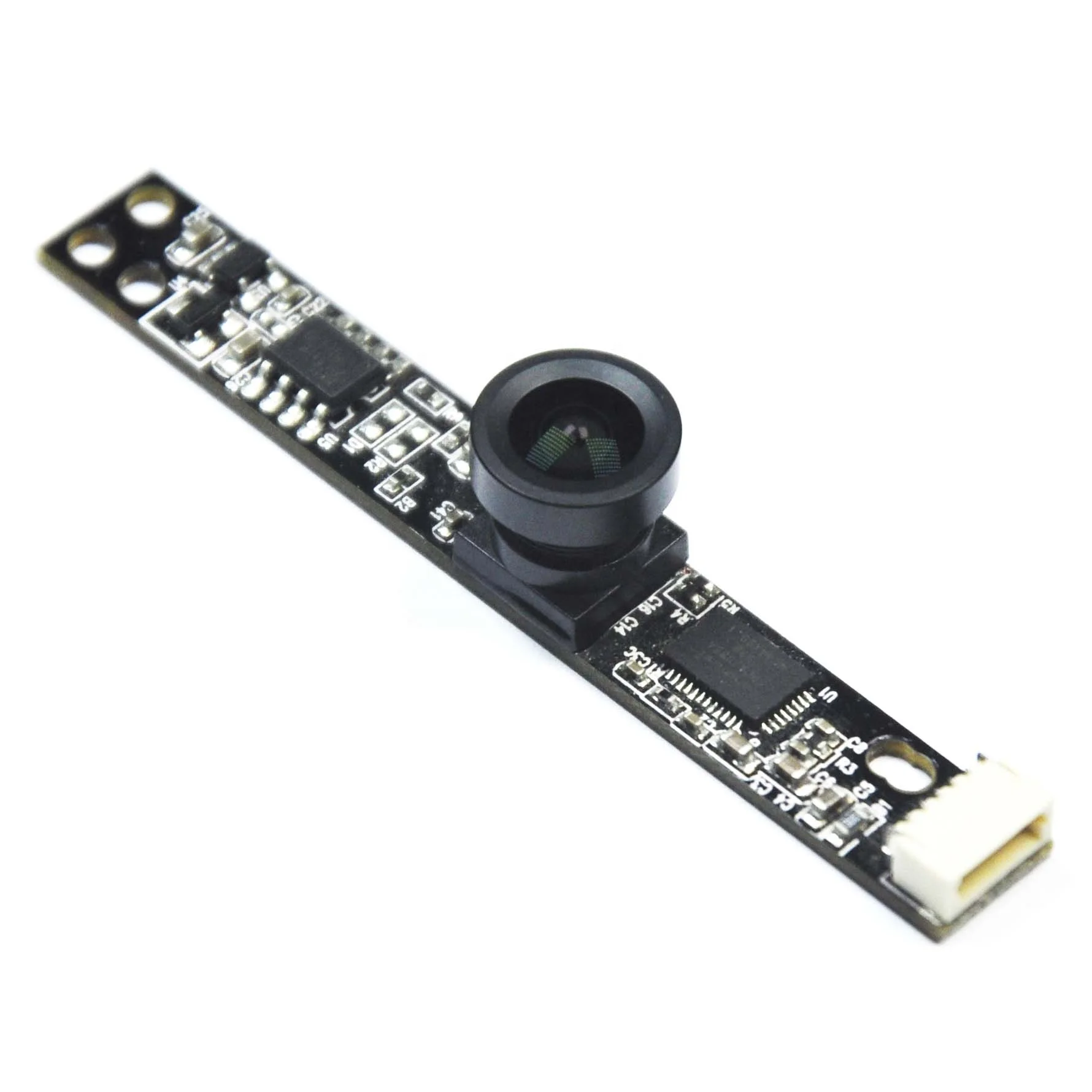

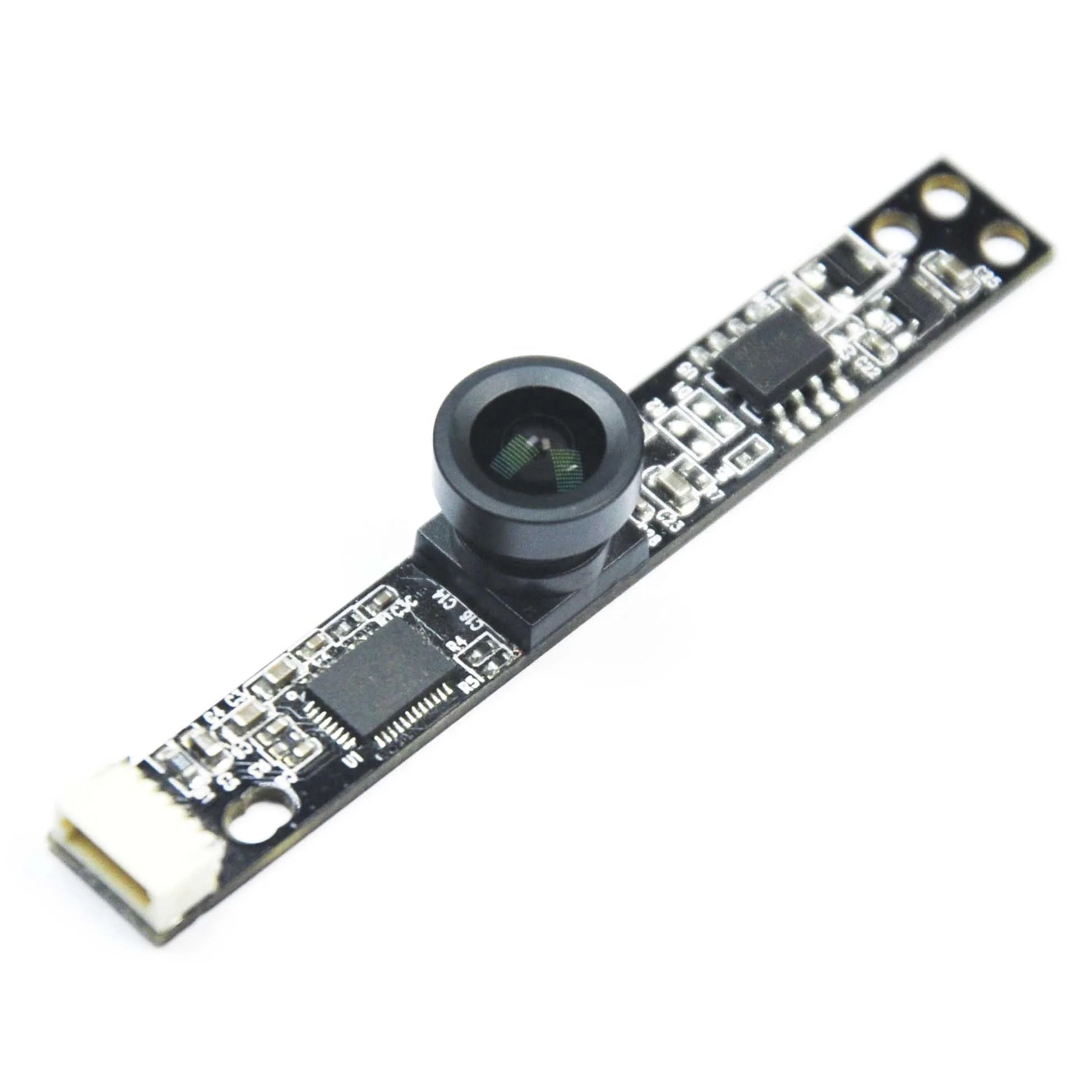

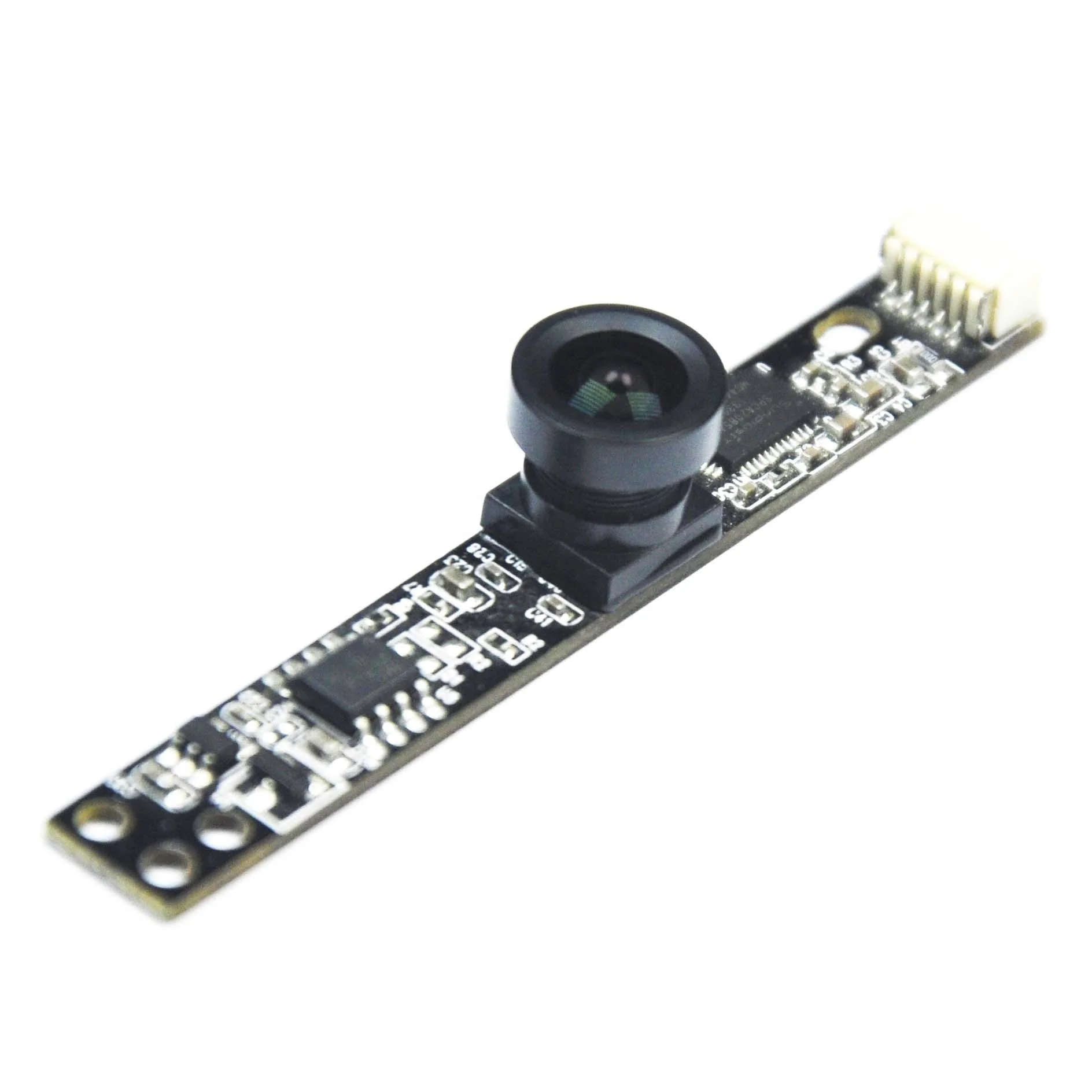

HD 720P 30FPS Fixed Focus Manual Focus USB Camera Modules for Wide Range of Applications
- Category: >>>
- Supplier: Shenzhen Weinan Electronics Co. Ltd.
Share on (62459976711):
Product Overview
Description

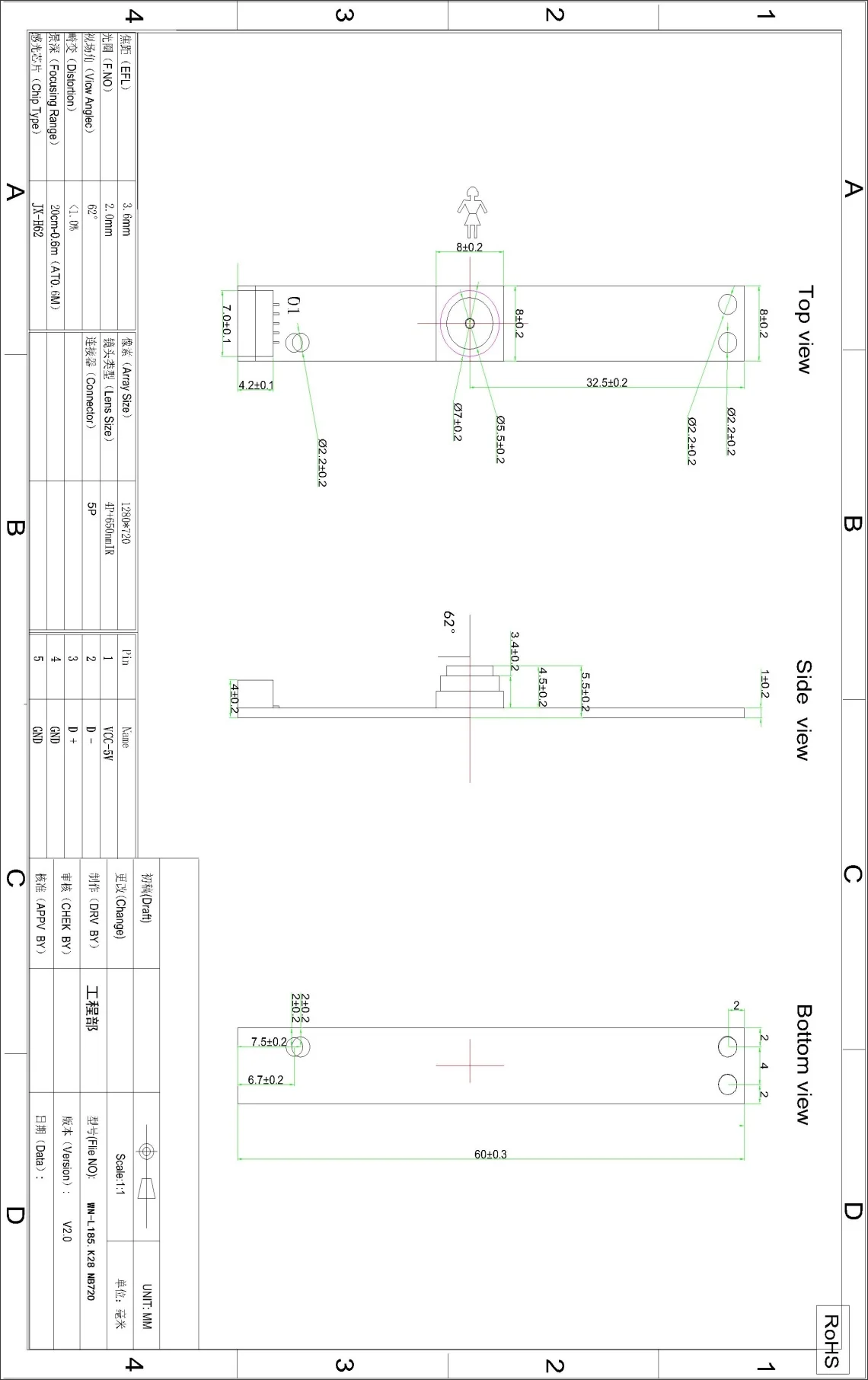

Module Size | 60*8mm |
Sensor | 1/4.0-Inch CMOS JX-H62 Sensor |
Pixel Size | 3.0*3.0µm |
Resolution | 1280 H x 720 V |
Output Format | MJPEG, YUV2 |
FOV | 120 Degree |
Scanning Speed | 0.1S |
Dynamic Range | Up to 72dB |
Focus Type | FF/ MF |
Shutter Type | Electronic Rolling shutter |
Output and Power Supply | High Speed USB2.0 |
Interface | 5 PIN 1.0MM Socket |
Controllable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
Supported OS | Windows, Android, Linux, Wince, Mac OS |

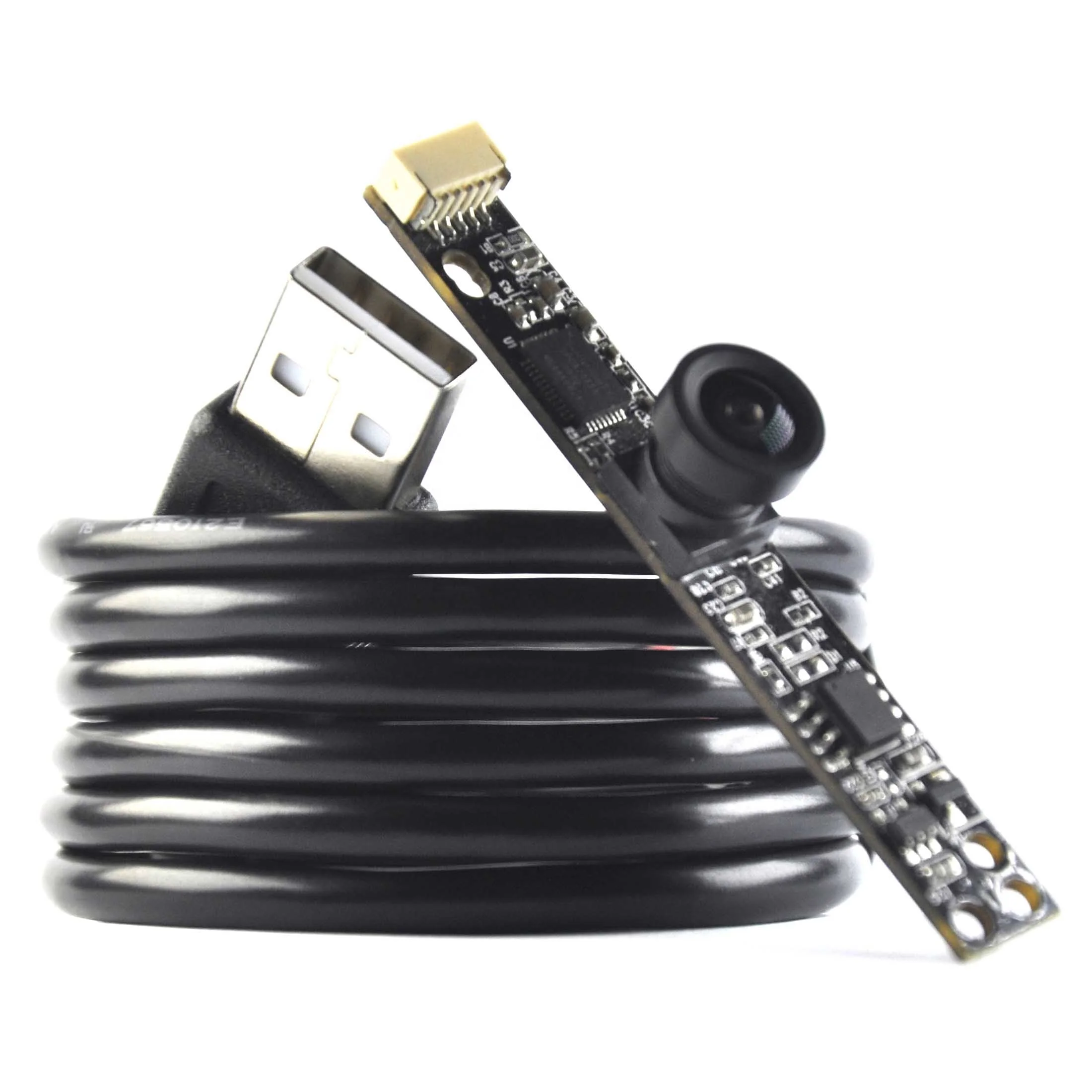

Cable Length | Default 1.0 Meter USB Cable |
Format | Resolution | Frame Rate (USB2.0) |
1280x720 (720P) | 30FPS | |
800x600(WVGA) | 30FPS | |
640x480 (VGA) | 30FPS | |
1280x720 (720P) | 10FPS | |
800x600(WVGA) | 25FPS | |
640x480 (VGA) | 25FPS |
Pin No. | Signal Name | Description |
1 | VCC | 5V Power |
2 | DM | USB2.0 Data+ |
3 | DP | USB2.0 Data- |
4 | GND | GND |
5 | GND | GND |
Operating Voltage | USB DC +5V Supply |
Operating Current | 120mA |
Operating Temperature | -20℃ ~ 70℃ |
Storage Temperature | -20℃ ~ 85℃ |
Humidity | 80 ~85% |
Weinan Electronics camera modules have a wide range of applications like ATM Machine, kiosk, automatic vending machine, robot, sanner, virtual reality, medical equipment, machinery equipment, POS equipment, smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, tablet external, on-the-spot law enforcement, recognition algorithm attendance machine, simple security system, teaching system, interactive system, credit card machine, attendance machine, voting system, high speed video shooting device, exam system, driving learning system, industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, medical auxiliary equipment, etc.
1. What are your production capabilities?
Typically around 400,000 units per month.(statistical data in 2019)
2. What are your R&D capabilities?
With our experienced team of engineers, we can assist with the entire hardware process, including design, prototyping, outsourcing and manufacturing.
3. How long does it take to develop a new camera module?
Typically around 2-3 weeks from start date.
4. What is the cost of developing a new camera module?
Developing fee range between $200 and $500 for the new product development. It can be varied depending on the complexity and requirements of your projects.
5. What customization service does Winideatech offer?
Full customization, including the module dimensions, lenses and other functions.
6. What lens options do you have?
We have the normal M12 lens and we can match the other lenses according to your requirements.
7. What operating system do your camera modules request?
Our camera modules support Windows, Mac, Android and Linux systems.
8. Which software do your USB camera modules support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS, AMCAP, Webcam Viewer, etc.
Typically around 400,000 units per month.(statistical data in 2019)
2. What are your R&D capabilities?
With our experienced team of engineers, we can assist with the entire hardware process, including design, prototyping, outsourcing and manufacturing.
3. How long does it take to develop a new camera module?
Typically around 2-3 weeks from start date.
4. What is the cost of developing a new camera module?
Developing fee range between $200 and $500 for the new product development. It can be varied depending on the complexity and requirements of your projects.
5. What customization service does Winideatech offer?
Full customization, including the module dimensions, lenses and other functions.
6. What lens options do you have?
We have the normal M12 lens and we can match the other lenses according to your requirements.
7. What operating system do your camera modules request?
Our camera modules support Windows, Mac, Android and Linux systems.
8. Which software do your USB camera modules support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS, AMCAP, Webcam Viewer, etc.
