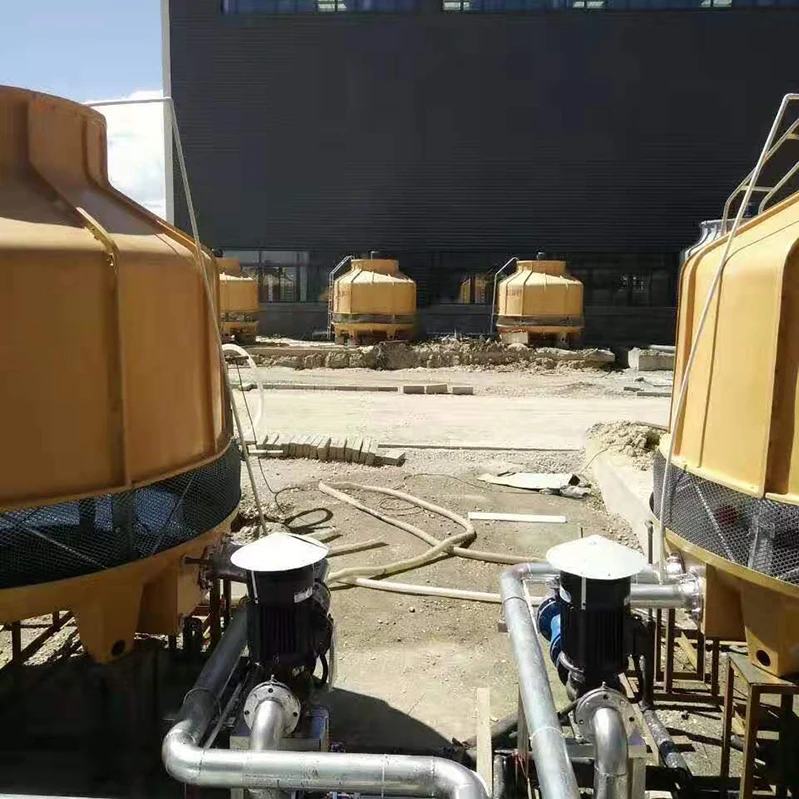

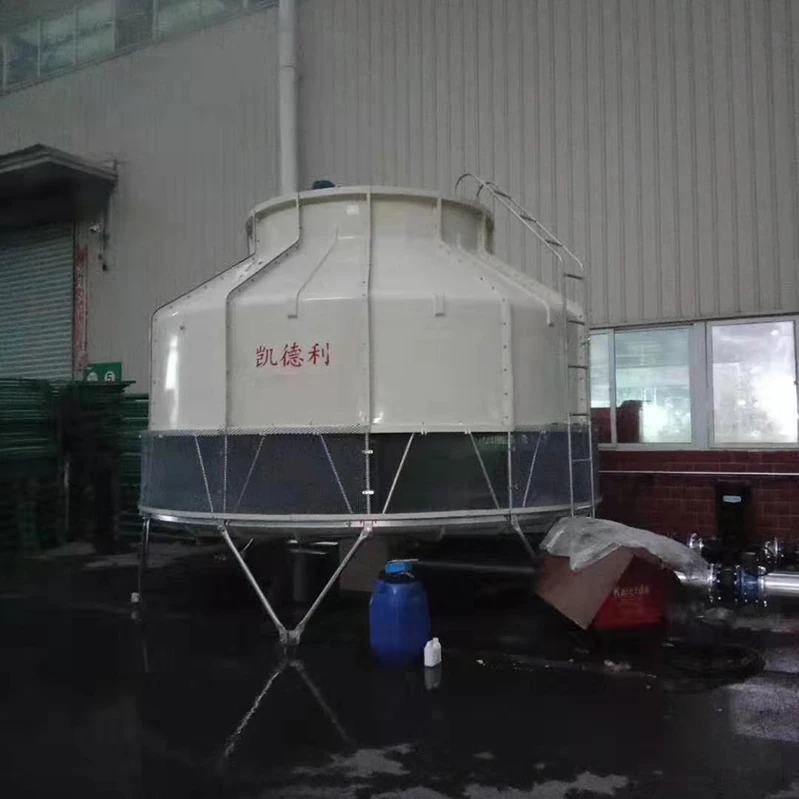

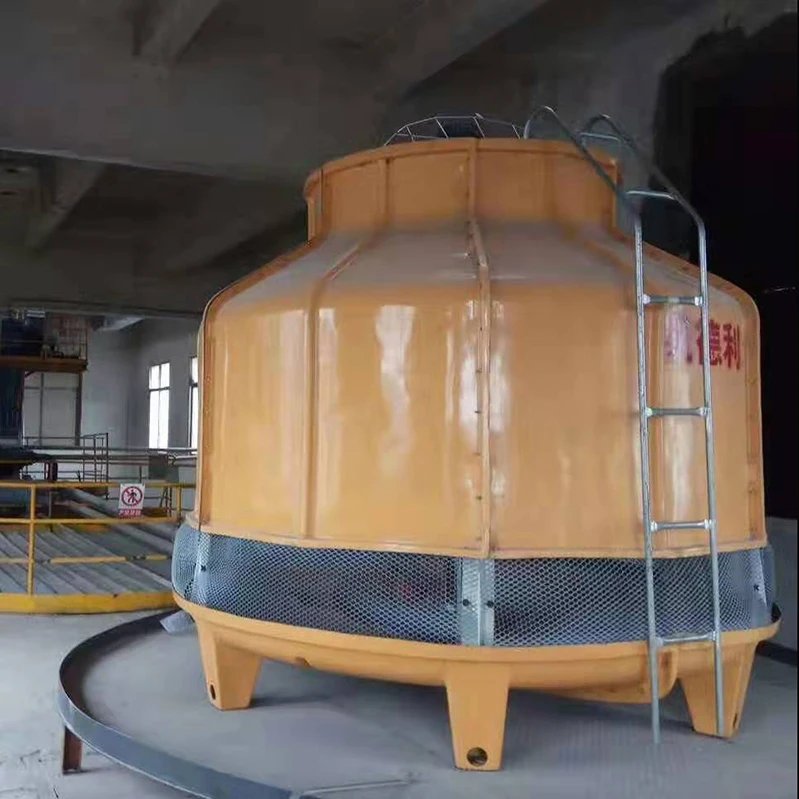

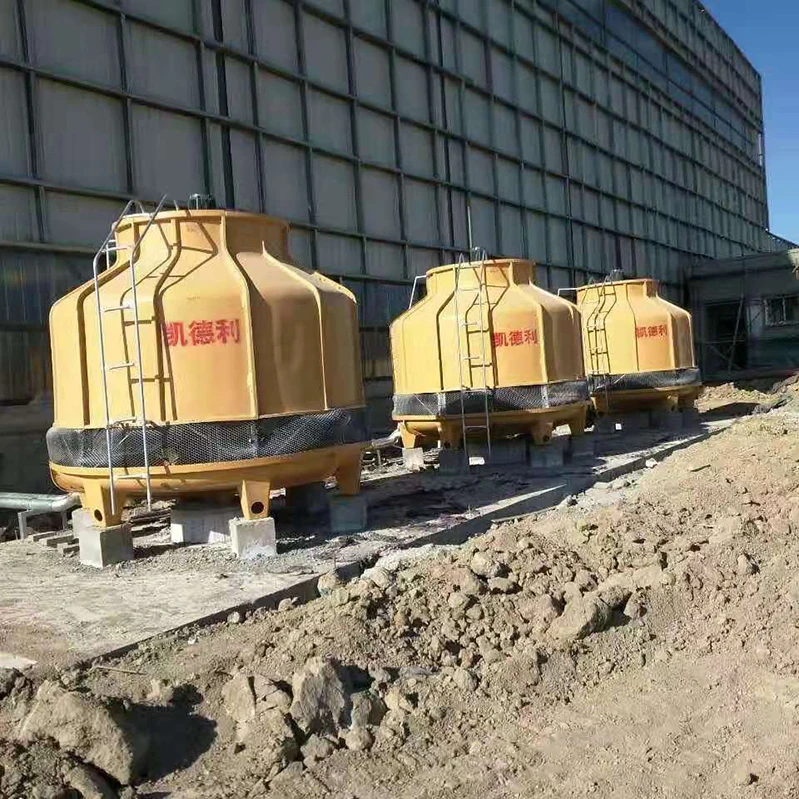

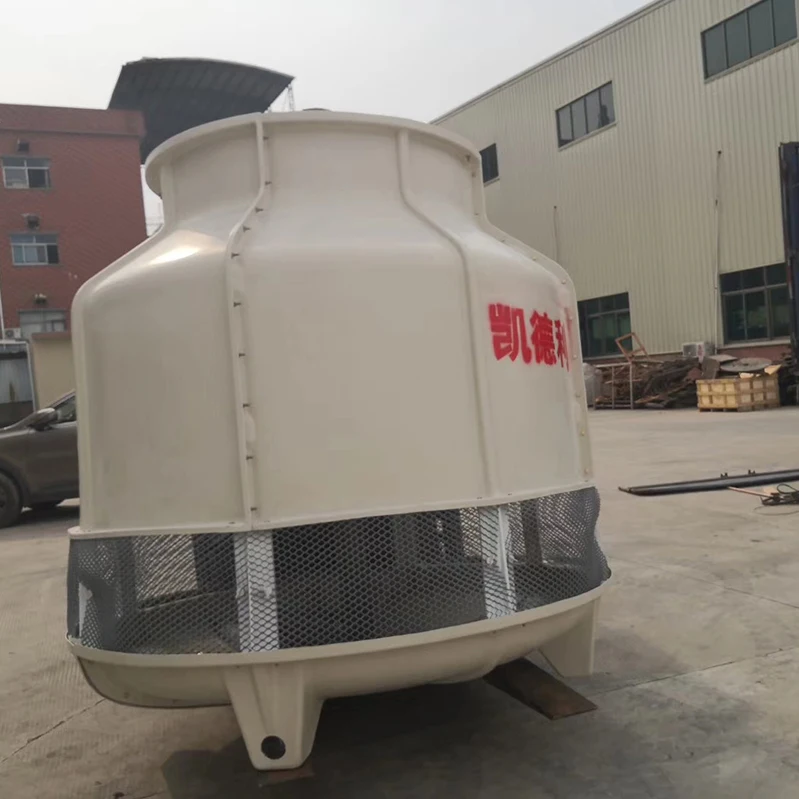

20ton Energy Saving Steel Structure Frame Water Cooling Tower

Project

Content

Data

Notes

Basic

Data

Cooling tower type

Counter flow circular cooling tower

Ton

Cooling tower Model

KWT-20

Standard

Circulating cooling water flow

15.62m³/h

In /Out temperature

37℃/32℃

Ambient Dry/Wet ball Temp.

31.5℃/28℃

Refrigerating capacity

78,100 kcal/h

Noise value

63.0dB(A)

Away tower 16M

Power supply

380V/3P/50Hz

Water quality

PH value=6-8

Design

Data

Air-water ratio

0.70kg/kg

Flying water loss

≤0.02%

Evaporating water loss

≤0.833%

Net weight

80kg

Application weight

320kg

Fan

Data

Fan type

Axial flow

Air volume

9,650m³/h

Fan speed

960r/min

Fan leaf diameter(F)

 630mm

Fan leaf number

4 Pieces/Set

Rotor type

Direct rotor

Motor speed

960r/min

Motor power

0.37 kW

Motor start method

Direct start

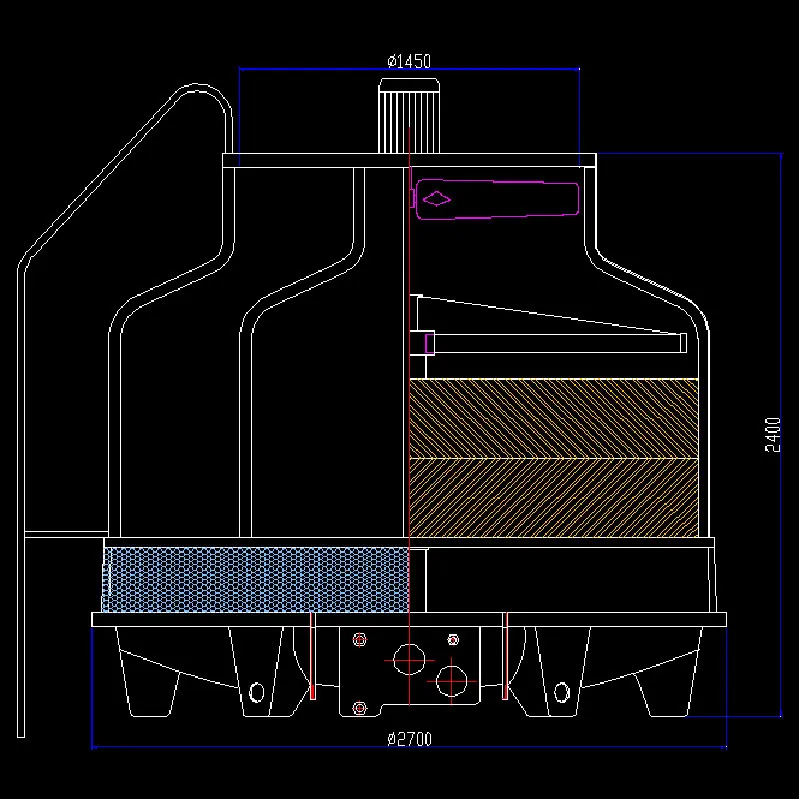

Main

size

Tower diameter(F)

1,170mm

Tower height(H)

1,770mm

In/out tube size(DN)

50mm/50mm

Overflow/drain pipe size(DN)

25mm/25mm

Automatic hydration size(DN)

15mm

Material

Motor

Hermetic waterproof type

Fan

A.B.S

Shell

Glass steel F.R.P

High-quality

Basin

Sprinkler system

 P.V.C

Film

P.V.C

Flame retardant

Float valve

A.B.S

Inlet system

P.V.C
