2020 Candas JF21/JH21 pneumatic punching machine/power press with high efficient
- Category: >>>
- Supplier: Suzhou Candas Import And Export Co. Ltd.
Share on (62460132719):
Product Overview
Description
Product Description
JF21 series open front fixed bed press with dry clutch and rigid overload protector
Press Specification | ||||||
Nominal force | KN | 160 | ||||
Nominal stroke | mm | 2 | ||||
Slide stroke | mm | 60 | ||||
SPM | Fixed | min-1 | 135 | |||
Variable(Optional) | min-1 | 120-150 | ||||
Max. die height | mm | 220 | ||||
Die height adjustment | mm | 30 | ||||
Between slide center and frame | mm | 160 | ||||
Bolster area(F·B x L·R) | mm | 310*700 | ||||
Bolster opening (up dia x depth x low dia) | mm | φ170*20*φ150 | ||||
Bolster thickness | mm | 65 | ||||
Bed opening (Dia/F·BxL·R) | mm | 200x220 | ||||
Slide area(F·B x L·R) | mm | 250x320 | ||||
Shank hole (Diax Depth) | mm | φ40x60 | ||||
Between columns | mm | 460 | ||||
Main motor power | KN | 3 | ||||
Outline dimension (F·B x L·R x H) | mm | 1500x1040x2000 | ||||
Net weight | kg | 2400 | ||||

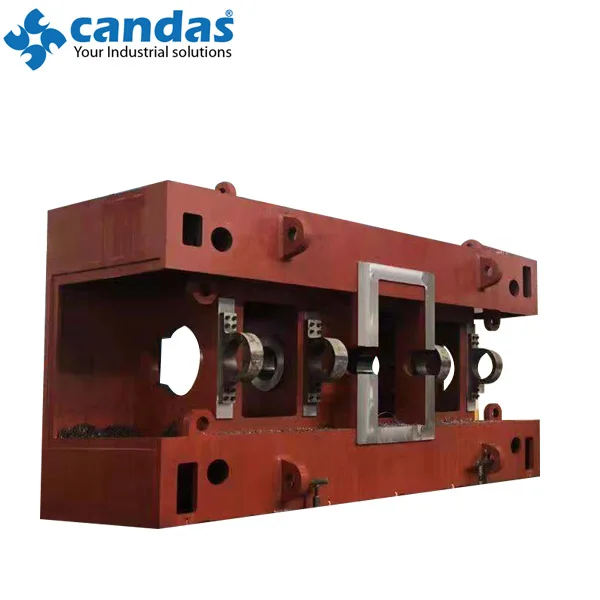

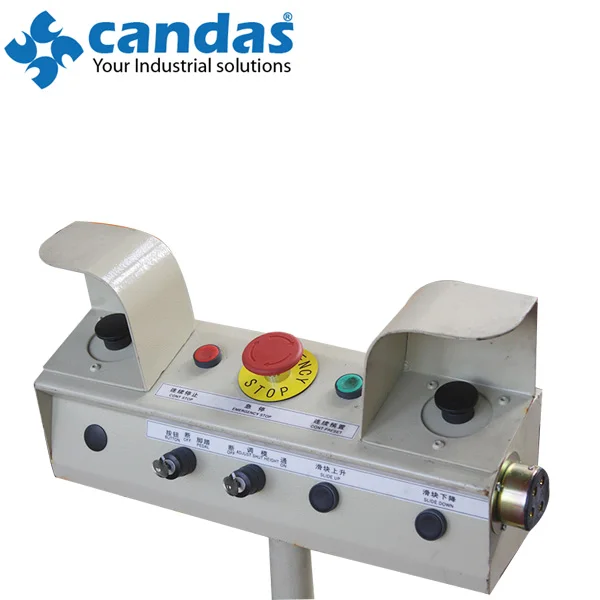

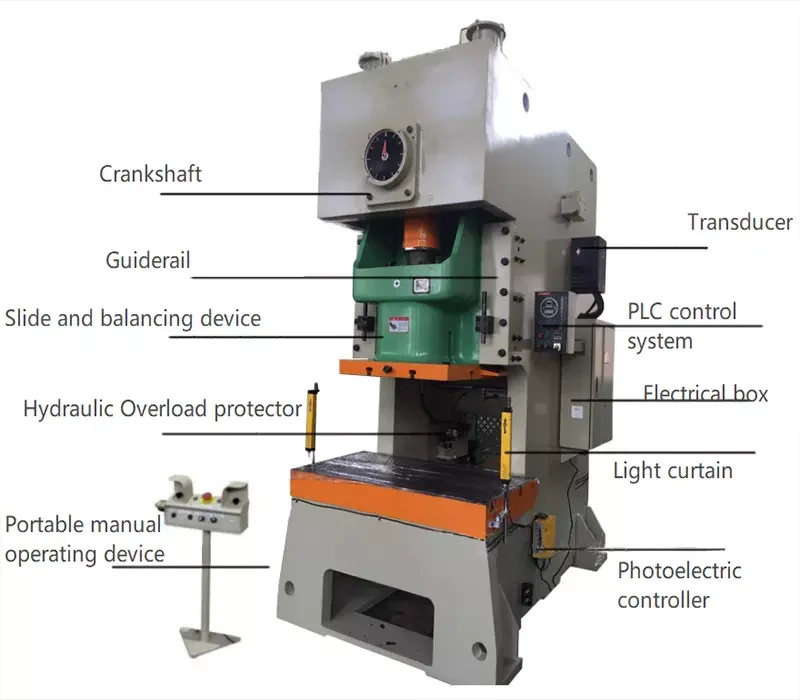

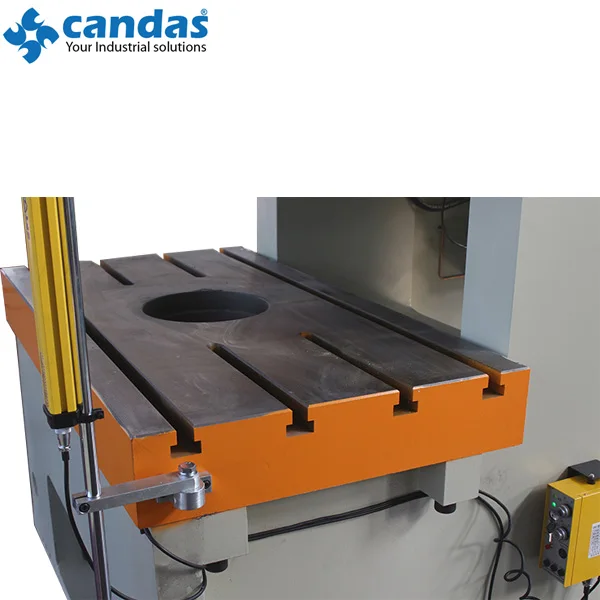

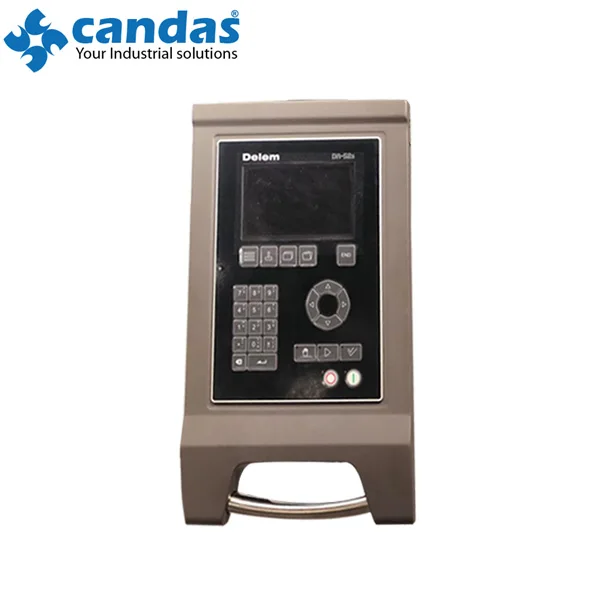

Detailed Images
Packing&Shipping

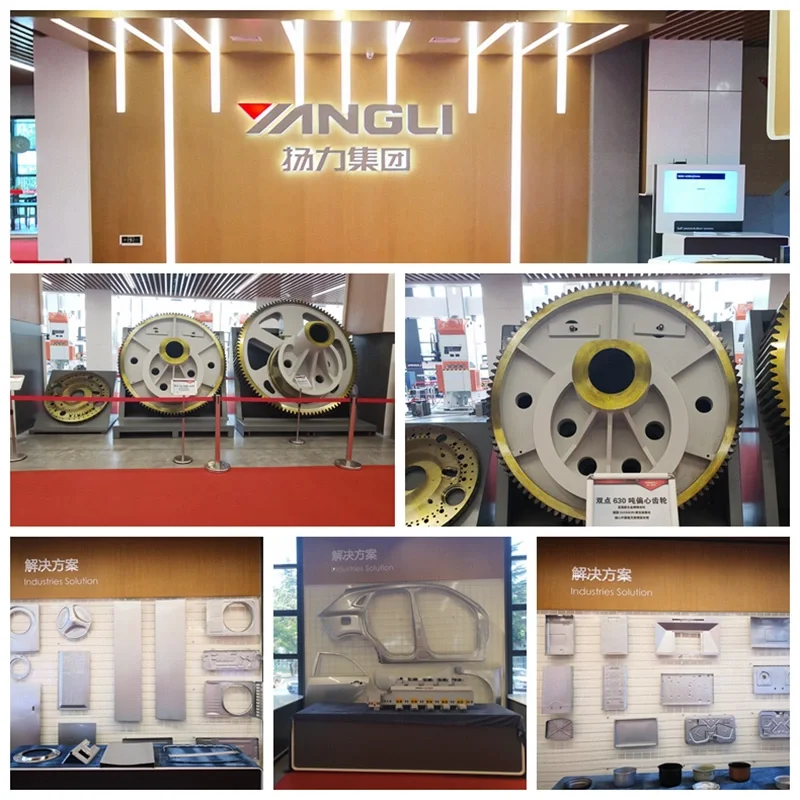

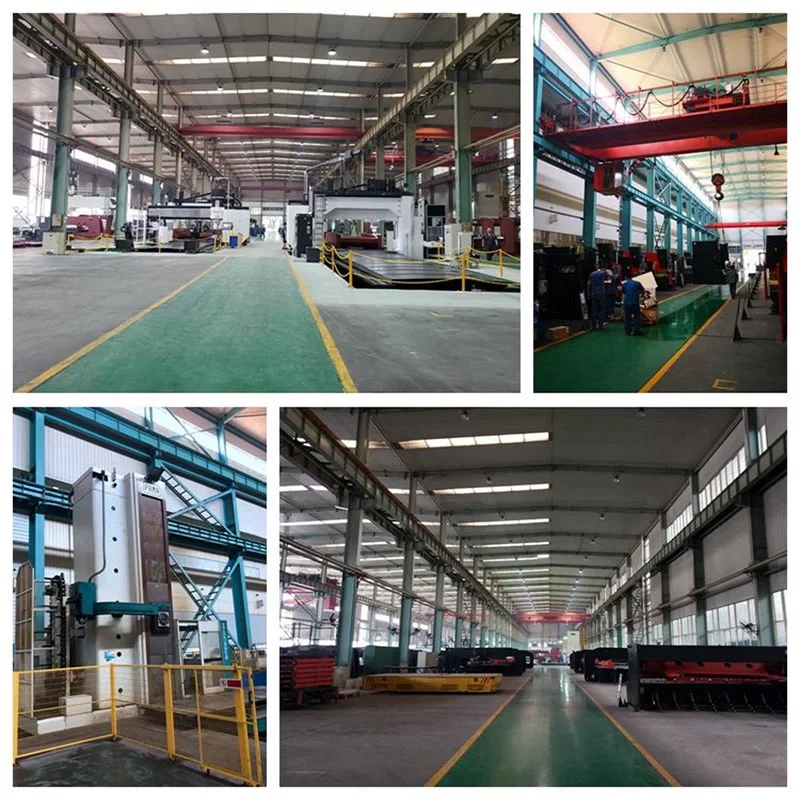

Company Introduction
