DPP 140 Capsule Blister Packing Machine Price
- Category: Blister Packaging Machines >>>
- Supplier: Zhejiang Leadtop Pharmaceutical Machinery Co. Ltd.
Share on (62460197240):
Product Overview
Description
Product Description

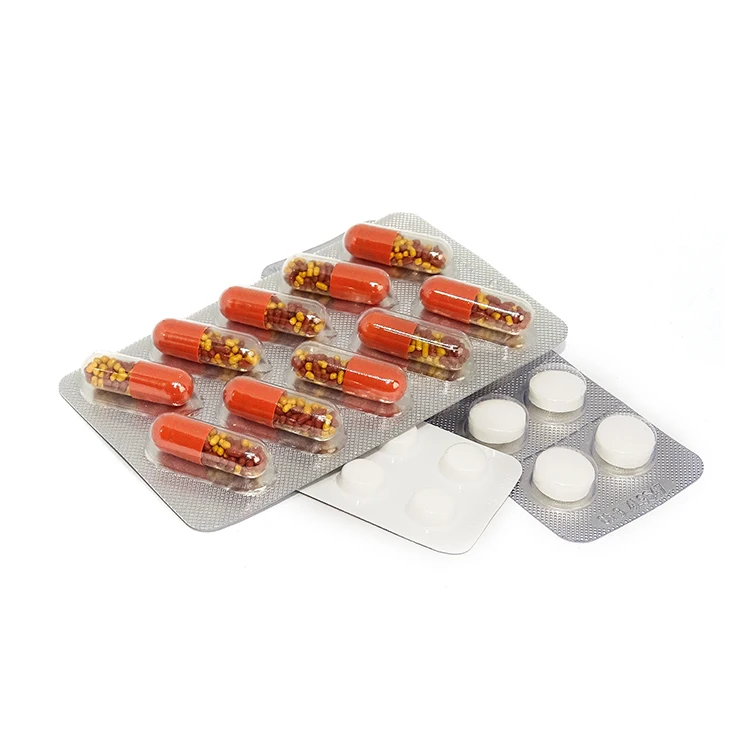

DPP-140 blister packing machine automatically packing tablet, capsule, soft capsule, candy, electronic-cigarette, liquid, ampoules, injection into aluminum plastic composite panel(ACP) or aluminum plate. The machine is used to produce small quality and many kinds of products.
The blister packing machine is suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value.
The blister packing machine is suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value.

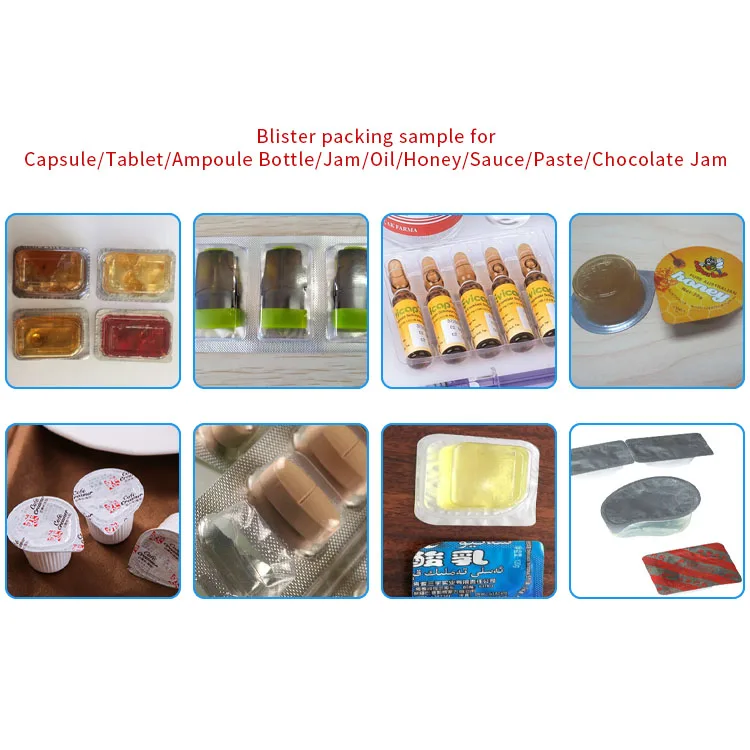

Packaging rang
Capsule / Tablet / Ampoule Bottle / Jam / Oil / Honey / Sauce / Paste / Chocolate Jam
Machine Data
Model | DPP-140 | DPP-250 | DPP-350 | ||
Blanking frequency（cutting）: | 5-50 | 20-40 | 15-45 | ||
Sheet's quantity of one blanking (sheets): | 1-4 | 1--6 | 1-8 | ||
Capacity (blisters/min): | 5-200 | 5-200 | 30-720 | ||
Adjustable scope of feed travel: (mm) | 10-120 | 30-145 | 10-160 | ||
Max Forming depth (mm) PVC: | 160*120*25 | 255 x 145 x 12 | 350×120×25 | ||
Capacity of air compressor(m3/min): | ≥0.36 | ≥0.22 | ≥0.36 | ||
Power supply: | 380V /220V, 30Hz, 5.5kw | ||||
size(mm): | 2450*570*1550 | 4200*650*1650 | 4200*650*1650 | ||
Weight (kg): | 950 | 1500 | 2200 | ||

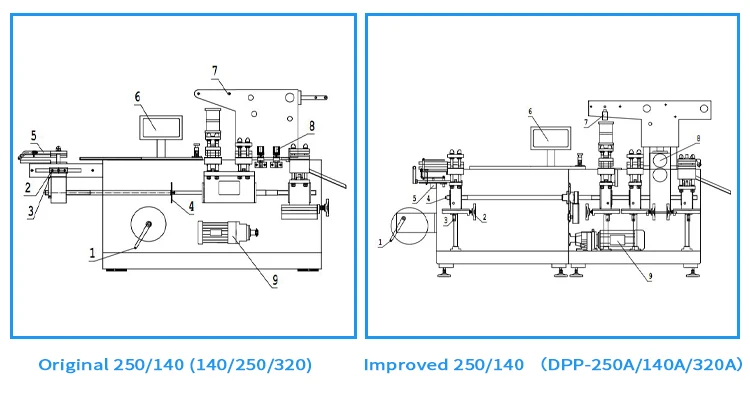

The improvement of 250/140 Blister Packing Machine
Detailed Images

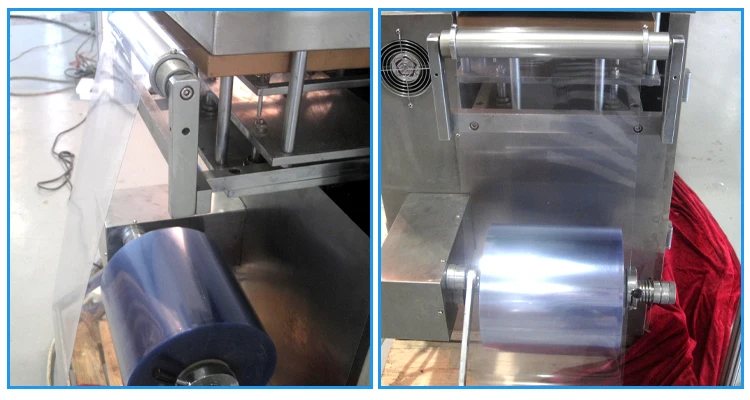

Plastic Preheating and unwind
When the machine run out of Plastic, it will stop automatically

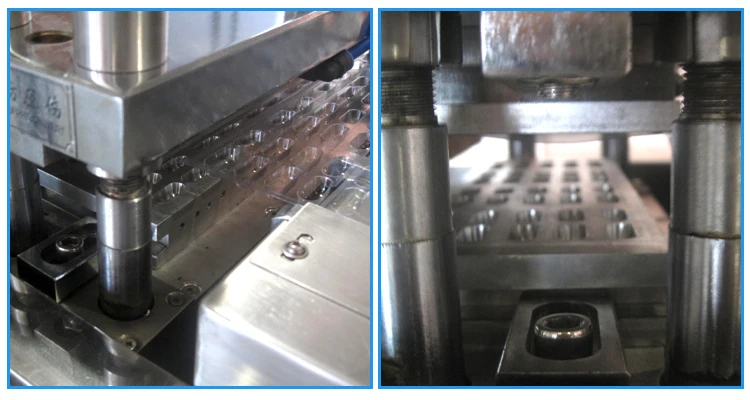

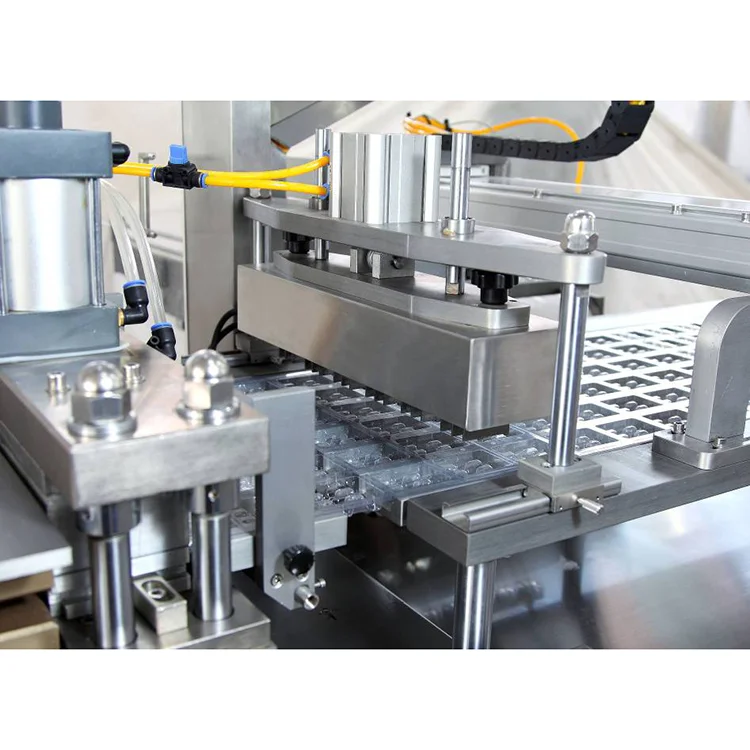

Plastic Blister Forming Station
We use ENCODER for forming, different from other’s cam for forming, cam will be broken when you run it too much time and fast. Mechanical is not always firm enough, So we change Electronic to control the Pneumatic, so this is the real PLC Control one brain machine, easy to adjust.

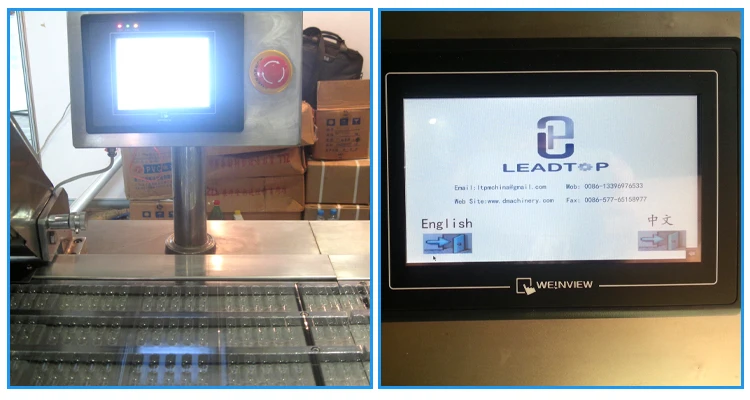

Touch Screen
Touch Screen brand can be required by customer.

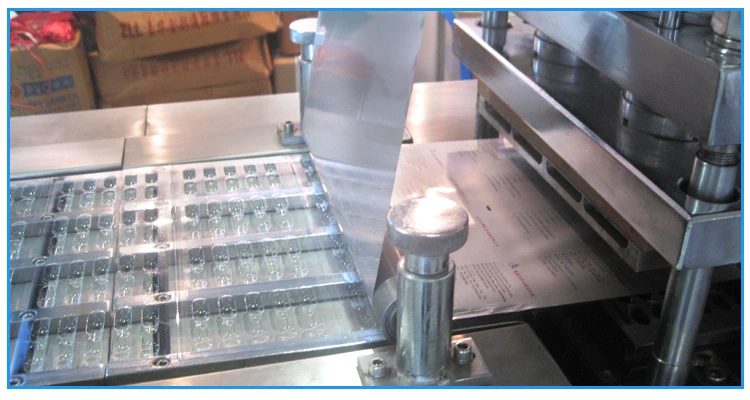

Aluminum and Plastic Sealing Station

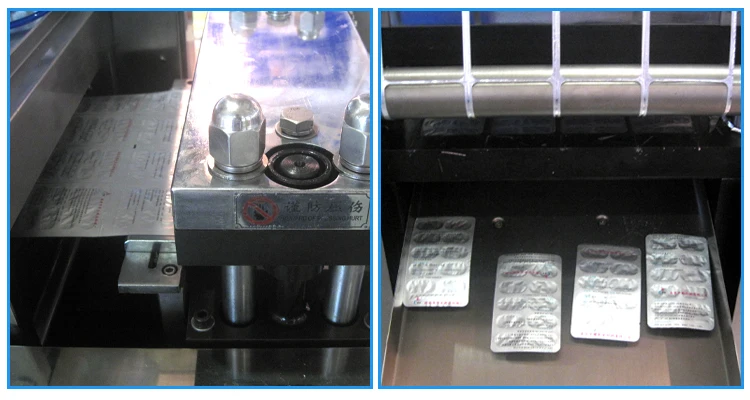

Aluminum Plastic Blister Cutting Station
The machine can cut 55times in one minute.
Features
1.Travel scope can be adjusted.
2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6.Stepping motor drives and tow materials.
7.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
2.Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3.The material is fed automatically. The mould and feeder can be designed as user’s requirements.
4.Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
5.Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
6.Stepping motor drives and tow materials.
7.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Related Products
Company Introduction
Our Company
- Since year 1996, LTPM CHINA had started manufacturing and supplying Pharmaceutical and food packaging machines such as Bag packaging system, Bottling Line, Liquid filler, Blister machine, Capsule filling machine, Liquid Filler, Cartoner, etc.
- LTPM CHINA designs and manufactures different types of packaging lines for customers, including standard or non-standard models.
- We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
- We have now 12 engineering technical person for technology improvement. Serve better and Offer the best industrial Solution always become our target.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q: What is Difference Between PLC Control and Real PLC Control?
A: PLC means programmable logic control. Such as, Blister packing machine, PLC Control change the old period in Blister Packing area. Nowadays, there are two PLC Control. One it is only used for controlling the touch screen, but when you adjust the traveling scope you need to adjust the mechanical wheel. Another is our Type, you can say PLC is my machine’s heart, you can enter everything into it to make the machine running.
Q: How to Change Mould (Changing Parts)?
A:Nowadays we have improved our Mould changing parts, there is a groove and screw on the mould. If you want to change into different packing you can unscrew it then change. We call it convenient type mould. And we also get a video for changing mould.
Q: When The Machine Stops, The Mould is Still Hot; Will It Heat PVC and Destroy Aluminum?
A:Our Forming Mould and Sealing mould will be separated automatically when the machine stops. It is special for protecting the unused material on the machine.
Q: What is the Step Motor Using For?
A:We must know one thing, if you want the machine run and the material goes ahead. There must be a motor for towing. Normally saying, there are two types motor for towing the material. One is Pneumatic Clip (Air Clip), but when the machine stop the clip will loose and materials go back, you need to adjust the machine again when restart. So we adopt Step Motor, It will be never loose. And it makes the towing length unlimited if your forming mould is long enough.
Q: The Machine Always Run Automatically, But When It Runs In a Wrong Length, What Should We Do?
A:According to this problem, we use a Camera Cell for registering the Color Point on Aluminum foil. When the machine run in a wrong length it will be found by Cameral Cell, then give a single to PLC, PLC will feedback to Step Motor, at last step motor will run in a right length to save material and time.
Q: What Is The Warranty Period for Your Machine?
A: 5 years free warranty.
Q: Do You Have Manual or Operation Video for Us To Know More About the Machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q: How Can I Trust You for The First Time Business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q: Is Engineer Available to Serve Oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
Q: How Can We Make Sure About the Machine Quality After We Put the Order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
A: PLC means programmable logic control. Such as, Blister packing machine, PLC Control change the old period in Blister Packing area. Nowadays, there are two PLC Control. One it is only used for controlling the touch screen, but when you adjust the traveling scope you need to adjust the mechanical wheel. Another is our Type, you can say PLC is my machine’s heart, you can enter everything into it to make the machine running.
Q: How to Change Mould (Changing Parts)?
A:Nowadays we have improved our Mould changing parts, there is a groove and screw on the mould. If you want to change into different packing you can unscrew it then change. We call it convenient type mould. And we also get a video for changing mould.
Q: When The Machine Stops, The Mould is Still Hot; Will It Heat PVC and Destroy Aluminum?
A:Our Forming Mould and Sealing mould will be separated automatically when the machine stops. It is special for protecting the unused material on the machine.
Q: What is the Step Motor Using For?
A:We must know one thing, if you want the machine run and the material goes ahead. There must be a motor for towing. Normally saying, there are two types motor for towing the material. One is Pneumatic Clip (Air Clip), but when the machine stop the clip will loose and materials go back, you need to adjust the machine again when restart. So we adopt Step Motor, It will be never loose. And it makes the towing length unlimited if your forming mould is long enough.
Q: The Machine Always Run Automatically, But When It Runs In a Wrong Length, What Should We Do?
A:According to this problem, we use a Camera Cell for registering the Color Point on Aluminum foil. When the machine run in a wrong length it will be found by Cameral Cell, then give a single to PLC, PLC will feedback to Step Motor, at last step motor will run in a right length to save material and time.
Q: What Is The Warranty Period for Your Machine?
A: 5 years free warranty.
Q: Do You Have Manual or Operation Video for Us To Know More About the Machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q: How Can I Trust You for The First Time Business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q: Is Engineer Available to Serve Oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
Q: How Can We Make Sure About the Machine Quality After We Put the Order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
