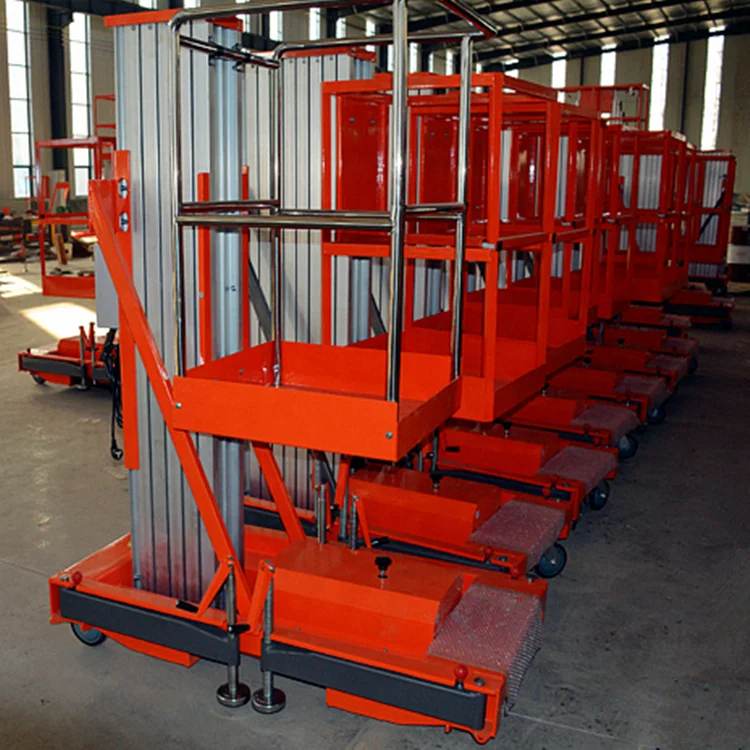

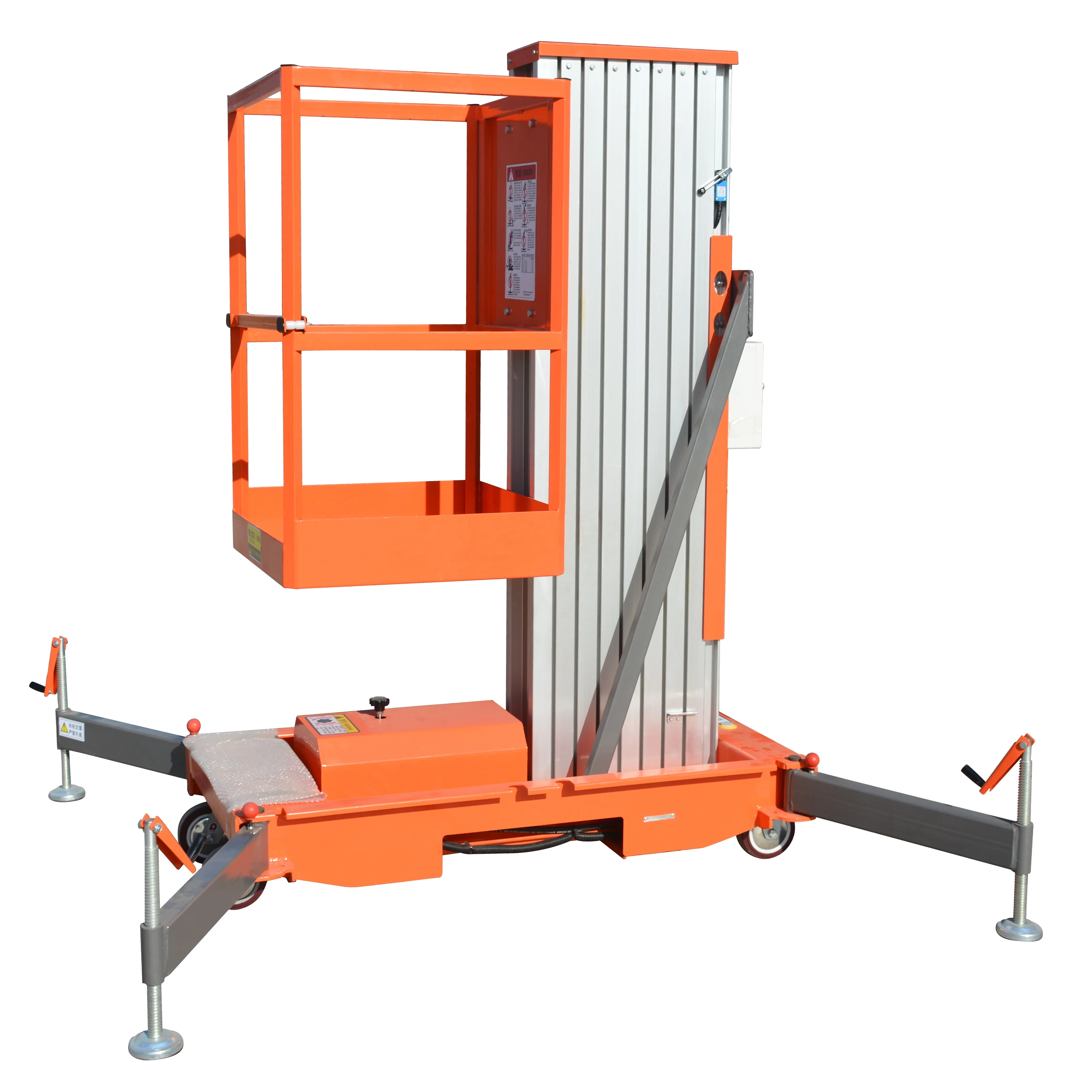

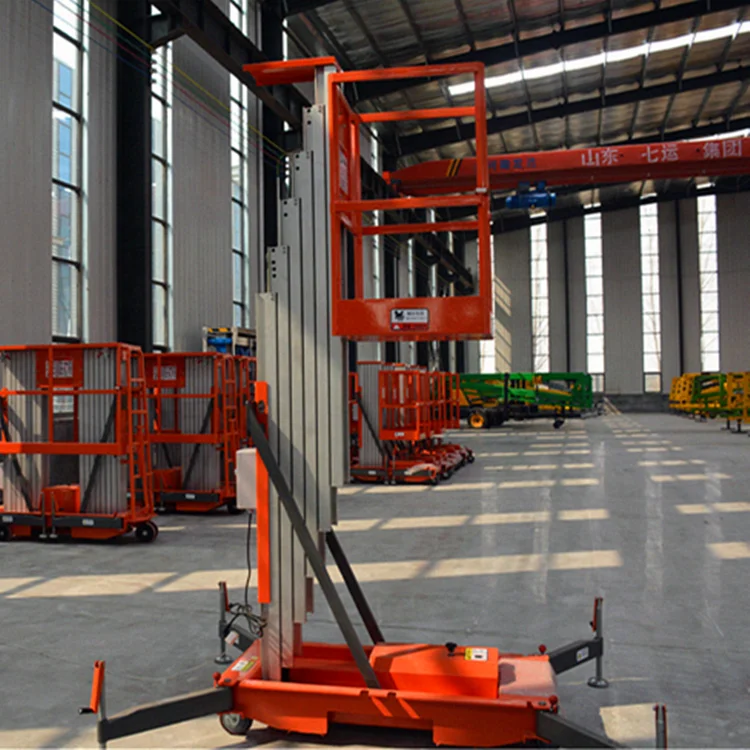

Персональная портативная подъемная Одиночная мачта алюминиевый сплав для воздушной работы Алюминиевый Электрический подъемник
- Category: >>>
- Supplier: Shandong Qiyun Group Co. Ltd.
Share on (62460351104):
Product Overview
Description
Product Description
QIYUN aerial work platforms are designed to enhance productivity in the workplace.Flexible features on the Aluminum Mast Lift Platform offer convenience at a low cost. The lightweight construction makes them easy to maneuver, use and transport, delivering excellent uptime.
1 man lift rental explosion proof man lift aerial work platforms | ||
Working Height | 12m/39ft | |
Platform Height | 10m/33ft | |
Capacity | 100kg/220lb | |
Stowed Height | 1.5m/5ft | |
Lifting Speed | 3-5m/min | |
Platform Size | 650*650*1100mm | |
Machine Size | 1300*820*2200mm | |
Wood Packing Size | 1600*1120*2600mm | |
N.W: | 360kg | |
G.W: | 410kg | |
Name | Model | Platform Height | Loading | Volt | Power | N.W | MEAS |
QYLH6-100-1 | 6m/20ft | 100kg | 220/380 | 1.1Kw | 320kg | 1.3*0.82*1.98m | |
QYLH8-100-1 | 8m/26ft | 100kg | 220/380 | 1.1Kw | 320kg | 1.3*0.82*1.98m | |
QYLH10-100-1 | 10m/33ft | 100kg | 220/380 | 1.1Kw | 360kg | 1.3*0.82*2.2m | |
QYLH6-250-2 | 6m/20ft | 250kg | 220/380 | 1.5Kw | 450kg | 1.55*0.85*1.65m | |
QYLH8-250-2 | 8m/26ft | 250kg | 220/380 | 1.5Kw | 560kg | 1.55*0.85*2m | |
QYLH10-250-2 | 10m/33ft | 250kg | 220/380 | 1.5Kw | 680kg | 1.65*0.85*2m | |
QYLH12-200-2 | 12m/40ft | 200kg | 220/380 | 1.5Kw | 720kg | 1.65*0.85*2m | |
QYLH14-200-2 | 14m/46ft | 200kg | 220/380 | 1.5Kw | 780kg | 1.55*0.85*2.5m | |
QYLH10-250-3 | 10m/33ft | 250kg | 220/380 | 1.5Kw | 1080kg | 1.88*1.0*2.05m | |
QYLH12-250-3 | 12m/40ft | 250kg | 220/380 | 1.5Kw | 1160kg | 1.88*1.0*2.05m | |
QYLH14-200-3 | 14m/46ft | 200kg | 220/380 | 2.2Kw | 1060kg | 1.9*1.2*2.5m | |
QYLH16-200-3 | 16m/52ft | 200kg | 220/380 | 2.2Kw | 1120kg | 2*1.2*2.5m | |
QYLH12-250-4 | 12m/40ft | 250kg | 220/380 | 2.2Kw | 1050kg | 1.95*1.2*2m | |
QYLH14-200-4 | 14m/46ft | 200kg | 220/380 | 2.2Kw | 1250kg | 1.9*1.2*2.5m | |
QYLH16-200-4 | 16m/52ft | 200kg | 220/380 | 2.2Kw | 1480kg | 2*1.2*2.5m | |
QYLH18-250-4 | 18m/59ft | 250kg | 220/380 | 2.2Kw | 1700kg | 2.15*1.35*2.96m | |
QYLH18-160-6 | 18m/59ft | 160kg | 220/380 | 2.2/1.5Kw | 1450kg | 2.1*1.2*2.1m | |
QYLH20-160-6 | 20m/65ft | 160kg | 220/380 | 2.2/1.5Kw | 1520kg | 2.26*1.4*2.3m | |
QYLH22-160-6 | 22m/72ft | 160kg | 220/380 | 2.2/1.5Kw | 1880kg | 2.26*1.4*2.5m | |
QYLH24-160-6 | 24m/79ft | 160kg | 220/380 | 2.2/1.5Kw | 1980kg | 2.26*1.4*2.7m |

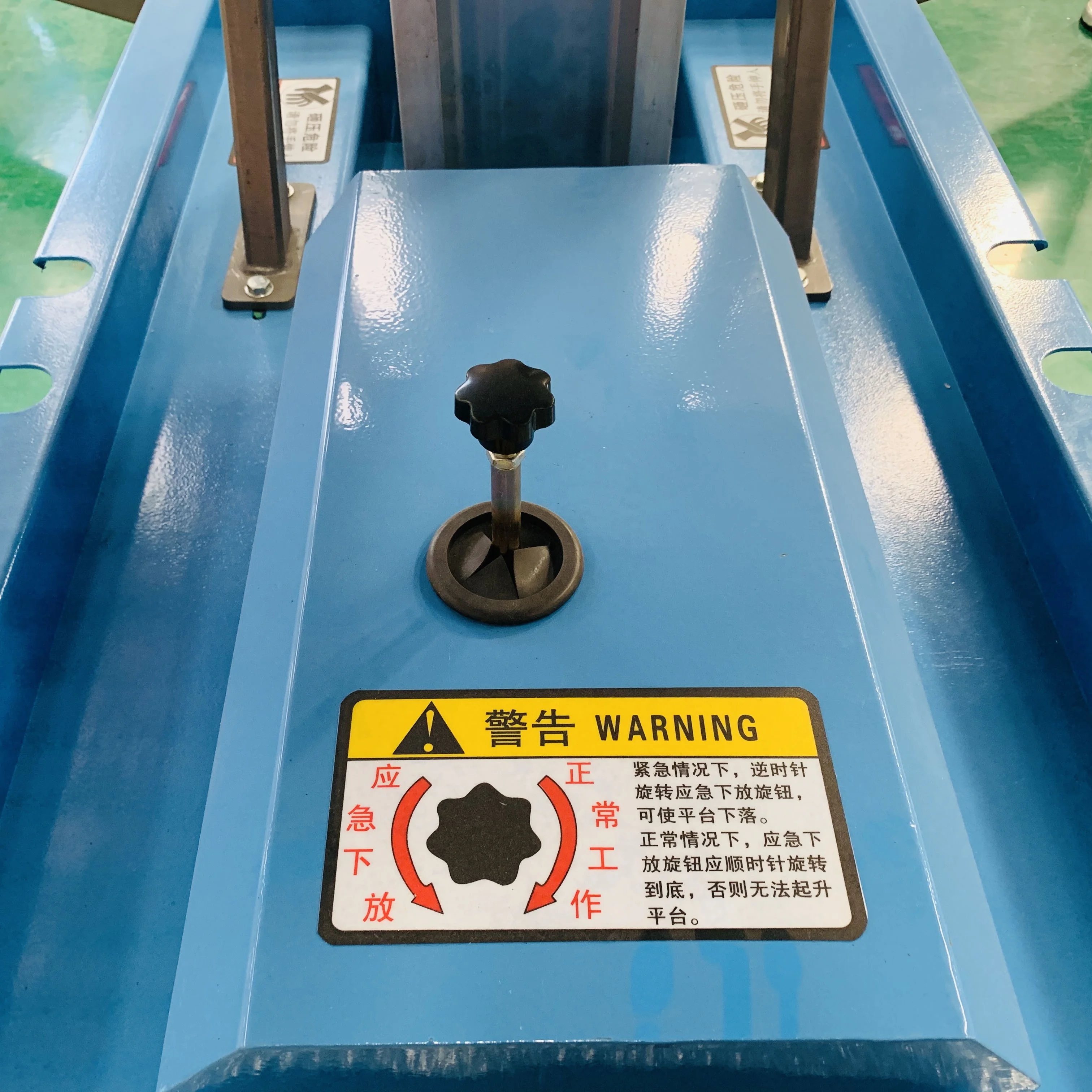

Pressure Relief Switch

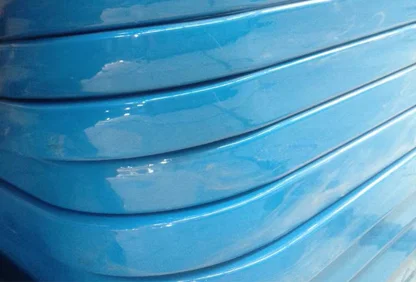

Electrostatic Spray
The manganese steel Q235 is processed by a large shot blasting machine and then sprayed into the electrostatic spray line forsurface spray molding, which is more environmentally friendly/durable/shiny/wearable than conventional spray paint.

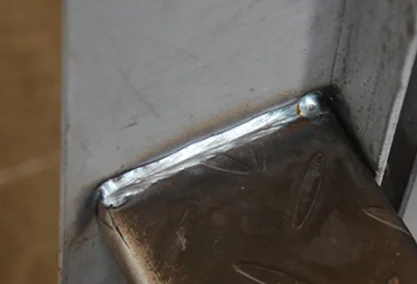

Welding
After processing by a large polishing machine, it is welded by CNC electric welding and then polished by workers to ensure the quality of each detail.
Limit Switch
The limit switch regulates the electrical circuit that controls the machine and its moving parts. These switches can be used as pilot devices for magnetic starter control circuits, allowing them to start, stop, slow down, or accelerate the functions of an electric motor.

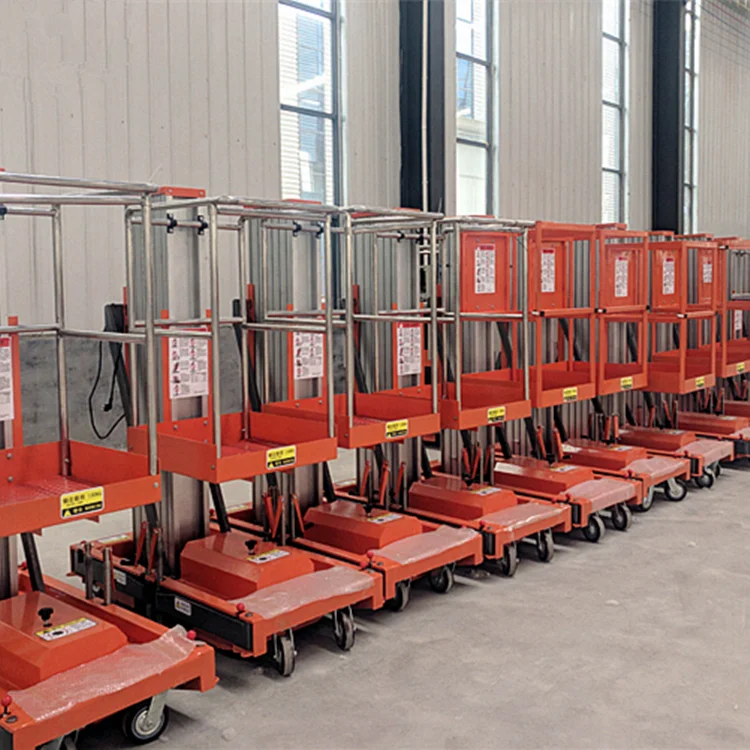

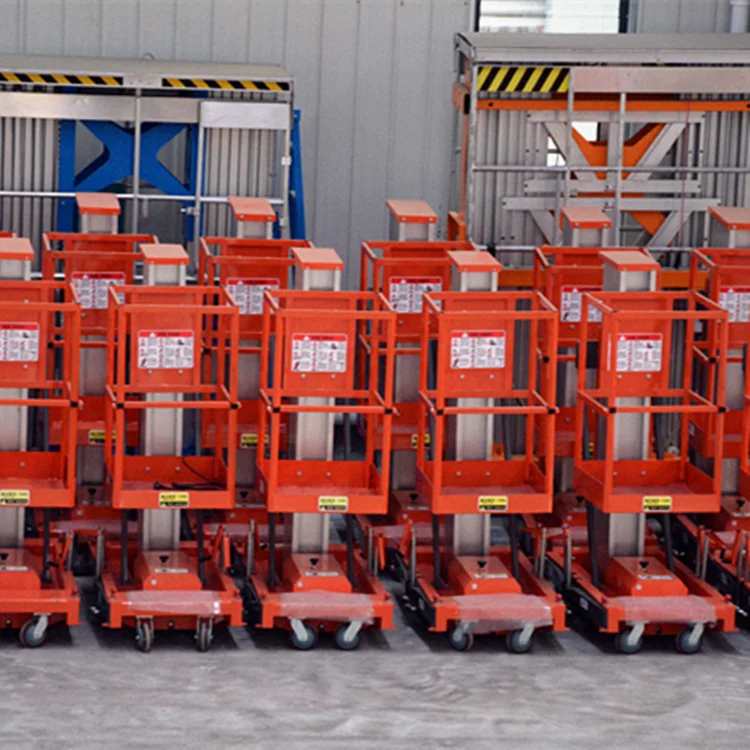

Detailed Images
Our Aluminum aerial work platform can be used in a variety of rental, light-duty construction and maintenance applications. Its lightweight design makes it easy to load and transport in pickup trucks.
Related Products

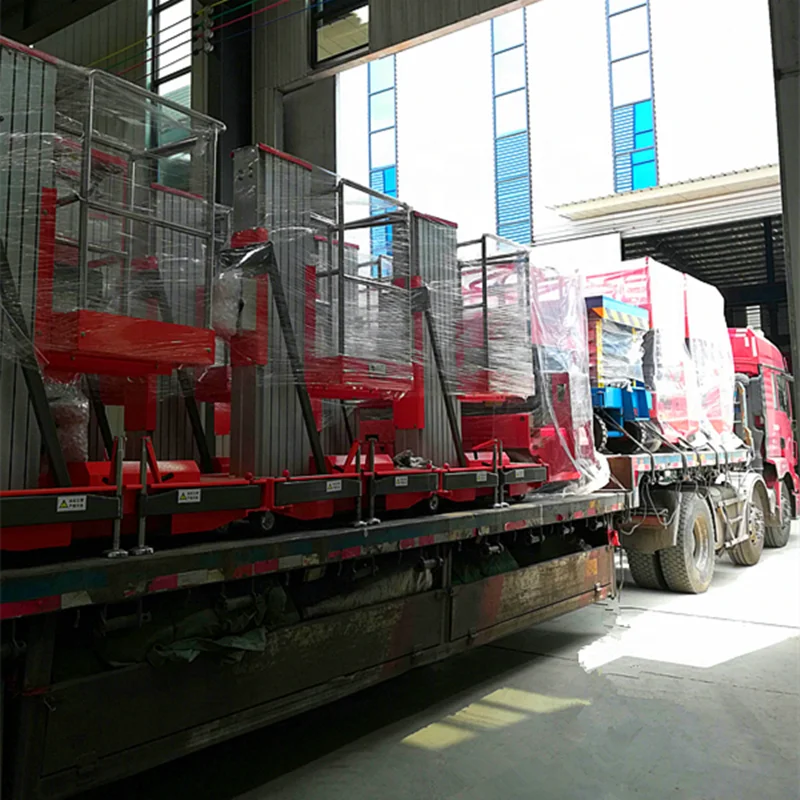

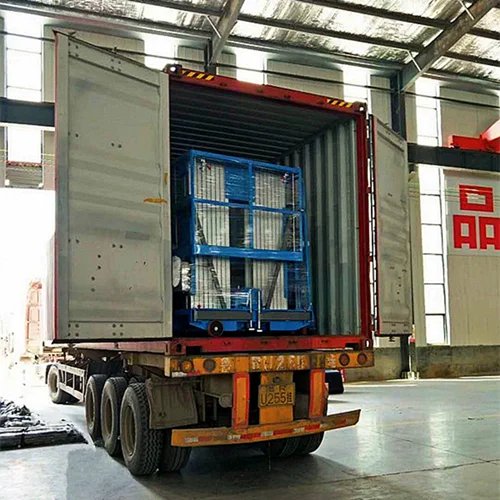

Packing&Shipping

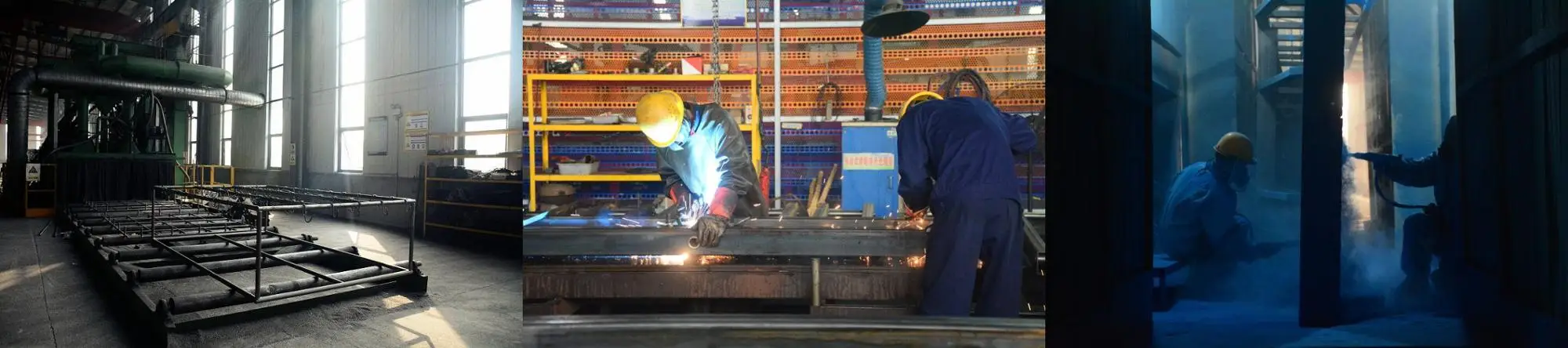

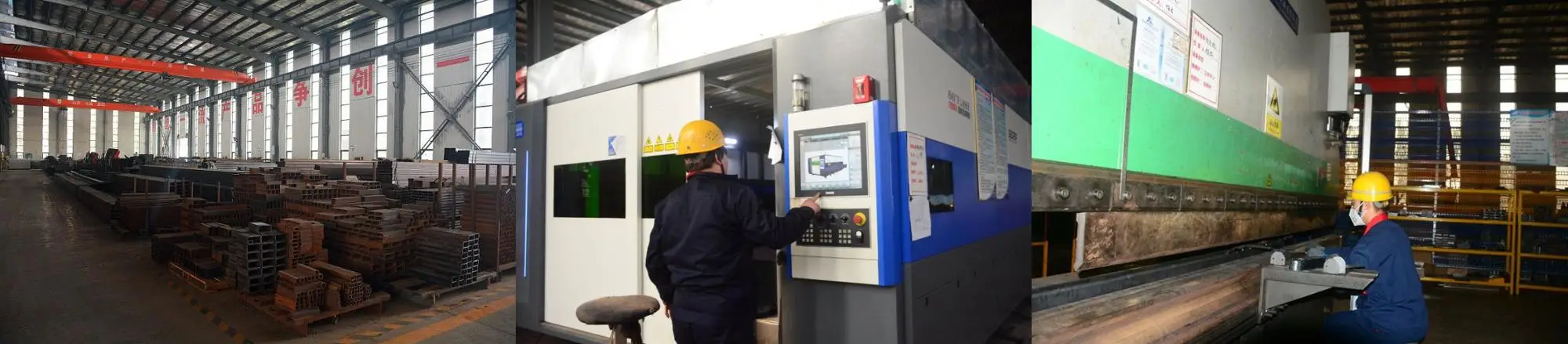

Production Process
Raw Material
Laser Cutting
Bending
Welding
Sprary
2. Spare parts sale;
3. Demand forecast;
4. Logistics;
5. Refund;
6. Training & Qualifcation
Exhibition
Company Introduction
Shandong Kinglift Group Co., Ltd. is estabilshed in 2009, have over 150 workers, The factory covers an area of 4,000 acres and has 6 workshops and 1 office building. The company integrates R&D and production. The main products are Scissor lift, Aluminum Lift, Truck mounted Lift, Boom Lift, Crawler Lift, Dock leveller and Cargo Elevator, Car Lift, etc.
FAQ
1. What is our advantage
We are the first manufacturer of automated producting of China lift platform base,so the quality and price have absolute advantage
in the market
High quality after-sales service, we can provide on-site installation and guidance
12 months warranty for whole lifts without man-made faults.
2. Are your aluminum alloy man lifts customized?
Yes, because the working condition are different, all our lifts can be customized depending on detailed requirement! So if you
give us more information about the lift capacity, span, lift height, power source and other requirements, we will give you a very
quick quote.
3. What info. should I provide when inquiry?
The more information you provide, the accurate solution we can prepare for you!
such as :
.Working condition. Which cargo to lift? Temperature?
.Lifting capacity?
.Lifting height?
.Lift speed?
.Control mode?
.Power supply; Voltage(In China, it’s 380V 50Hz 3Phase)?
We are the first manufacturer of automated producting of China lift platform base,so the quality and price have absolute advantage
in the market
High quality after-sales service, we can provide on-site installation and guidance
12 months warranty for whole lifts without man-made faults.
2. Are your aluminum alloy man lifts customized?
Yes, because the working condition are different, all our lifts can be customized depending on detailed requirement! So if you
give us more information about the lift capacity, span, lift height, power source and other requirements, we will give you a very
quick quote.
3. What info. should I provide when inquiry?
The more information you provide, the accurate solution we can prepare for you!
such as :
.Working condition. Which cargo to lift? Temperature?
.Lifting capacity?
.Lifting height?
.Lift speed?
.Control mode?
.Power supply; Voltage(In China, it’s 380V 50Hz 3Phase)?
