Product Overview
Description

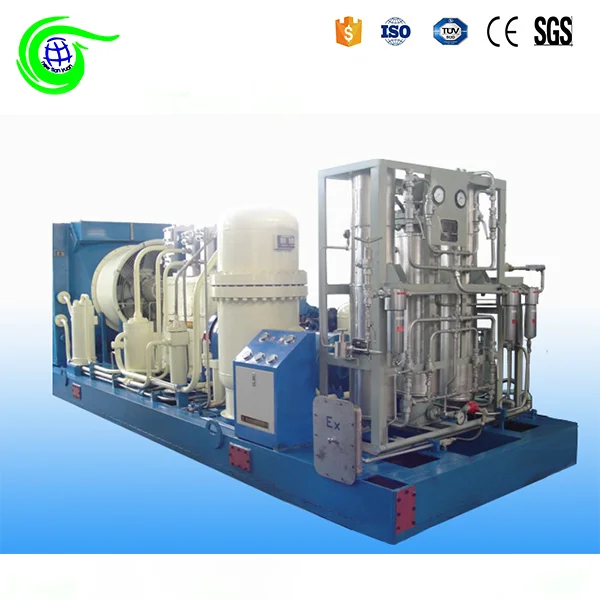

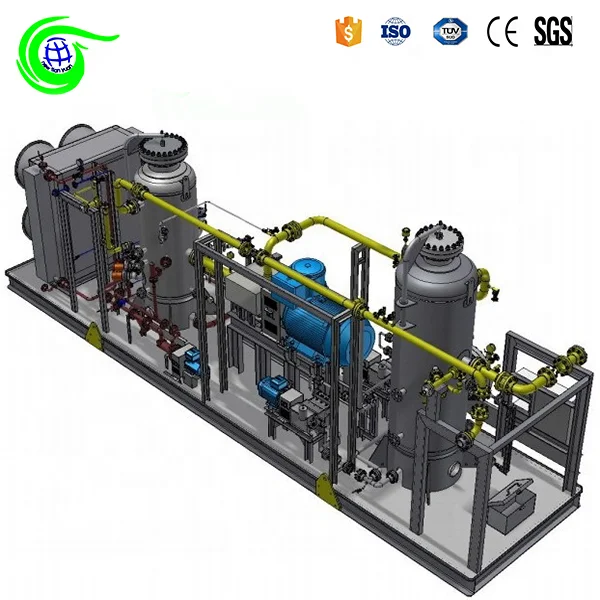

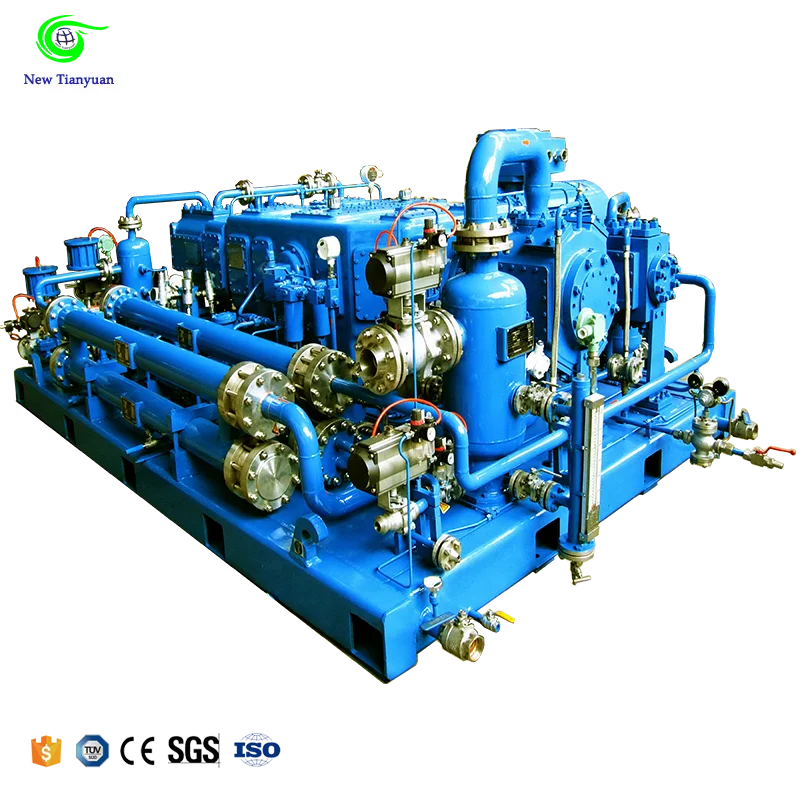

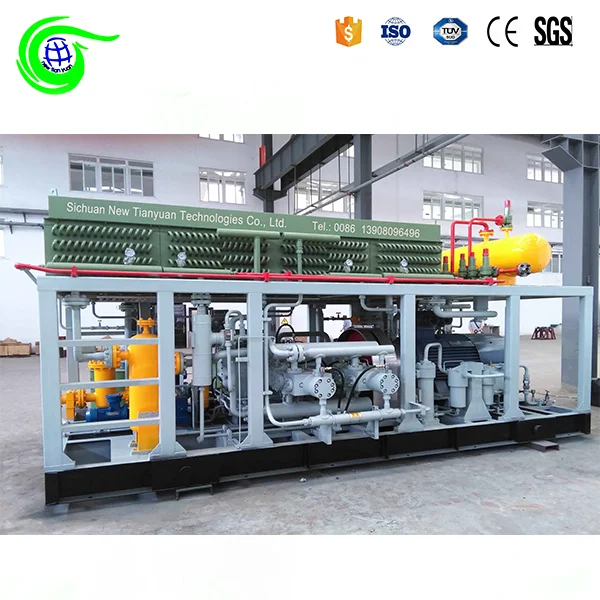

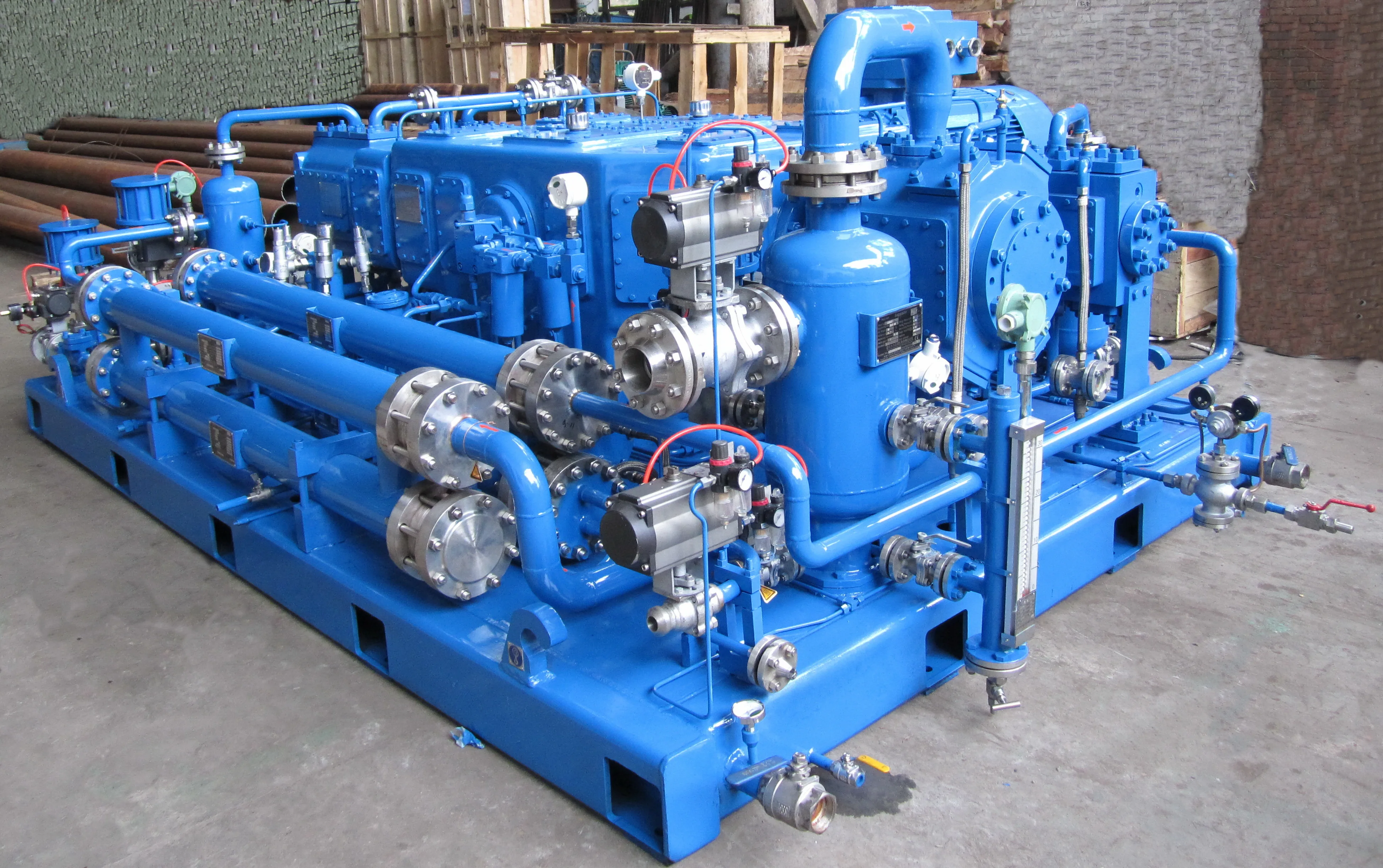

The M-series compressor is horizontal opposite balanced type. Its discharge pressure is 1.72MPa, gas supply is 2400thNm3/h (=2MMSCFD). The compressor is of water cooling, air cooling or mixture cooling, whole package in case and fitted with PLC for automatic control, applied to mother-daughter station and areas where water is lacking.
Technical characteristics of wellhead gas compressor parameters:
| Capacity | 150000-250000m3/day |
| Inlet Pressure | 0.03MPa |
| Outlet Pressure | 1.72MPa |
| Inlet Temperature | 30°C |
| Outlet Temperature | 55°C |
| Compressor Electric Wire with Soft Start | Voltage -380-400V, rated power 315KW |
| Material | The unit is an anti-corrosion version(at lease H2S-4%) |

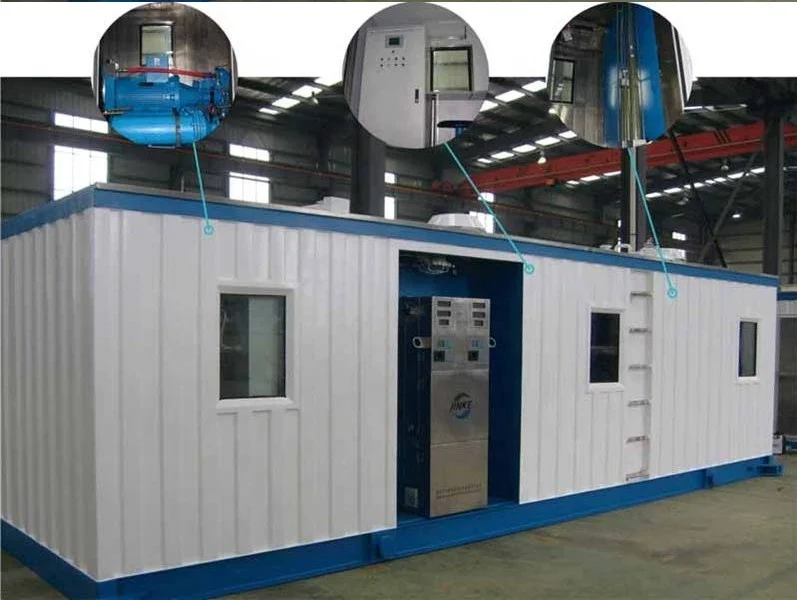

| Skid mounted | A container will be mounted on a slide |
| Explosion Protection Level | not less than d II BT4 |
| Service Life | not less than 20 years |
About Us
________________________________________________________________
Our Main Products Including:
- Gas Treatment and Purification (gas purificaiton/ gas dehydration unit / gas pressure regulating metering odoring station)
- Diaphragm Compressor
- Piston Reciprocating Compressor (CNG compressor / Process Gas Compressor)
Our Factory
Our Certifications
Bill of Lading
Our Service
Service for our high efficiency compressor:
1. Reply in 24 hours.
2. Providing professional solutions.
3. Every product will be tested before the delivery.
4. Delivery on time and excellent after-sales service.
5. High quality, reliable price.
Customers Around the World
Our Team
Packaging & Shipping
CUSTOMERS PACKING CASES
Our International Business Sales Ratio
FAQ
To have prompt and exact evaluation from factory, the following informations are essential to be provided by customer while inquiring:
1. Exact compression media: flammable, toxic, oxygen, inert gases. Preferably the gas composition can be provided;
2. Suction pressure, discharge pressure, flow capacity of compressor;
3. Control system: Requirement for manual start or full automatic control;
4. Electric parameters: Voltage, frequency, phase;
5. Any special requirement for compressed gas temperature, equipment package, configuration and etc..
We also can design piston reciprocating compressors according to clients' parameters to satisfy client's local environment and different needs. More detailed information can be provided with further communication.
