SHANTUI SD32 Dozer SD32D D8 Tracked Dozer New Price Bull Dozer for Sale
- Category: >>>
- Supplier: Shandong Shantui Construction Machinery Import And Export Co. Ltd.
Share on (62460818545):
Product Overview
Description
Products Description

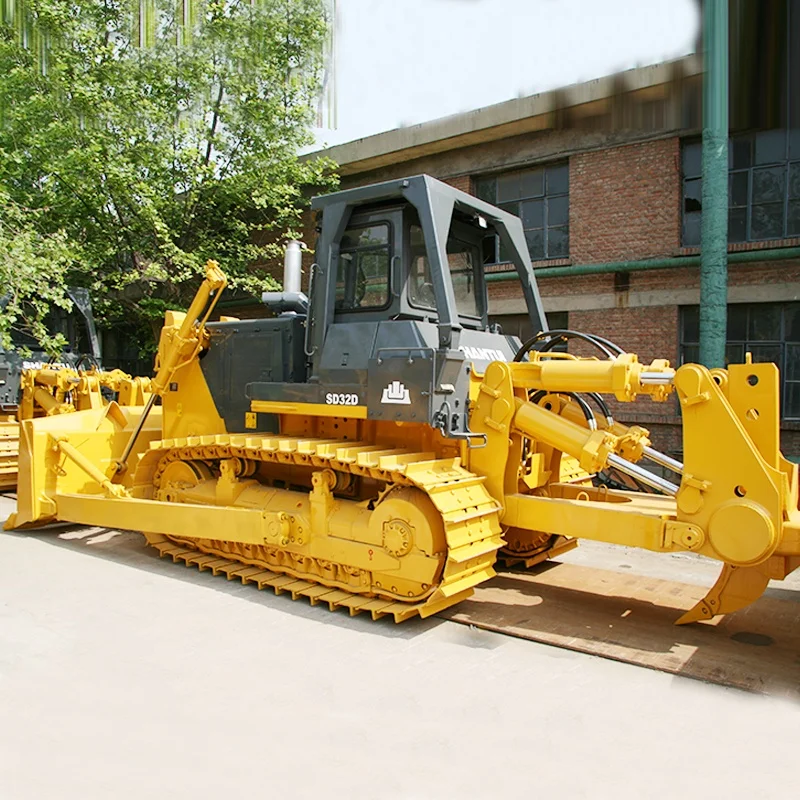

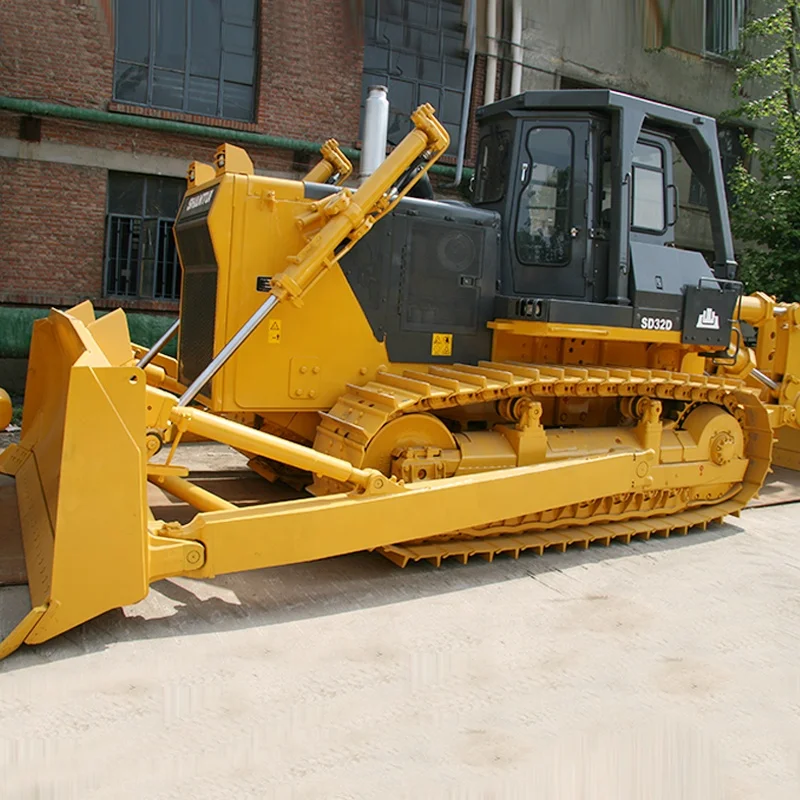

SD32D desert bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to thedemands of desert working conditions.
Technical Features
This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.
It’s equipped with Chongfa NTA855-C360 engine, of which the pistons, cylinder sleeves, piston rings, and piston pins adopt the originally imported Cummins products.
The high capacity sand-retaining radiator and the engine intake prefilter are equipped to abundantly adapt to the climate
characteristics of serious sand wind and high air temperature in deserts and semi-deserts and the earthworks in deserts and semi-deserts.
Performance parameters
Technical Features
This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.
It’s equipped with Chongfa NTA855-C360 engine, of which the pistons, cylinder sleeves, piston rings, and piston pins adopt the originally imported Cummins products.
The high capacity sand-retaining radiator and the engine intake prefilter are equipped to abundantly adapt to the climate
characteristics of serious sand wind and high air temperature in deserts and semi-deserts and the earthworks in deserts and semi-deserts.
Performance parameters
Length × width × height (mm) (excluding ripper) | 6880×4130×3640 |
Operating weight(t) (excluding ripper) | 37.5 |
Engine model | NTA855-C360 |
Net power/rated speed (kW/rpm) | 235/2000 |
Ground pressure(Mpa) | 0.106 |
Blade type | Straight tilting blade //Angle blade//Semi-U blade |
Blade capacity(m3) | 10 for straight tilting blade//6.2 for angle blade //11.7 for Semi-U blade |
Applicable working conditions:Earthworks in desert zones.

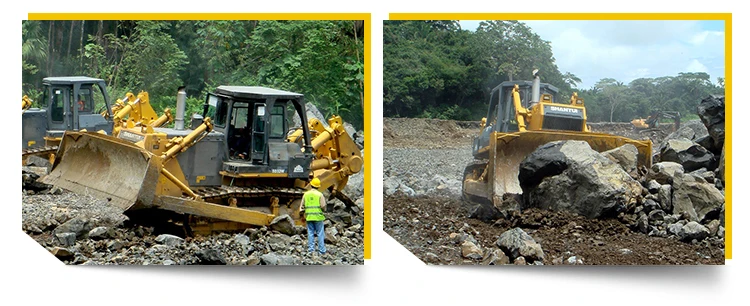

SD32W rock bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of severe heavy-load working conditions, such as decomposed rock and frozen earth.
Technical Features
This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.
The rock bulldozer is equipped with special tracks and the high strength wear-resistant blade and push rod to remarkably improve the wear resistance and especially adapt to the heavy-duty conditions such as coarse sand, stone, decomposed lithosphere, and frozen earth.
Performance parameters
Technical Features
This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.
The rock bulldozer is equipped with special tracks and the high strength wear-resistant blade and push rod to remarkably improve the wear resistance and especially adapt to the heavy-duty conditions such as coarse sand, stone, decomposed lithosphere, and frozen earth.
Performance parameters
Length × width × height (mm) (excluding ripper) | 6880×4130×3640 |
Operating weight(t) (excluding ripper) | 38 |
Engine model | NTA855-C360S10 |
Net power/rated speed (kW/rpm) | 235/2000 |
Ground pressure(Mpa) | 0.107 |
Blade type | Straight tilting blade //Angle blade//Semi-U blade |
Blade capacity(m3) | 10 for straight tilting blade//6.2 for angle blade //11.7 for Semi-U blade |
Applicable working conditions: Mining conditions (such as coarse sand, stone, and decomposed rock) and severe heavy-duty working conditions (such as frozen earth).
