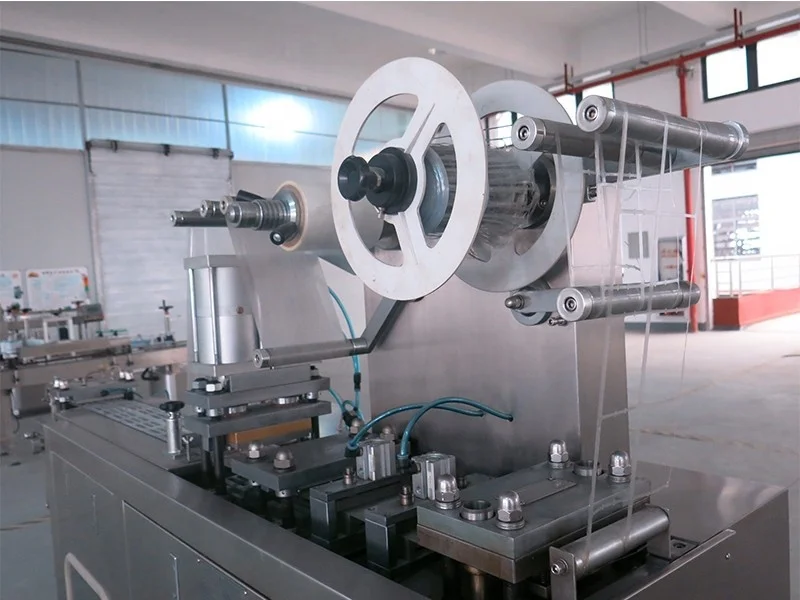

Small Blister packing machine/fully automatic packing machine for tablet and capsules
- Category: >>>
- Supplier: Shanghai Tiwin Industry Co. Ltd.
Share on (62460869386):
Product Overview
Description

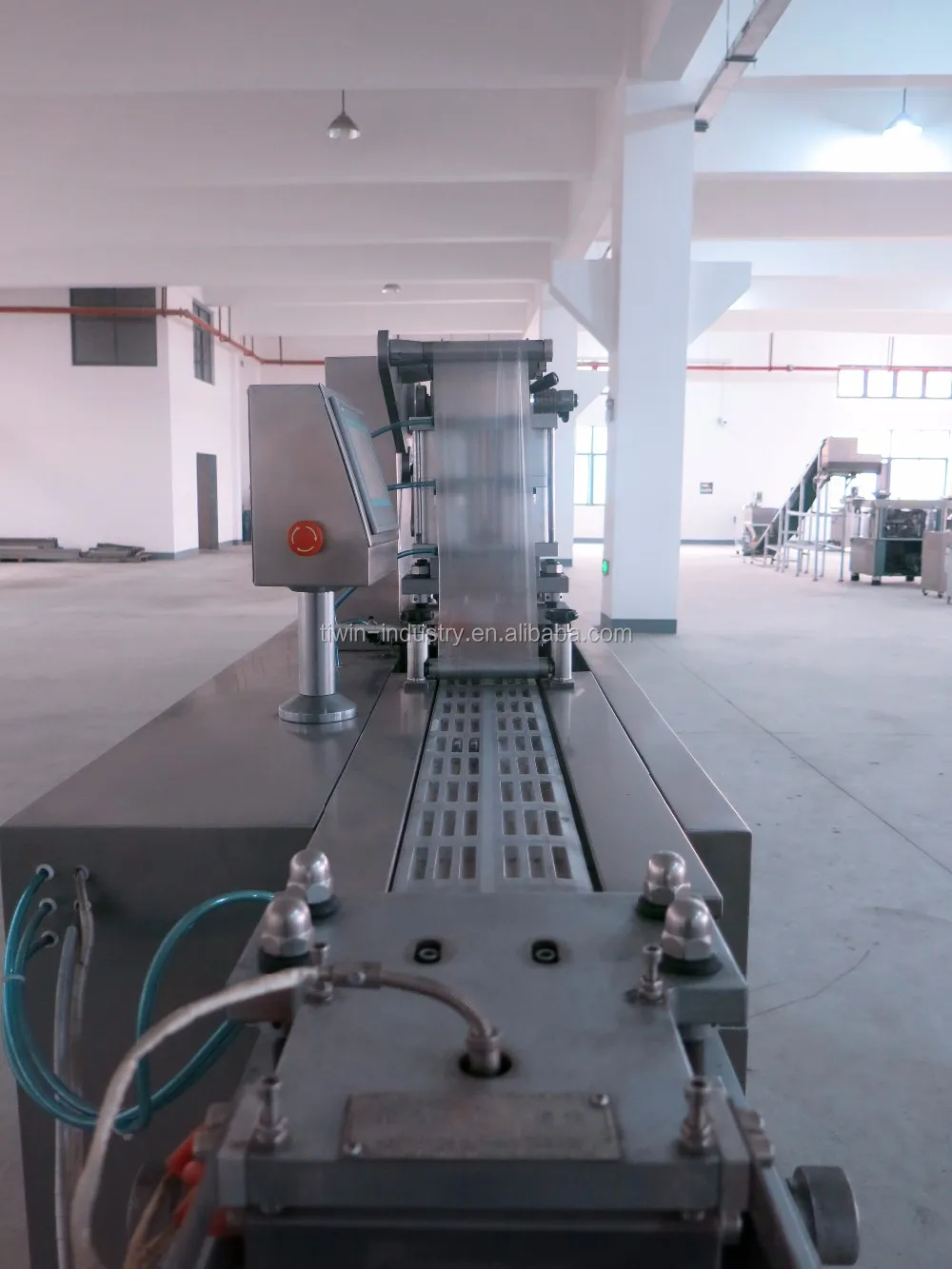

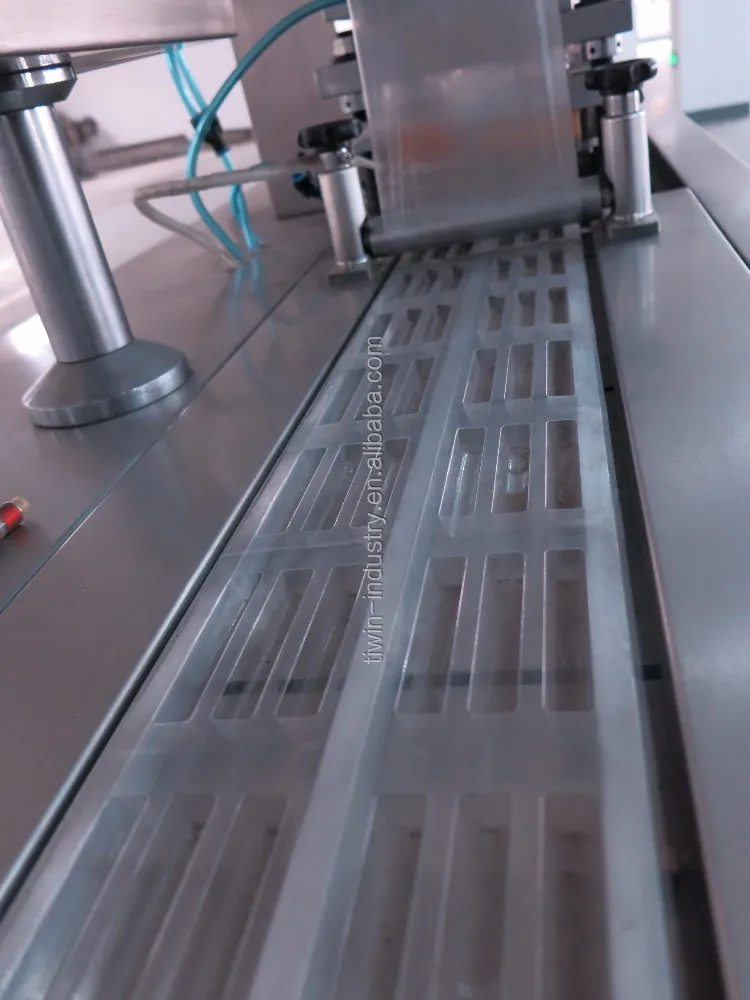

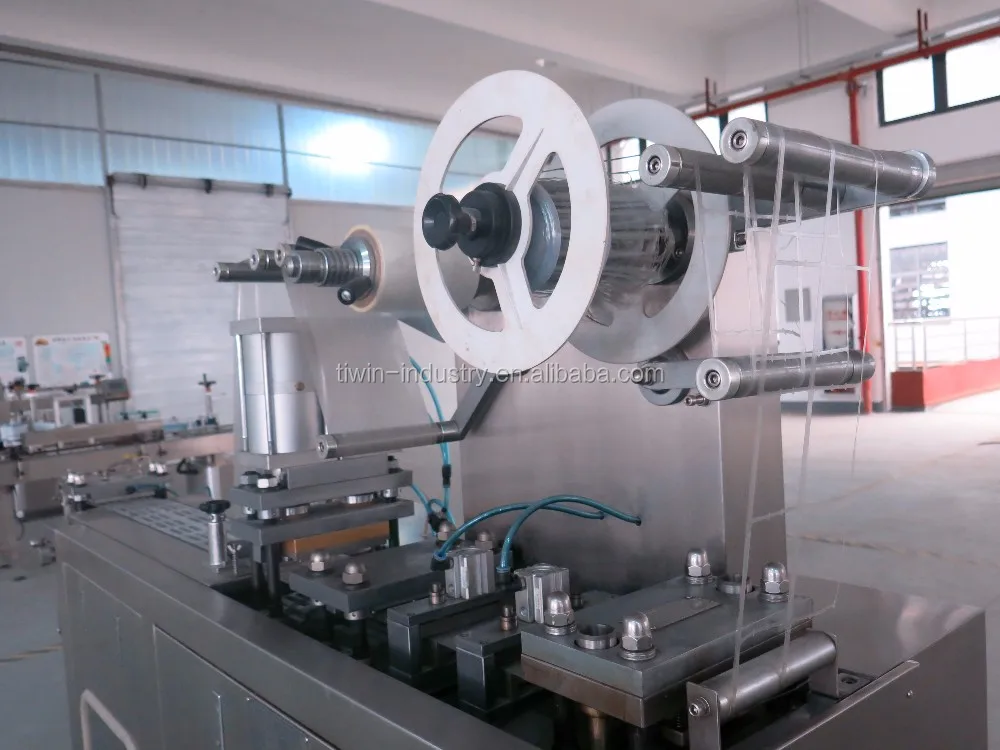

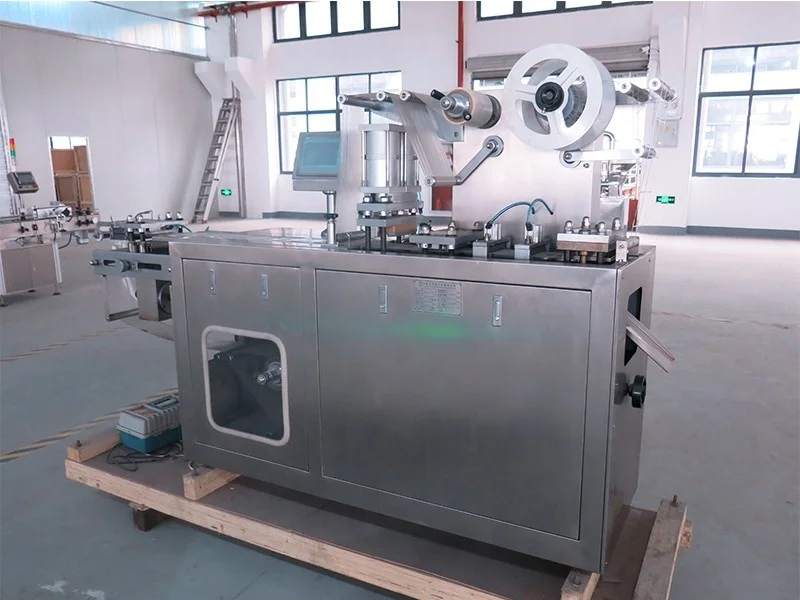

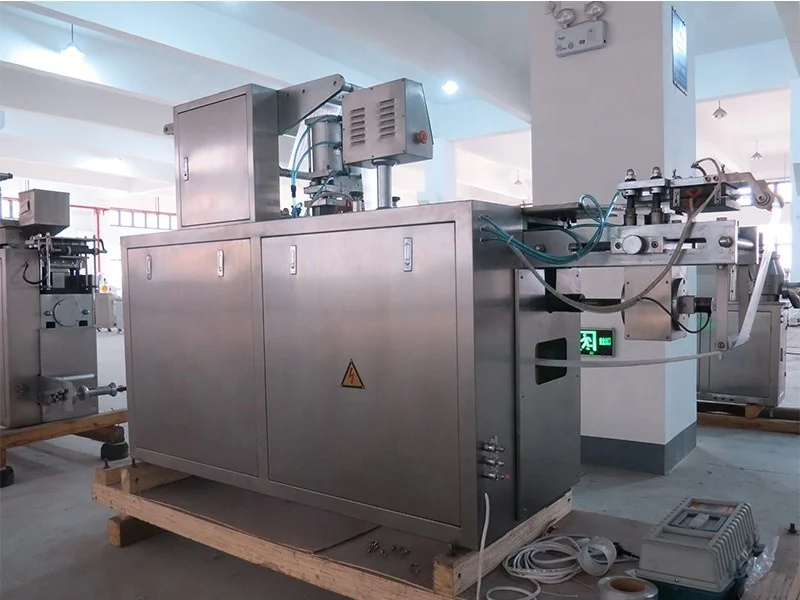

Small Blister packing machine/fully automatic packing machine for tablet and capsules

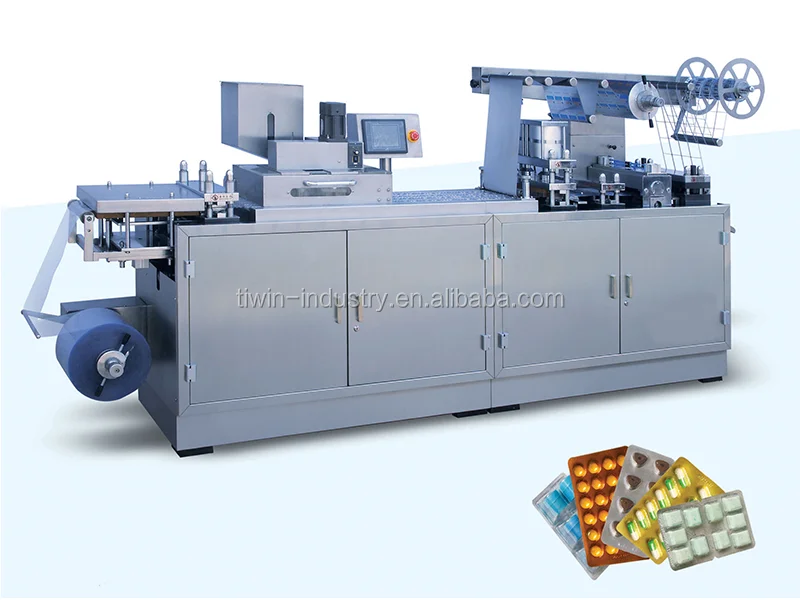

DPP140/250/350
Pls check the working video link:
https://youtu.be/OhS5QgauNZE
Product Description
Main Technical Specifications
Model | DPP-250 | DPP-140 | ||
punching frequency | 15-45 cutting/min | 15-45 cutting/min | ||
Max.forming Area and Depth | 250*120*15mm | 240*110*15mm | ||
Adjustable Pulling Length | 30-130mm | 30-120mm | ||
Blister plate size | Design according to customer'requirments | Design according to customer'requirments | ||
Packaginng material(I.D.75) | PVC | (0.15-0.4)*260*(diameter:400)mm | (0.15-0.6)*160*(diameter:350)mm | |
PTP | (0.02-0.15)*260*(diameter:400)mm | (0.02-0.15)*160*(diameter:350)mm | ||
paper | (50*100)g/m2*260*(diameter:400)mm | (50*100)g/m2*160*(diameter:350)mm | ||
Powder | 380V 50Hz 8kw | 380V 50Hz 5.5kw | ||
Air compressor(self-prepared) | 0.6-0.8Mpa ³0.45m3/min | 0.6-0.8Mpa ³0.4m3/min | ||
Mould cooling(Recycle waterorcirculating water consumption) | 40-80 L/h | 40-80 L/h | ||
Dimension(L*W*H)(Including foundation) | 2900*750*1600mm | 2400*650*1450mm | ||
Dimension for each part | Front | 1850*850*1700mm | 1850*850*1700mm | |
Back | 1400*750*1450mm | 1050*650*1450mm | ||
Weight | About 1200kg | About 800kg | ||
Applications
This machine is used in the pharmaceutical industry of capsule,tablet,and pilled foodstuff,food industry,liquid chocolate candies,chewing gum,cookies,jam,facial mask,eye of the cosmetics industry,medical device industry,needles,syringes,infusion tube and electronic component products such as aluminum-plastic,paper-plastic blister packaging.
Features
- Pulling length can be adjusted.Mold is fixed by located groove so that it's easy to change mold.The machine heats the PLC through heated board and forms by compressed air frothing.
-Speed is controlled by inverter.It adopts the interface of human-machine and PLC control system.
-With automatic feeder,we can design the mould and feeder according to customer's requirement.
-The machine gets the function for Easy Cutting ilne embossing,batch number embossing and wasted packaging material rewinding.
-Step motor is adopted on the machine for precise controlling the pulling length and saving packing material.
-The heating molds will automatically separate when the machine stops,which cintributes to protect the packing material from heated mould.
