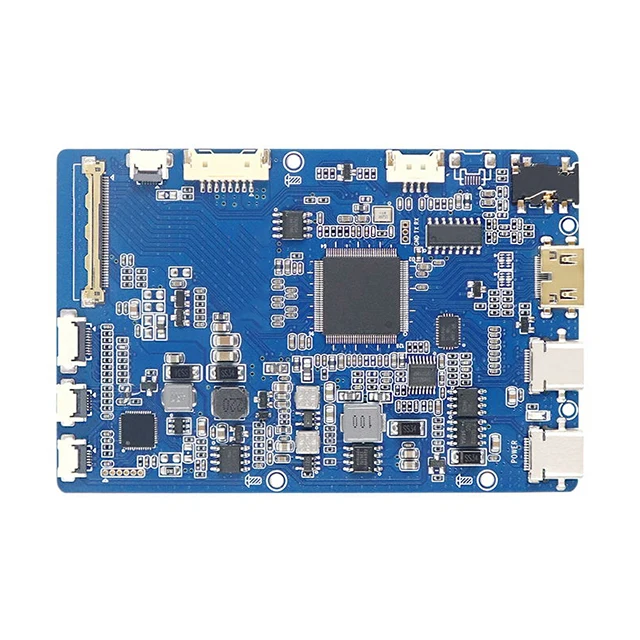

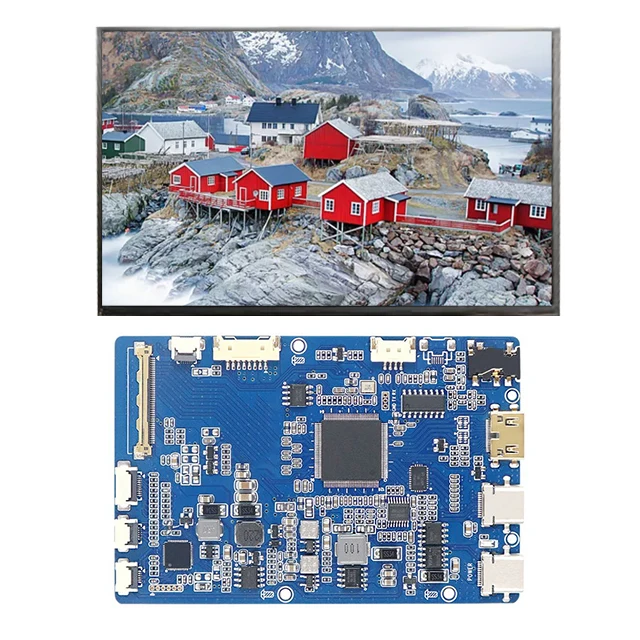

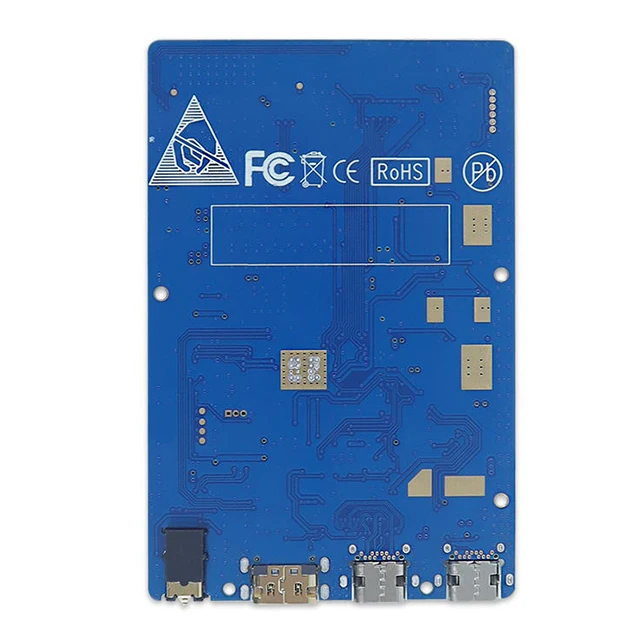

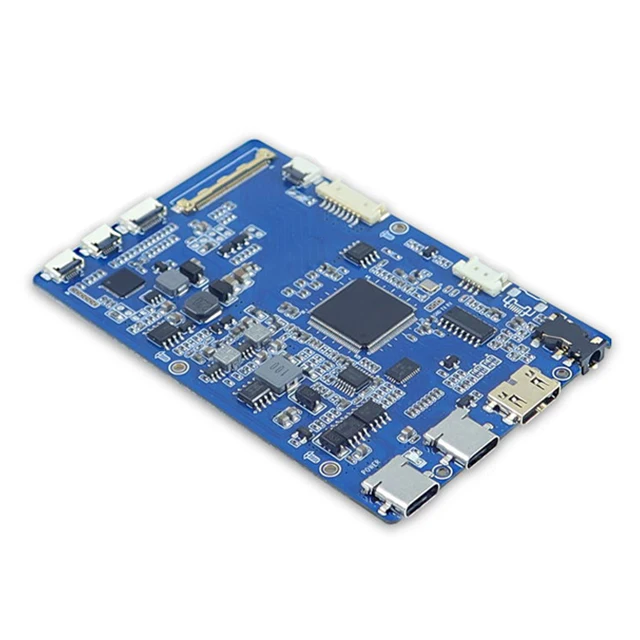

VVX10T022N00 Original 10.1 Inch 2560*1600 LCD Screen Display Panel Controller Board eDP 51 Pins
- Category: >>>
- Supplier: Shenzhen Youritech Technology Co. Limited
Share on (62460929134):
Product Overview
Description
Products Description
VVX10T022N00 10.1 Inch 2560*1600 LCD Screen Display Panel Controller Board eDP 51 Pins
Product Paramenters
LCD SPECIFICATION | ||||||||||||
Diagonal Size | 10.1 inch | Type | a-Si TFT-LCD , LCM | |||||||||
Pixel Format | 2560(RGB)×1600 [WQXGA] | Configuration | RGB Vertical Stripe | |||||||||
Active Area | 216.96(H)×135.6(V) mm | Outline Dim. | 227.65(H)×147.85(V) ×4.37(D) mm | |||||||||
Bezel Area | - | Treatment | Hard coating | |||||||||
Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) | |||||||||
View Direction | Symmetry | Response Time | 30 (Max.)(Tr+Td) | |||||||||
Viewing Angle | 80/80/80/80 (Typ.)(CR≥100) | Operating Mode | IPS, Normally Black, Transmissive | |||||||||
Support Color | 16.7M 72% NTSC | Light Source | WLED [7S6P] , W/O Driver | |||||||||
Weight | 117g | Designed For | Pad & Tablet | |||||||||
Frame Rate | 60Hz | Touch Panel | Without | |||||||||
Interface Type | 51 pins eDP (4 Lanes) , Connector | |||||||||||
Power Supply | 3.7V (Typ.) | |||||||||||
Environment | Operating Temperature: -20 ~ 50 °C ; Storage Temperature: -30 ~ 60 °C | |||||||||||
Company Profile
FAQ
1.What advantages do you have?
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service,products have passed strict certification, and the buyer has good results.
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling&samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.
4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
6. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service,products have passed strict certification, and the buyer has good results.
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling&samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.
4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
6. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
