K2000 Pneumatic Polyurethane Spray Machine Polyurethane Spray Foam Equipment
- Category: Plastic & Rubber Processing Machinery >>>
- Supplier: Shandong,Reanin,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Basic Purpose

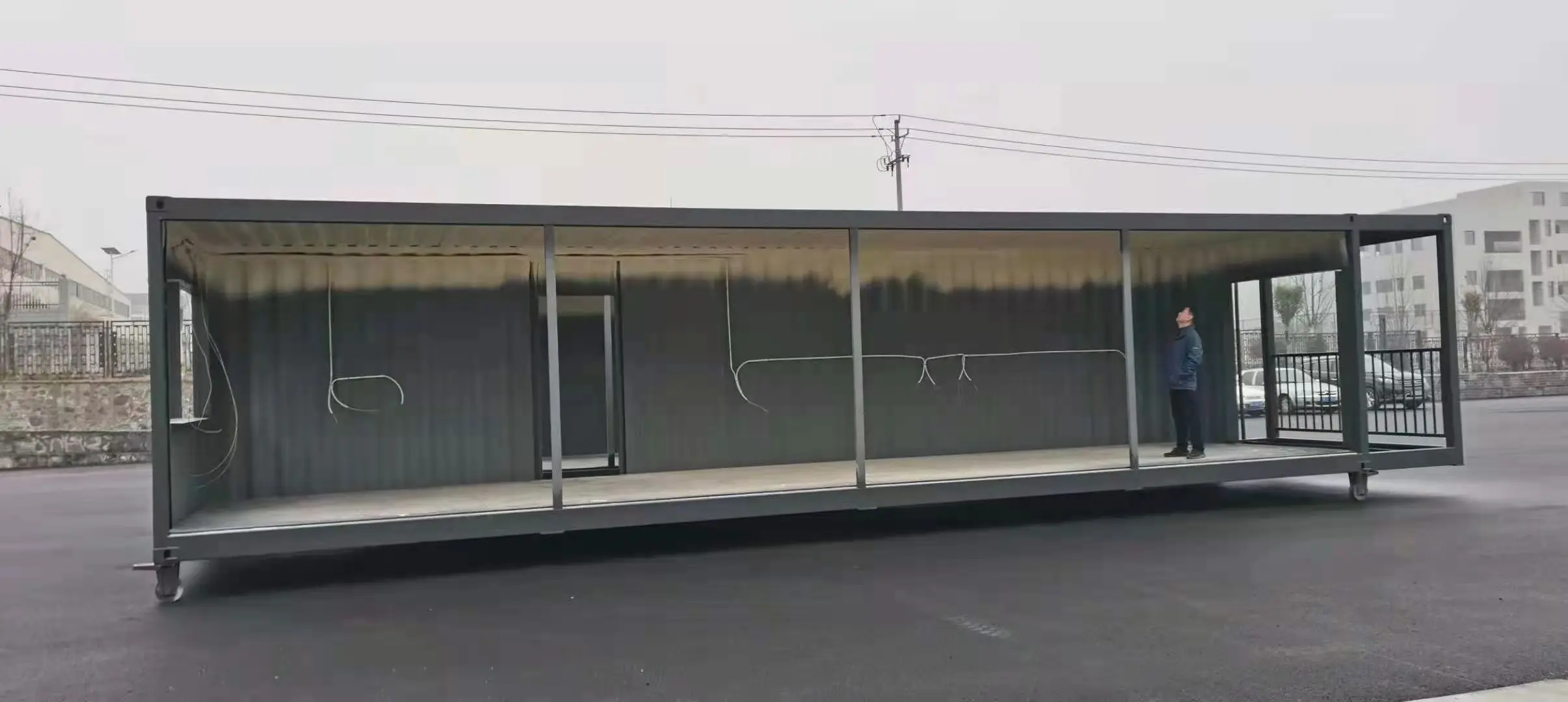

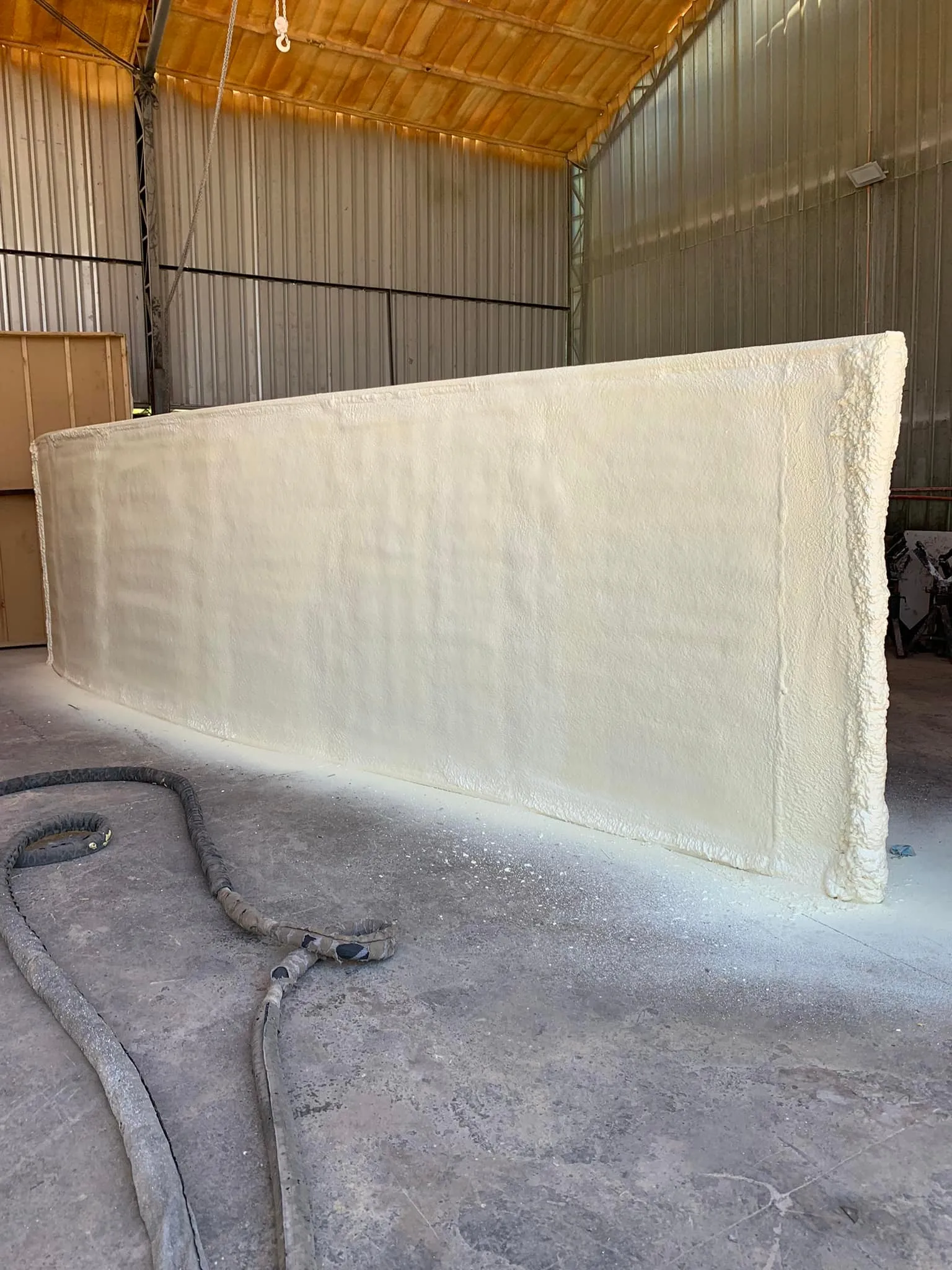

Interior Wall Insulation
Building External Wall Insulation
Interior Wall Insulation
For Roof Coating
Insulation
Products Description

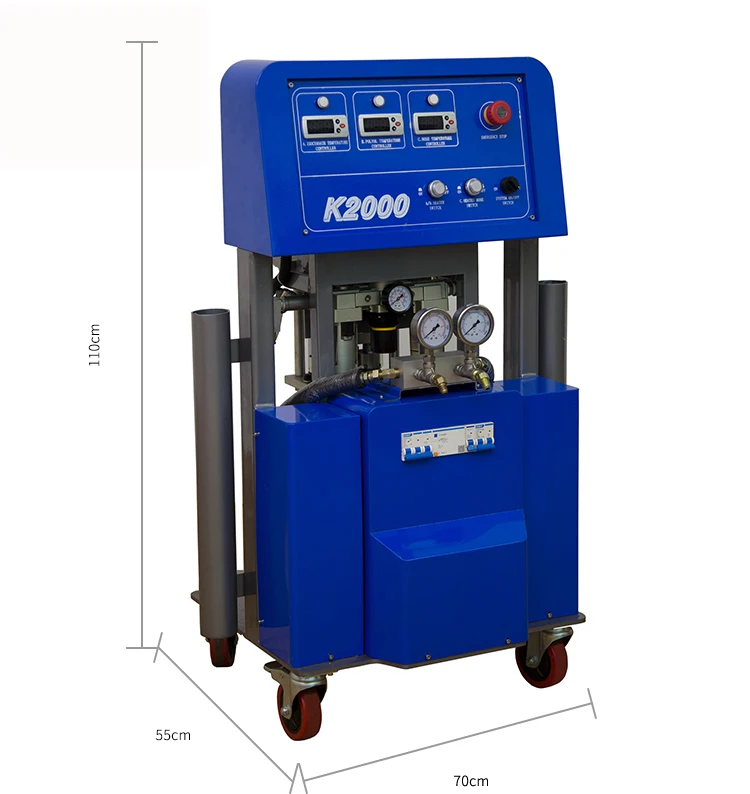

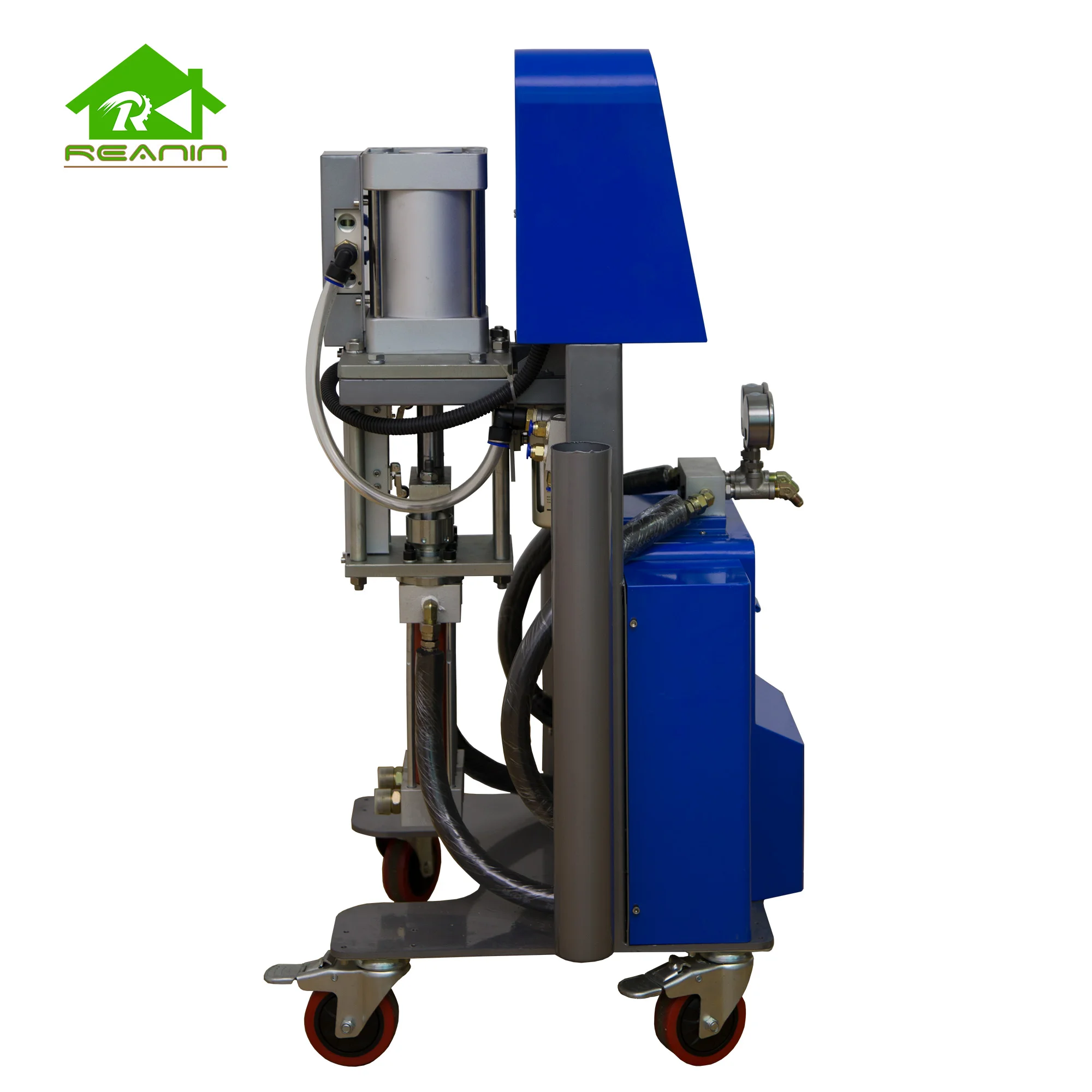

Reanin-K2000 is a basic, inexpensive and portable polyurethane spray and injection machine, suitable for two-component polyurethane spray technology. It is small in size, easy to operate and maintain, and is especially suitable for small area projects.
Standard Configuration | ||
Model | Reanin-K2000 Polyurethane Spray Machine | |
Applicable materials | Polyurethane | |
The ratio of raw material | 1:1 | |
Viscosity range of raw materials | 200-1000CPS (under working temperature) | |
Max working pressure | 15MPa | |
Max fluid temperature | 80°C | |
Max output | 10kg/min | |
Max heated hose length (Optional) | 45m | |
Heater power | 3000W×2 | |
Heated hose max power | 2000W | |
Drive mode | Full pneumatic | |
Clean mode | Self-cleaning by air | |
Voltage (Optional) | Single phase 220V 50Hz Three phase 380V 50Hz | |
Whole power | 9kw | |
Pneumatic source | 0.5-0.8Mpa 1m³/min | |
Standard Configuration: | ||
Reanin-K2000 mainframe | 1 set | |
Reanin spray gun | 1 set | |
Transfer pump | 2 sets | |
Heated hose | 15m | |
Whip hose | 2 pcs | |
Transfer pump hose | 2 pcs | |
Air pipe | 1 set | |
Tools and spare parts | 1 set | |
English user manual | 1 set | |
Transportation Parameters (Based on standard configuration): | ||
Model | Reanin-K2000 Polyurethane Spray Machine | |
Package size (LXWXH) | 90X75X143cm | |
Net weight | 151kg | |
Gross weight | 185kg | |
Detailed Images
Advantages
1.This machine has pass the CE certificate,
2.Panel with operation tips is easy to set up,
3.Fully pneumatic design, it can work normally without electricity,
4.The booster pump is simple in structure and easy to disassemble and maintain,
5.The stop reset function can make the booster pump shafts always infiltrated in the booster pump, which can avoid damage to the seals and booster pump shafts caused by ISO crystallization,
6.A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different material,
7.Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range,
8.The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the temperature of the material, but also can prevent the occurrence of leakage, short circuit, etc.
9.The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter impurities and crystals in the materials and reduce the occurrence of the blocking gun,
10.High-precision pressure gauges are available in MPA and PSI to meet the needs of different customers,
11.Equipped with an action counter to accurately calculate the amount of raw materials,
12.The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.
2.Panel with operation tips is easy to set up,
3.Fully pneumatic design, it can work normally without electricity,
4.The booster pump is simple in structure and easy to disassemble and maintain,
5.The stop reset function can make the booster pump shafts always infiltrated in the booster pump, which can avoid damage to the seals and booster pump shafts caused by ISO crystallization,
6.A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different material,
7.Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range,
8.The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the temperature of the material, but also can prevent the occurrence of leakage, short circuit, etc.
9.The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter impurities and crystals in the materials and reduce the occurrence of the blocking gun,
10.High-precision pressure gauges are available in MPA and PSI to meet the needs of different customers,
11.Equipped with an action counter to accurately calculate the amount of raw materials,
12.The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.
