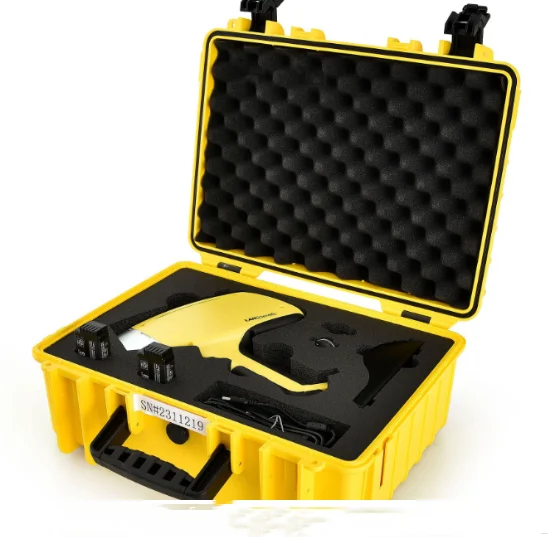

TrueX 800 handheld xrf metal analyzer spectrometer for gold rohs
- Category: >>>
- Supplier: WANT Balance Instrument Co. Ltd.
Share on (62460982033):
Product Overview
Description
Product Description
Handheld Mineral Analyzer
(TrueX 800)
(TrueX 800)
Performance Features
1. Small, light and easy to carry.
2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding
super-high detection resolution.
4. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will
automatically sense whether there is a sample at the measurement window.
5. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the
same time, people don't need to take off gloves when they are opreating machine in some particular environment.
6. TrueX utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. It also integrates the
new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm.
These features allow it to measure elements faster, with higher accuracy and greater repeatability.
7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through
MSBUS bus.
8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends
working time; moreover, TrueX has a gravity sensing system which shuts down instrument automatically when it accidentally falls
down, another safety consideration; TrueX will also give out alarm when ambient temperature or humidity exceeds the scope of
application.
9. TrueX adjusts air pressure factor automatically based on altitude it has detected. This function increases excitation effect of
light elements by 40% and that of rare earth elements by 30%.
10. TrueX is supportive to battery hot plug, hence battery can be replaced without powering off the machine.
11. On TrueX, users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as
product description, origin of products and batch number).
12. TrueX is built with double beam technology which can automatically sense whether there is a sample at the measurement window.
This is also a safety and protection feature. The brightness of the display of TrueX is automatically regulated according to
environment brightness.
13. TrueX can be configured and maintained in a remote way via Internet.
14. TrueX can build a three dimensional element content distribution graph allowing for a fast estimate of mineral reserves or the
extent of geological disaster with the built-in GPS for latitude and longitude reading combined with a 3rd party GIS analysis
software.
15. TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with
even large-scale lab instruments.
16. TrueX Ultra-short optical™ path design can significantly improve light element excitation effects, without the fall/fill
condition.
17. TrueX has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.
Application Features
1. Excellent Performance
TrueX shows element symbols in both English and Chinese. With high precision, high testing speed and comparable results to even
that of laboratory equipment, TrueX displays alloy grade and elements percentage content (up to three decimals) and ppm content in
an apparent way.
2. One-touch operation
TrueX test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by
non-technical users.
3. Nondestructive testing (NDT)
TrueX test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process.
4. analysis software
analysis software is a professional analysis software which enables the users to easily configure passwords, customize analysis
reports attached with company LOGO and implement remote control of machine; users can edit alloy grade library, add their own
grade number or define their own company's alloy brands; the software also allows automatic calibration of instrument and
diagnosis of problems in a remote way; the software can be updated via Internet.
5. Scrap metal recycling and sorting
Scrap metal recycling, reuse, and on-site analysis and sorting. TrueX offers a rapid and reliable identification of the scrap
metals when scrap metals are transacted between buyers and sellers. TrueX delivers quantitative element analysis of iron alloy,
copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these
alloys on the site.
6. Application fields, safety and standards
TrueX is suitable for alloy material identification (PMI) for incoming inspection;material inventory management;re-inspection of
construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine
chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified
materials. TrueX is in compliance with ANTM standard, China National Standard (GB), UNS, electric industry standard (DL), API,
JIS, GMP, TSG, Mechanical Industry standard (JB), etc.
7. Quality Control, Quality Assurance (QC/QA) and Error-proofing(PKKA - YOKE)
In metal processing and manufacturing industry, quality control and quality assurance (QC/QA) and error proofing (PKKA - YOKE) of
materials (raw materials), semi-finished products and finished products is indispensable. Use of mixed or unqualified materials
will bring losses to the company. This is true to companies ranging from small metal processing plants to large aircraft
manufacturers.
8. Data Processing and Enterprise Resource Planning (ERP)
Data can be transferred via USB, WIFI and Bluetooth and stored in excel, pdf or other formats. Users can customize the reports by
adding their company logos, addresses, test results, spectrum and others (such as product description, origin of goods and batch
number); i-cloud data storage service is optional. Data can transport to Enterprise Resource Planning (ERP) system.
Application fields
l Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site
l Metal identification /scrap metal sorting
l QA/QC management in metal production, processing, casting, etc
l Medicine and biological medicine
l Identification of positive materials, oil refining and petrochemical industry
l Thermal power plant, hydroelectric power station, nuclear power plant
l Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment
and materials used in the process.
Elements to be Analyzed and Test Modes
1. Small, light and easy to carry.
2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding
super-high detection resolution.
4. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will
automatically sense whether there is a sample at the measurement window.
5. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the
same time, people don't need to take off gloves when they are opreating machine in some particular environment.
6. TrueX utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. It also integrates the
new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm.
These features allow it to measure elements faster, with higher accuracy and greater repeatability.
7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through
MSBUS bus.
8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends
working time; moreover, TrueX has a gravity sensing system which shuts down instrument automatically when it accidentally falls
down, another safety consideration; TrueX will also give out alarm when ambient temperature or humidity exceeds the scope of
application.
9. TrueX adjusts air pressure factor automatically based on altitude it has detected. This function increases excitation effect of
light elements by 40% and that of rare earth elements by 30%.
10. TrueX is supportive to battery hot plug, hence battery can be replaced without powering off the machine.
11. On TrueX, users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as
product description, origin of products and batch number).
12. TrueX is built with double beam technology which can automatically sense whether there is a sample at the measurement window.
This is also a safety and protection feature. The brightness of the display of TrueX is automatically regulated according to
environment brightness.
13. TrueX can be configured and maintained in a remote way via Internet.
14. TrueX can build a three dimensional element content distribution graph allowing for a fast estimate of mineral reserves or the
extent of geological disaster with the built-in GPS for latitude and longitude reading combined with a 3rd party GIS analysis
software.
15. TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with
even large-scale lab instruments.
16. TrueX Ultra-short optical™ path design can significantly improve light element excitation effects, without the fall/fill
condition.
17. TrueX has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.
Application Features
1. Excellent Performance
TrueX shows element symbols in both English and Chinese. With high precision, high testing speed and comparable results to even
that of laboratory equipment, TrueX displays alloy grade and elements percentage content (up to three decimals) and ppm content in
an apparent way.
2. One-touch operation
TrueX test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by
non-technical users.
3. Nondestructive testing (NDT)
TrueX test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process.
4. analysis software
analysis software is a professional analysis software which enables the users to easily configure passwords, customize analysis
reports attached with company LOGO and implement remote control of machine; users can edit alloy grade library, add their own
grade number or define their own company's alloy brands; the software also allows automatic calibration of instrument and
diagnosis of problems in a remote way; the software can be updated via Internet.
5. Scrap metal recycling and sorting
Scrap metal recycling, reuse, and on-site analysis and sorting. TrueX offers a rapid and reliable identification of the scrap
metals when scrap metals are transacted between buyers and sellers. TrueX delivers quantitative element analysis of iron alloy,
copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these
alloys on the site.
6. Application fields, safety and standards
TrueX is suitable for alloy material identification (PMI) for incoming inspection;material inventory management;re-inspection of
construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine
chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified
materials. TrueX is in compliance with ANTM standard, China National Standard (GB), UNS, electric industry standard (DL), API,
JIS, GMP, TSG, Mechanical Industry standard (JB), etc.
7. Quality Control, Quality Assurance (QC/QA) and Error-proofing(PKKA - YOKE)
In metal processing and manufacturing industry, quality control and quality assurance (QC/QA) and error proofing (PKKA - YOKE) of
materials (raw materials), semi-finished products and finished products is indispensable. Use of mixed or unqualified materials
will bring losses to the company. This is true to companies ranging from small metal processing plants to large aircraft
manufacturers.
8. Data Processing and Enterprise Resource Planning (ERP)
Data can be transferred via USB, WIFI and Bluetooth and stored in excel, pdf or other formats. Users can customize the reports by
adding their company logos, addresses, test results, spectrum and others (such as product description, origin of goods and batch
number); i-cloud data storage service is optional. Data can transport to Enterprise Resource Planning (ERP) system.
Application fields
l Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site
l Metal identification /scrap metal sorting
l QA/QC management in metal production, processing, casting, etc
l Medicine and biological medicine
l Identification of positive materials, oil refining and petrochemical industry
l Thermal power plant, hydroelectric power station, nuclear power plant
l Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment
and materials used in the process.
Elements to be Analyzed and Test Modes
TrueX 800 elements analyzed
Scope of elements in standard test mode can be extended if there is such a need.
TrueX 800
can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb, and Bi,totaling 25 elements.
Scope of elements in standard test mode can be extended if there is such a need.
TrueX 800
can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb, and Bi,totaling 25 elements.
Instrument specification
The ARM architecture Cortex-A8 1 GHZ
System Processor: The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory
Display: Industrial resistive touch screen with screen size of 4.3"
Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored
Operating Temperature: -20℃~+50℃
Operating Humidity: ≤90%Limit of
Library of extensible and customizable alloys
Ability to make measurements on pipes, flat surfaces, surface integrals and welds
Method of analysis: the x-ray energy dispersive method for analysis of fluorescence
Simultaneously detect elements: simultaneously detect dozens of elements
Processor and RAM:
CPU: 1GB
RAM: 1GB
The standard configuration: 32G
Range content: ppm ~ 99.99%
15 seconds reading time
GPS, WIFI: integrated into the system
Battery: lithium battery, which can be loaded with a maximum capacity of our 6800Ah can operate continuously for 8 hours; Equipped
with high voltage (110V-220V) adapter, can work under current alternative
Sensor resolution: solid, liquid, powder
Sensor resolution: low resolution can be 139eV
Excitation source: 40KV / 100mA-Ag window miniature tube anode X of light and high voltage source
Collimator and filter: sights of 4.0 or 2.0 of diameter, automatic switch of 8 filter. 12 kinds of groups, plus mode consisting of
world, can satisfy different types of tests of samples
Display: touchscreen TFT - LCD, resolution of 640 * 480.
Protection against water, dust and shock
Test window: 12mm.
Charging system gas: Helium charging system of ordinary pressure.
Security: standalone password manager mode.
data transmission: digital multi-channel technology, the transmission of data SPI, a quick scan, count rate, waterproof miniature
USB, which can be connected to the desktop computer.
Alloy family
l Iron-based alloy series (stainless steel, chromium/molybdenum alloy steel, low alloy steel, tool steel, seamless steel)
l Nickel-based alloy series (nickel alloy, nickel/cobalt alloy)
l Cobalt-based alloy series
l Titanium-based alloy series
l Copper-based alloy Series (bronze, brass, copper and nickel alloy, etc.)
l High temperature alloys (molybdenum tungsten alloy)
l Aluminum-based alloy
Super-FP algorithm is capable of detecting accurate metal element content and identify material without switching mode !
TrueX hand-held alloy analyzer (XRF) is a powerful weapon in material identification (PMI) in production of high temperature and
high pressure boiler, container, pipe, etc; metal identification in iron and steel metallurgy, nonferrous metals, aerospace,
weapons, submarine vessels, etc; metal material identification in engineering installation and construction projects in areas of
the petrochemical refining, fine chemical, pharmaceutical, power plant, aerospace, etc to ensure equipment and material acceptance
meet the project specified requirements; scrap metal recycling industry.
TrueX is applicable to quality control, material classification, alloy identification, accident investigation, etc, which tackles
the fundamental difficult problem of raw material analysis. As an innovation of many modern technologies, it is a great helping
hand in these applications. Users can personalize the analyzing system according to their own needs.
TrueX's built-in alloy library contains 380 kinds of alloys, as well as other special alloys for mold, electric power,
petrochemical and other industries, which simplifies the conversion of alloys from one country to another. Besides, it has two
built-in libraries that the users can define by themselves to extend alloy brands. Therefore, it can extend to as many as 600
alloy brands and test more than 1,000 kinds of alloy materials.
The ARM architecture Cortex-A8 1 GHZ
System Processor: The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory
Display: Industrial resistive touch screen with screen size of 4.3"
Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored
Operating Temperature: -20℃~+50℃
Operating Humidity: ≤90%Limit of
Library of extensible and customizable alloys
Ability to make measurements on pipes, flat surfaces, surface integrals and welds
Method of analysis: the x-ray energy dispersive method for analysis of fluorescence
Simultaneously detect elements: simultaneously detect dozens of elements
Processor and RAM:
CPU: 1GB
RAM: 1GB
The standard configuration: 32G
Range content: ppm ~ 99.99%
15 seconds reading time
GPS, WIFI: integrated into the system
Battery: lithium battery, which can be loaded with a maximum capacity of our 6800Ah can operate continuously for 8 hours; Equipped
with high voltage (110V-220V) adapter, can work under current alternative
Sensor resolution: solid, liquid, powder
Sensor resolution: low resolution can be 139eV
Excitation source: 40KV / 100mA-Ag window miniature tube anode X of light and high voltage source
Collimator and filter: sights of 4.0 or 2.0 of diameter, automatic switch of 8 filter. 12 kinds of groups, plus mode consisting of
world, can satisfy different types of tests of samples
Display: touchscreen TFT - LCD, resolution of 640 * 480.
Protection against water, dust and shock
Test window: 12mm.
Charging system gas: Helium charging system of ordinary pressure.
Security: standalone password manager mode.
data transmission: digital multi-channel technology, the transmission of data SPI, a quick scan, count rate, waterproof miniature
USB, which can be connected to the desktop computer.
Alloy family
l Iron-based alloy series (stainless steel, chromium/molybdenum alloy steel, low alloy steel, tool steel, seamless steel)
l Nickel-based alloy series (nickel alloy, nickel/cobalt alloy)
l Cobalt-based alloy series
l Titanium-based alloy series
l Copper-based alloy Series (bronze, brass, copper and nickel alloy, etc.)
l High temperature alloys (molybdenum tungsten alloy)
l Aluminum-based alloy
Super-FP algorithm is capable of detecting accurate metal element content and identify material without switching mode !
TrueX hand-held alloy analyzer (XRF) is a powerful weapon in material identification (PMI) in production of high temperature and
high pressure boiler, container, pipe, etc; metal identification in iron and steel metallurgy, nonferrous metals, aerospace,
weapons, submarine vessels, etc; metal material identification in engineering installation and construction projects in areas of
the petrochemical refining, fine chemical, pharmaceutical, power plant, aerospace, etc to ensure equipment and material acceptance
meet the project specified requirements; scrap metal recycling industry.
TrueX is applicable to quality control, material classification, alloy identification, accident investigation, etc, which tackles
the fundamental difficult problem of raw material analysis. As an innovation of many modern technologies, it is a great helping
hand in these applications. Users can personalize the analyzing system according to their own needs.
TrueX's built-in alloy library contains 380 kinds of alloys, as well as other special alloys for mold, electric power,
petrochemical and other industries, which simplifies the conversion of alloys from one country to another. Besides, it has two
built-in libraries that the users can define by themselves to extend alloy brands. Therefore, it can extend to as many as 600
alloy brands and test more than 1,000 kinds of alloy materials.
Model | Parameter |
Related Products
Packing&Shipping
SIMPLE OEM: MOQ 10pcs,print your company name on the label and instructions.
OEM: MOQ 200pcs, also need pay USD100, after order quantity is over 200pcs,
will refund the costs USD100.
ODM: MOQ 1000pcs.
OEM: MOQ 200pcs, also need pay USD100, after order quantity is over 200pcs,
will refund the costs USD100.
ODM: MOQ 1000pcs.
After Sales Service
Service
After service
1. Quality warranty:
WANT commits that TrueX handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new,never used, and in full compliance with the quality provision of this Contract. TrueX warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine.
2. Technical training:
Operating Manual of TrueX Handheld Spectrometers Maintenance Manual of TrueX Handheld Spectrometers
3. After-sale service
Over the years, WANT has sold XRF instruments to many global users. In order to provide better technical support and service, it
shall be committed to.
1. services including
a)We shall provide after-sales service to all products it has sold worldwide.
b)We shall provide a one-year warranty for the spectrometer it has sold worldwide.
c) We shal provide one-year warranty for X-ray Tube (X-ray tube)and Detector (Detector).
d) We shall provide one-year renewal warranty for the replaced components in case there is any replacement of them during repair
of machine.
2. The following physical damage is not covered by warranty.
a) instrument is impacted by great force that the internal impact sensor changes from white to red;
b) Detector is broken
c) PDA is broken;
d) Instrument body is broken;
e) Loss of accessories
f) Loss of components
g) Water coming into instrument
3. In case the instrument is not able to operate, the customer can call after-sales service for help; we offer 3 types of repairs:
a) Internet repair: if the customers are in foreign countries or remote areas, we can offer them first the INTERNET repair
service.
b) Phone repair: customers called over the phone to explain explicitly the problem and our technical staff will instruct them to
solve the problem.
c) On-site repair: in case the phone repair fails, our technical personnel will go to the site to repair the instrument within 72
hours after the problem is reported;
4. Out-of-warranty service: upon expiry of the warranty period, all customers are still entitled to out-of-warranty service during
the working life of the instrument.
5. Privilege in out-of-warranty service: customers shall have the privilege to get a preferential prices on the components when
they maintain their instrument during the out-of-warranty period as long as they maintained it beforehand.
1. Quality warranty:
WANT commits that TrueX handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new,never used, and in full compliance with the quality provision of this Contract. TrueX warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine.
2. Technical training:
Operating Manual of TrueX Handheld Spectrometers Maintenance Manual of TrueX Handheld Spectrometers
3. After-sale service
Over the years, WANT has sold XRF instruments to many global users. In order to provide better technical support and service, it
shall be committed to.
1. services including
a)We shall provide after-sales service to all products it has sold worldwide.
b)We shall provide a one-year warranty for the spectrometer it has sold worldwide.
c) We shal provide one-year warranty for X-ray Tube (X-ray tube)and Detector (Detector).
d) We shall provide one-year renewal warranty for the replaced components in case there is any replacement of them during repair
of machine.
2. The following physical damage is not covered by warranty.
a) instrument is impacted by great force that the internal impact sensor changes from white to red;
b) Detector is broken
c) PDA is broken;
d) Instrument body is broken;
e) Loss of accessories
f) Loss of components
g) Water coming into instrument
3. In case the instrument is not able to operate, the customer can call after-sales service for help; we offer 3 types of repairs:
a) Internet repair: if the customers are in foreign countries or remote areas, we can offer them first the INTERNET repair
service.
b) Phone repair: customers called over the phone to explain explicitly the problem and our technical staff will instruct them to
solve the problem.
c) On-site repair: in case the phone repair fails, our technical personnel will go to the site to repair the instrument within 72
hours after the problem is reported;
4. Out-of-warranty service: upon expiry of the warranty period, all customers are still entitled to out-of-warranty service during
the working life of the instrument.
5. Privilege in out-of-warranty service: customers shall have the privilege to get a preferential prices on the components when
they maintain their instrument during the out-of-warranty period as long as they maintained it beforehand.
Company Introduction
The company is a member unit of China Instrument Association, the Jiangsu provincial quality and technical supervision inspection, measurement of class A enterprises in Jiangsu Province, and has passed ISO9001:2008 quality management system certification, products strictly enforce the rules of the state JJG1036 certification. For twenty years, for the chemical, pharmaceutical, textile, food, colleges and other industries, nearly thousands of enterprises and institutions to provide more than two hundred thousand sets of high-quality electronic balance.
The company has import and export right, products are exported to the world more than 80 countries and regions, have certain international influence in the industry. And because of the good ability of coordination, for many international well-known scale enterprises OEM production, to provide high quality OEM service. The company by the international authority SGS factory inspection, product has CE (EMC, LVD), C-Tick, Rohs and other international certification.
Welcome your inquiries warmly.
Looking forward to cooperationg with you sincerely.
The company has import and export right, products are exported to the world more than 80 countries and regions, have certain international influence in the industry. And because of the good ability of coordination, for many international well-known scale enterprises OEM production, to provide high quality OEM service. The company by the international authority SGS factory inspection, product has CE (EMC, LVD), C-Tick, Rohs and other international certification.
Welcome your inquiries warmly.
Looking forward to cooperationg with you sincerely.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory.
Q2: MOQ?
A: We don't have MOQ limit, you can order any quantity you want.
If you need scales with your specification, logo, packing, etc, please negotiate with us.
Q3:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think our cargos will better then any others.
Samples will be 10%-20% higher than the cargo.
Q4:Can I add my logo on the machine?
A:Yes,OEM is available for us.
But you should send us the Trademark authorization letter.
Q5:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q6:Do you have inspection procedures for these machine?
A:100% self-inspection before packing
Q7: Delivery date?
A: 1-3 days for sample, 15-20 days for 1000pcs, 30-35days for 40HQ.
Q8: Payment Method?
A: L/C at sight, T/T, Western Union and Paypal are all available.
30% deposit T/T in advance, rest against the Shipping Doc.
100% T/T in advance for sample order.
Q9: Shipping?
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days), port of loading: Shanghai
d. By domestic logistics to your forwarder. (2-3days)
Q10:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
We can pick you up in the airport or train station. Hotel booking service is available
A: We are a factory.
Q2: MOQ?
A: We don't have MOQ limit, you can order any quantity you want.
If you need scales with your specification, logo, packing, etc, please negotiate with us.
Q3:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think our cargos will better then any others.
Samples will be 10%-20% higher than the cargo.
Q4:Can I add my logo on the machine?
A:Yes,OEM is available for us.
But you should send us the Trademark authorization letter.
Q5:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q6:Do you have inspection procedures for these machine?
A:100% self-inspection before packing
Q7: Delivery date?
A: 1-3 days for sample, 15-20 days for 1000pcs, 30-35days for 40HQ.
Q8: Payment Method?
A: L/C at sight, T/T, Western Union and Paypal are all available.
30% deposit T/T in advance, rest against the Shipping Doc.
100% T/T in advance for sample order.
Q9: Shipping?
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days), port of loading: Shanghai
d. By domestic logistics to your forwarder. (2-3days)
Q10:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
We can pick you up in the airport or train station. Hotel booking service is available
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
