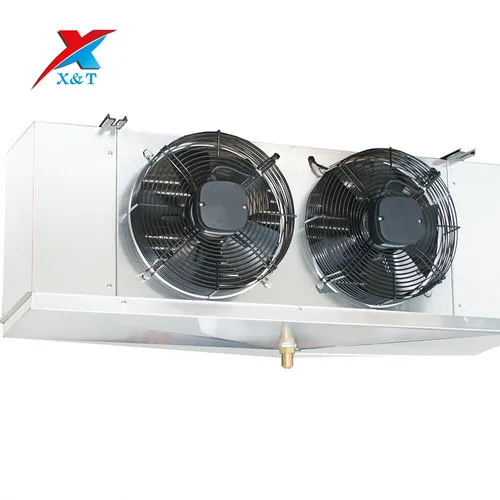

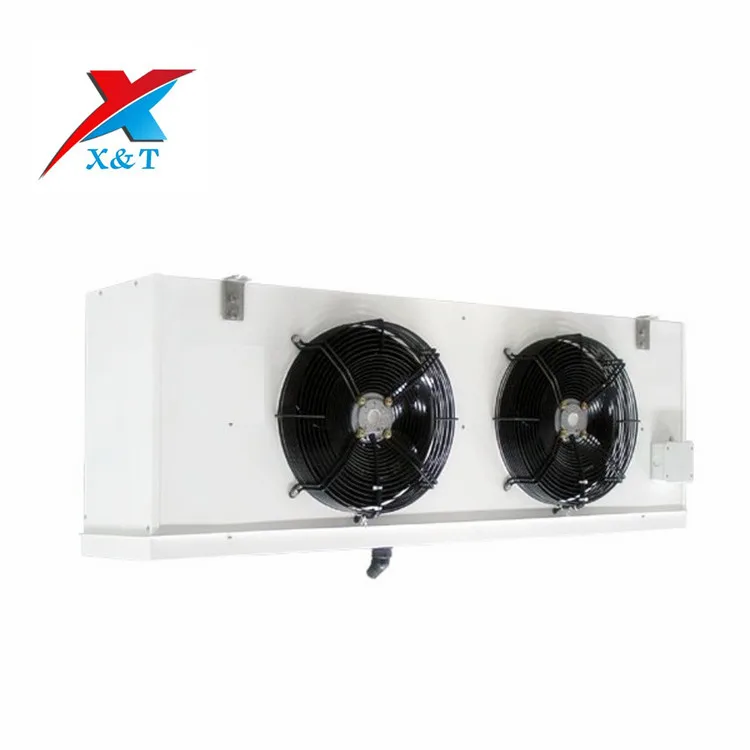

Trade Assurance Made In China Air Cooler Price In Bangladesh
- Category: >>>
- Supplier: Hangzhou Xuantong Machinery Co. Ltd.
Share on (62460991307):
Product Overview
Description
Product Description
Trade Assurance Made In China Air Cooler Price In Bangladesh
product description and application.
water defrost air cooler is a kind of cooling facility,which matches with freon system condensing unit requires quick defrost or can not use electrial defrost .based on different temperature cold room,the series can be divided into three types,DLS,DDS,DJS.

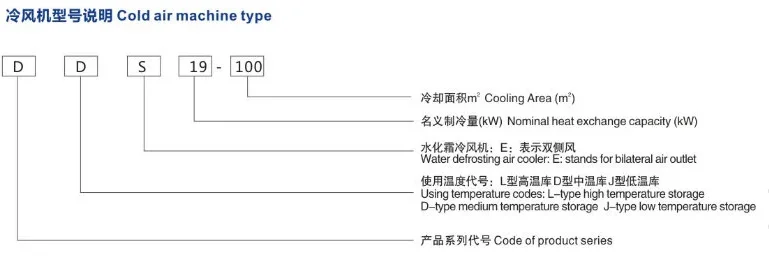

DLS series can apply to cold room,in which temperature is around 0C ,DDS series is freezer room air cooler,the cold room temperature is around-18C,DJS series is blast freezer air cooler,the cold room temperature is below-25C .
Main product features.
1 the body material is powerd painting steel plate, which is anticorrosion,it has attactive appearance and long service lifetime.
2.reasonable design of cooper coil postion,benefit from mechanical expansion,cooper coil tightly sticks to aluminum fin,so that heat exchange can me more efficient,
3.the application of water defrost can greatly reduce power consumption and defrost quickly.
4 according to customer requirement ,the air cooler can use long range air flow or explosion-proof motor.

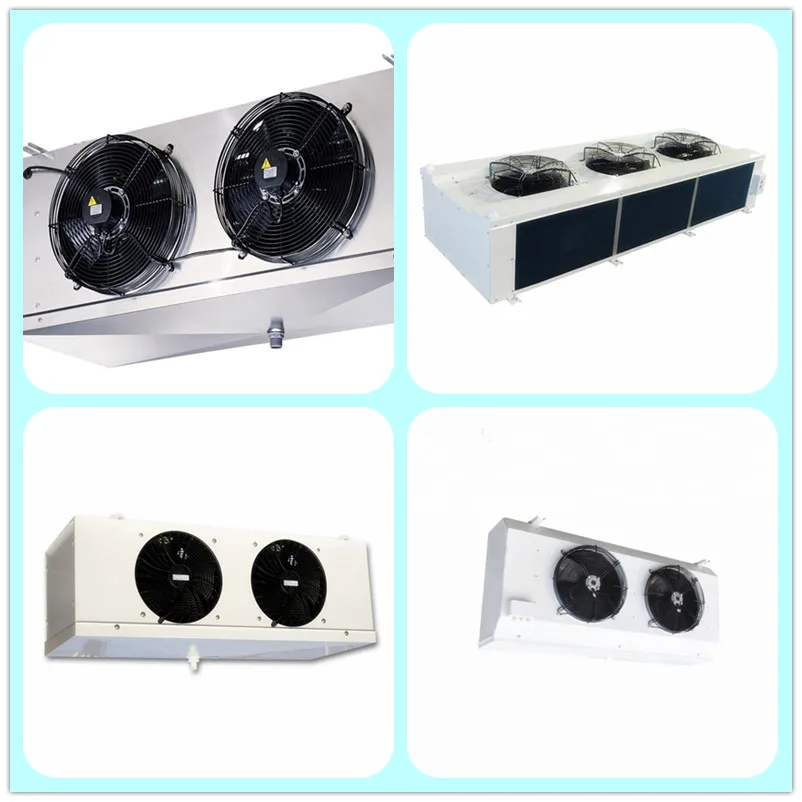

Detailed Images

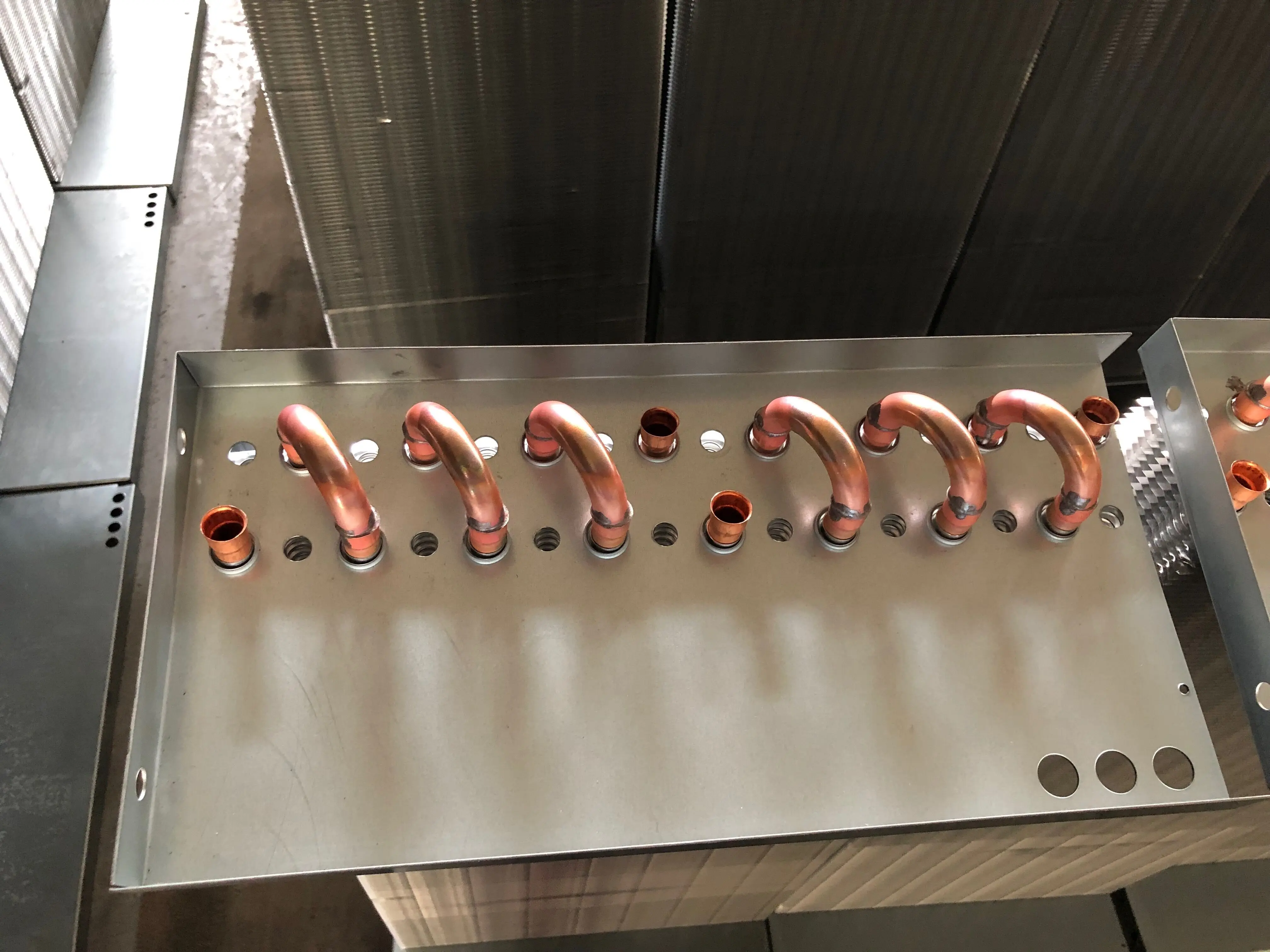

copper

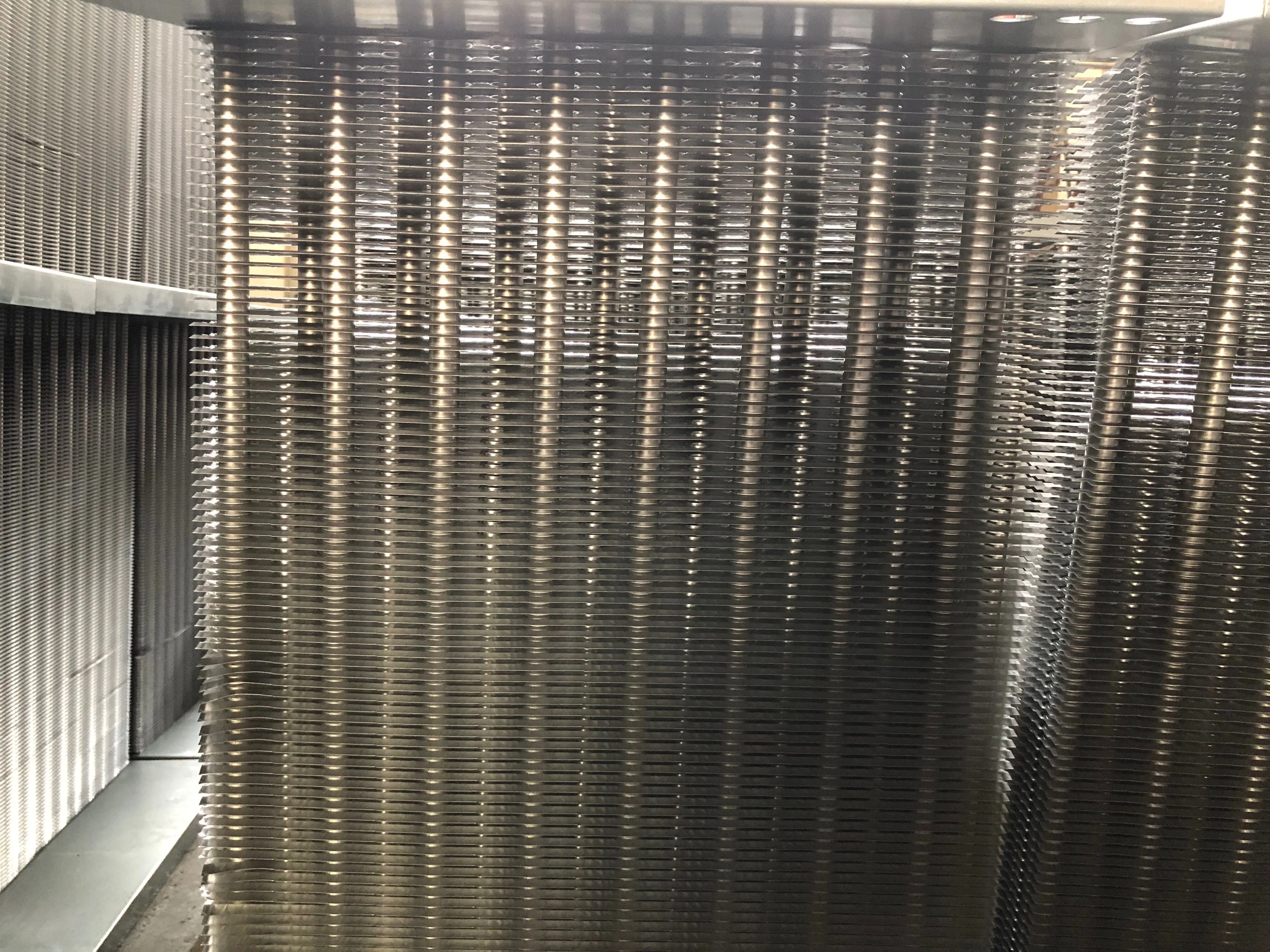

fin

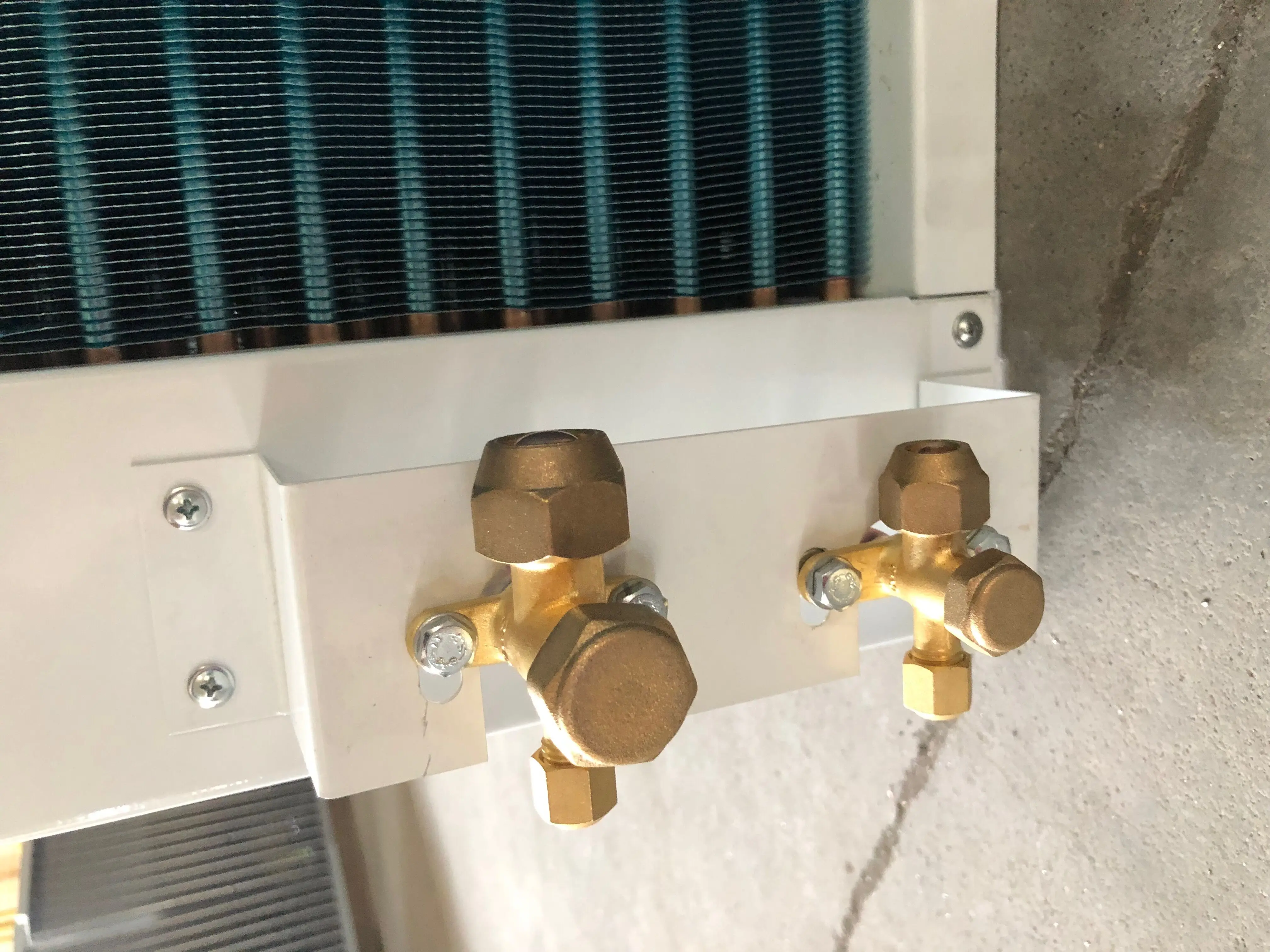

valve
Size Information
Attention of model selection
*>when the cold room temperature is around 0c,select 4.5mm as fin space.
*>when the cold room temperature is around -18c,select 6mm as fin space.
*>when the cold room temperature is around -25c,select 9mm as fin space.
model | cooling capacity kw | cooling area | fan | water inlet pipe/out let pipe | ||||||||||
diameter | air folow | quantity | voltage | power | range | |||||||||
DLS-17/80 | 17 | 80 | 500 | 12000 | 2 | 380 | 2*550 | 15 | G1.5”/G3' | |||||
DDS-11.5/60 | 11.5 | 60 | 500 | |||||||||||
DJS-7.3/40 | 7.3 | 40 | 500 | |||||||||||
DLS-22/105 | 22 | 105 | 500 | 12000 | 2 | 380 | 2*550 | 15 | G1.5”/G3' | |||||
DDS-16/80 | 16 | 80 | 500 | |||||||||||
DJS-10/55 | 10 | 55 | 500 | |||||||||||
DLS-26/125 | 26 | 125 | 500 | 18000 | 3 | 380 | 3*550 | 15 | G1.5”/G3' | |||||
DDS-19/100 | 19 | 100 | 500 | |||||||||||
DJS-12/70 | 12 | 70 | 500 | |||||||||||
DLS-33/160 | 33 | 160 | 500 | 18000 | 3 | 380 | 3*550 | 15 | G1.5”/G3' | |||||
DDS-24/120 | 24 | 120 | 500 | |||||||||||
DJS-15/85 | 15 | 85 | 500 | |||||||||||
DLS-38/185 | 38 | 185 | 500 | 24000 | 4 | 380 | 4*550 | 15 | G2'/G4' | |||||
DDS-28/140 | 28 | 140 | 500 | |||||||||||
DJS-17/100 | 17 | 100 | 500 | |||||||||||
DLS-44/210 | 44 | 210 | 500 | 24000 | 4 | 380 | 4*550 | 15 | G2'/G4' | |||||
DDS-33/160 | 33 | 160 | 500 | |||||||||||
DJS-20/115 | 20 | 115 | 500 | |||||||||||
DLS-53/260 | 53 | 260 | 600 | 20000 | 2 | 380 | 2*1500 | 20 | G2'/G4' | |||||
DDS-37/200 | 37 | 200 | 600 | |||||||||||
DJS-24/140 | 24 | 140 | 600 | |||||||||||
DLS-67/330 | 67 | 330 | 600 | 30000 | 3 | 380 | 3*1500 | 20 | G2'/G4' | |||||
DDS-47/250 | 47 | 250 | 600 | |||||||||||
DJS-29/170 | 29 | 170 | 600 | |||||||||||
DLS-83/410 | 83 | 410 | 600 | 30000 | 3 | 380 | 3*1500 | 20 | 2-G1.5'/G4' | |||||
DDS-57/310 | 57 | 310 | 600 | |||||||||||
DJS-36/210 | 36 | 210 | 600 | |||||||||||
DLS-94/470 | 94 | 470 | 700 | 42000 | 3 | 380 | 3*2200 | 20 | 2-G1.5'/G4' | |||||
DDS-67/360 | 67 | 360 | 700 | |||||||||||
DJS-41/250 | 41 | 250 | 700 | |||||||||||
DLS-116/580 | 116 | 580 | 700 | 42000 | 3 | 380 | 3*2200 | 20 | 2-G1.5'/G4' | |||||
DDS-81/440 | 81 | 440 | 700 | |||||||||||
DJS-52/300 | 52 | 300 | 700 | |||||||||||

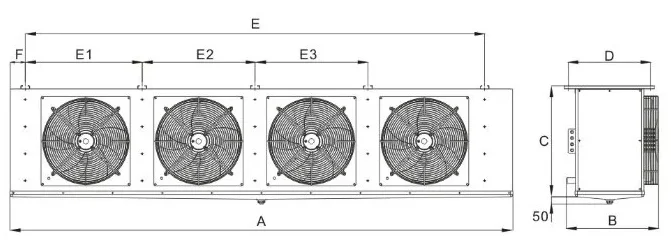

intallation size
Manufacture Specification
China Personal Energy-Saving Water Air Cooler
MODEL | Installation dimension | ||||||||||||||||
A | B | C | D | E | E1 | E2 | E3 | F | |||||||||
DLS-17/80 | 1920 | 770 | 780 | 560 | 1650 | 825 | 95 | ||||||||||
DDS-11.5/60 | |||||||||||||||||
DJS-7.3/40 | |||||||||||||||||
DLS-22/105 | 1920 | 770 | 830 | 560 | 1650 | 825 | 95 | ||||||||||
DDS-16/80 | |||||||||||||||||
DJS-10/55 | |||||||||||||||||
DLS-26/125 | 2220 | 770 | 830 | 560 | 1950 | 658 | 633 | 95 | |||||||||
DDS-19/100 | |||||||||||||||||
DJS-12/70 | |||||||||||||||||
DLS-33/160 | 2720 | 770 | 830 | 560 | 2450 | 825 | 800 | 95 | |||||||||
DDS-24/120 | |||||||||||||||||
DJS-15/85 | |||||||||||||||||
DLS-38/185 | 3120 | 770 | 830 | 560 | 2850 | 725 | 700 | 700 | 95 | ||||||||
DDS-28/140 | |||||||||||||||||
DJS-17/100 | |||||||||||||||||
DLS-44/210 | 3520 | 770 | 830 | 560 | 3250 | 825 | 800 | 800 | 95 | ||||||||
DDS-33/160 | |||||||||||||||||
DJS-20/115 | |||||||||||||||||
DLS-53/260 | 2220 | 1060 | 1060 | 690 | 1950 | 975 | 95 | ||||||||||
DDS-37/200 | |||||||||||||||||
DJS-24/140 | |||||||||||||||||
DLS-67/330 | 2720 | 1060 | 1060 | 690 | 2450 | 825 | 800 | 95 | |||||||||
DDS-47/250 | |||||||||||||||||
DJS-29/170 | |||||||||||||||||
DLS-84/410 | 3200 | 1060 | 1060 | 690 | 2930 | 985 | 960 | 95 | |||||||||
DDS-57/310 | |||||||||||||||||
DJS-36/210 | |||||||||||||||||
DLS-94/470 | 3200 | 1060 | 1160 | 690 | 2930 | 985 | 960 | 95 | |||||||||
DDS-67/360 | |||||||||||||||||
DJS-41/250 | |||||||||||||||||
DLS-116/580 | 3520 | 1060 | 1260 | 690 | 3250 | 1090 | 1070 | 95 | |||||||||
DDS-81/440 | |||||||||||||||||
DJS-52/300 | |||||||||||||||||
