jiangxi ganzhou gandong rotary trommel scrubbers gold prospecting rubber mat
- Category: >>>
- Supplier: Jiangxi Well-Tech International Mining Equipment Co. Ltd.
Share on (62461104435):
Product Overview
Description
Product Description
Product Application

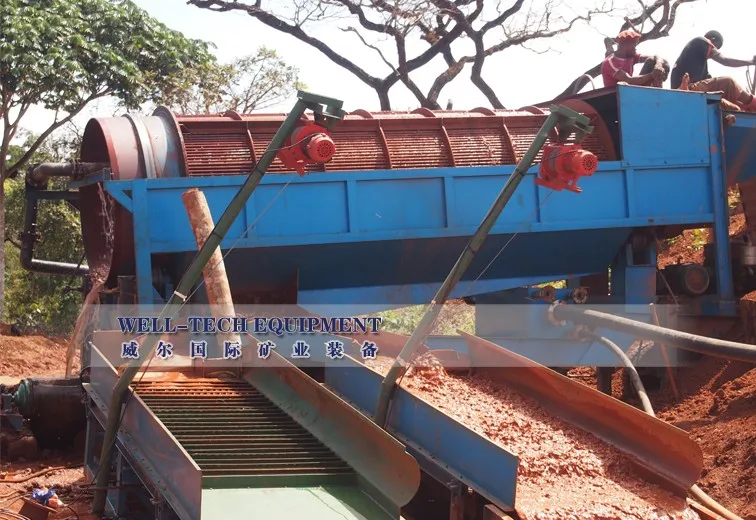

A.The Trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and
optimize the subsequent process steps of recovery. This method of screening helps to reduce operating andinvestment cost and to increase product quality, while allowing rapid and large volume processing.Our Trommel
screens are constructed of high quality material,designed for high performance, high production rates, lower
operating costs and lower maintenance.This material is then passed on to the downstream process equipment
which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.

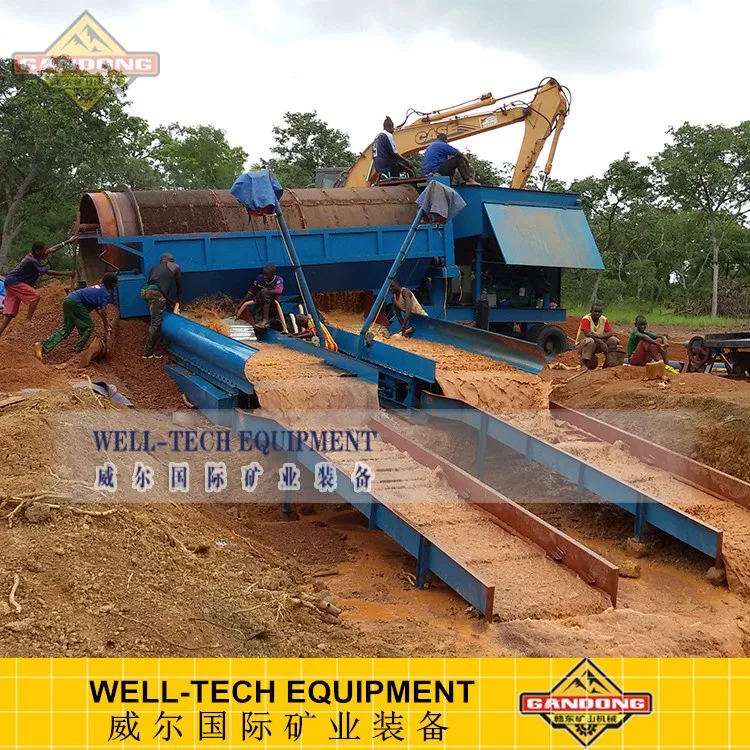

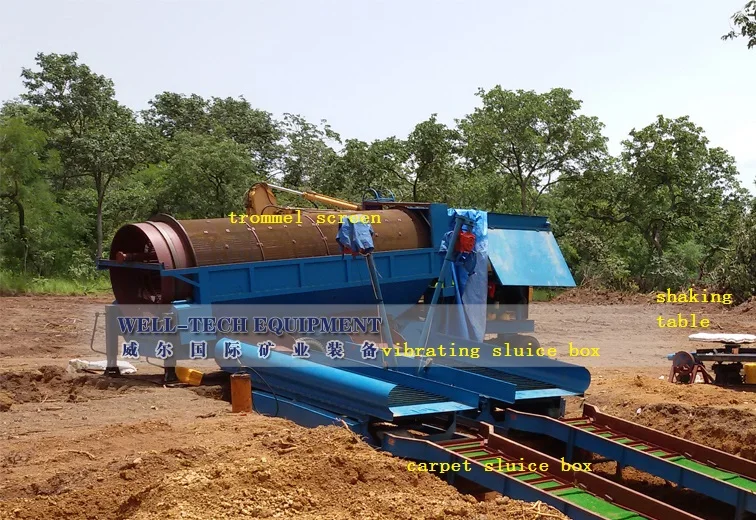

B.The Vibrating Sluice Box works with the gold trommel screen to recover gold roughly.
1. Reasonable structural design, convenient for transporting;2. High degree of automation, Multi-machine joint working high gold handling capacity with the daily capacity
up to 2000m3
3.Suitable for various areas, washing and separation are excellent in muddy areas of mines; It can also be
suitable for processing minerals that may contain gravels and boulders;
4. Applicable to recycling bar gold, nuggets, slices and gold particles;
5. High degree of washing and recovery rate.
C.6-S Shaking table which is also called table concentrator, is a mine separation device for fine minerals working by
gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widelyused in separation for Gold, Silver,Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome,
Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
Separating precisely is the prominent advantage of shaking table. We can get some final concentrate, final tailings
and 1 or 2 kinds of middling product after the first separating from raw mineral. The enrichment ratio of concentrate
is very good, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300
times. Besides, the range of separating particle size effectively in dealing with metallic ore is 3 to 0.02 mm.
Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
Separating precisely is the prominent advantage of shaking table. We can get some final concentrate, final tailings
and 1 or 2 kinds of middling product after the first separating from raw mineral. The enrichment ratio of concentrate
is very good, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300
times. Besides, the range of separating particle size effectively in dealing with metallic ore is 3 to 0.02 mm.

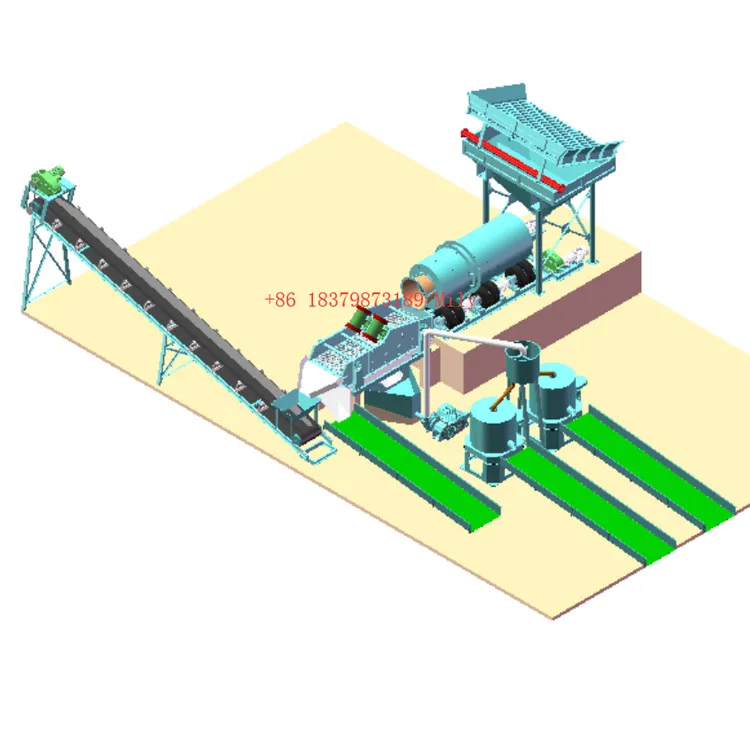

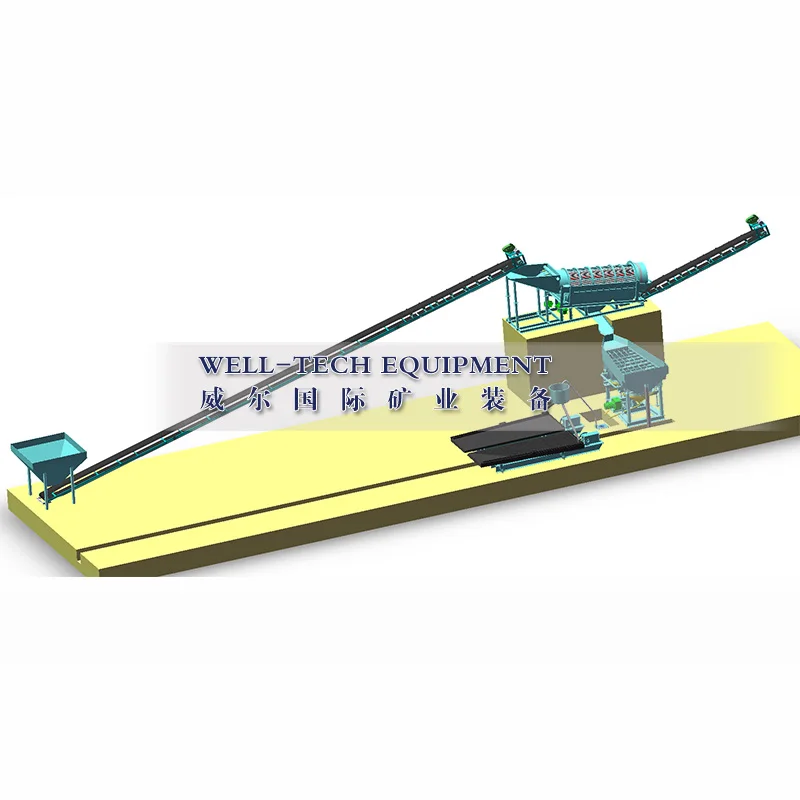

SPECIFICATIONS FOR 50/100 TPH GOLD WASHING PLANT | ||||||
Item | Model | Quantity | Power | |||
50TPH | GT1020 | 1 | 5.5 | |||
FGS-12 | 2 | 0.8+1.1 | ||||
6-S7.6 | 1 | 1.1 | ||||
100TPH | GT1545 | 1 | 15 | |||
FGS-15 | 2 | 0.8+2.2 | ||||
6-S7.6 | 1 | 1.1 | ||||
Main Features
1) Simple installation and operation
2) poterable with wheels
3) High recovery ratio
4) Low investment
5) Easy to maintain
6)Alluvial gold popular design flow
Detailed Images
Machine Parts

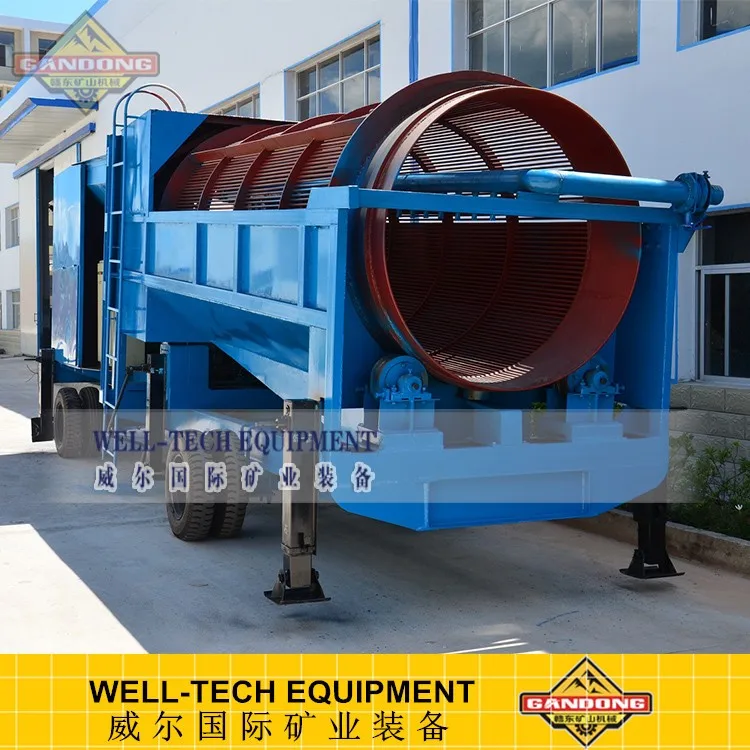

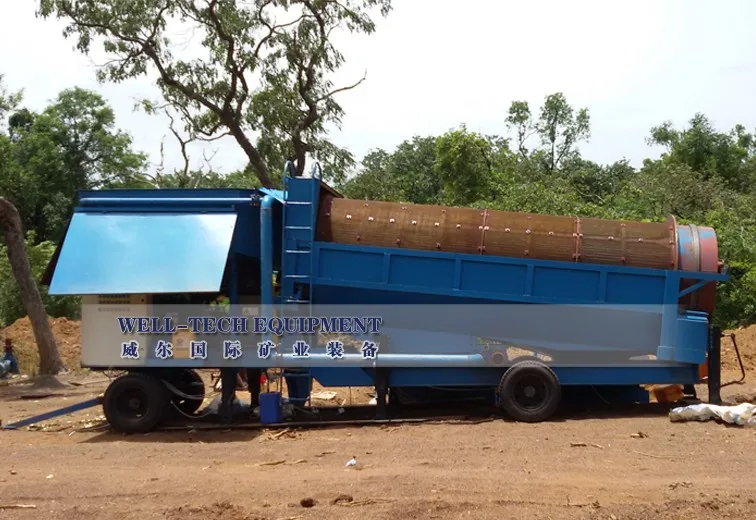

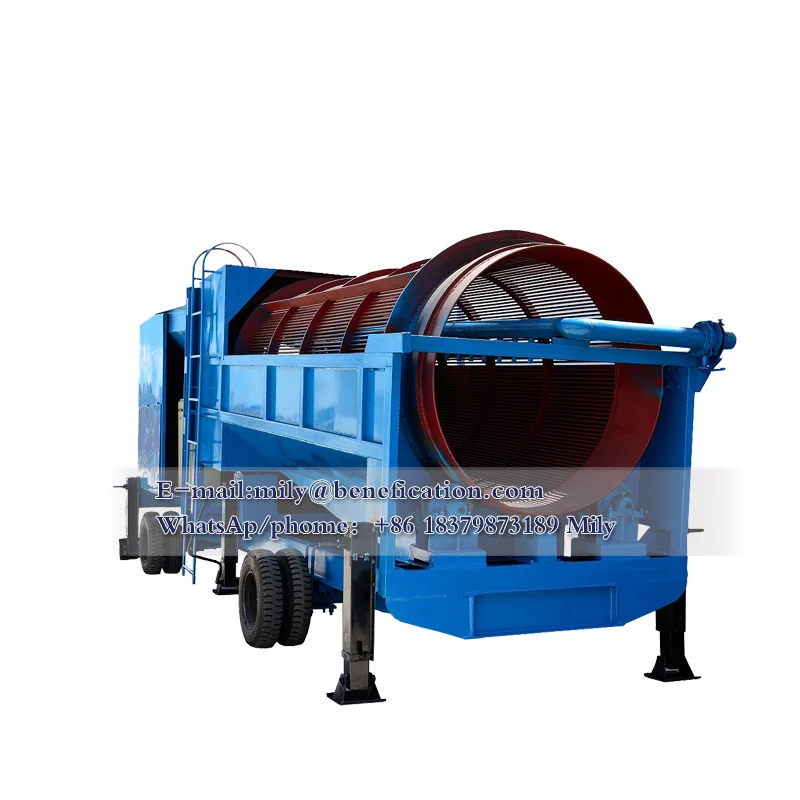

Name: Trommel screen
Brand: GANDONG
Original: China
1. Configured for economical & efficient classification, Screening and grading
2. Heavy duty trommel drum with lifters at the front to facilitate material break up
3. Screen replaceable for different mesh sizes
4. Multiple screen size
5. Easily changed screen plates
6. Largest processing capacity in the industry
7. Unique screen design, result in higher capacities, longer screen life and no material clogging
8. Heavy duty feed hopper and extension
9. Discharge chute
10. Gear drive mechanism
11. Variable speed drive mechanism
Main Parts
Name: Vibrating sluice/power sluice
Brand: GANDONG
Original: China
1.High recovery ratio more than 90%
2.Total process automation, steady recovery performance
3.Easy maintain and easy operation
4.Environmentally (requires no release mercury)
5.Low water and electricity requirements
6.Low production costs, durable wear parts, minimal maintenance requirements
7.Small angle installation slope,water flow is lower, thus micro fine gold easily deposition. Grooved sluice box has
new designed grid and riffles, causing lots of eddy currents increasing the gold separation time as well as
polishing and washing the gravel and solids.
Machine Parts

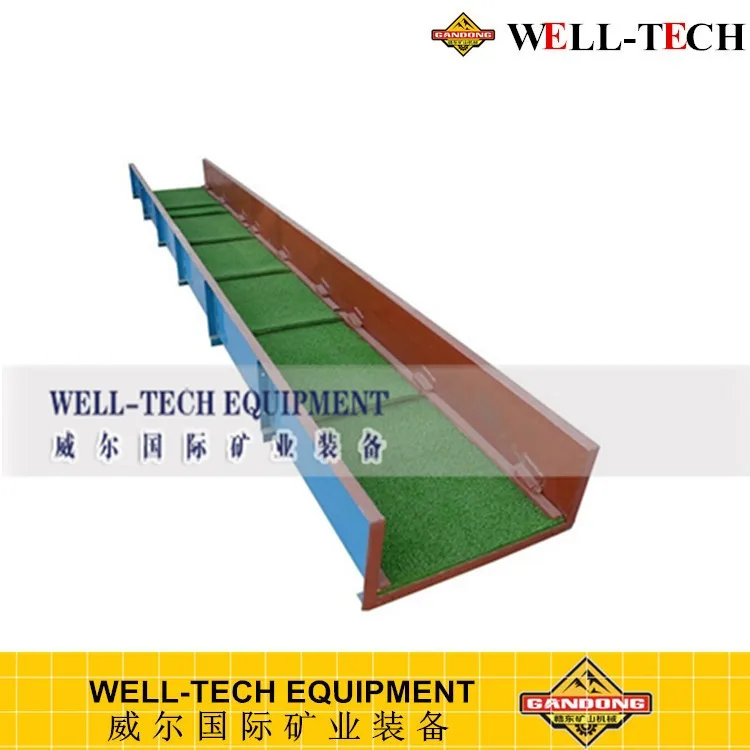

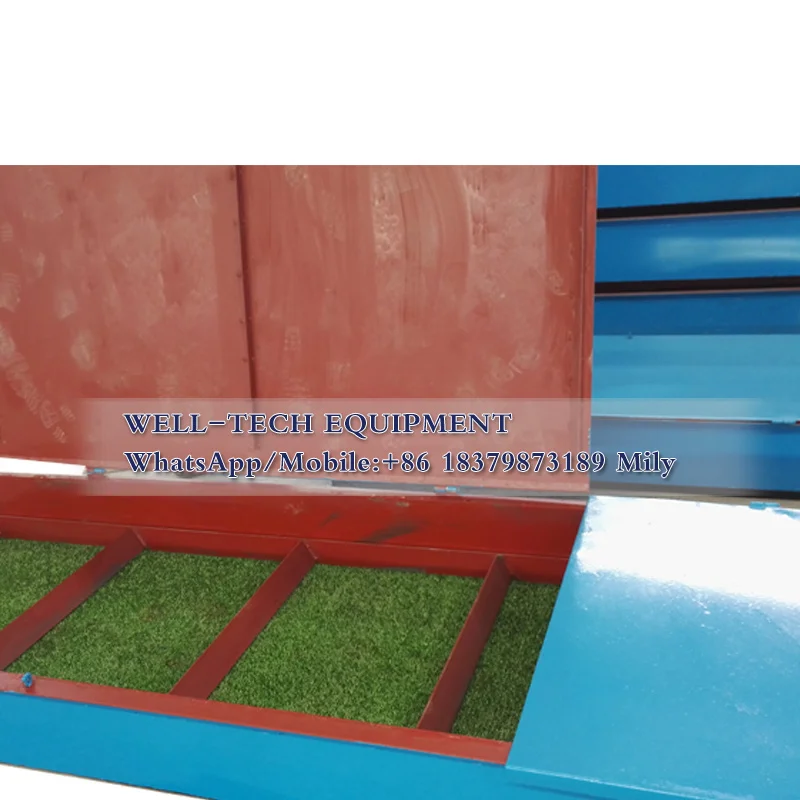

Name: Gold sluice box&mat
Brand: GANDONG
Original: China
High quality mat,long work life.
Main Parts
Name: shaking table
Brand: GANDONG
Original: China
1.High recovery ratio;
2.High concentration ratio;
3.Easy installation;
4.Simple operation;
5.Deck constructed of fiber glass;
6.Seven different decks to choose;
7.Long working life;
8.Adjustable stroke length and speed.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Container | 40HQ/40GP/20GP | |
Load Port | Xiamen , Shenzhen,Shanghai | |
Trade term | FOB,EXW,CIF,CFR | |
Delivery time | Within 35 days after recieve 30% deposit,balance before loading | |
