JDSU fiber optic power meter vfl optical power meter
JDSU fiber optic power meter vfl optical power meter
JDSU fiber optic power meter vfl optical power meter
JDSU fiber optic power meter vfl optical power meter
JDSU fiber optic power meter vfl optical power meter
JDSU fiber optic power meter vfl optical power meter
JDSU fiber optic power meter vfl optical power meter

JDSU fiber optic power meter vfl optical power meter

Share on (62461106573):


Price:$7.70 - $9.50

Quantity:


Product Overview

Description




photobank (4)

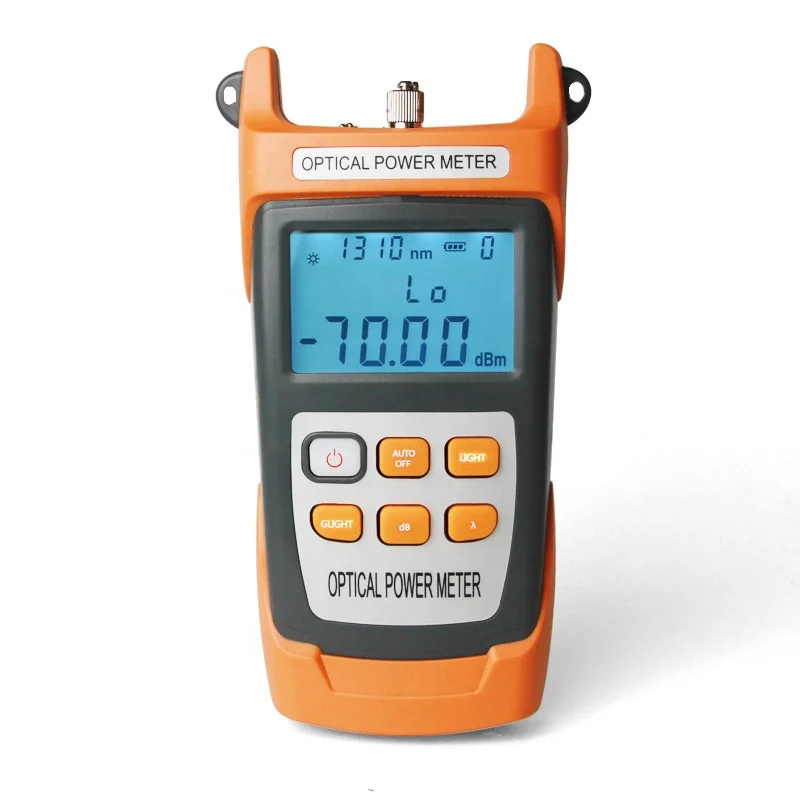

Optic Power Meter

The Handheld Optical Power Meter is a precision, durable portable instrument specifically designed for theinstallation, operation and maintenance of fiber optics. With a compact shape, the background display andautomatic shutdown function of the switch can be selected. Ultra-wide optical power test range. Accurate testaccuracy and user self-calibration function and multi-purpose interface design, while linear index (mW) andnonlinear index (dBm) are displayed on the same screen.


Basic Parameters :
Specification
Wavelength Range
800~1700nm
Detector
InGaAs

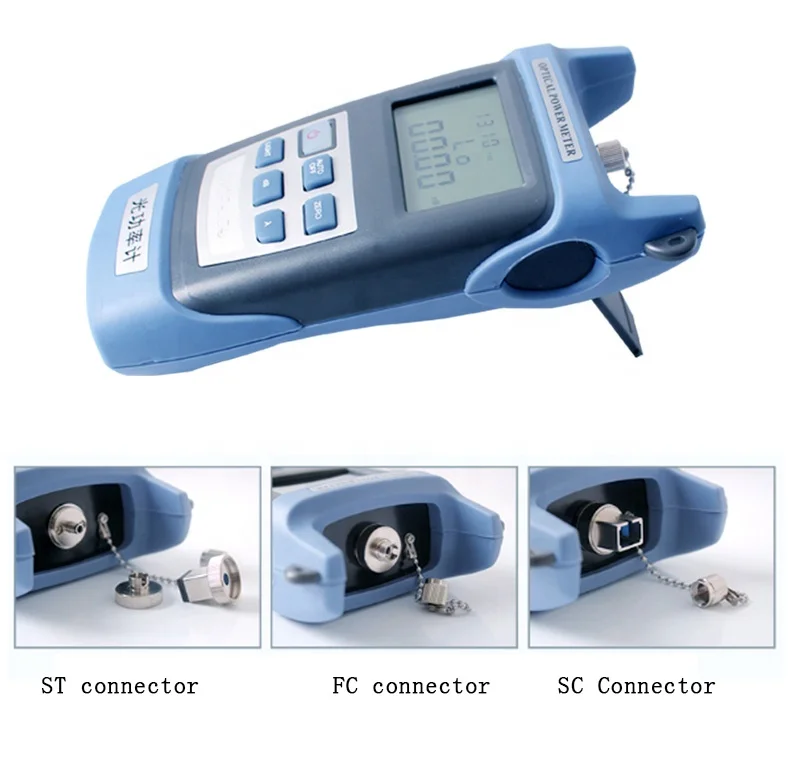

Connector
SC/FC/St
Measurement Range
-70~+3(10)dBm,-50~+20(26)dBm optional
Uncertainty
±5%

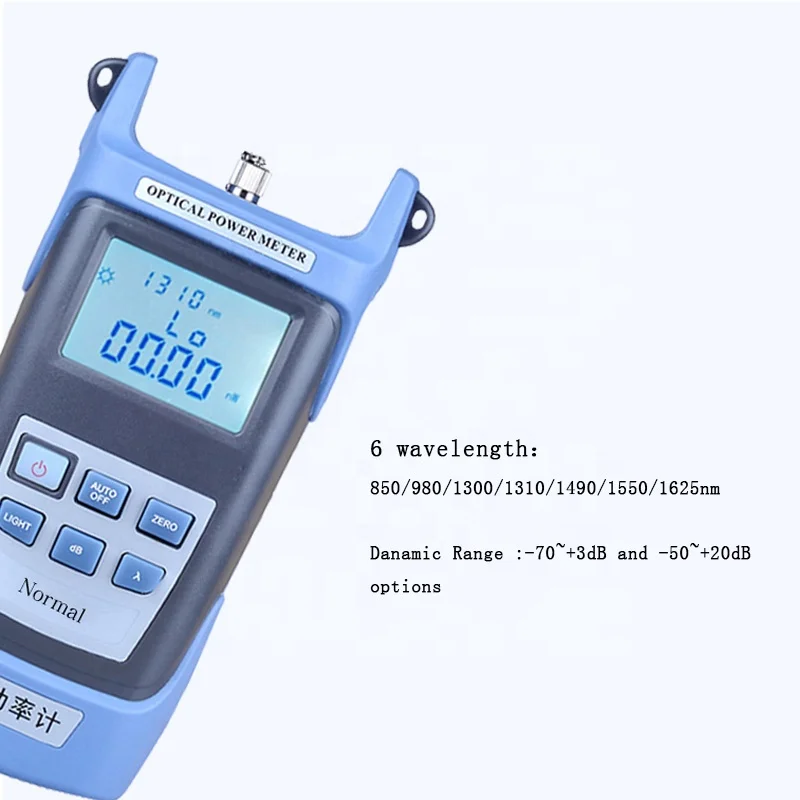

Calibrated Wavelength(nm)
850, 980, 1300, 1310, 1490, 1550,1625
Display Resolution
0.1% / 0.01dBm
Operating Temperature(℃)
-25~+70
Auto-off time
10min
Dimension(mm)
190*100*40mm
Power Supply
AAA 1.5V Battery x 3pcs
Rechargeable battery one is optional
The Visual Fault Locator Specification
Wavelength
650nm+10nm
Emitter Type
FP-LD
Output Power (mW)
1mW, 10mW optional
Optical Connector
2.5mm connector
Operation mode
Both CW & Pulse
Products Details

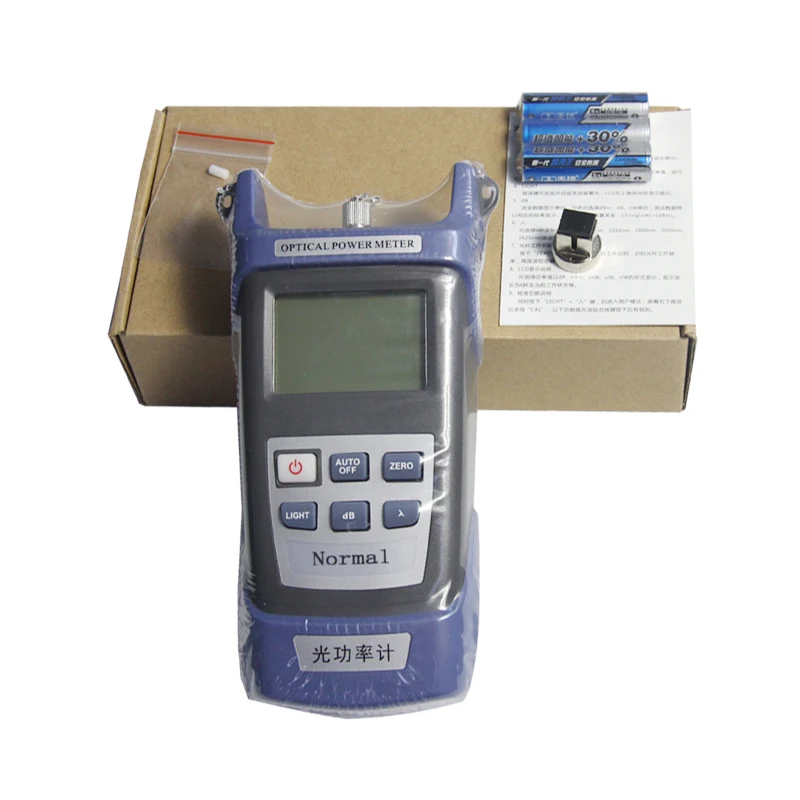

photobank 11910OPM+VFL (6)


More optionals (Picture with link):

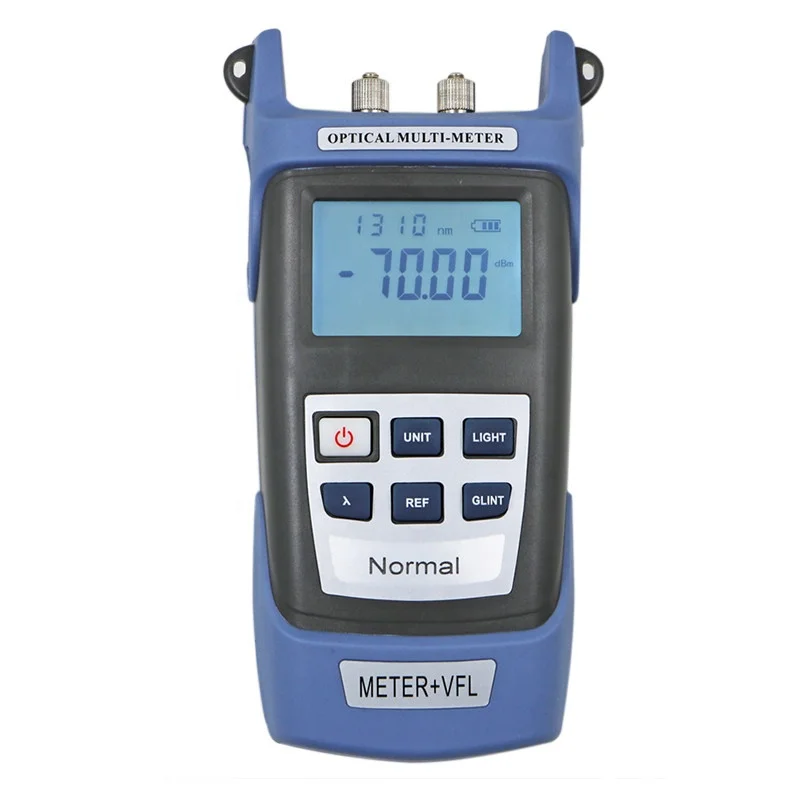

OPM+VFL (1)421

20




.000photobank (3)
