Real time tracking MTK gsm waterproof gps tracker for vehicle support cut relay
- Category: >>>
- Supplier: Jinan Changrui Electronic Technology Co. Ltd.
Share on (62461308229):
Product Overview
Description
Product Description
gps tracker for vehicle with cut relay
This tracking device is based on LTE GSM/GPRS network and GPS Satellite positioning system, which is widely applied for tracking of
car, motorcycle, E-bike and other vehicles due to design of mini size, waterproof and wide voltage input 8-80V. It’s one of your
best choice on vehicle tracking with its practical functions and competitive price.
1. Key Features
* Wide operating input voltage range: 9-75VDC* GPS/LBS real time positioning, support the computer to track the car, mobile search vehicles and Wechat search the vehicles
* Support SMS text query location information
* ACC ignition signal detection
* Built-in vibration sensor to achieve intelligent anti-theft function
* SOS panic button for emergency alarm
* Internal / external microphone for remote voice monitoring
* Movement alarm
* External power cut alarm
* Remote engine start/stop
* With flash memory; Support data stores in the memory in memory and re upload to server after the GPRS signal is detected
* Map Link Available on SMS Query
* Weather-Proof IP65 design
* 3G accelerator built-in
* RS232 interface for connecting with peripheral devices (can be added in the next firmware)
Advantages
Storage Temperature | -40 to 90 °C |
Operating Environment | Temperature:-20 to 60 °C, Humidity:<95% |
GPS Module | SIMCOM |
GPS/GSM Antenna | Built-in |
GPRS | LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM: 850/900/1800/1900MHZ |
Sensitivity | Tracking: –159 dBm Cold starts: –144 dBm Hot starts: –156 dBm Cold start: <38s Warm Start: <4s Hot Start: 1s |
A-GPS/LBS | AssistNow Online and AssistNow Offline services,OMA SUPL compliant GPRS |
Power Supply | 12-80VDC, Backup Rechargeable 140mAh Li-Polymer Battery |
Motion Sensor | Built-in |
Case | ABS plastic, Fire-proof |
Measurement | 25mm * 25mm * 4mm(LxWxH) |
Weight | 100g |
How to install?

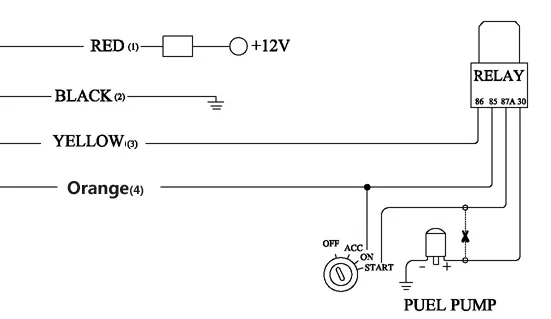

Wiring Definition
Red: Positive + (8-80V)
Black: Ground
Orange: ACC detecting
Yellow:cut off output

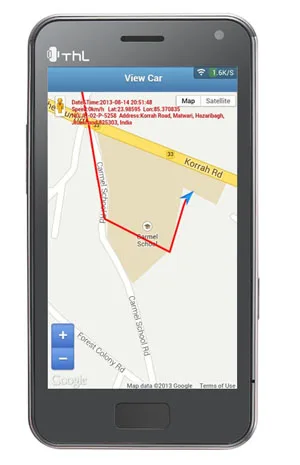

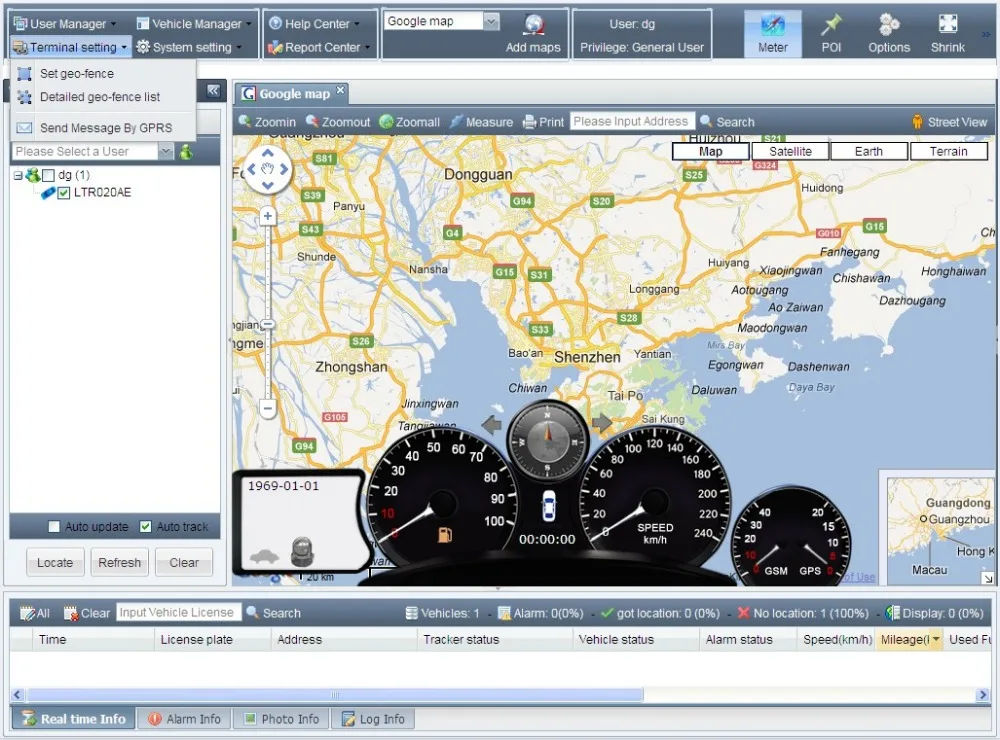

Real Time tracking System and APP of IOS and android.
Platform and APP function
1. Real time tracking
2.Route play back
3.Control vehicle remote.(such as cut oil)
4.Setup device remote
5.Alarms(speeding, tow, idle, fuel lost, power cut)
6.Geofence
7.Driver harsh behavior analysis
2.Route play back
3.Control vehicle remote.(such as cut oil)
4.Setup device remote
5.Alarms(speeding, tow, idle, fuel lost, power cut)
6.Geofence
7.Driver harsh behavior analysis
Related Products
Packing & Delivery

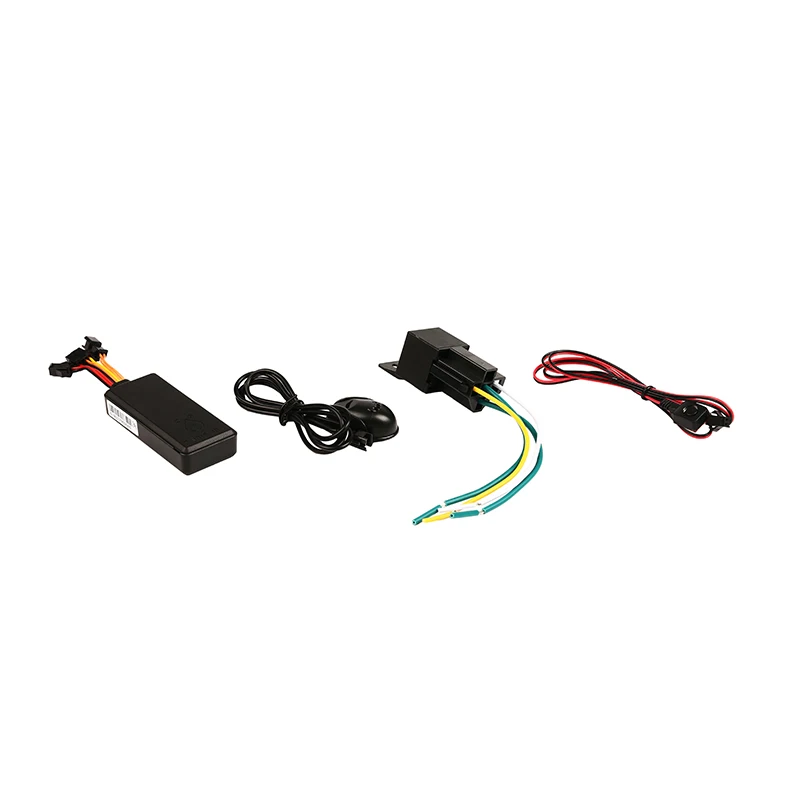

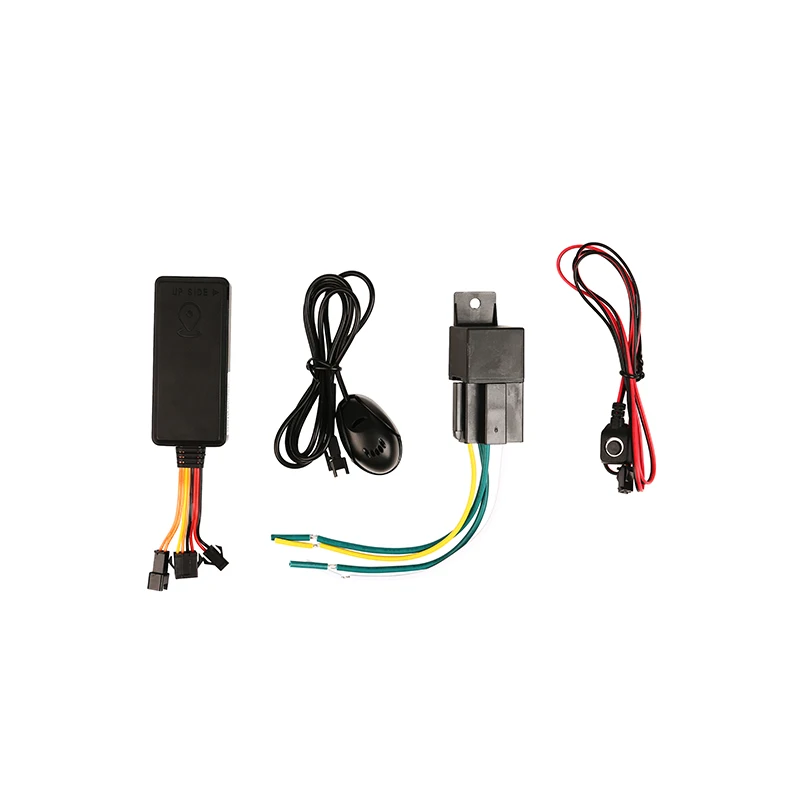

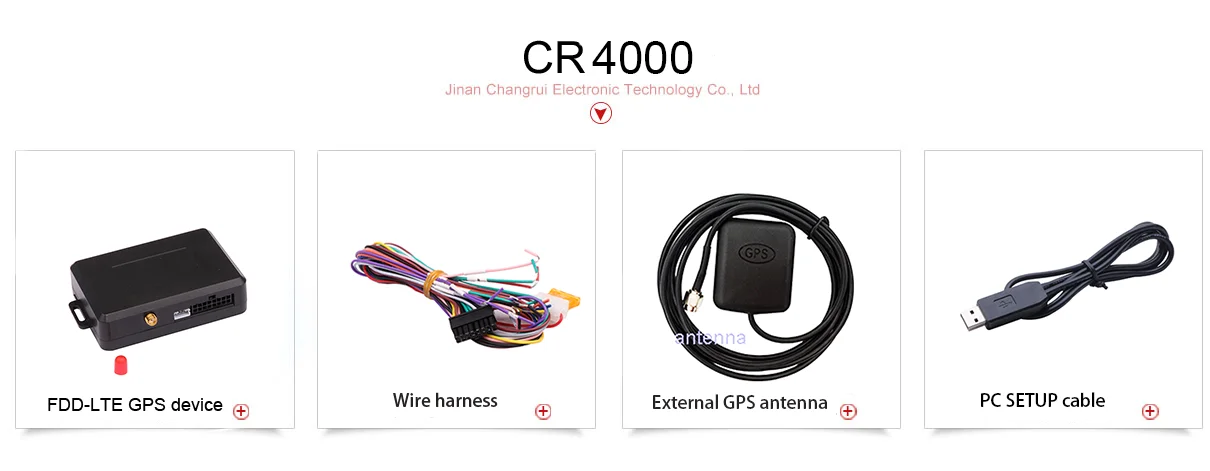

packing list
* Tracker Main Unit
* Main Harness
* Velcro sticker
* 4-pin relay (optional)
* Microphone (optional)
* SOS panic button (optional)
Delivery time
1.It will take 3 days after confirm your payment.
2. The specific delivery time depends on the items and the quantity of your order.
Our Company
FAQ
Q1. Can you help for design?
A:Yes, we have our own software and hardware engineer, you can give your idea to us, we can assist the design work. provide sample for your reference.
Q2. What is your product warranty?
A:We guarantee that the products are qualified. If the product is broken at your side, which need be called back to China, all the freight cost for the broken product and new products for you will be paid by our company.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A:Generally, it will take 3 days after confirm your payment. The specific delivery time depend on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
