Mcoplus UHF WMU96(2TX 1RX) Professional ABS Dual channel Wireless Lavalier Microphone for DSLR Mirrorless Cameras Smartphone

Product Overview

Description

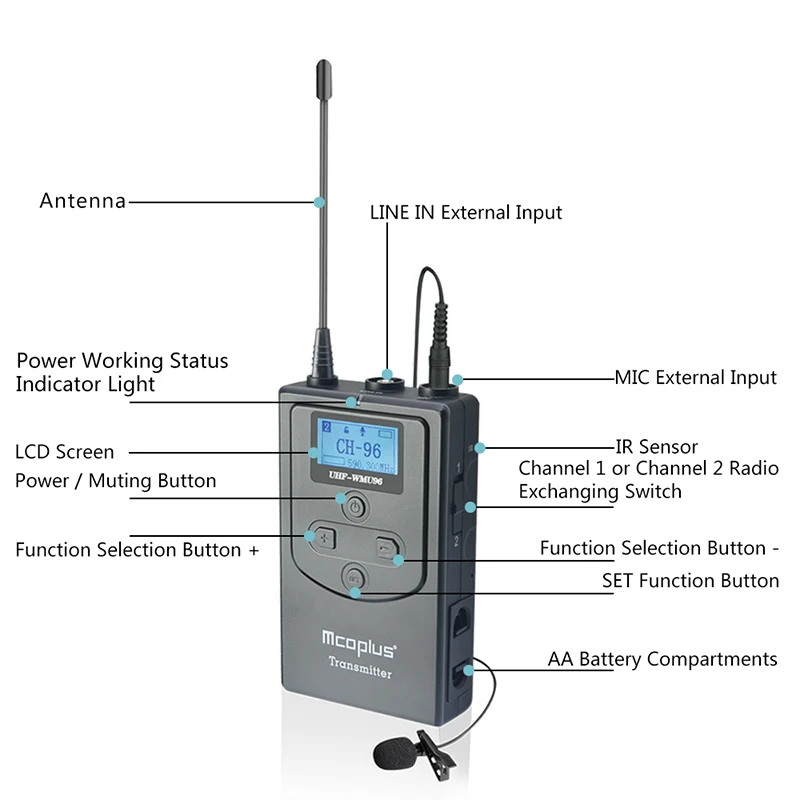

Mcoplus UHF-WMU96 Wireless Lavalier Microphone(2TX+1RX)



    UHF-WMU96 is an wireless microphone with dual-transmitter triggered by one receiver,it utilizes UHF wireless FM technology and high-resolution lattice screen,16-level adjustable volume,and integrated into LCF(Low Cut Filter Mode), Auto-scanning, Auto IR Channel-match,stereo / mono switchable audio mode, RF signal strength adjustment, MIC/LINE IN input dual selection, power monitoring at receiver end, sound pickup dynamic display, backlight adjustment and other functions,at the same time with strong shielding anti-noise performance, it’s a high-quality microphone to broadcasting level.

Mani Features:

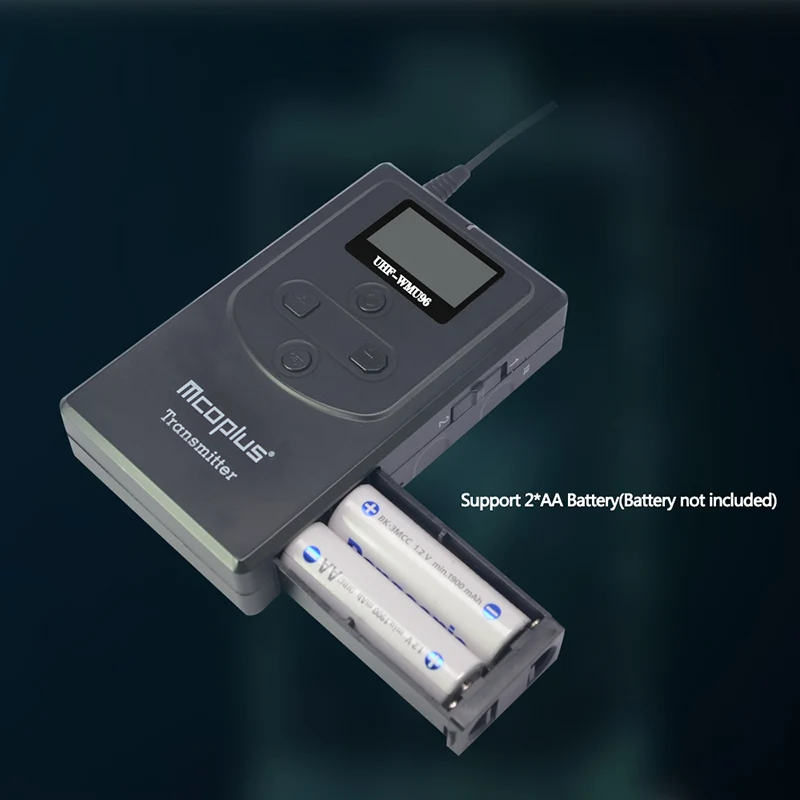

*use 2X AA Battery

*Manual or Auto IR Sync

*Transmitter Power Monitor

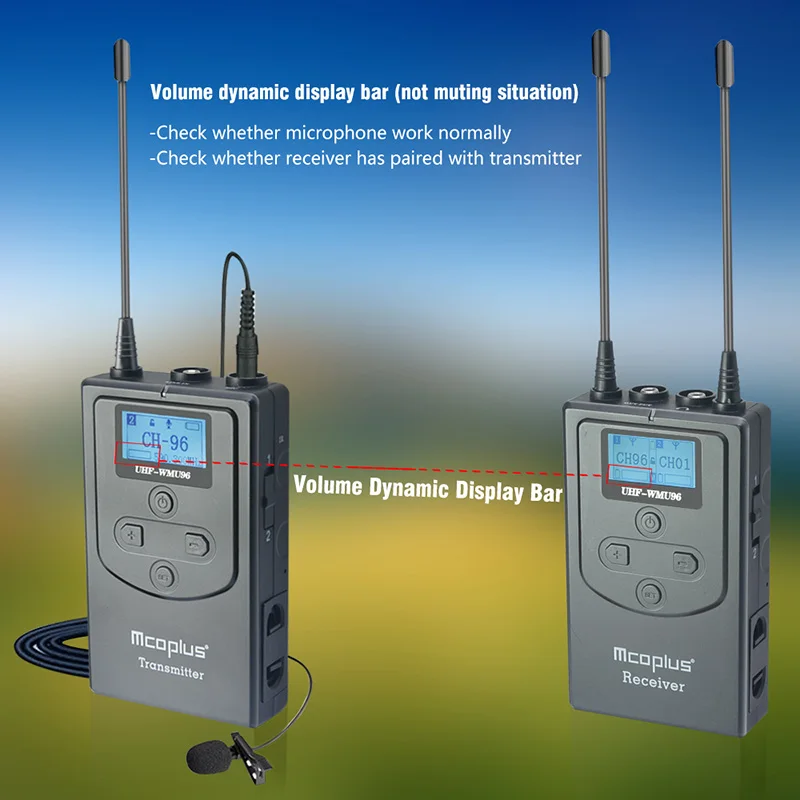

*Audio Dynamic Display Bar

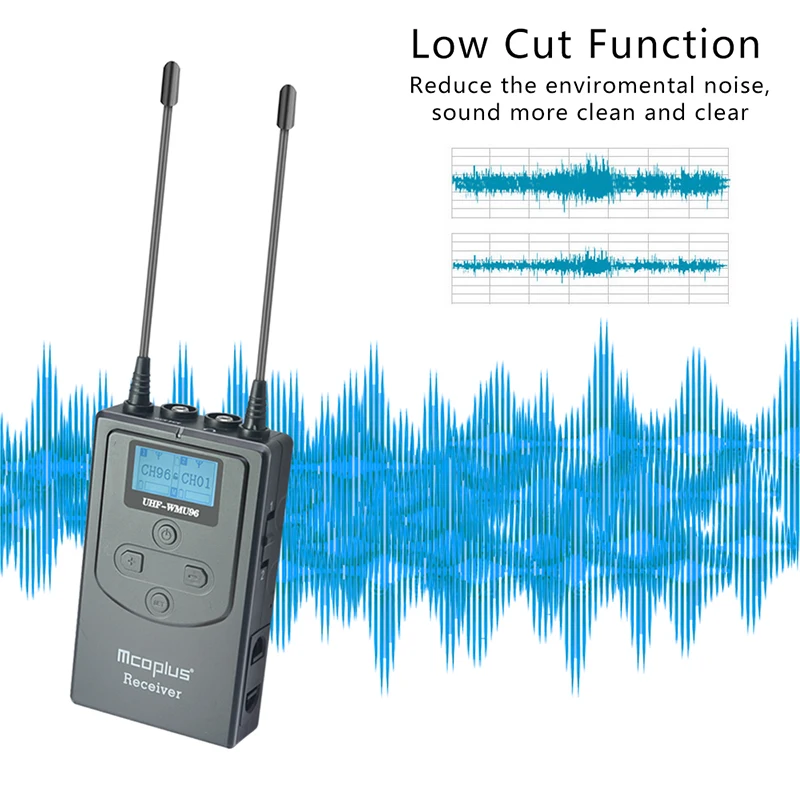

*LCF Low Cut Filtering Mode

*16 Level Volume Adjustment

*Adjustable RF Signal Strength

*Lattice LCD Display, High Resolution

*Mono/Stereo Swithchable Output Modes

*ABS Manufacturing, Excellent Shielding

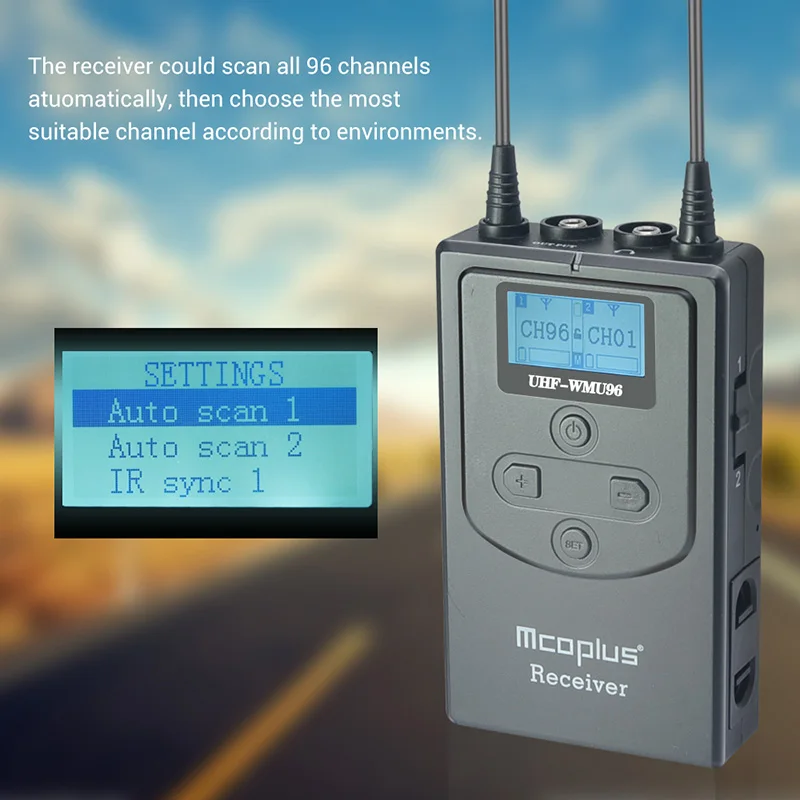

*Auto-scanning for Quick Channel Selection

*Used for Multiple Devices Working Together

*Low -consumption, Super-long Standby Time

*Dual Transmitters Triggered by One Receiver, 1/2 Double Group Options

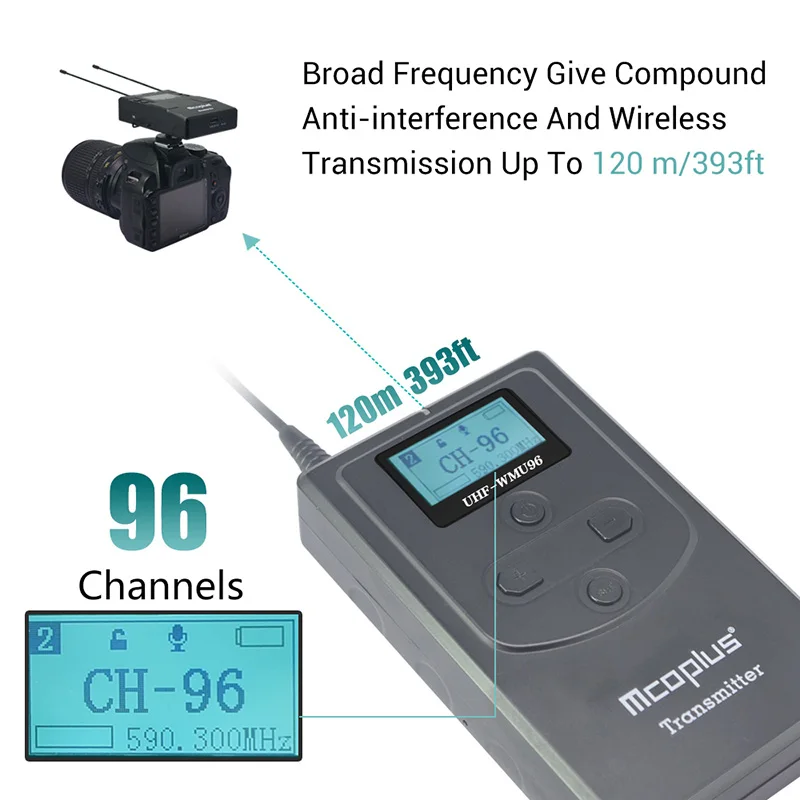

*Working Distance is Up to 120m(120m in Open Area, 80m in Barrier Area)

Product Specifications:

Transmitter Spec.			Receiver Spec.
Channels	96		Channels	96
Groups	1 or 2		Groups	1 and 2
Wireless Frequency	520MHZ-592MHZ		Antenna	1/4 Wavelength Wire Antenna
Signal to Noise Ratio	≥70dB		Audio Output Level	-10dB
Stray Radiation	-60dB		Headphone Output Level	87mW(32Ω)
Transmitter	40mW		Receiver Sensitivity	-95dB
Sound delay	<10 ms		Signal to Noise Ratio	≥70dB
Antenna	1/4 Wavelength Wire Antenna		Sound delay	<10 ms
Reference Deviation	±5kHz(-60dBV, 1kHzinput)		Frequency Respond	40Hz-18kHz(+/-3dB)
Audio Distortion	≤0.5%		Reference Deviation	±5kHz(-60dBV, input1kHz)
Reference Audio Input Level	-40dB(Microphone Input. 0dB descrease)		Audio Distortion	≤0.5%
Battery Type	Built-in lithium battey(1800mA)		Battery Type	Built-in lithium battery(1800mA)
Power	DC 5V(USB Type-C)		Power	DC 5V(USB Type-C)
Weight	about 274.4g		Weight	about 280.1g
Dimensions	215*64*24mm		Dimensions	215*64*24mm
Operating Temperature	0℃-50℃		Operating Temperature	0℃-50℃
Storage Temperature	-20℃-55℃		Storage Temperature	-20℃-55℃

Product List:

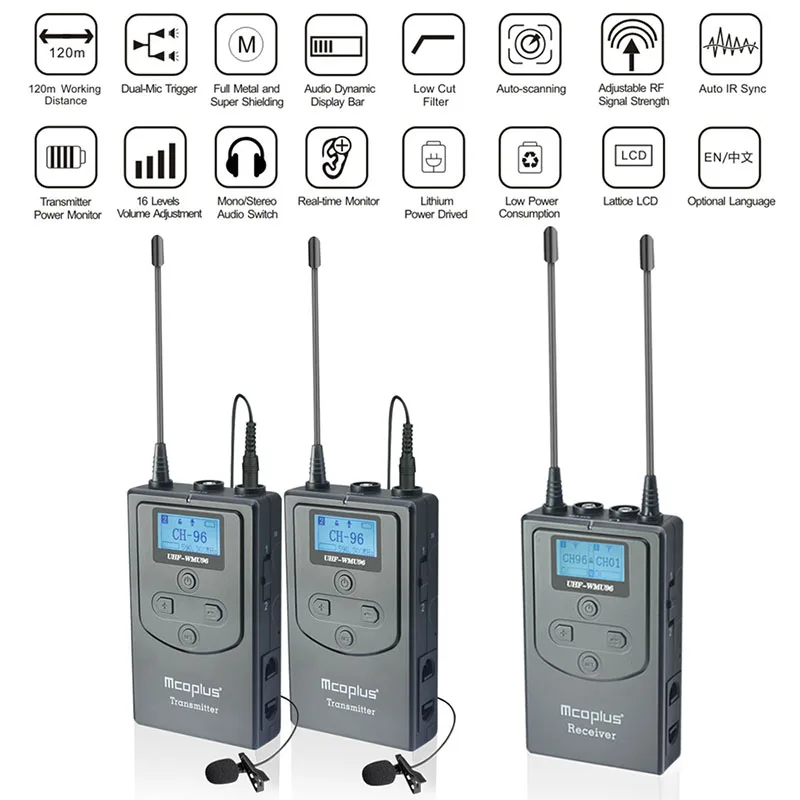

2*Transmitter

1*Receiver

1*English/Chinese User Manual

2*3.5mm Mic Audio Input Cable

1*3.5mm-3.5mm Audio Output Cable

1*3.5mm-XLR Audio Output Cable

2*Belt Clip

1*Cold Shoe

1*Plastic Carrying Case

1*Mcoplus Original Package
