Factory 12*4.6*3.75mm 2.8V strong vibration force core DC Mini SMD Vibrator Motor for PCB Board
- Category: >>>
- Supplier: Chongqing Linglong Electronic Co. Ltd.
Share on (62461483816):
Product Overview
Description

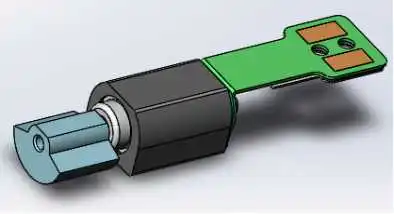

Factory 12*4.6*3.75mm 2.8V strong vibration force core Mini DC SMD Vibrator Motor for PCB Board
Product Quick Details:
| size | 12*4.6*3.75mm |
| rated voltage | 2.8V |
| operating voltage | 2.3V~3.1V |
| speed | 11000±2500rpm |
| current | 180mA Max |
| vibration | 1.12 G @150g jig |
| response time | about 90ms |
| life | 0.5S on, 0.5S off, 100000 cycles |

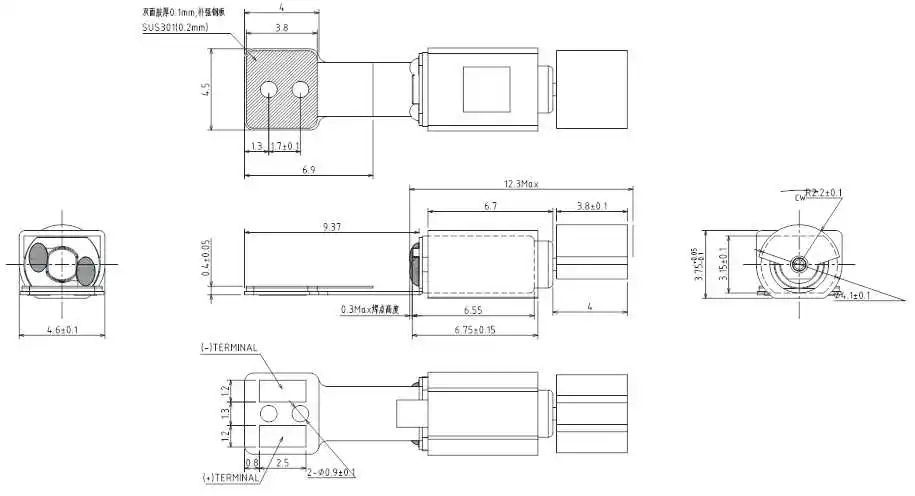

Outline Drawing:
Product feature:
Strong vibration force
Super small size
low current
High Temperature Resistance
Quick and easy to assemble
Certifications:
ISO9001, ISO14001, GBT 28001,QC080000, RoHS
About US:
Industy-leading manufacturer for mini vibration motor in China;
Incorporated in 2003
Gross investment of 150 million RMB
>1000 workers, 35000 square meters
Above 0.2 billion annual output
Mian Customer:Huawei, OPPO, vivo, Lenovo, MOTO...
Main Products:DC coin motor, DC SMD motor, AC linear motor, DC gear motor and DC stepper motor
Packaging & Shipping:
1. Packaging: Carton
2. Shipping: By Air, Fedex, DHL, UPS, SF, etc.
Why choose us?
1. Quality: Product with good stability and consistency, complete quality management system, satisfying ISO9001, ISO14001, QC080000 and RoHS, strict control for incoming raw material and supply chain.
2. Technology: Independent D&R team with above 10 years’ experience of design and engineering; products with kinds of proprietaty technologies; with unique design technology for super small size and other highly difficult and customized products.
3. Process: Independent D&R team for self-developed and self-made automated production line; unique process and control methods.
4. Service: Professional service window for business, technology and quality.
For more Small DC SMD Vibrator Motors, please contact us.
