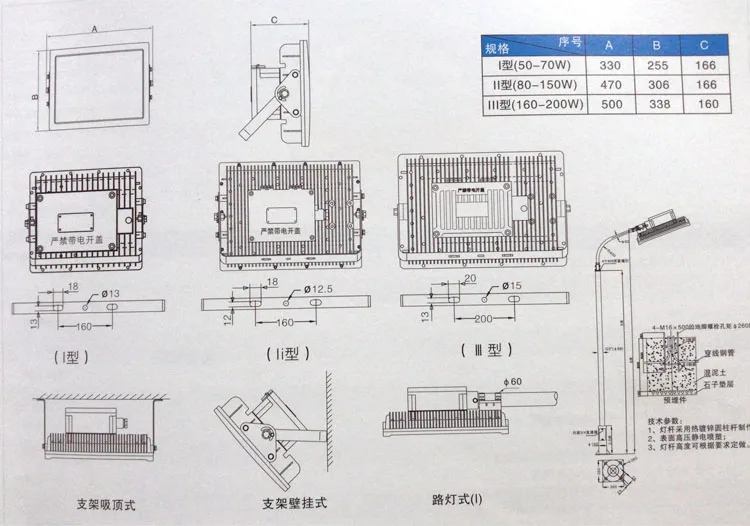

Shape and installation dimensions

Booking notice
1 Select the corresponding product according to the product technical parameter table;
2 The light bulb is equipped with a light source when it leaves the factory;
3 Bracket type is suitable for seat, ceiling, wall and other installations;
4 If you have other special requirements, please contact sales.
Product Structural Characteristics:
1.Aluminum alloy die-casting shell, high-pressure electrostatic spraying on the surface
2.High protection stainless steel exposed fasteners
3. The secondary light distribution system designed by professional optical software, with reasonable beam distribution, uniform illumination and high reflection efficiency
4. The lampshade is made of tempered glass, with high light transmittance and strong impact resistance.
5.Using imported chip lamp beads, high luminous flux and long service life
6. Various installation methods, can be customized according to users
7.Cable wiring
Product Parameter:
| Model | BZD-158-118 | ||
| Explosion-proof sign | ExdellC T6 Gb/DIP A20 TA,T1-T6 | ||
| Rated voltage | 110-260VAC | ||
| Frequency Range | 50Hz | ||
| Rated power | 50W-70W | 80W-150W | 160W-300W |
| LED flux | 7000lm | 10000lm | 30000 |
| Power Factor | ≥0.95 | ||
| Power Efficiency | ≥0.88 | ||
| Color rendering index | ≥80 | ||
| Protection class | IP65 | ||
| Anticorrosive grade | WF2 | ||
| Inlet thread | G3/4 '' | ||
| Cable specifications | φ7-φ12mm | ||
| Installation method | Bracket / Street Light | ||
| Working environment | .-40-45℃ | ||
| Life span | ≥50000H | ||
| Dimensions | as the picture shows | ||
| Weight | 8.2kg | 13.5kg | 17kg |
