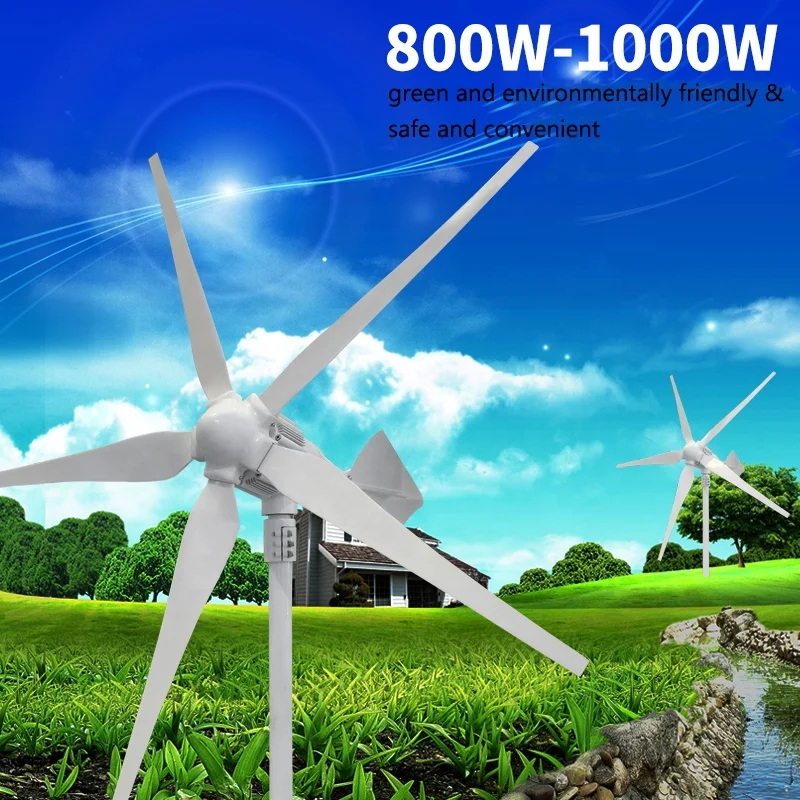

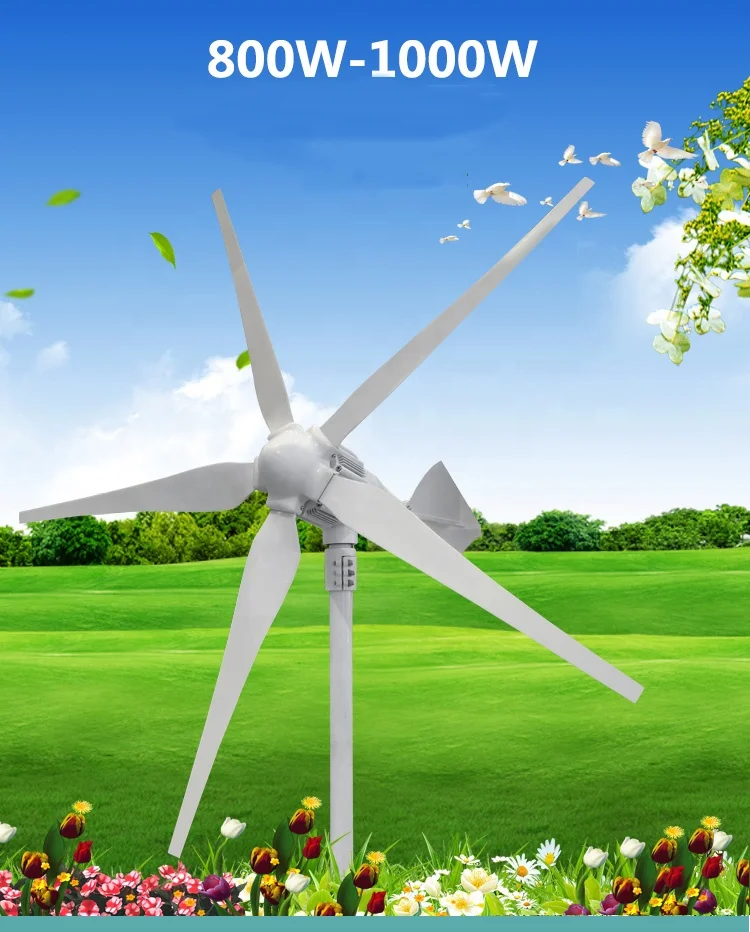

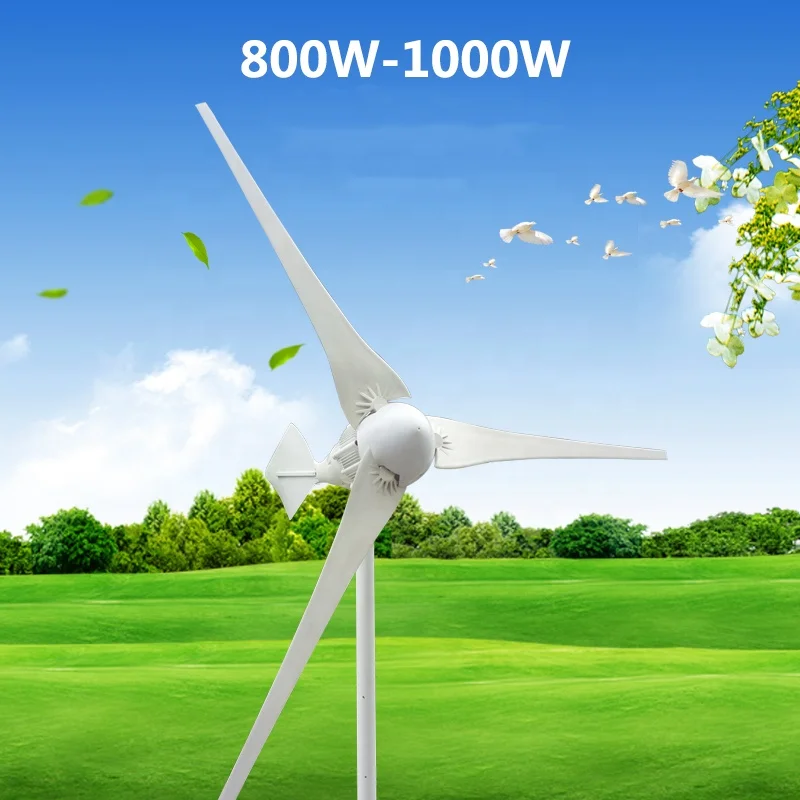

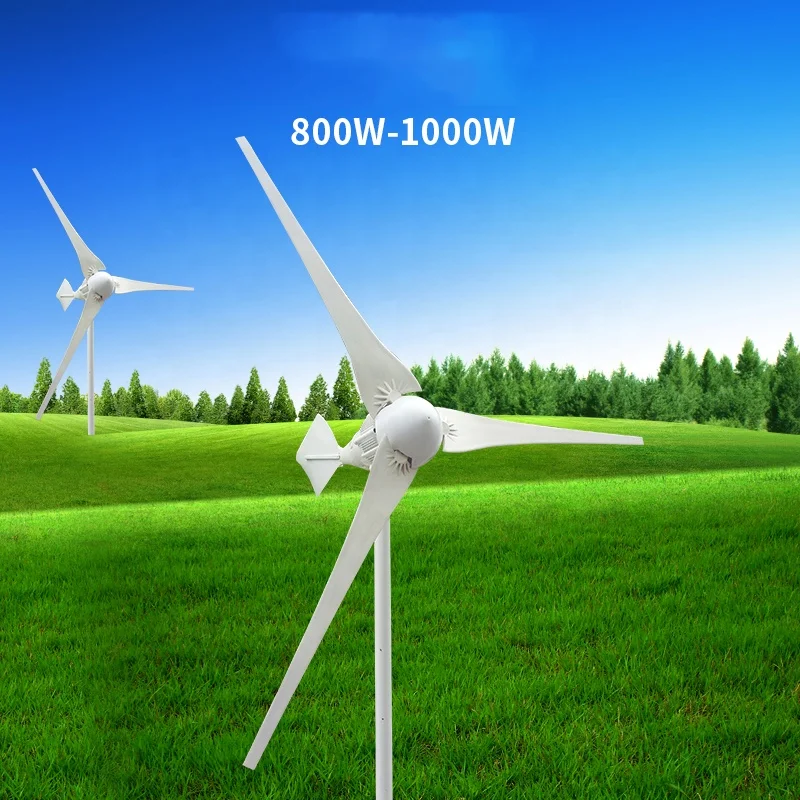

Wind Generator 12V/24V/48V 3 Blades/5 Blades Wind Solar Charge Controller Small Wind Power Turbine Generator 800W
Parameter
Item number
JLK-500
JLK-600
JLK-800
JLK-1000
JLK-2000
JLK-3000
Blade Name(name it according to its appearance, or we just name it)
Swallow
Swallow
Dolphin
Dolphin
Wind King
Wind King
Rated power
500W
600W
800W
1000W
2000W
3000W
Rated voltage
DC12V/24V
DC12V/24V/48V
DC12V/24V/48V
DC24V/48V
DC48V/96V
DC48V/96V
Rated current
40A/20A
33A/17A/12A
66A/33A/16.6A
41A/20.5A
42A/21A
62A/31A
Rated rotating rate
740r/m
640r/m
620r/m
650r/m
530r/m
480r/m
Max power
520W
630W
900W
1200W
2500W
3500W
Start-up wind speed
3m/s
3m/s
3m/s & 2.5m/s
3m/s
Cut-in wind speed
3.5m/s
3.5m/s
3.5m/s & 3m/s
3.5m/s
Cut-out wind speed
15m/s
15m/s
15m/s
15m/s
Security wind speed
45m/s
45m/s
40m/s
45m/s
Rated wind speed
12m/s
12m/s
12.5m/s
12.5m/s

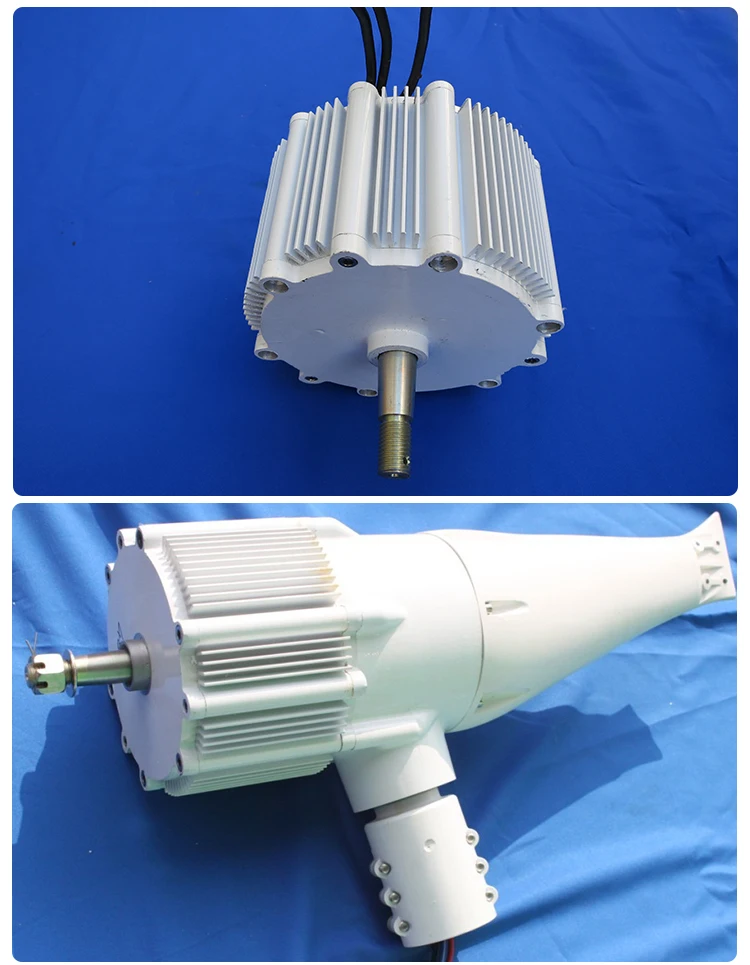

Engine
Three-phase permanent magnet generator
Three-phase permanent magnet generator
Three-phase permanent magnet generator
Rotor/impeller diameter
1850 mm
1870 mm
2200 mm
2900 mm
3300 mm
Number of blades
3 pcs/5 pcs
5 pcs
3 pcs/5 pcs
5 pcs
Blades material
fiber composite engineering plastics
fiber composite engineering plastics
fiber composite engineering plastics
Out of line anti-winding device
Overall three-phase commutator
Overall three-phase commutator
Overall three-phase commutator
Wind protection
tip stall protection +electromagnetic brake
tip stall protection +electromagnetic brake
tip stall protection +electromagnetic brake
Life span
15 years
15 years
15 years
Equipment surface protection
Aluminum oxidation+plastic coating
Aluminum oxidation+plastic coating
Aluminum oxidation+plastic coating
Working temperature
-40°C-70°C
-45°C-70°C
-45°C-70°C
Net Weight
20.5kg/19kg
17kg/19kg
22.53kg
27.12kg/32kg
81kg
98kg
Gross Weight
22kg/21kg
18kg/20kg
28kg
31kg/35kg
101kg
118kg
Packing Size
98*48*26 cm
83*53*46 cm
packing size: 83*53*46 cm blade packing size: 110*23.5*11 cm
/
/
Package
Carton with foam
Wooden box with foam
high lights
1.low start up speed; high wind energy utilization; beautiful appearance; low vibration 2.Human friendly design, easy installation, maintenance and repair. 3.precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output. 4.the generators, adopting permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque.Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability

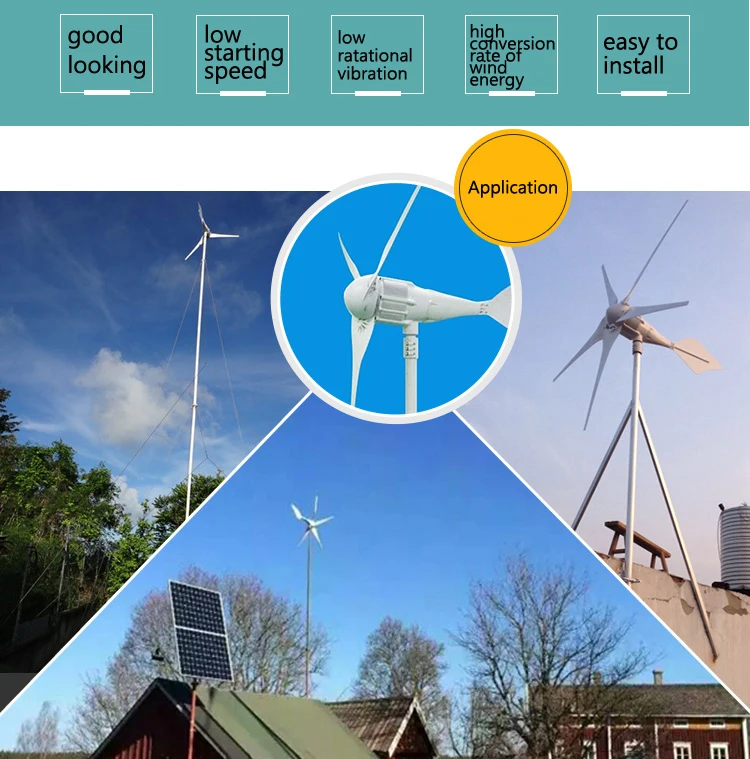

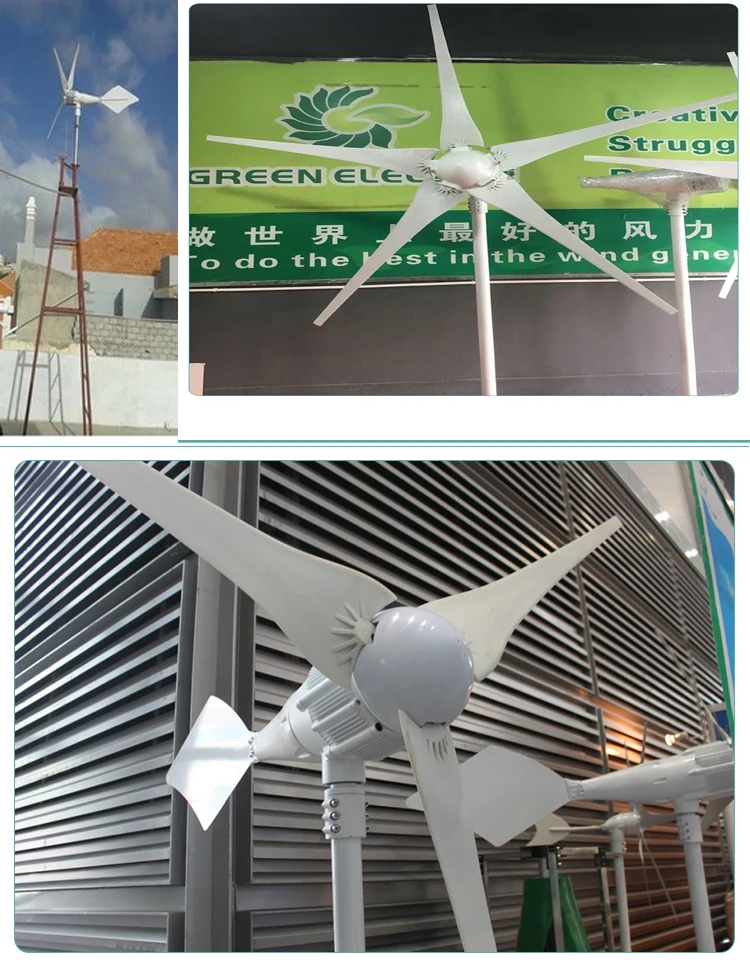

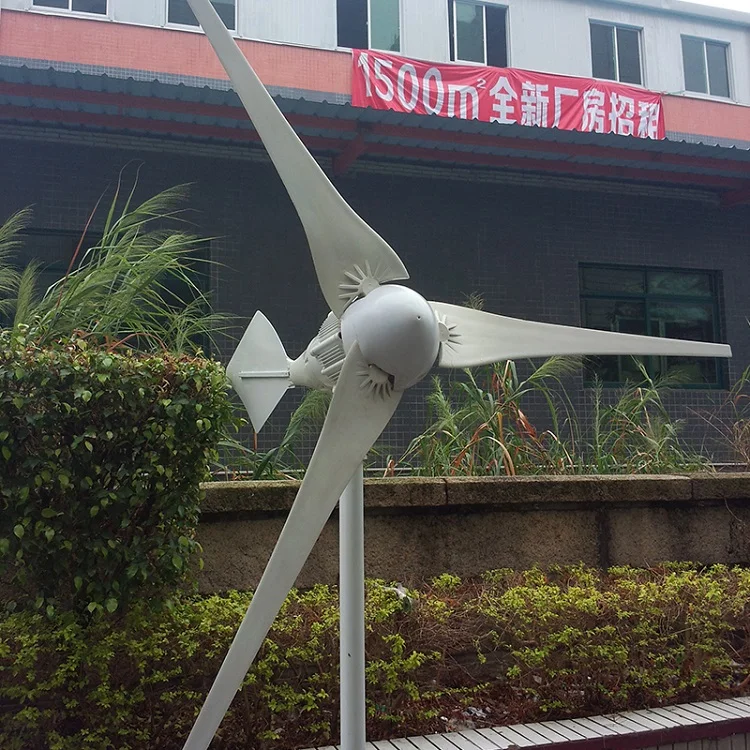

Product Show

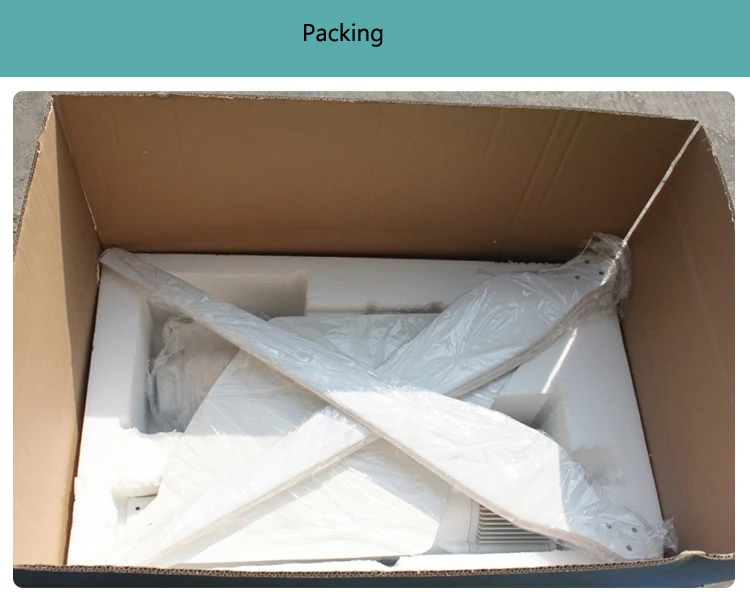

Packaging & Shipping
