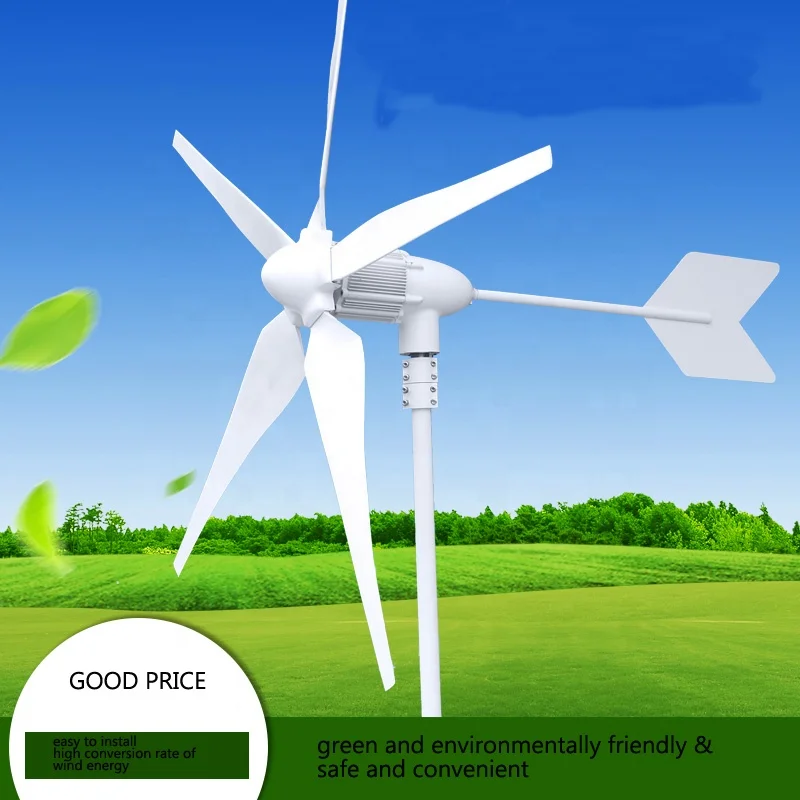

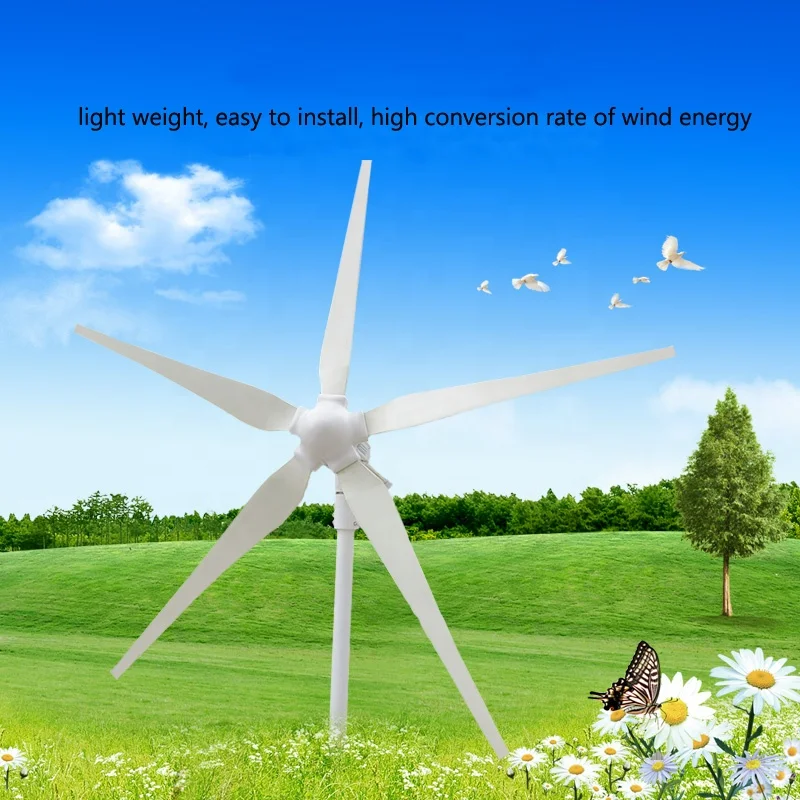

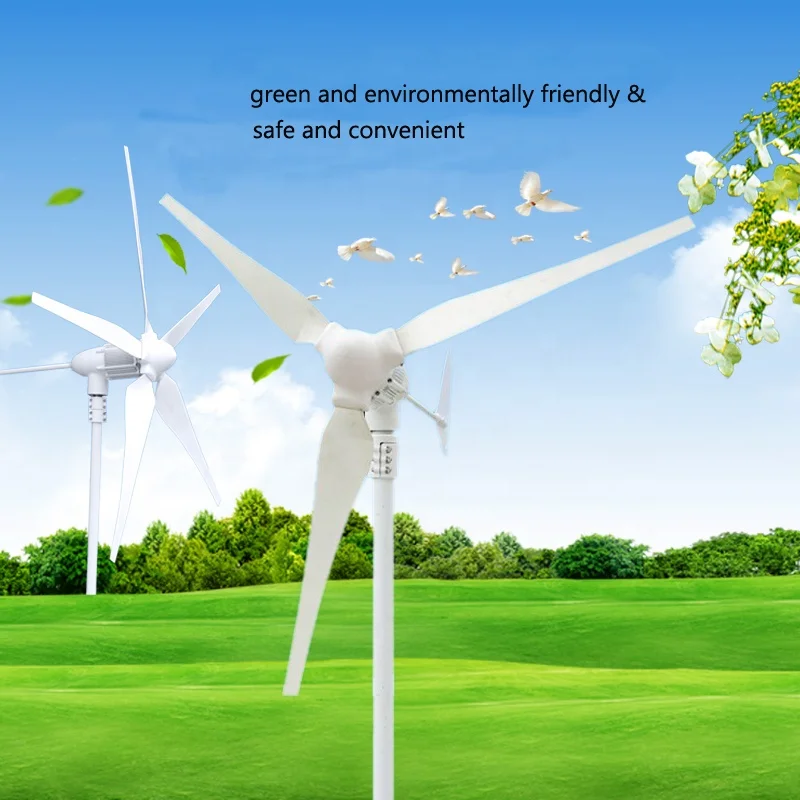

Wind Generator 600W 12V/24V/48V 3 Blades/5 Blades Wind Solar Charge Controller Small Wind Power Turbine Generator

Share on (62461862974):


Price:$226.00 - $236.00

Quantity:


Product Overview

Description



Product description

Wind Generator 600W 12V/24V/48V 3 Blades/5 Blades Wind Solar Charge Controller Small Wind Power Turbine Generator



































































































































































































 Parameter
Item numberJLK-500JLK-600JLK-800JLK-1000JLK-2000JLK-3000
Blade Name(name it according to its appearance, or we just name it)SwallowSwallowDolphinDolphinWind KingWind King
Rated power500W600W800W1000W2000W3000W
Rated voltageDC12V/24VDC12V/24V/48VDC12V/24V/48VDC24V/48VDC48V/96VDC48V/96V
Rated current40A/20A33A/17A/12A66A/33A/16.6A41A/20.5A42A/21A62A/31A
Rated rotating rate740r/m640r/m620r/m650r/m530r/m480r/m
Max power520W630W900W1200W2500W3500W
Start-up wind speed3m/s3m/s3m/s & 2.5m/s3m/s
Cut-in wind speed3.5m/s3.5m/s3.5m/s & 3m/s3.5m/s
Cut-out wind speed15m/s15m/s15m/s15m/s
Security wind speed45m/s45m/s40m/s45m/s
Rated wind speed12m/s12m/s12.5m/s12.5m/s
EngineThree-phase permanent magnet generatorThree-phase permanent magnet generatorThree-phase permanent magnet generator
Rotor/impeller  diameter1850 mm1870 mm2200 mm2900 mm3300 mm
Number of blades3 pcs/5 pcs5 pcs3 pcs/5 pcs5 pcs
Blades materialfiber composite engineering plasticsfiber composite engineering plasticsfiber composite engineering plastics
Out of line anti-winding deviceOverall three-phase commutatorOverall three-phase commutatorOverall three-phase commutator
Wind protectiontip stall protection +electromagnetic braketip stall protection +electromagnetic braketip stall protection +electromagnetic brake
Life span15 years15 years15 years
Equipment surface protectionAluminum oxidation+plastic coatingAluminum oxidation+plastic coatingAluminum oxidation+plastic coating
Working temperature-40°C-70°C-45°C-70°C-45°C-70°C
Net Weight20.5kg/19kg17kg/19kg22.53kg27.12kg/32kg81kg98kg
Gross Weight22kg/21kg18kg/20kg28kg31kg/35kg101kg118kg
Packing Size98*48*26 cm83*53*46 cmpacking size: 83*53*46 cm blade packing size: 110*23.5*11 cm//
PackageCarton with foamWooden box with foam



high lights


1.low start up speed; high wind energy utilization; beautiful appearance; low vibration
2.Human friendly design, easy installation, maintenance and repair.
3.precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.

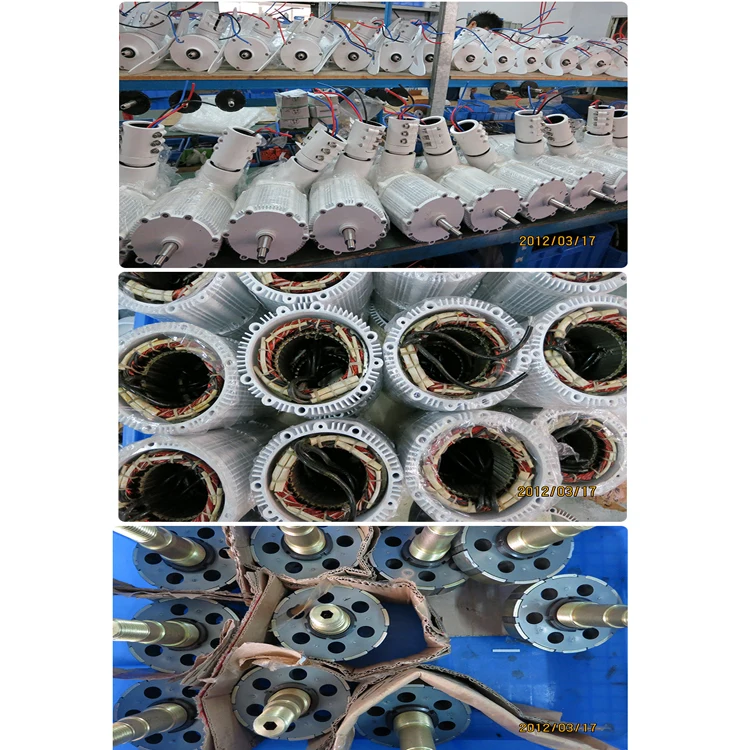

4.the generators, adopting permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque.Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability

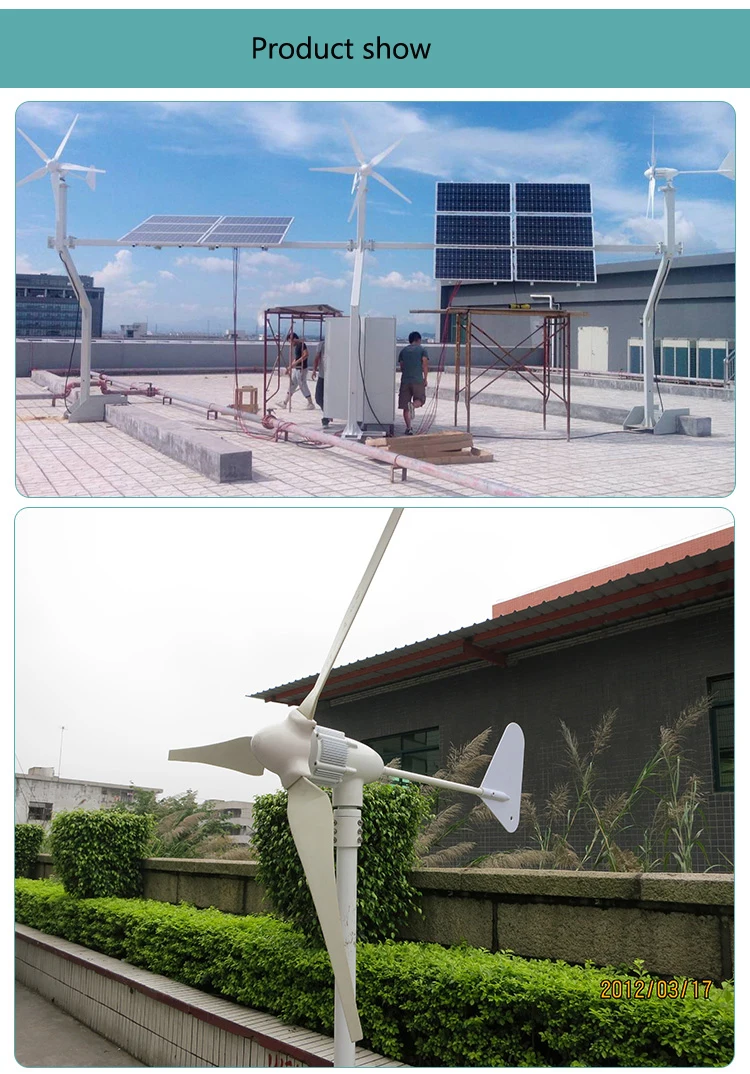

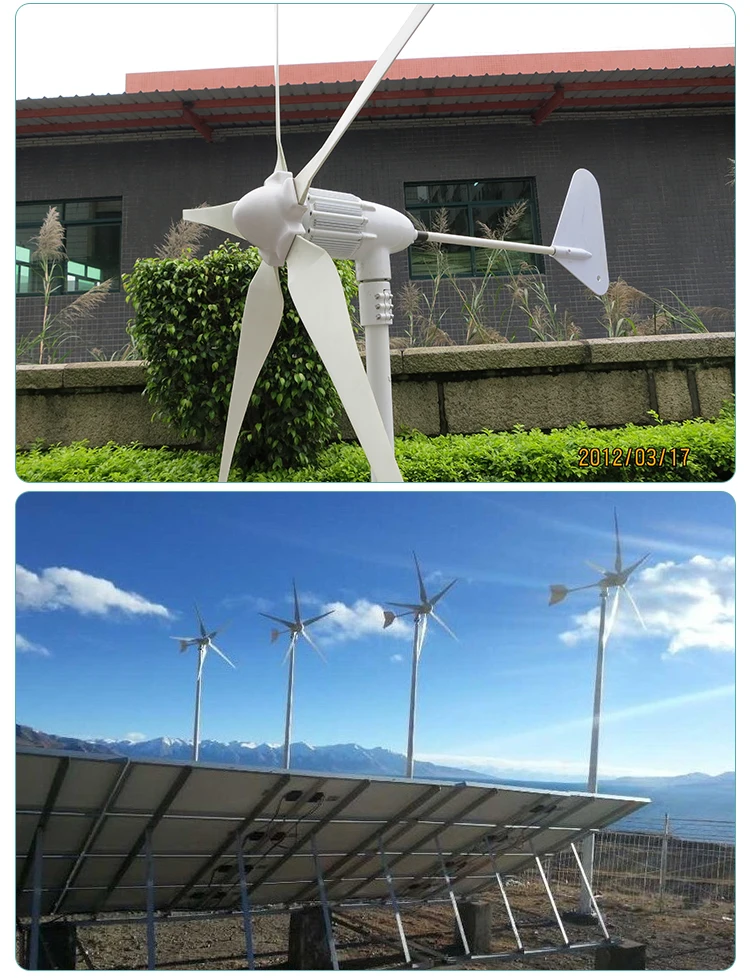

Product Show

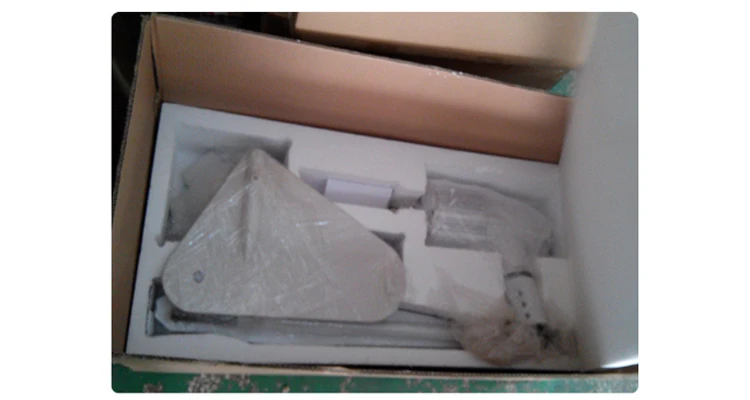

Packaging & Shipping
