Medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head
Medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head
Medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head
Medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head
Medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head
Medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head
Medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head

Medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head

Share on (62461867618):


Price:$105.00 - $150.00

Quantity:


Product Overview

Description



Product Description

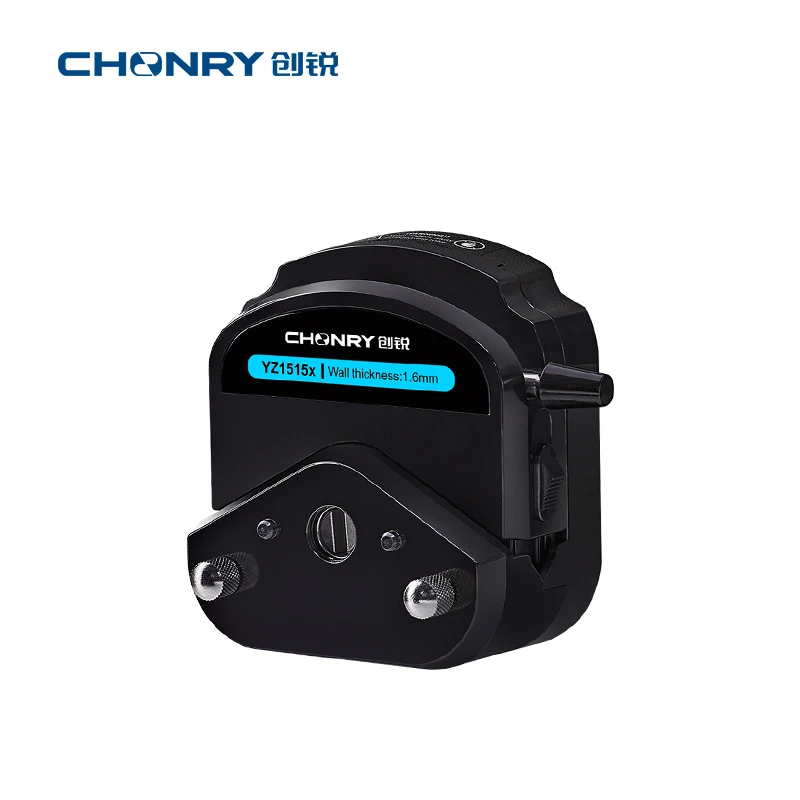

Model:YZ1515x-Black

High hardness, good heat resistance

Good corrosion resistance

The black housing of YZ1515x type of pump head is made of Polyphenylene sulfide (PPS) has excellent heat resistance, flame retardancy, insulation, high strength and hardness, excellent mechanical properties, good product dimensional stability, can be processed by a variety of molding methods, and can be precise forming. Because PPS has good affinity with inorganic fillers, reinforcing fibers and compatibility with other polymer materials, it can be made into different reinforcing filler materials and polymer alloys.

Typical application : Chemical industry/ packing machine/printing /fine chemical...etc.

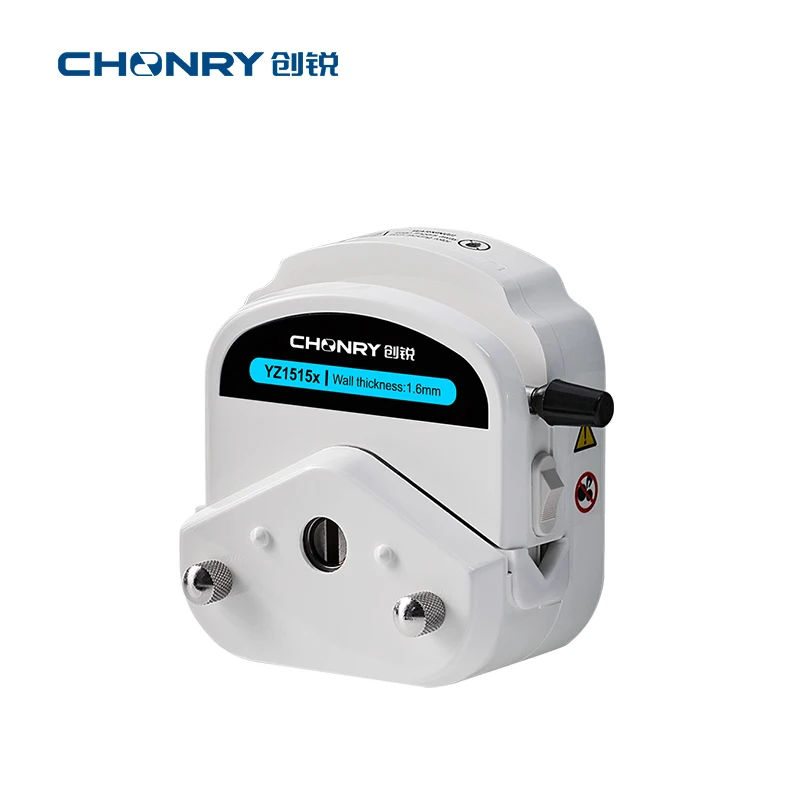

Model :YZ1515x-White

clean and easy operate

The white housing of YZ1515x type of pump head is made of Polysulfone (PSF) resin has good rigidity and toughness, high temperature resistance, heat oxidation resistance, long-term use in the temperature range of -100℃~150℃, excellent creep resistance, and corrosion resistance of inorganic acids, alkalis, and salt solutions. Resistance to ionizing radiation, non-toxic, good insulation and self-extinguishing, easy to form and process



Typical application : Medical/ Lab/ Analytical Instruments..etc.

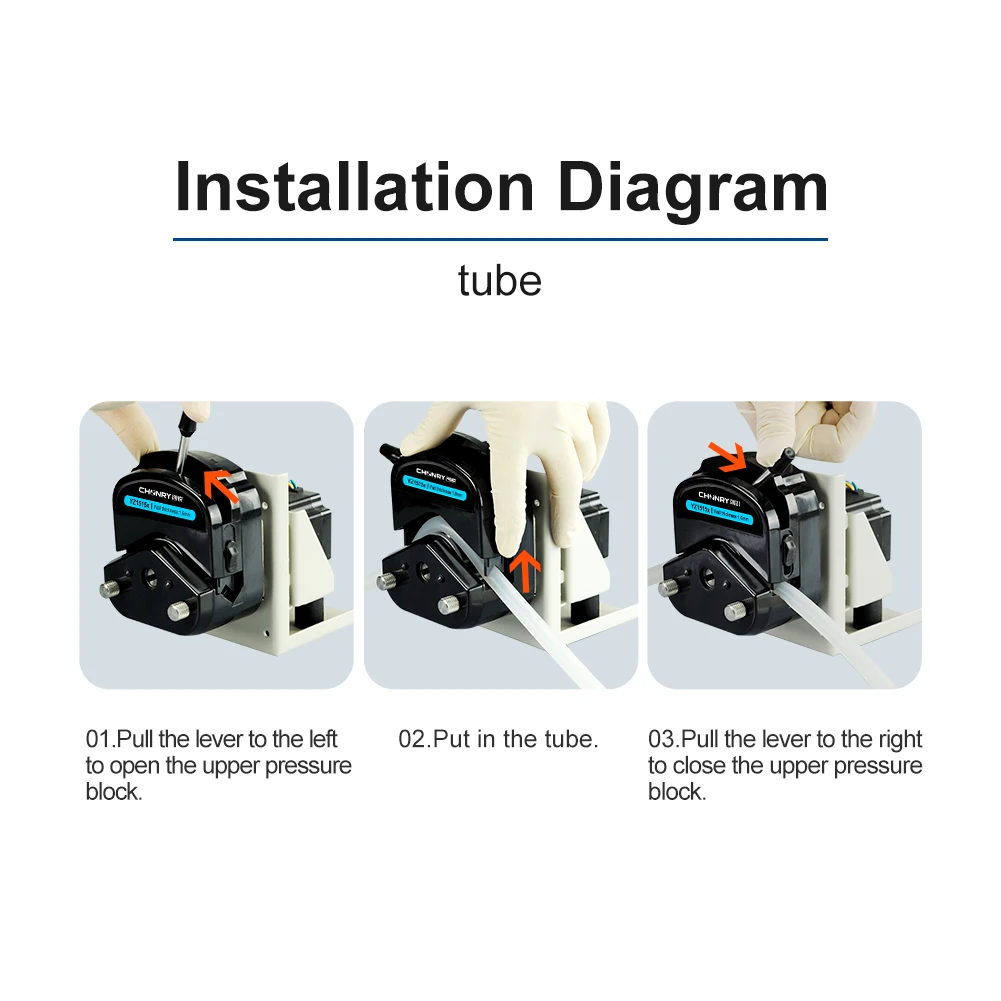

YZ series pump heads are designed for easy-to-use peristaltic pump system. With these pump heads, tubing loading becomes very easy and fast. The pump heads can be stackable for multi-channel pumping and adapt easily to OEM applications. PPS housing of Pump head is steady, autoclavable (150℃), but organic solvent non-resistance. While PPS housing of pump head is organic solvent resistance. The rotor material is stainless steel.

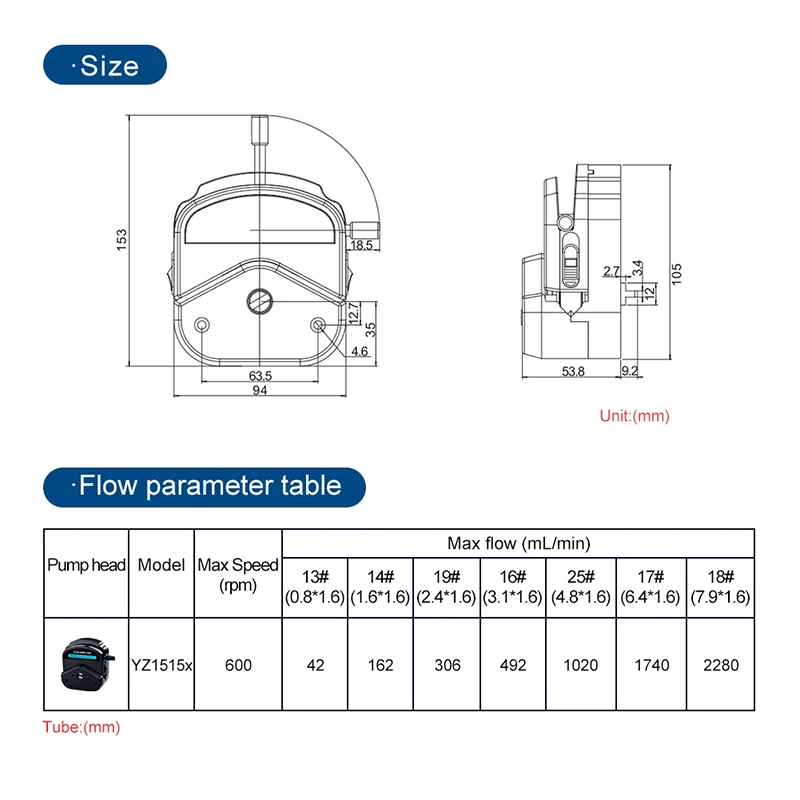

Specification




Tube For pump head MODEL ; YZ1515x
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate ml/min
13#
0.8
1.6
4
0.007-42
14#
1.6
1.6
4.8
0.027-162
19#
2.4
1.6
5.6
0.051-306
16#
3.1
1.6
6.3
0.082-492
25#
4.8
1.6
8
0.17-1020
17#
6.4
1.6
9.6
0.29-1740
18#
7.9
1.6
11.1
0.38-2280




Order guide


Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Contact : Ella Xu





Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump. With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field. Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
