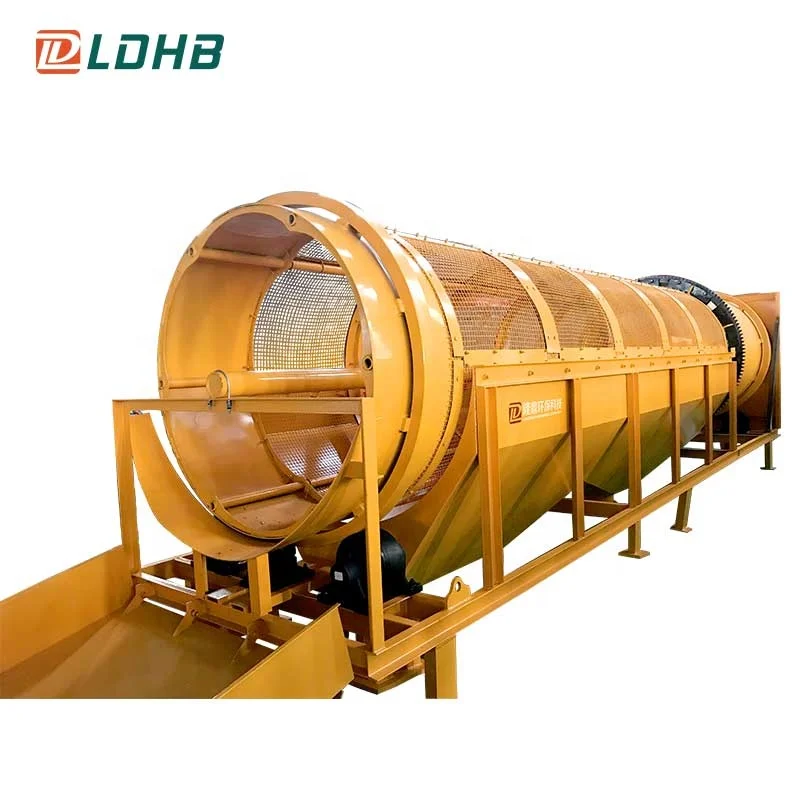

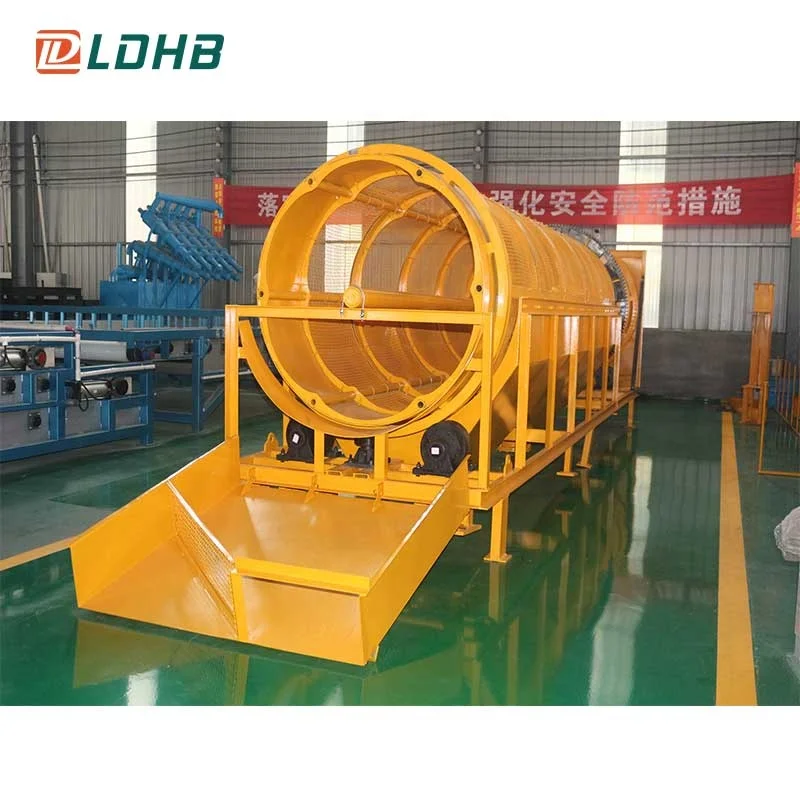

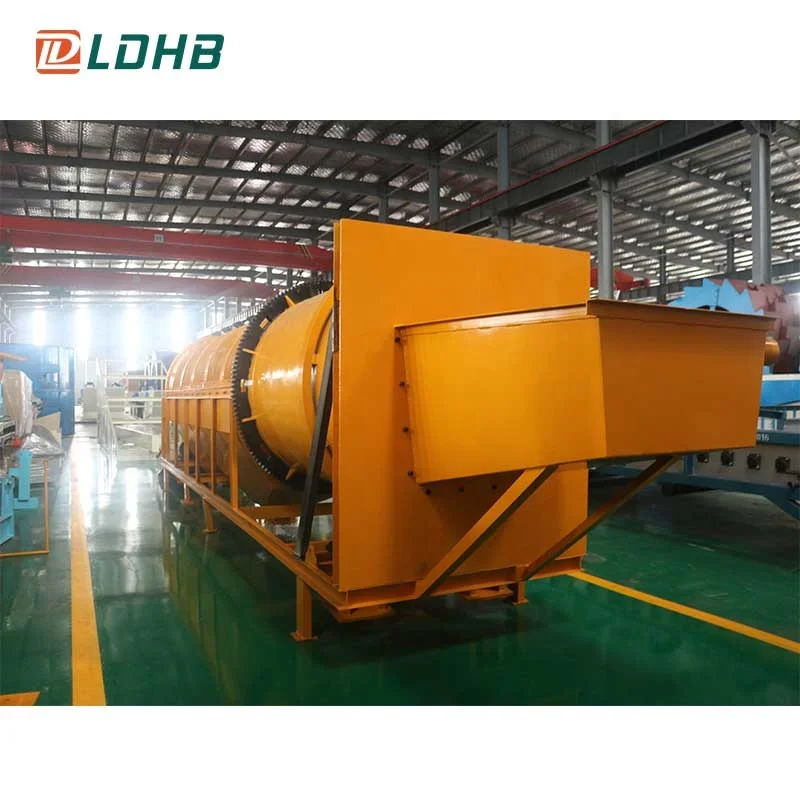

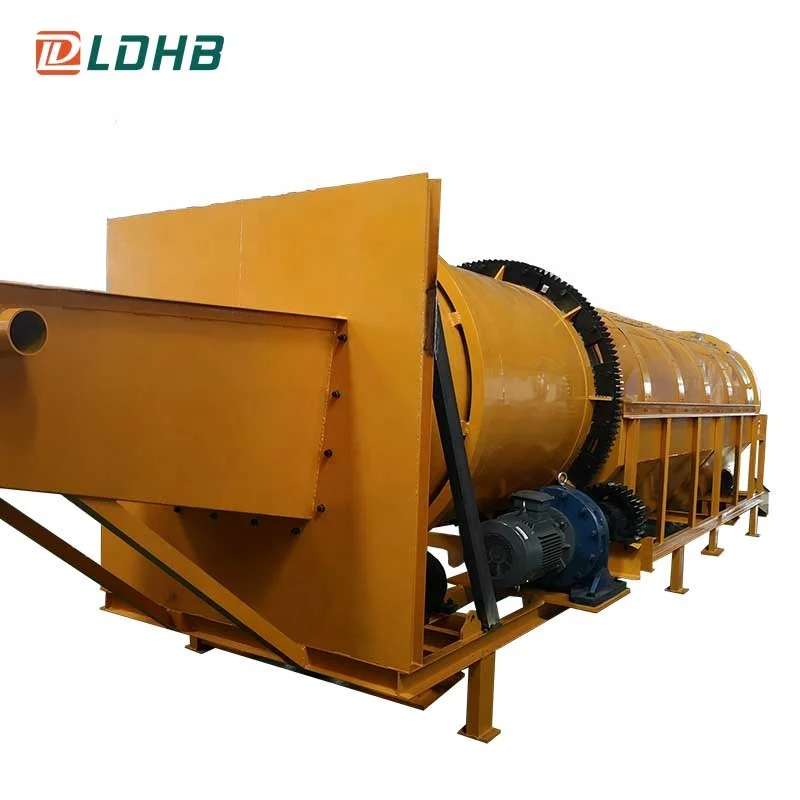

low electric consumption trommel screen
- Category: >>>
- Supplier: Luoyang Longding Environmental Technology Co. Ltd.
Share on (62461899034):
Product Overview
Description
Product Description
LDHB trommel screen is a sort of very widely used sorting equipment. It mainly controls the sorting of materials by the particle size.
Working Princple

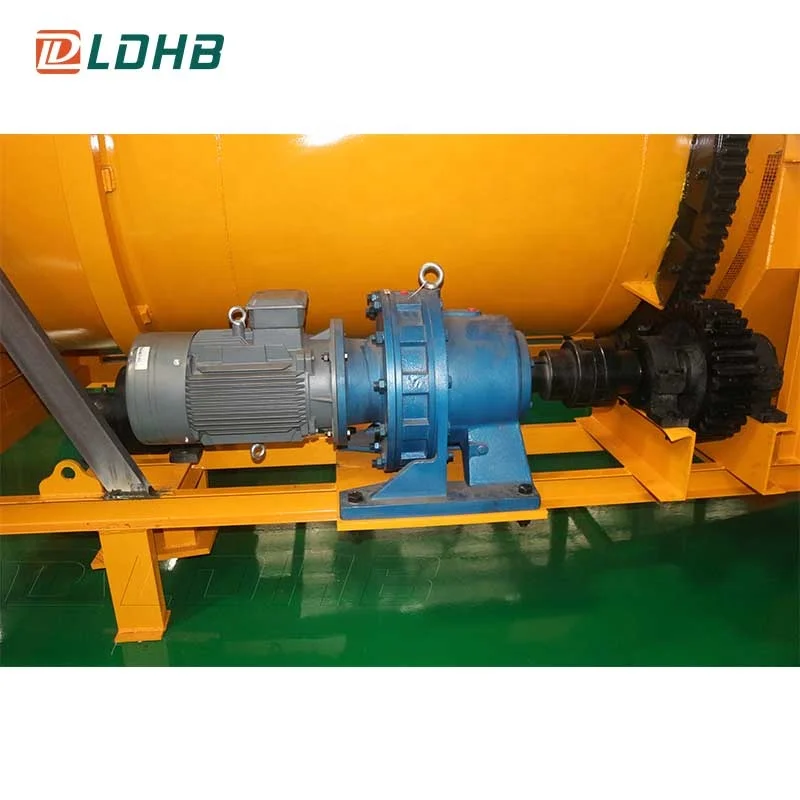

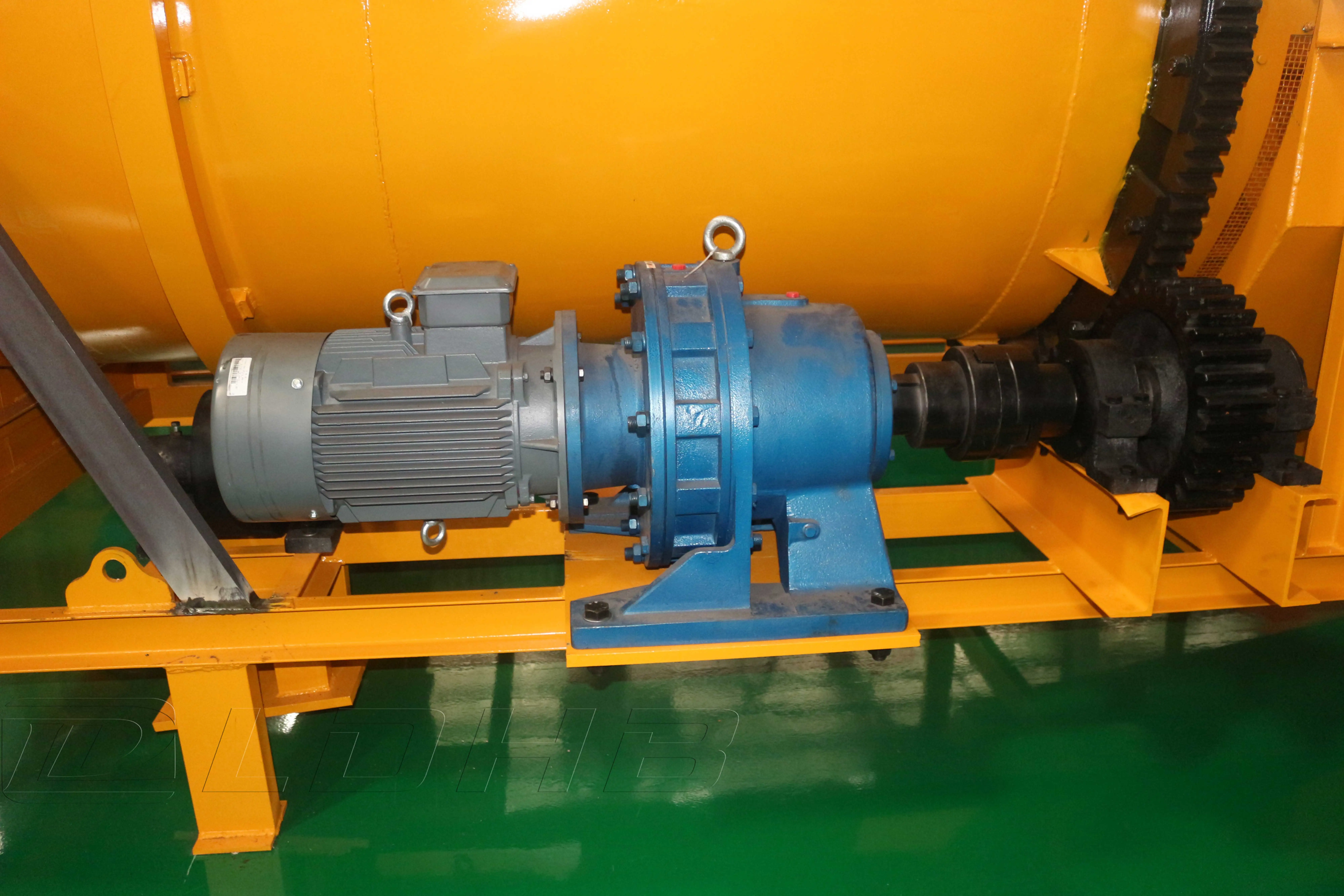

The trommel drum cylinder is tilted on the rack. The motor is driven by the reducer to rotate the drum unit around its axis. After the material enters the drum device, due to the tilting and rotation of the drum device, the material on the screen surface is flipped and rolled, agglomerated materials crushing, and meanwhile the materials blocked in the screen mesh can be ejected to prevent the sieve hole from blocking. So that the qualified material (the product under the screen) is discharged through the discharge port at the bottom of the trommel screen, and the unqualified material(the product on the screen) is discharged through the discharge port at the tail of the trommel screen.
Main Features
1) Using special screen mesh, the sieve hole is not easy to block, high screening effciency and long service life.
2) Stable operation and low noise.
3)Simple structure and easy maintenance.
4) High reliable, durable and less one-time invesrment.

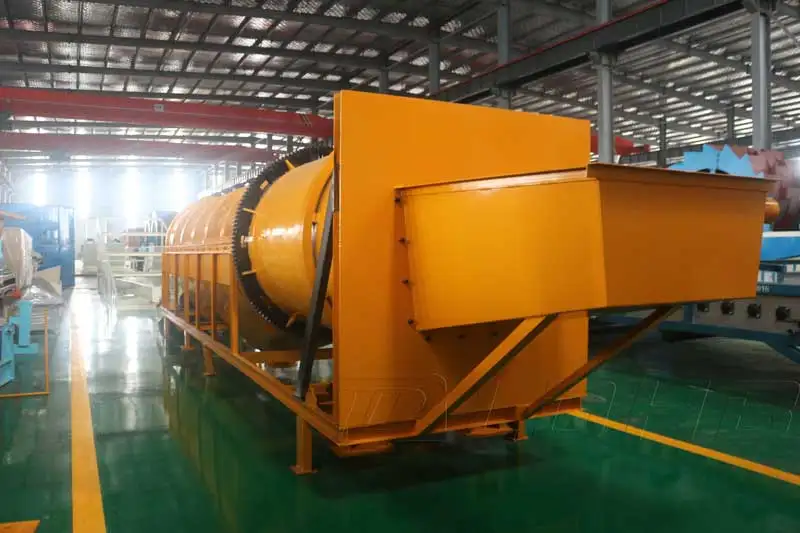

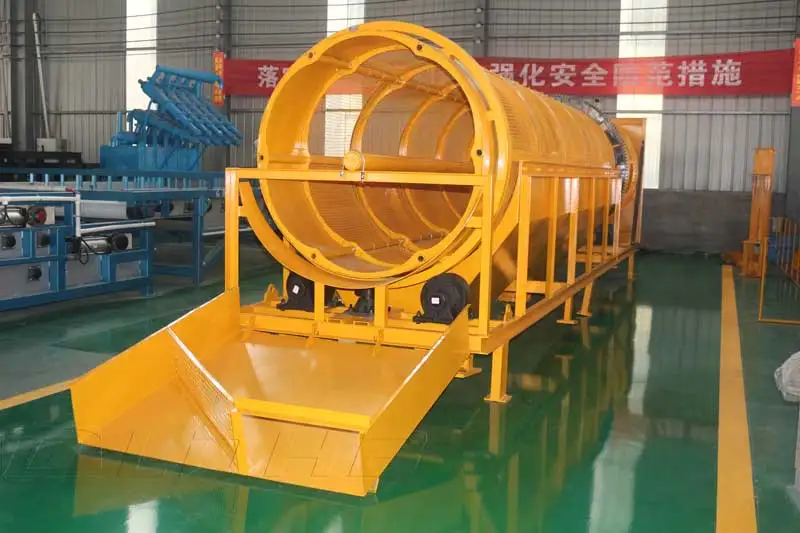

Working Site
Packing & Delivery
Packaging | ||
Model | GT1560 | |
Size | 6000(L) * 2200 (W) * 4400 (H) | |
Weight | 2700KG | |
Packaging Details | The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request. | |
Packaging | ||
Model | GT1240 | |
Size | 5500 (L) * 1685 (W) * 2478(H) | |
Weight | 1700KG | |
Packaging Details | ||
Our Company
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* 24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
