CODACA audio CPD1415B 100M iron core class d high current power inductor amplifier 10uH choke coil
- Category: >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (62461936832):
Product Overview
Description
Product Description
Features
Magnetic shielded structure: excellent resistance to electro magnetic interference(EMI)
Flat wire winding, achieve a low D.C. Resistance.
Low loss, high efficiency, wide application frequency and application scope.
Lightweight design, save space, suitable for high density SMT.
Operating temperature : -40 +125 (Including coil’s temperature rise)
Key Parameter
| Type | High Current Power Inductor |
| Inductance (μH) | 10.0 |
| Tolerance | 20% |
| DCR(mΩ) | 12.3(Typical) 13.5(Max) |
| Isat(A) | 13.0 |
| Irms(A) | 8.0 |
| Temp.Range(℃) | -40~+125 |
| Dimension(mm) | 15.5*14.0*16.0 |

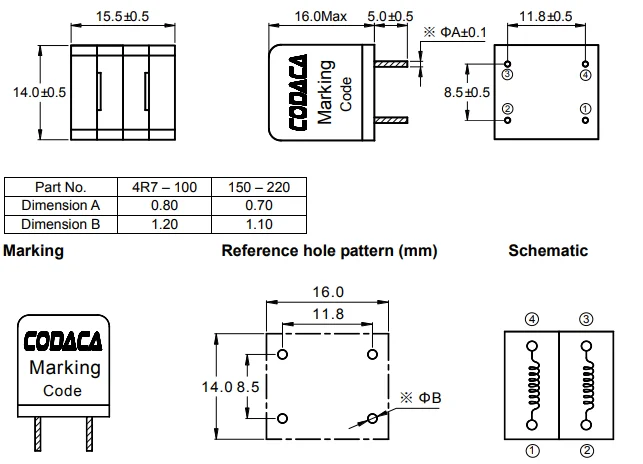

Product Appearance and Dimension (mm)

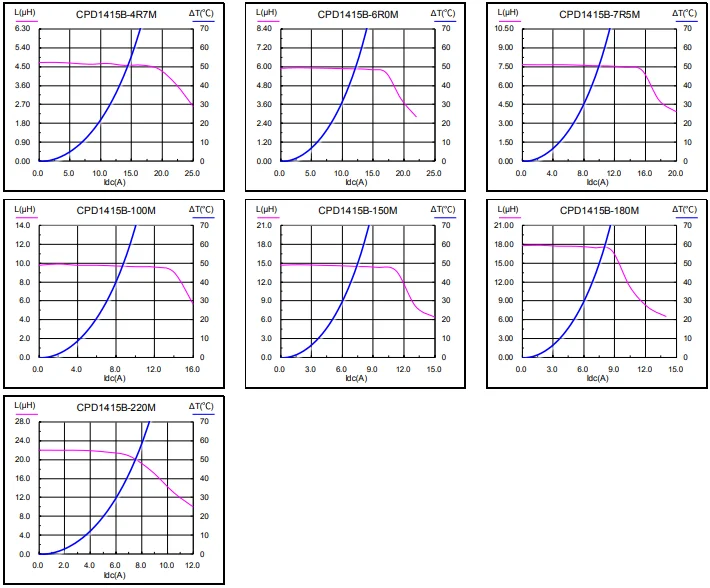

Saturation Current VS Temperature Rise Current Curve
Series Reference
| Part No. | Inductance(μH) | DCR(mΩ) | Saturation Current(A) | Temperature rise current(A) | |
| Typical | Max | ||||
| CPD1415B-4R7M | 4.7 | 6.5 | 7.1 | 19 | 13 |
| CPD1415B-6R0M | 6 | 7.45 | 8.2 | 17 | 11 |
| CPD1415B-7R5M | 7.5 | 8.45 | 9.3 | 16 | 9 |
| CPD1415B-100M | 10 | 12.3 | 13.5 | 13 | 8 |
| CPD1415B-150M | 15 | 15.9 | 17.5 | 11 | 6.8 |
| CPD1415B-180M | 18 | 15.9 | 17.5 | 9.7 | 6.8 |
| CPD1415B-220M | 22 | 15.9 | 17.5 | 8.3 | 6.8 |
