Product Overview
Description
Soil Stabilization Cellular HDPE Geocell Supplier Cellular Confinement System
[Brief Introduction] gravel stabilizer plastic hdpe gocell gras driveway

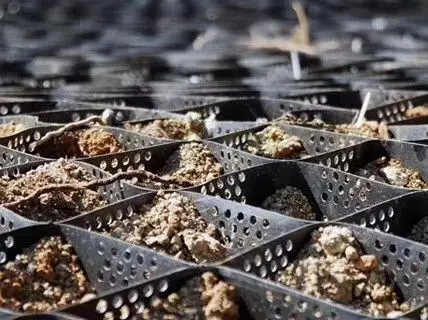

Cellular Confinement System(CCS), better known as drainage geocell, is a honeycomb shaped 3D network structure ultrasonically welded with plastic strips. Drainage geocell can be flat, textured or perforated according to customers’ need.
Product | Drainage Geocell Perforated and Textured Surface |
Material of geocell | HDPE/Polymer Composite Alloys(PCA) |
Color of geocell | Black/Green/Brown/Grey/White |
Height(mm) of geocell | 50,75,100,150,200 |
Thickess(mm) of geocell | 1.0-1.7 |
Welding distance(mm) of geocell | 330-1600 |
Seam peel strength(kN/m)of geocell | 10-28 |
[Features]
- It is light and durable, and it is acid and alkali resistant;
- It is expandable for convenient installation; and it is foldable for convenient transportation;
- It can distribute the vertical pressure into the cell wall, which can improve the load capacity and reduce the thickness of the roadbed;
- Drainage geocell can reduce the lateral movement of the soil, so it is resistant to deformation.
[Image ]
[Geocell 3D Analysis]
Item soil stabilization cellular | Unit | Value | ||
Dimensional deviation soil stabilization cellular | ||||
Sheet Thickness | Smooth surface | mm | 1.0-1.25 | |
Textured surface | mm | 1.5-1.85 | ||
Geocell Height | mm | 50-300 | ||
Welding Distance | mm | 330-1600 | ||
Basic Performance soil stabilization cellular | ||||
Environmental stress cracking F50 | h | ≥80 | ||
Low temperature embrittlement point | ℃ | ≤-50 | ||
Vicat softening temperature | ℃ | ≥112 | ||
Oxidation induction time | min | ≥20 | ||
Technical requirement soil stabilization cellular | ||||
Tensile strength 50mm HDPE geocell | MPa | ≥20 | ||
Seam peel strength | kN/m | 10-28 | ||
Connection place of geocell group | Edge of geocell plate | N/cm | ≥230 | |
Middle of geocell plate | N/cm | ≥120 | ||

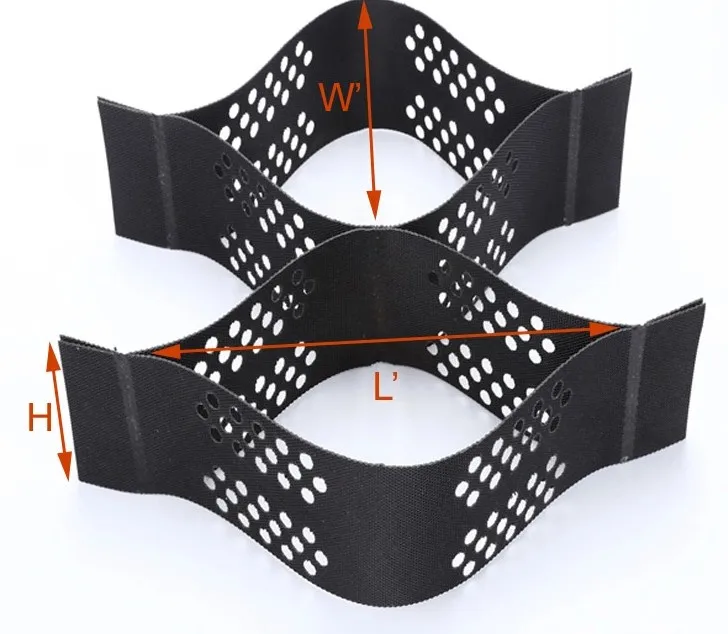

H=geocell height (thickness)
D=geocell welding distance
W=expanded panel width
L=expanded panel length
W'=expanded cell width
L'=expanded cell length
[Application]

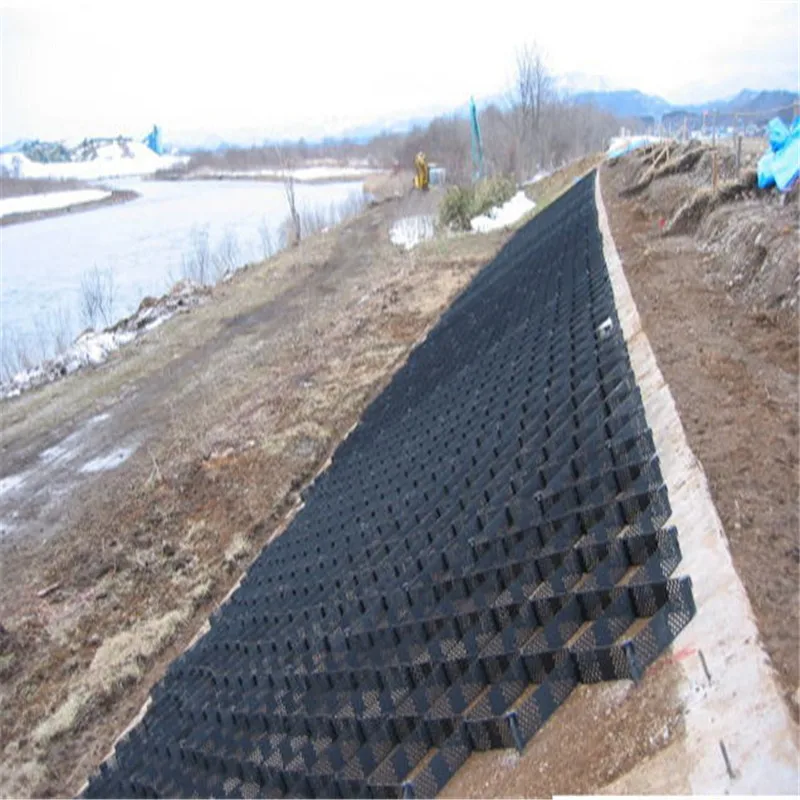

Slope protection-drainage geocell
· Solve the problem of slope surface soil stability and slope protection---roadway embankment, flood protection embankment, steep slope, bridge abutment, mountain roadside, prevent landslide especially in weathered forest, desert and marsh;
Retaining Wall-drainage geocell
· Solving the stability problem of steep slope soil--- retaining wall, vegetated wall, non-vegetated wall, culvert headwall;
Load Support-drainage geocell
· To solve the problem of load distribution, foundation stability and surface stability of weak foundation---roadbase stabilization for road, highway, railway, airport, sidewalk, parking lot, public square, etc.
[Factory]
