Long Li-Ion Battery Electrode Slurry Coating Micrometer Doctor Blade Tape Casting Coater
Product Description

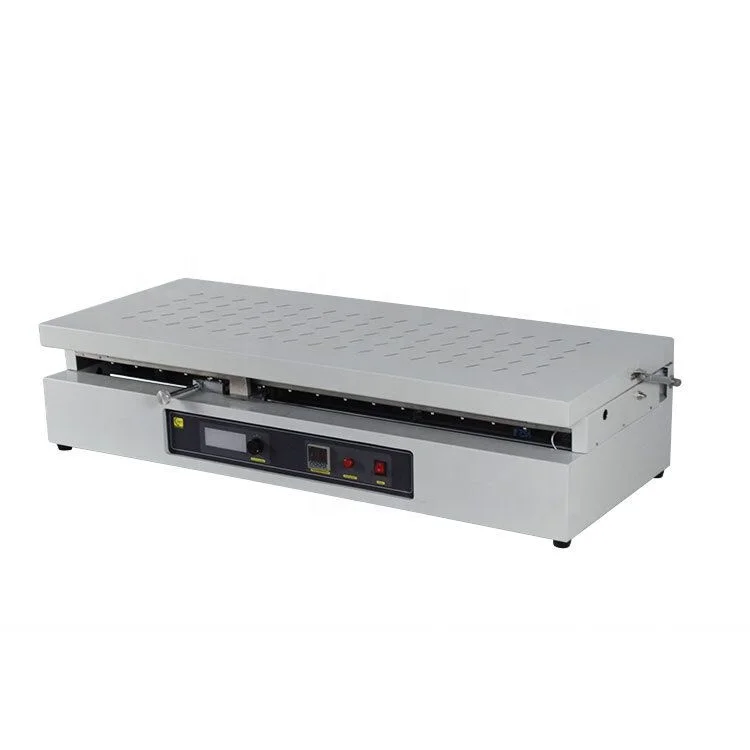

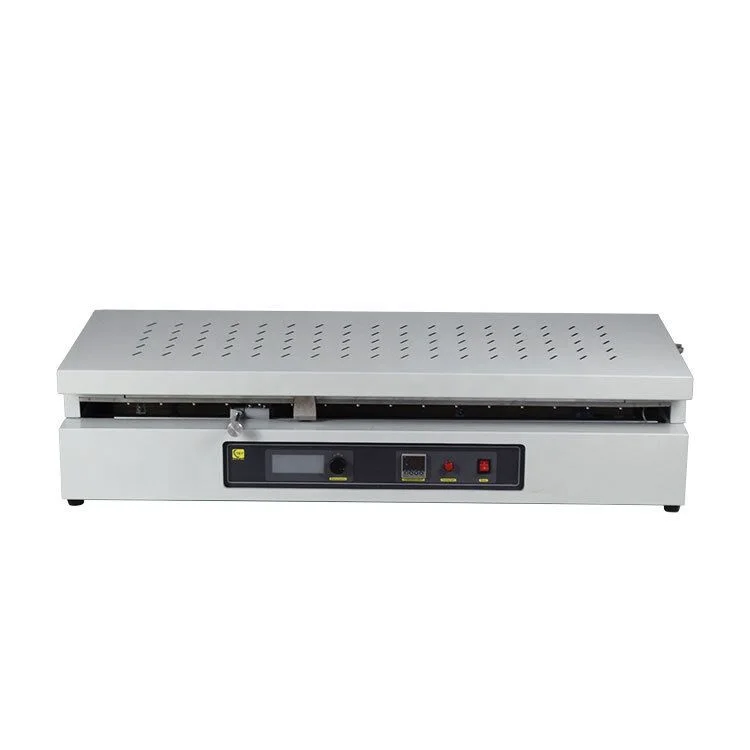

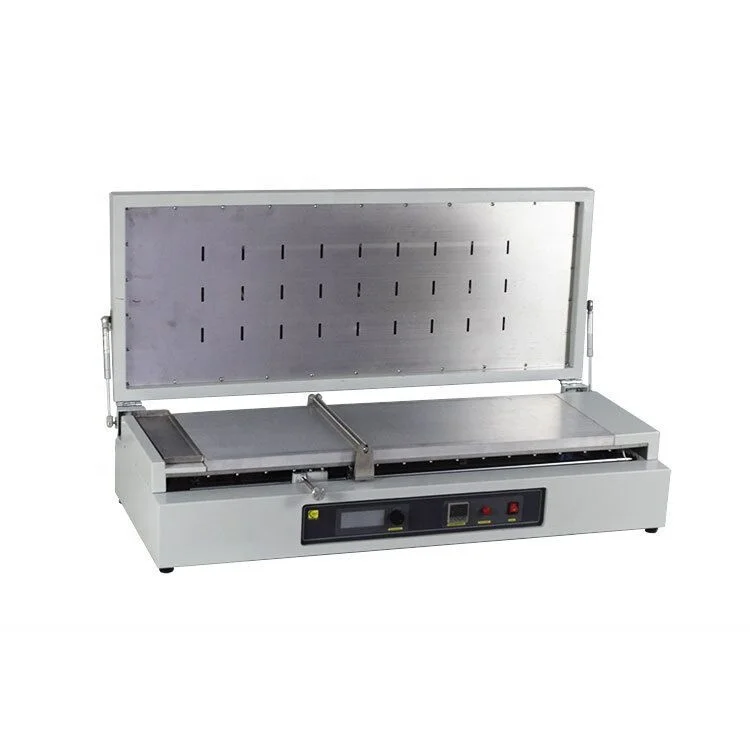

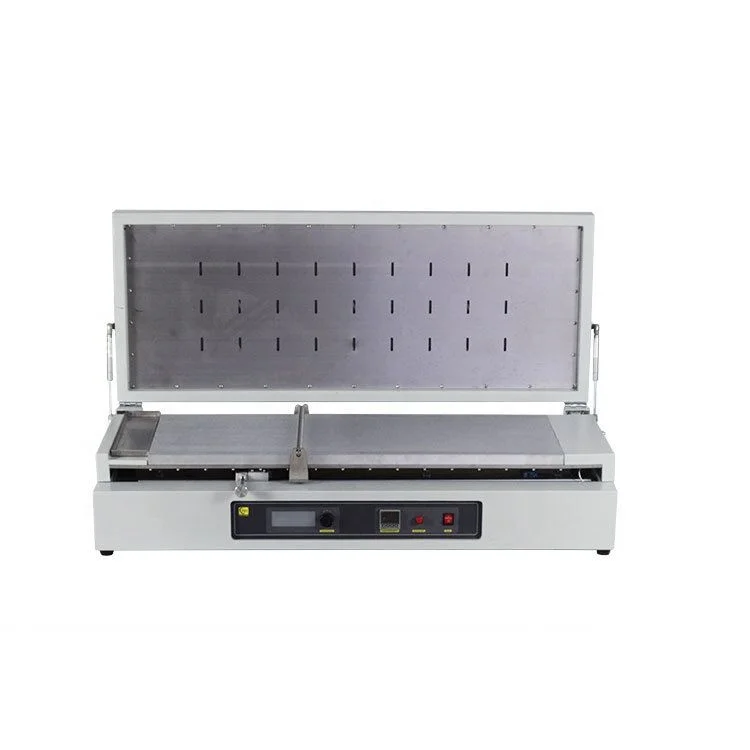

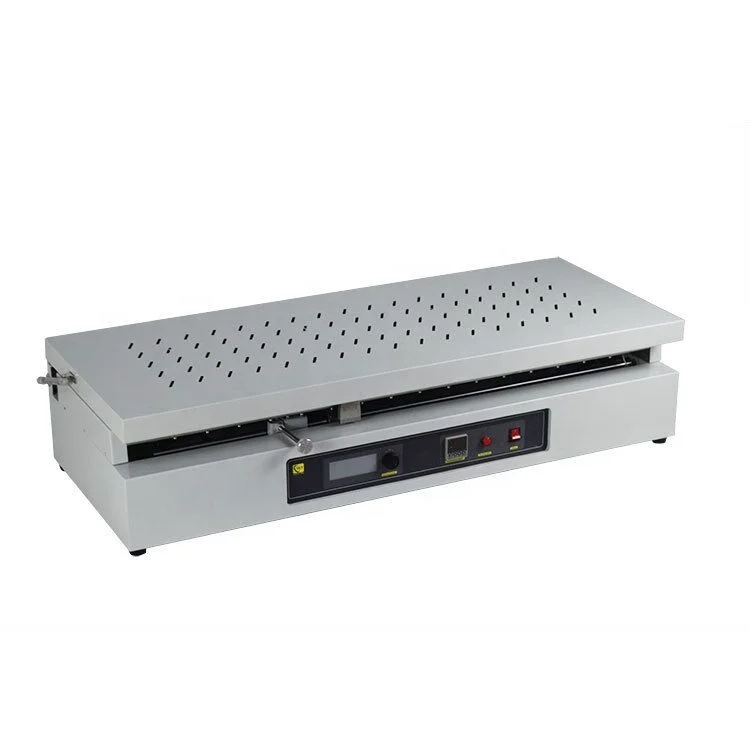

AFA-L1000 compact automatic drying tape casting coater is mainly used for laboratory coating of liquid or colloidal film. The film applicator is made of stainless steel with a constant weight to improve the uniformity of film. The device adopts bottom heat-able vacuum chuck up to 120°C, so that the film is quickly dried. It has a scraper stopper, which can adjust the length of the coated film arbitrarily, and the scraper automatically resets when it reaches the limit. The upper cover has the functions of dustproof and heat preservation, and at the same time makes the device more beautiful.
Features
1. This equipment adopts a continuously variable motor to precisely control the coating speed.
2. The cross-bar can be used to push the adjustable scraper. There is no special requirement for the size of the adjustable scraper.
3. The waste collection box placed on the left edge of the vacuum chuck bed collects spare slurry to ensure the equipment itself and the surrounding area are clean.

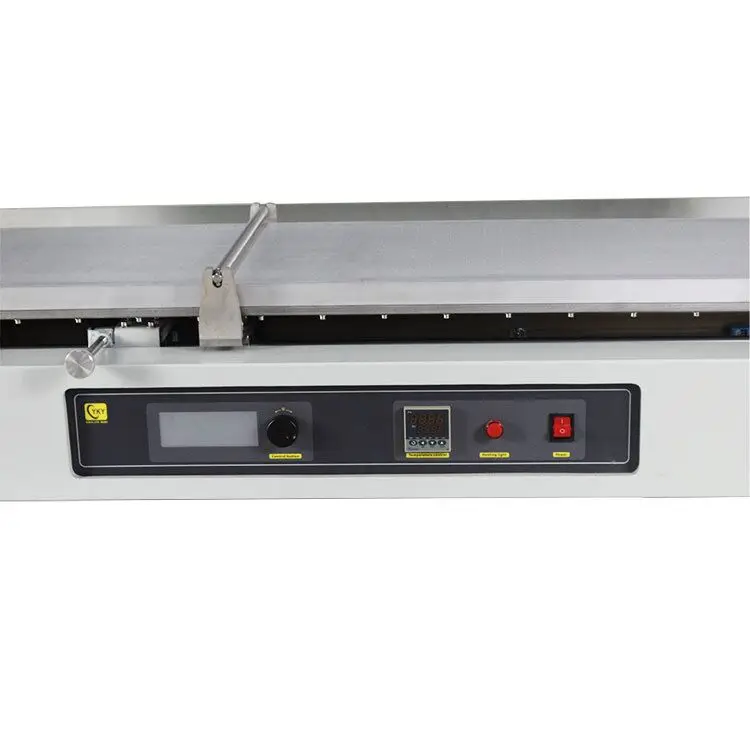

4. The bottom intelligent vacuum heating chuck plate and digital display temperature control drying system can adapt to the development of science and technology of film formation under high temperature.
Technical Parameters
Working voltage | AC 220V, 50HZ |
Power | Heating plate power: 3000W Total power: 3100W |
Coating plate dimension | 1000mm (L)*350mm(W) |
Vacuum chuck dimension | 940mm(L)*310mm(W) |
Accuracy of Film thickness | +/- 0.01mm |
Traverse Speed | 28~90mm/sec adjustable |
Vacuum Pump | A vacuum pump is required |
Pushing bar stroke | 29-930mm adjustable |

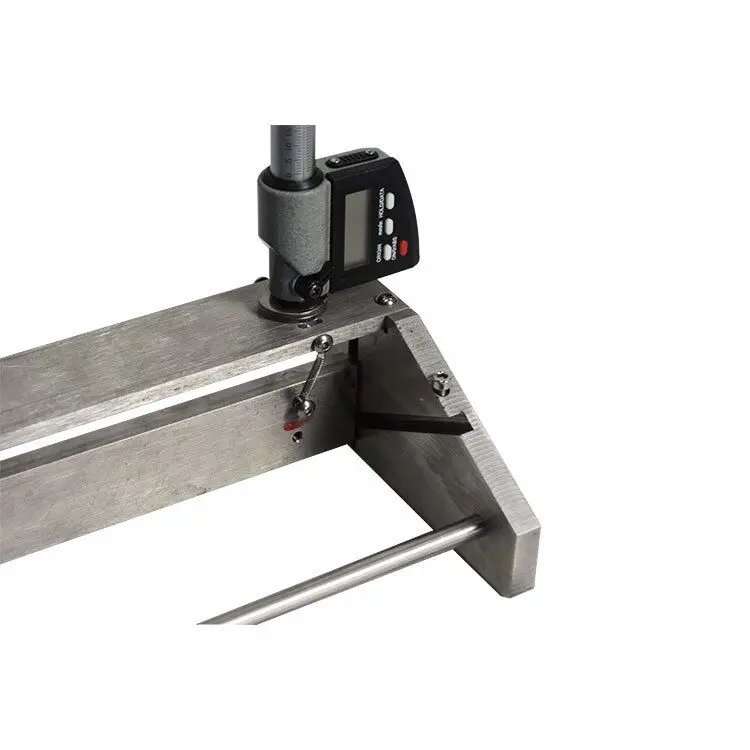

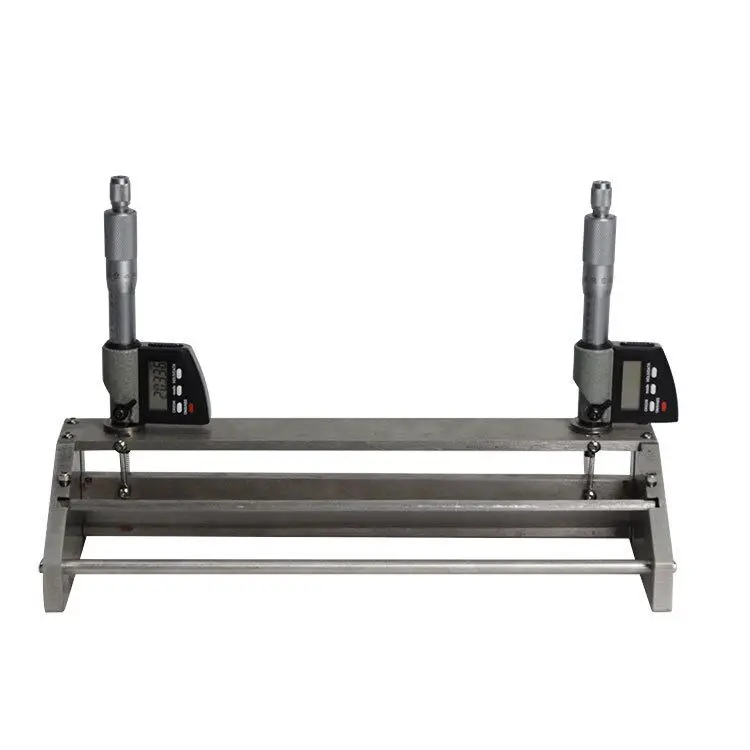

Film Applicator | 300 mm width |
Heating Vacuum Bed | Bottom heated vacuum chunk Max. working power: 3000W Max. heating temperature: 120°C Precision temperature controller with +/- 1ºC accuracy. Tip: For drying the coated Li-ion battery electrode sheets, usually 80ºC is required |
Net weight | 160 kg |
Dimension | 1245mm(L)*500mm(W)*270mm(H) (Upper cover closed) 1245mm(L)*500mm(W)*670mm(H) (Upper cover open) |
Compliance | CE certified |
Warranty | One Year limited with lifetime support |

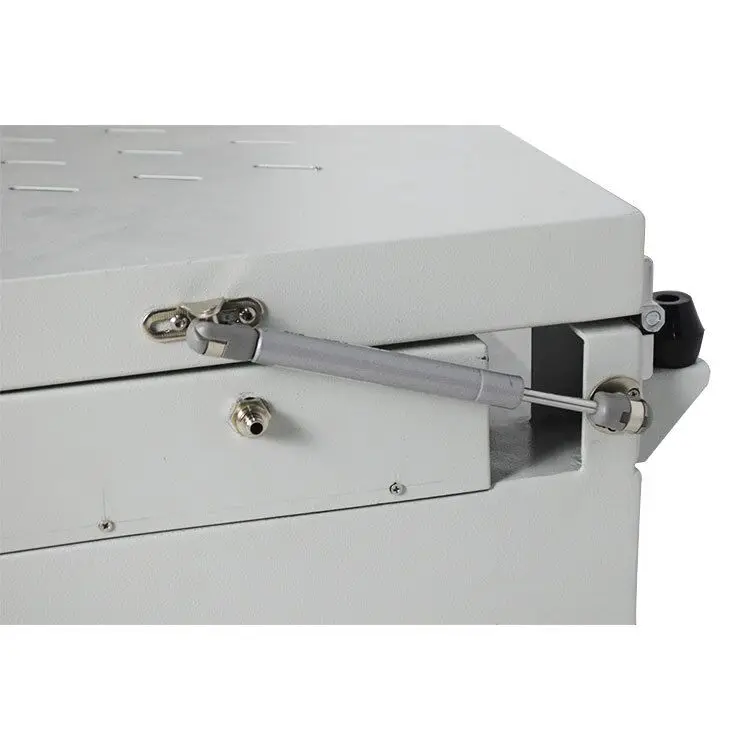

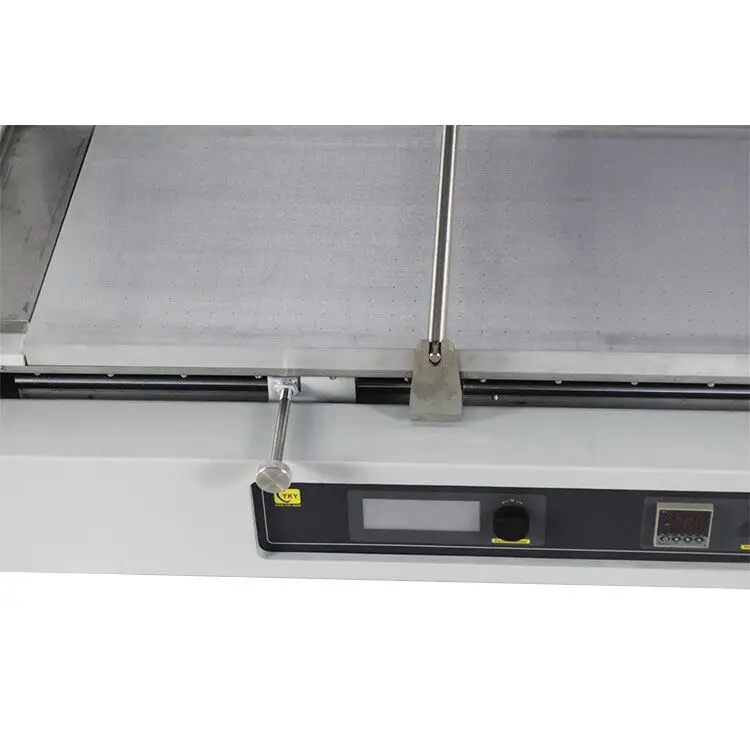

Detailed Pictures

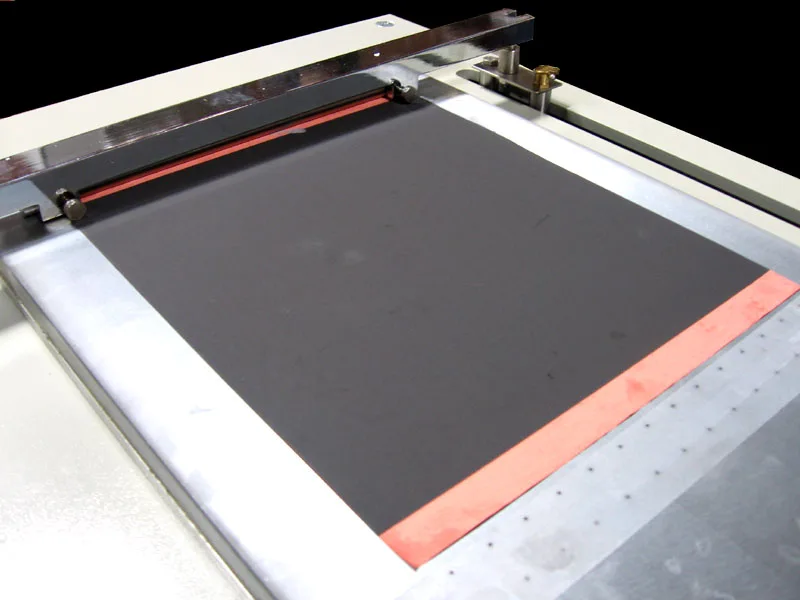

Cathode

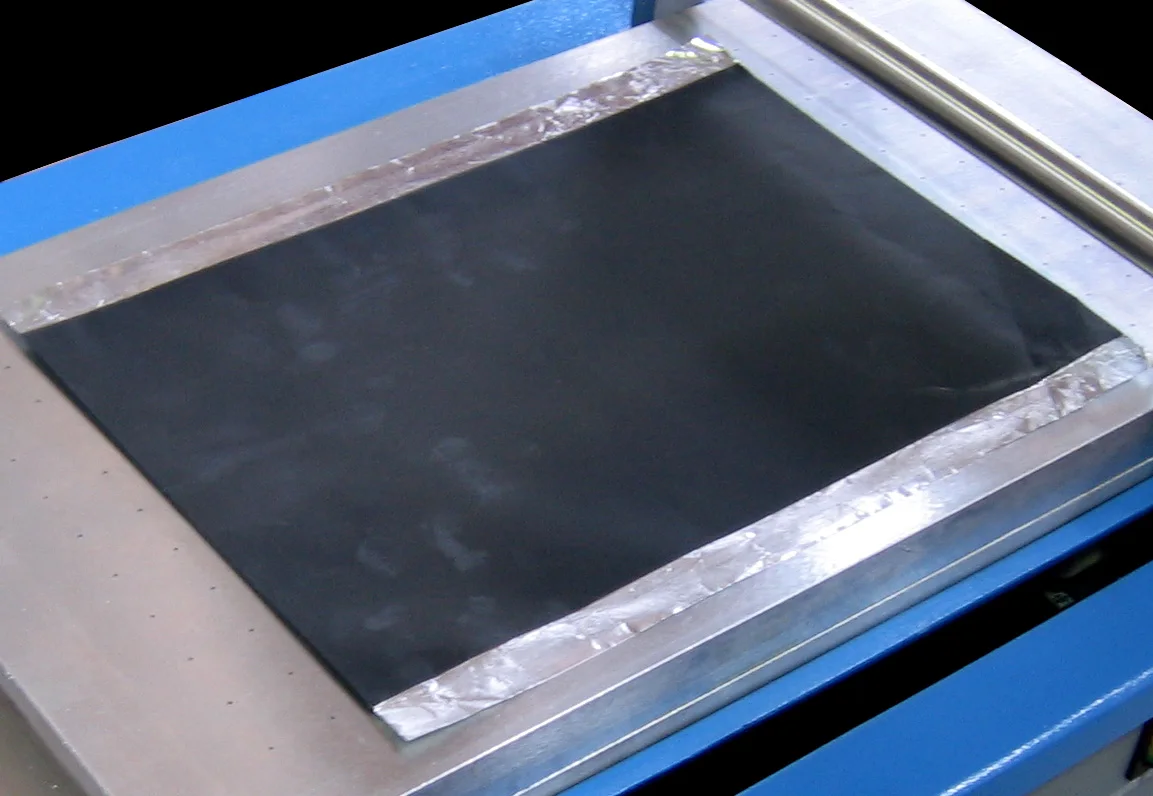

Anode
Packaging & Shipping
Plastic paper inside, polyfoam filled, wooden box outside or as your requirement.
Shipping and transportation as customer request. Generally, our mode of transport are by sea, by air or rail transport.
