Automatic Oil Press Machine for Home Cold Press Soybean Sesame Sunflower Oil Seeds Coconut Rapased Peanut Turkey CE
- Category: >>>
- Supplier: ALLAME MAKINA VE BILISIM SANAYI TICARET LIMITED SIRKETI
Share on (62462006689):
Product Overview
Description
Contact Us
For detailed information please contact with us
Product Description
coldpressoilmachines.com - Ekiciler Machine
New Technology Oil Pressing Machines Manufacturer - Since 1998

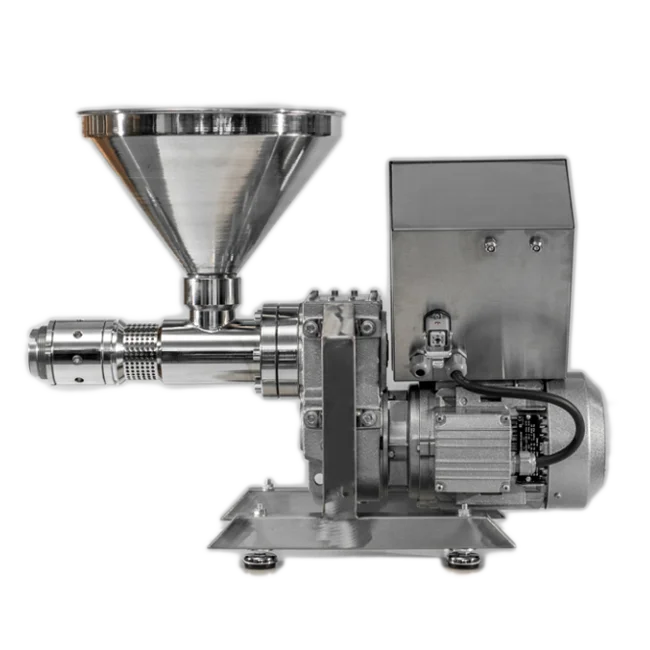

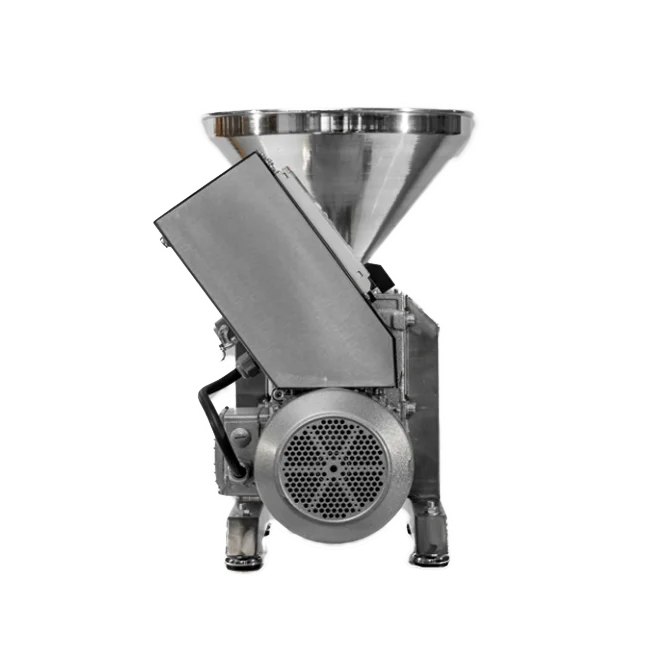

Oil Press 80 - Cold Press Oil Machine
The smallest oil machine model of our company. Suitable for small oil manufacturers and home use.
If you run it at normal speed (18-20 herz), it can process 3 - 6 kg of seeds per hour.
Please see below for engine power and production quality details
Oil Press 80 - Cold Press Oil Machine
This oil press stands out due to its applicability for a large variety of seeds and low energy comsumption. The Oil Press 80 ismanufactured completely in Turkey. The desing of the machine makes it particularly easy to clean.
Oil Press 80 Cold Oil Press Machine can process 3 to 6 kg of seeds per hour. You can see the videos of the Oil Press 80 Cold OilPress Machine extracting seeds.
With our Cold Press Oil Machine, you can extract the oil by pressing all oil seeds and nuts. Some seeds as an example:
Safflower, Sunflower Seeds, Sesame, Pumpkin Seeds, Black Cumin(Black Seed), Prickly Pear Seed, Grape Seed, Coconut,
Hazelnut,Peanut, Walnut, Poppy, Flax Seed, Almond, Jajoba Seed, Pomegranate Seed, Castor Seed, Canola, Melon Seed Kernel, Cumin Seed, Apricot Kernel, Mustard Seed, Nettle Seed, Raspberry, Pepper Seed, Rosehip Seed, Cocoa Bean, Cocoa Nibs, Soybean, Blueberry Seed etc.
Technical Specifications of Oil Press 80 - Cold Oil Press Machine
Motor Power (kW) : 0.75 kW
Power Supply (Volt) :220 / 1-ph
Heater (kW) : 0.6
Max Capacity (kg/h) : 12
Energy Consumption (watt/h): 190 to 200
Efficient Processing Capacity (kg/h) : 3 - 6
(most efficient use of electricty)
Residue Oil in Cake (%) : <=%6
Processing Capacity (kg/24h) : 288
Measurement (L*W*H) (cm)
length (cm) :71
width (cm) :38
height (cm) :66
weight (kg) :45
Cargo Specifications
length (cm) :78
width (cm) :40
height (cm) :68
weight (kg) : 58
Pallette / Box: Box
Hs Code / Gtip Code :847920000019
Warranty Terms
* Machine motor and gearbox is guaranteed for 1 year by its manufacturer.
* Motor driver is guaranteed worldwide for 2 years by its manufacturer Other electrical parts are also under 2 year warranty.
* All parts have 10 year manufacturer guarantee which means we will continue supplying spare parts for 10
* Machine parts that are subject to wear and tear are not covered by the Warranty also does not cover damages caused by
selfinfliction or incorrect operation.
Spare Parts and Tools Included with the Machine Sale
1- 1 piece moon key
2- 1 piece allen key
3- 5 nozzles for the machine head
4- 1 piece feeding funnel
5- 1 piece heating ring
----------------------------------------------------------------------------------------------------------------------------------
Cargo Dimensions of the Machine (in wooden crate)
78 x 40 * 66 cm
weight 58 kg
(Hs Code : 8479 20 00 00 19)
This oil press stands out due to its applicability for a large variety of seeds and low energy comsumption. The Oil Press 80 ismanufactured completely in Turkey. The desing of the machine makes it particularly easy to clean.
Oil Press 80 Cold Oil Press Machine can process 3 to 6 kg of seeds per hour. You can see the videos of the Oil Press 80 Cold OilPress Machine extracting seeds.
With our Cold Press Oil Machine, you can extract the oil by pressing all oil seeds and nuts. Some seeds as an example:
Safflower, Sunflower Seeds, Sesame, Pumpkin Seeds, Black Cumin(Black Seed), Prickly Pear Seed, Grape Seed, Coconut,
Hazelnut,Peanut, Walnut, Poppy, Flax Seed, Almond, Jajoba Seed, Pomegranate Seed, Castor Seed, Canola, Melon Seed Kernel, Cumin Seed, Apricot Kernel, Mustard Seed, Nettle Seed, Raspberry, Pepper Seed, Rosehip Seed, Cocoa Bean, Cocoa Nibs, Soybean, Blueberry Seed etc.
Technical Specifications of Oil Press 80 - Cold Oil Press Machine
Motor Power (kW) : 0.75 kW
Power Supply (Volt) :220 / 1-ph
Heater (kW) : 0.6
Max Capacity (kg/h) : 12
Energy Consumption (watt/h): 190 to 200
Efficient Processing Capacity (kg/h) : 3 - 6
(most efficient use of electricty)
Residue Oil in Cake (%) : <=%6
Processing Capacity (kg/24h) : 288
Measurement (L*W*H) (cm)
length (cm) :71
width (cm) :38
height (cm) :66
weight (kg) :45
Cargo Specifications
length (cm) :78
width (cm) :40
height (cm) :68
weight (kg) : 58
Pallette / Box: Box
Hs Code / Gtip Code :847920000019
Warranty Terms
* Machine motor and gearbox is guaranteed for 1 year by its manufacturer.
* Motor driver is guaranteed worldwide for 2 years by its manufacturer Other electrical parts are also under 2 year warranty.
* All parts have 10 year manufacturer guarantee which means we will continue supplying spare parts for 10
* Machine parts that are subject to wear and tear are not covered by the Warranty also does not cover damages caused by
selfinfliction or incorrect operation.
Spare Parts and Tools Included with the Machine Sale
1- 1 piece moon key
2- 1 piece allen key
3- 5 nozzles for the machine head
4- 1 piece feeding funnel
5- 1 piece heating ring
----------------------------------------------------------------------------------------------------------------------------------
Cargo Dimensions of the Machine (in wooden crate)
78 x 40 * 66 cm
weight 58 kg
(Hs Code : 8479 20 00 00 19)
Spare Parts Picture
Packing & Delivery
1. Strong plywood and covering with Standard exporting package.
2. Packing : The package can be done as customers' requirements.
3. Accepts LCL, FCL shipment.
