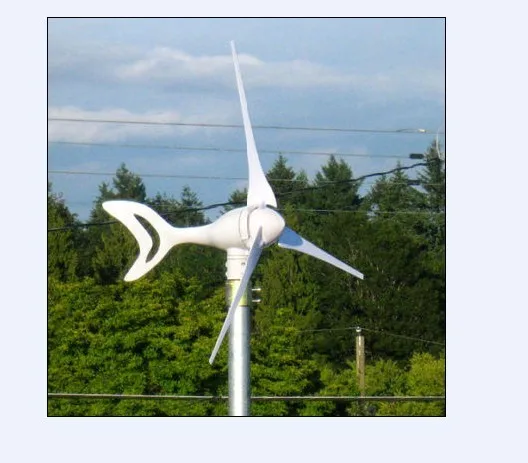

300W small wind generator for home use wind mill

Share on (62462674192):


Price:$135.00

Quantity:


Product Overview

Description






Detailed Images


300W8---







 Technical Parameters








           Product Specification and Price List for Dolphin System







































































































Wind generator part



Model



Z-300



Name



Dolphin



Rated power



300W



Rated DC voltage



DC 12V/24V



Rated current



25A/12.5A



Rated speed



1350r/m



Max power



380W



Number of blade



3 pcs



Starting wind speed



2.5m/s



Cut-in wind speed



3.5m/s



Cut-out wind speed



18m/s



Security wind speed



45m/s



Rated wind speed



12.5m/s



Engine



Three-phase permanent magnel generator



Rotor diameter



1170mm



Blade material



Carbon fiber



Output line anti-winding device



Overall three-phase commutator



Over-speed wind protection



Tip stall protection + turned protection + Electromagnetic brake



Life span



15 years



Equipment surface protection



Aluminum oxide + plastic coating



Working temperature



-45°C-70°C



N.W.



6.4kg



Packing material



Carton box and foam material



packing dimension



720*390*210mm









More products


More products


more produce.jpg

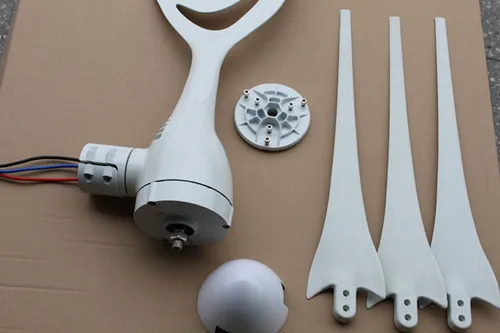

Parts





     Service guarantee

         As our corporate users, you enjoy the following service:

        (1) The machine warranty for free in 2 year;

        (2) Technical support;

        (3) Within 24 hours for respond after receiving notification;

        (4) Cost maintenance forever.

        When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.




        However, any of the following situation happened, are not included in the warranty:

       (1) Non-permitted by the company, went ahead with repair and damage;

       (2) Install or modify arbitrarily;

       (3) Incorrect operation or use;

       (4) Do not depending on the manual to do cleaning or maintenance;

       (5) Abnormal environment condition exceed the specifications, result in damage;

       (6) The deliberate destruction of man-made;

       (7) Irresistible natural disasters.














Payment


Payment,Transport

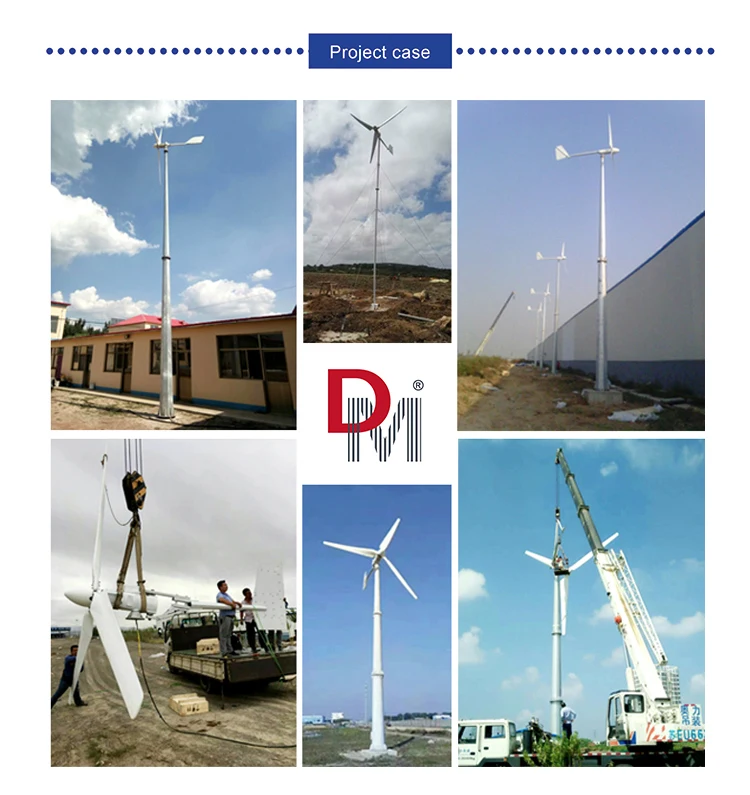

Case

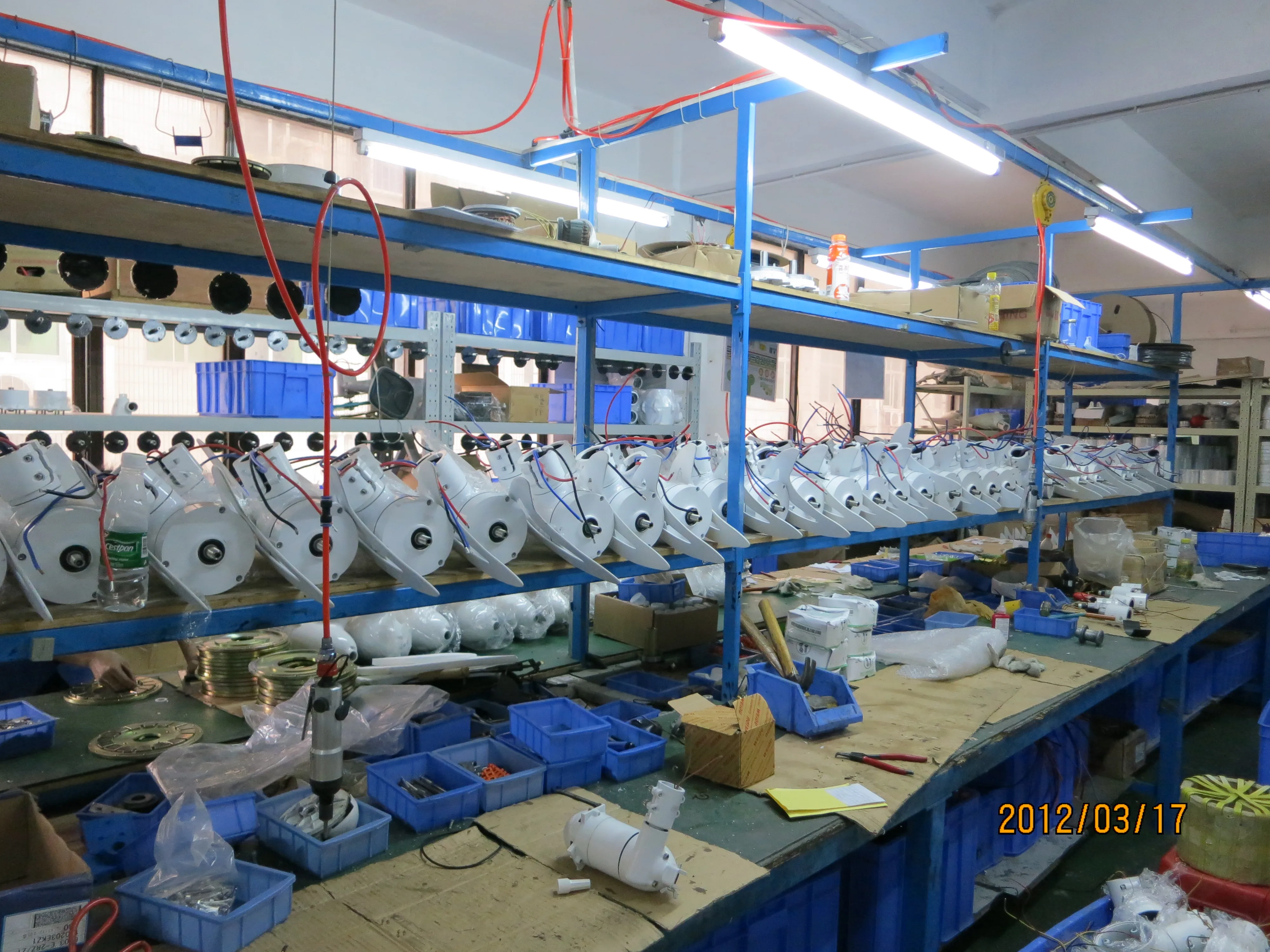

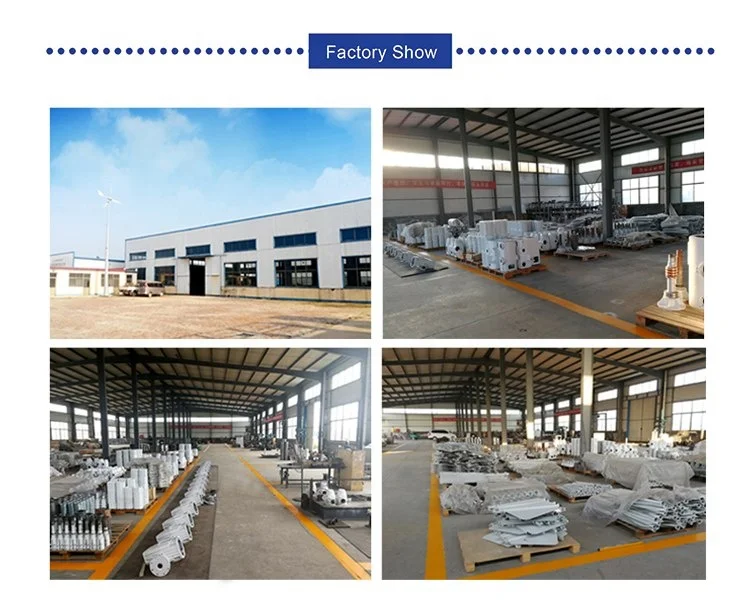

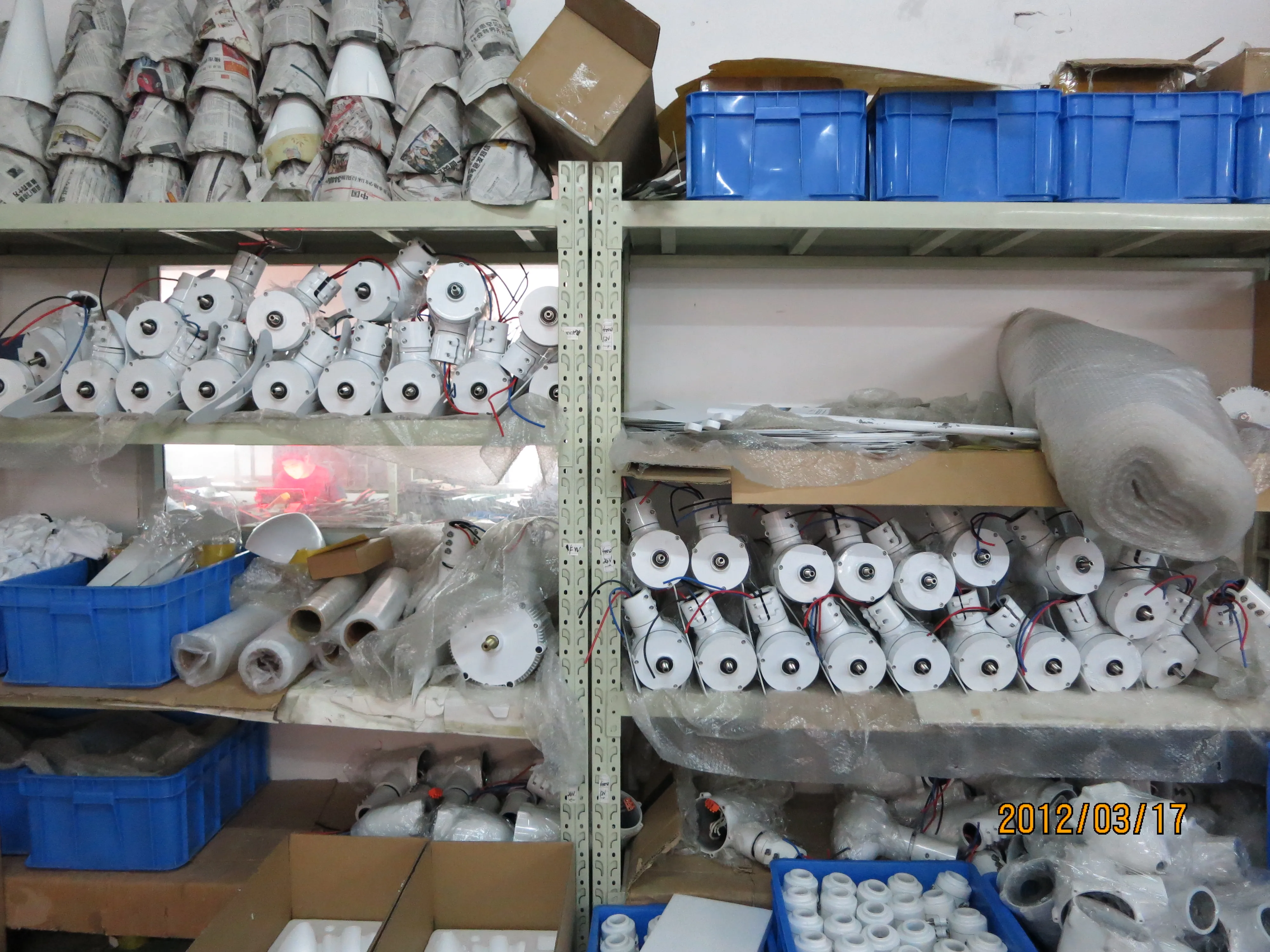

photobank.jpgphotobank (4).jpg  001 002
