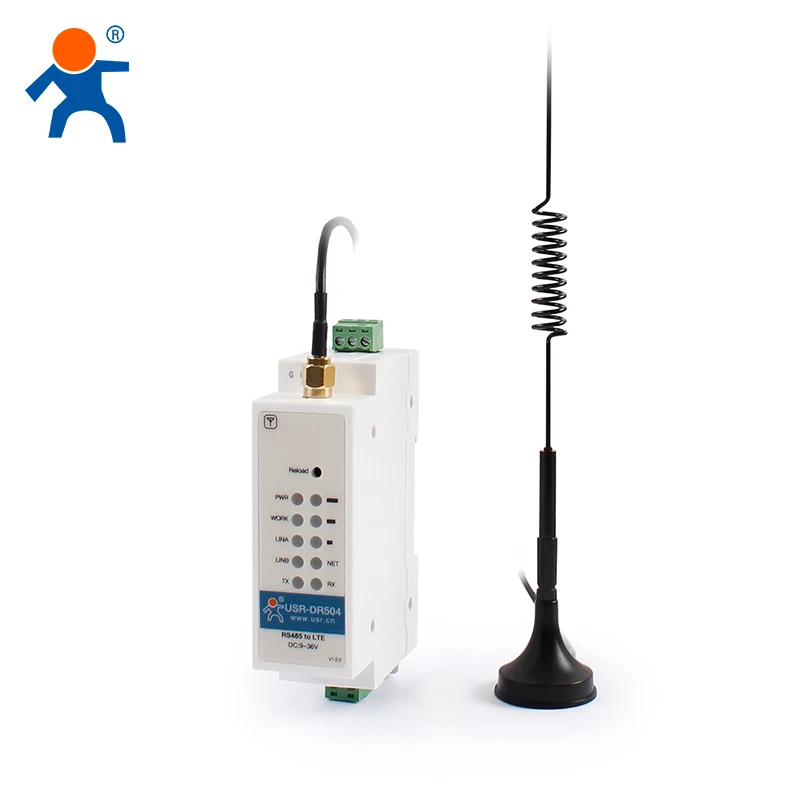

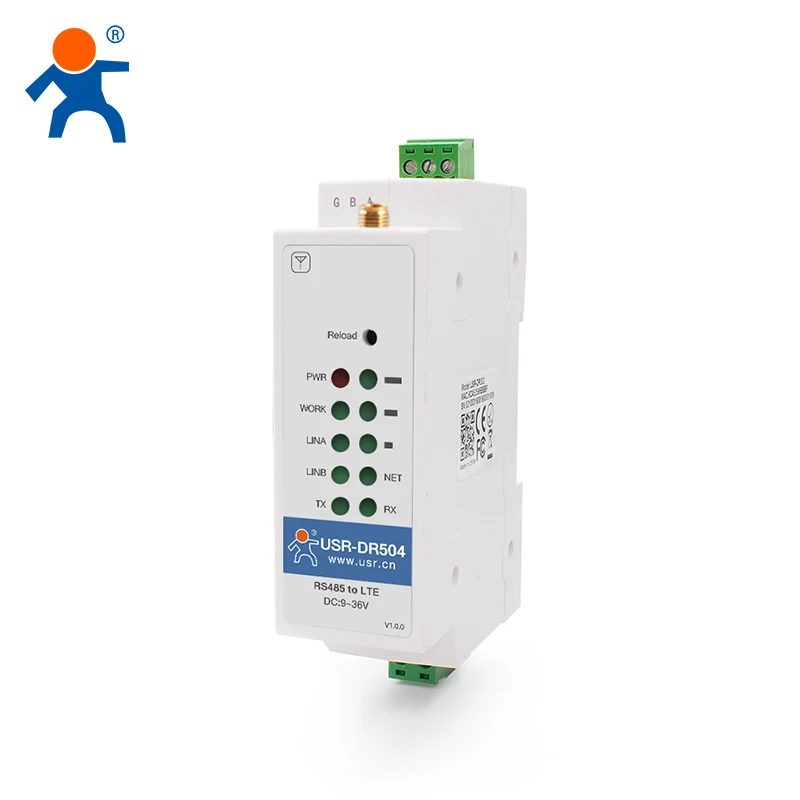

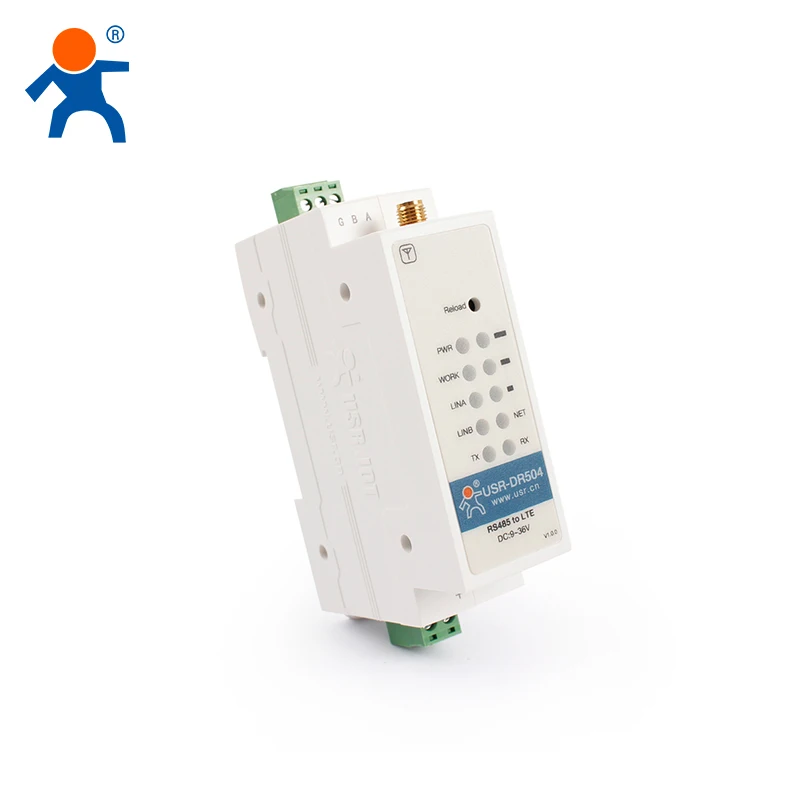

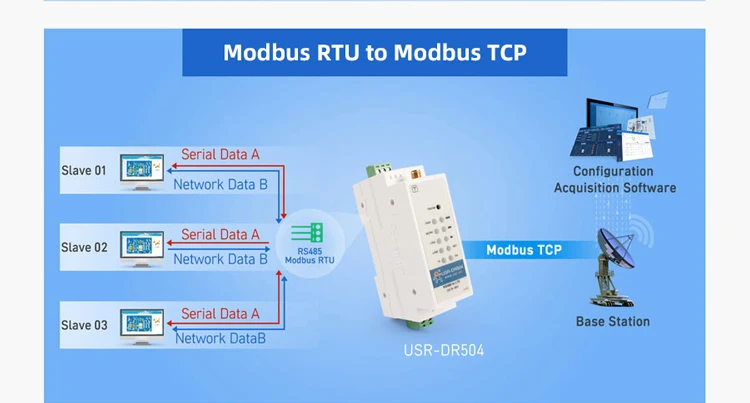

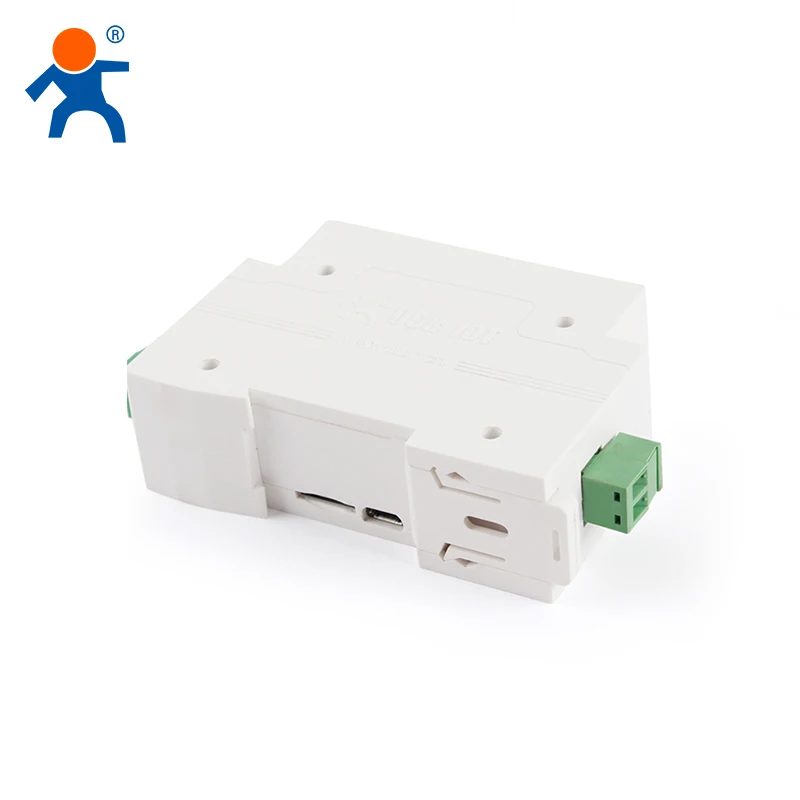

USR DR504 G Global DIN Rail Serial to 4G LTE Modem with SMS/ Modbus RTU to TCP/ AT command
- Category: >>>
- Supplier: Jinan USR IOT Technology Limited
Share on (62462722203):
Product Overview
Description
Welcome to Minisite
Contact Us
Product Description

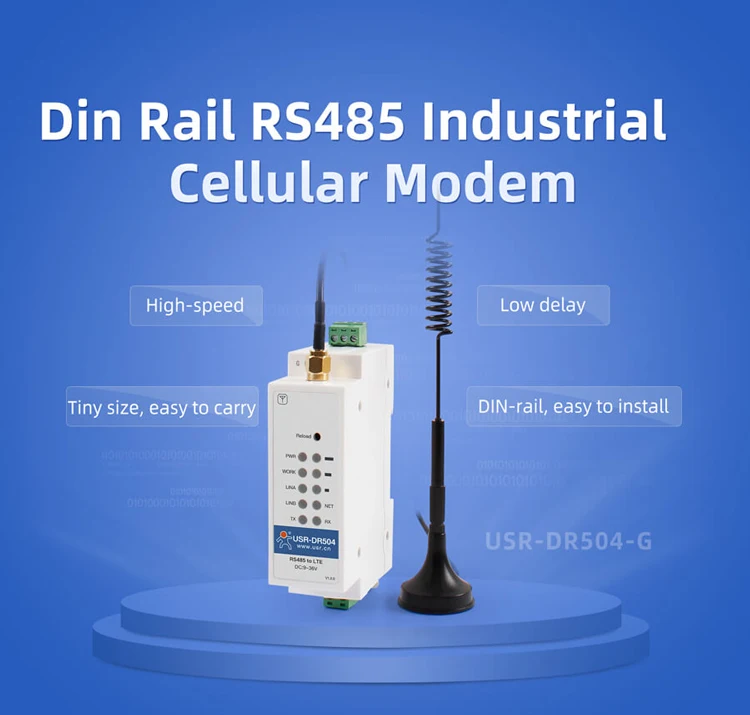

RS485 to 2G/3G/4G LTE Celluar Modem Introduction

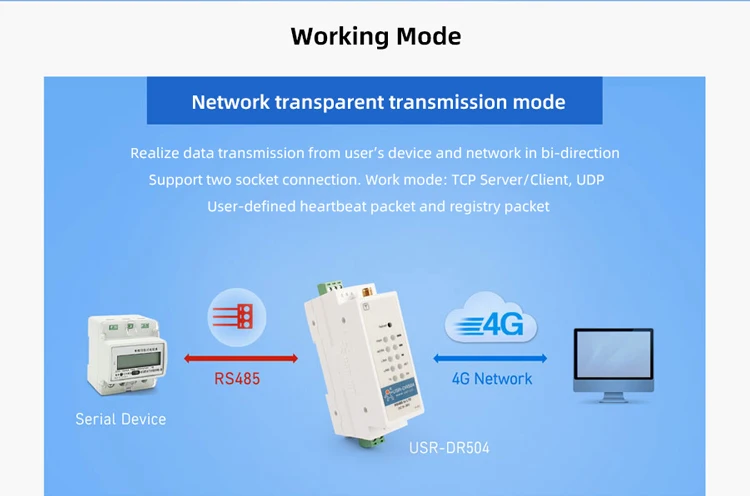

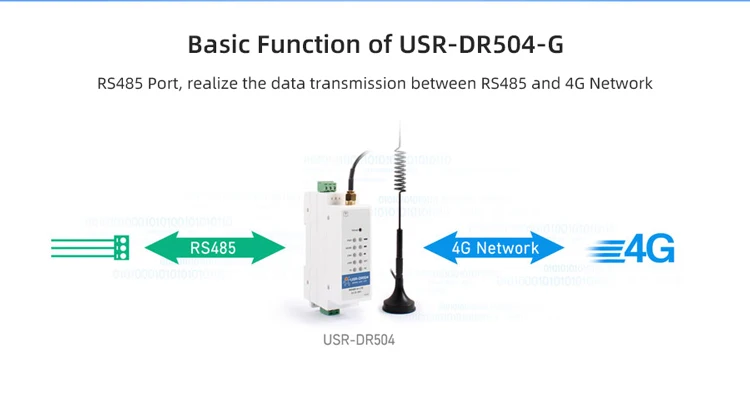

USR-DR504-G is an industrial 2G/3G/4G LTE celluar Modem with high stability and anti-interference. It can realize the data transparent transmission between serial port RS485 and 4G celluar network.
Specifications
Models | USR-DR504-G | USR-G786-G | USR-DR504-EUX | USR-G786-EUX | |
LTE Category | LTE Cat.4 | LTE Cat.4 | LTE Cat.4 | LTE Cat.4 | |
Frequency Bands | LTE FDD | B1/B2/B3/B4/B5 /B7/B8/B12/B13/ B18/B19/B20/ B25/B26/B28 | B1/B2/B3/B4/B5 /B7/B8/B12/B13/ B18/B19/B20/ B25/B26/B28 | B1/B3/B7/B8/ B20/B28A | B1/B3/B7/B8 /B20/B28A |
LTE TDD | B38/B39/B40/B41 | B38/B39/B40/B41 | B38/B40/B41 | B38/B40/B41 | |
WCDMA | B1/B2/B4/B5 /B6/B8/B19 | B1/B2/B4/B5 /B6/B8/B19 | B1/B8 | B1/B8 | |
GSM | B2/B3/B5/B8 | B2/B3/B5/B8 | B3/B8 | B3/B8 | |
Transmission Speed | LTE-FDD | 150Mbps(DL)/ 50Mbps(UL) | 150Mbps(DL)/ 50Mbps(UL) | 150Mbps(DL)/ 50Mbps(UL) | 150Mbps(DL)/ 50Mbps(UL) |
LTE-TDD | 130Mbps(DL)/ 30Mbps(UL) | 130Mbps(DL)/ 30Mbps(UL) | 130Mbps(DL)/ 30Mbps(UL) | 130Mbps(DL)/ 30Mbps(UL) | |
DC-HSDPA | 42Mbps (DL) | 42Mbps (DL) | 42Mbps (DL) | 42Mbps (DL) | |
HSUPA | 5.76Mbps (UL) | 5.76Mbps (UL) | 5.76Mbps (UL) | 5.76Mbps (UL) | |
WCDMA | 384Kbps(DL)/ 384Kbps(UL) | 384Kbps(DL)/ 384Kbps(UL) | 384Kbps(DL)/ 384Kbps(UL) | 384Kbps(DL)/ 384Kbps(UL) | |
GSM(EDGE) | 296Kbps (DL)/ 236.8Kbps (UL) | 296Kbps (DL)/ 236.8Kbps (UL) | 296Kbps (DL)/ 236.8Kbps (UL) | 296Kbps (DL)/ 236.8Kbps (UL) | |
GSM (GPRS) | 107Kbps (DL)/ 85.6Kbps (UL) | 107Kbps (DL)/ 85.6Kbps (UL) | 107Kbps (DL)/ 85.6Kbps (UL) | 107Kbps (DL)/ 85.6Kbps (UL) | |
Serial Parameters | Interface form | RS485(Terminal)*1 | RS485(Termianl)*1 RS232(Termianl)*1 | RS485(Terminal)*1 | RS485(Termianl)*1 RS232(Termianl)*1 |
Data Bits | 8 | 8 | 8 | 8 | |
Stop Bits | 1,2 | 1,2 | 1,2 | 1,2 | |
Parity Bits | NONE,ODD,EVEN | NONE,ODD,EVEN | NONE,ODD,EVEN | NONE,ODD,EVEN | |
Baud Rate | 2400~230400 | 2400~230400 | 2400~230400 | 2400~230400 | |
Physical Interfaces | SIM/USIM card | 1.8V/3V | 1.8V/3V | 1.8V/3V | 1.8V/3V |
Antenna | SMA Female | SMA Female | SMA Female | SMA Female | |
USB | USB 2.0 | - | USB 2.0 | - | |
Indicators | POWER,WORK, NET,LINK,RSSI | POWER,WORK, NET,LINK | POWER,WORK, NET,LINK,RSSI | POWER,WORK ,NET,LINK | |
Reload | Button | Button | Button | Button | |
Reset | / | / | / | / | |
Hardware Characteristics | Input Voltage | 9V~36V | 9V~36V | 9V~36V | 9V~36V |
Connector | Terminal | Terminal | Terminal | Terminal | |
Housing material | ABS Plastic | Metal | ABS Plastic | Metal | |
Dimensions(mm) | 44.5×31.8& times;13.94 (L*W*H) | 111.51×94& times;28 (L*W*H) | 44.5×31.8& times;13.94 (L*W*H) | 111.51×94& times;28 (L*W*H) | |
Operating temperature | -30℃~+75℃ | -35℃~+75℃ | -30℃~+75℃ | -35℃~+75℃ | |
Storage Temperature | -40℃~+85℃ | -40℃~+90℃ | -40℃~+85℃ | -40℃~+90℃ | |
Operating humidity | 5%~95% | 5%~95% | 5%~95% | 5%~95% | |
Storage humidity | 5%~95% | 5%~95% | 5%~95% | 5%~95% | |
Application
