Канадская солнечная панель Mono 9BB полуэлементная солнечная панель цена 440 Вт 450 Вт 455 Вт 500 Вт фотоэлектрические солнечные панели
- Category: Solar Panels >>>
- Supplier: Nanjing Moge New Energy Co. Ltd.
Share on (62462748570):
Product Overview
Description
Introduction
CANADIAN SOLAR INC. is committed to providing high quality solar products, solar system solutions and services to customers around the world. No. 1 module supplier for quality and performance/price ratio in IHS Module Customer Insight Survey. As a leading PV project developer and manufacturer of solar modules with over 30 GW deployed around the world since 2001.

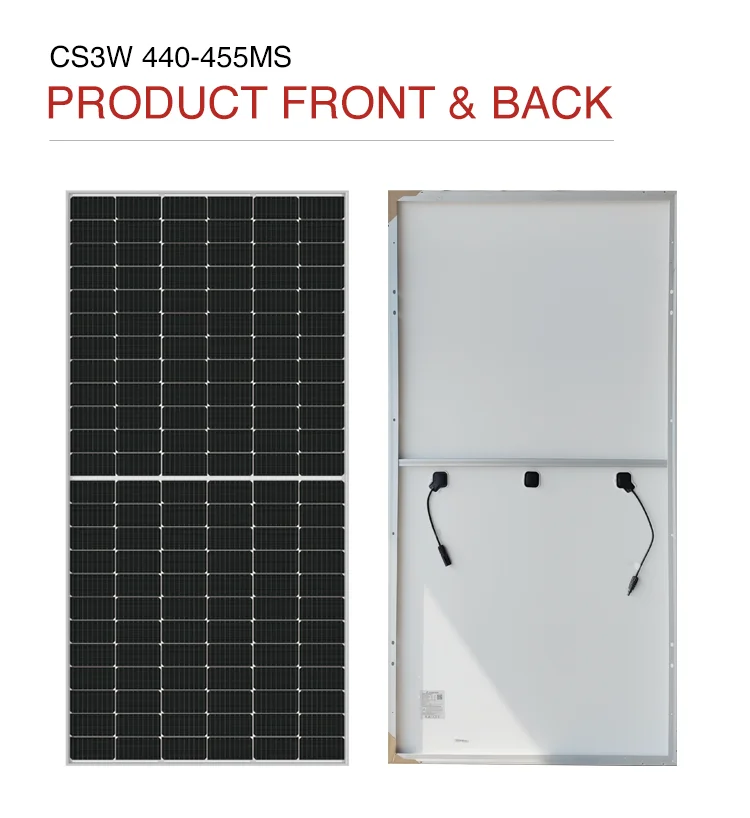

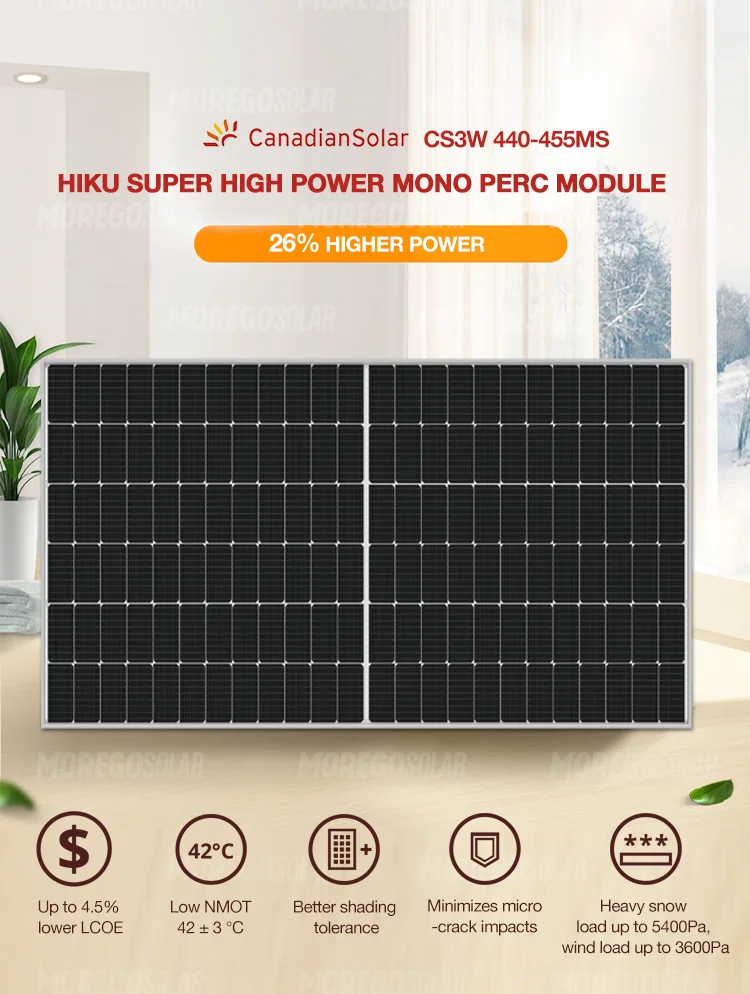

HIGH POWER PERC MONO SOLAR MODULE 445W 450W 455W
Cannadian Genuine
Parameter
MECHANICAL SPECIFICATION | ||||||
Format | 2108 X1048 X40 mm | |||||
Weight | 24.9kg±5% | |||||
Cell | 144 monocrystalline half cell | |||||
Junction Box | IP68, 3 bypass diodes | |||||
Cable | 4 mm2 (IEC), 12 AWG (UL) | |||||
Connector | T4-PC-1 (IEC 1000 V) or PV-KST4/ xy-UR, PV-KBT4/xy-UR (IEC 1000 V) or T4-PC-1 (IEC 1500 V) or T4-PPE-1 (IEC1500 V) or PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY (IEC 1500 V) or UTXCFA4AM, UTXCMA4AM (IEC 1500 V) | |||||
ELECTRICAL DATA | STC* | ||||||||
CS3W | 440MS | 445MS | 450MS | 455MS | ||||
Nominal Max. Power (Pmax) | 440W | 445W | 450W | 455W | ||||
Opt. Operating Voltage (Vmp) | 40.7V | 40.9V | 41.1V | 41.3V | ||||
Opt. Operating Current (Imp) | 10.82A | 10.89A | 10.96A | 11.02A | ||||
Open Circuit Voltage (Voc) | 48.7V | 48.9V | 49.1V | 49.3V | ||||
Short Circuit Current (Isc) | 11.48A | 11.54A | 11.60A | 11.66A | ||||
Module Efficiency | 19.9% | 20.1% | 20.4% | 20.6% | ||||
Operating Temperature | -40°C ~ +85°C | |||||||
Max. System Voltage | 1500V (IEC/UL) or 1000V (IEC/UL) | |||||||
Module Fire Performance | TYPE 1 (UL 1703) or CLASS C (IEC 61730) | |||||||
Max. Series Fuse Rating | 20 A | |||||||
Application Classification | Class A | |||||||
Power Tolerance | 0 ~ + 5 W | |||||||
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C. Measurement uncertainty: ±3 % (Pmax). | ||||||||

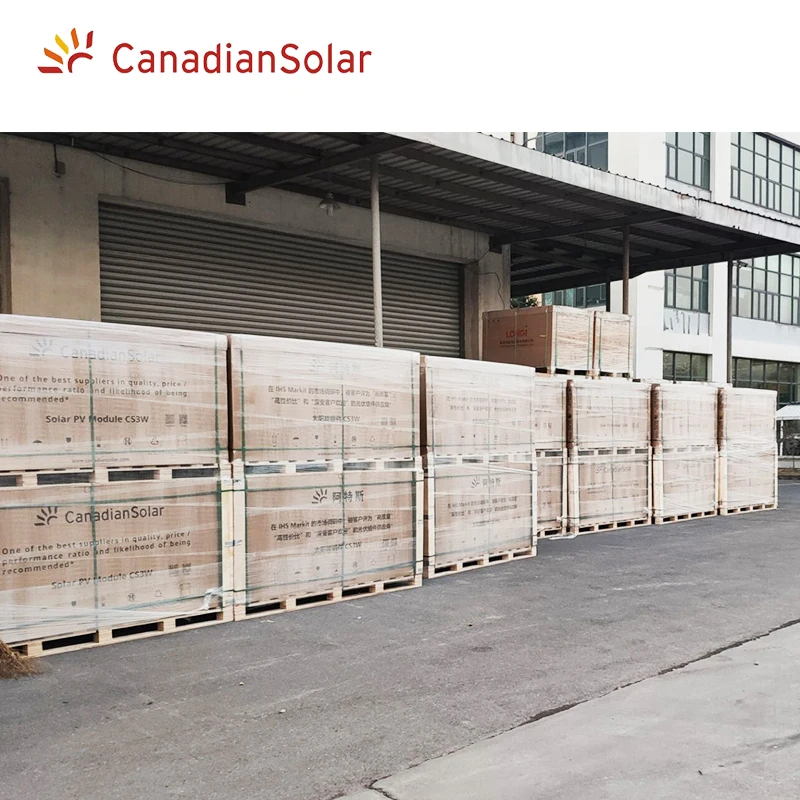

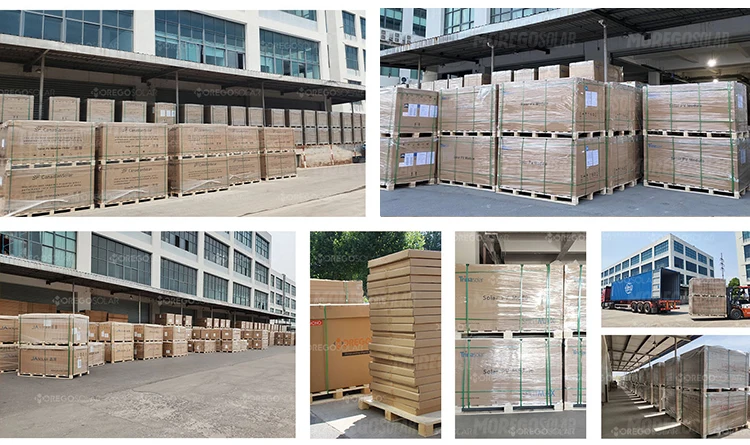

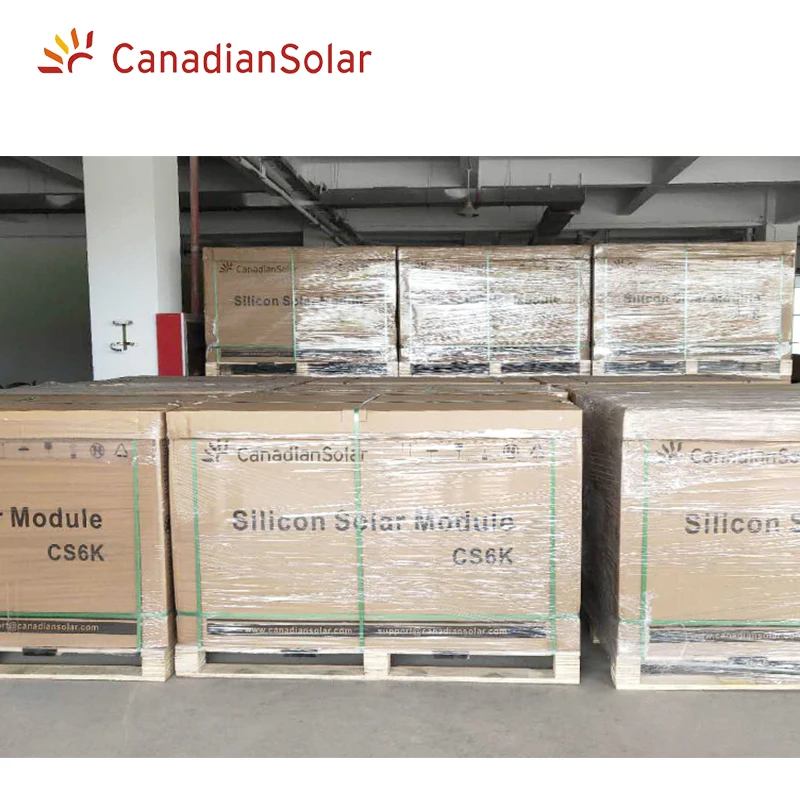

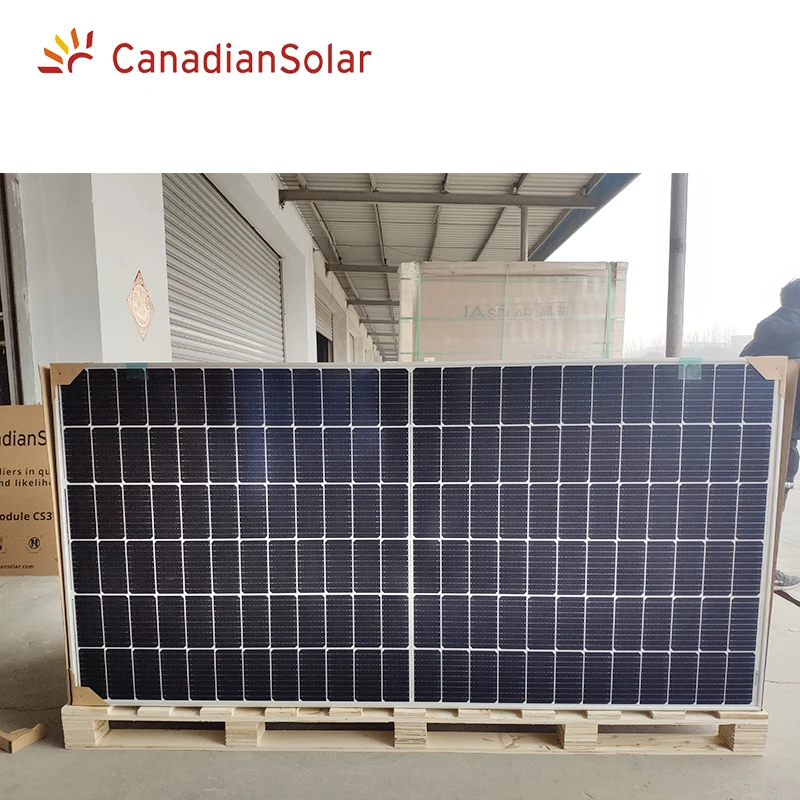

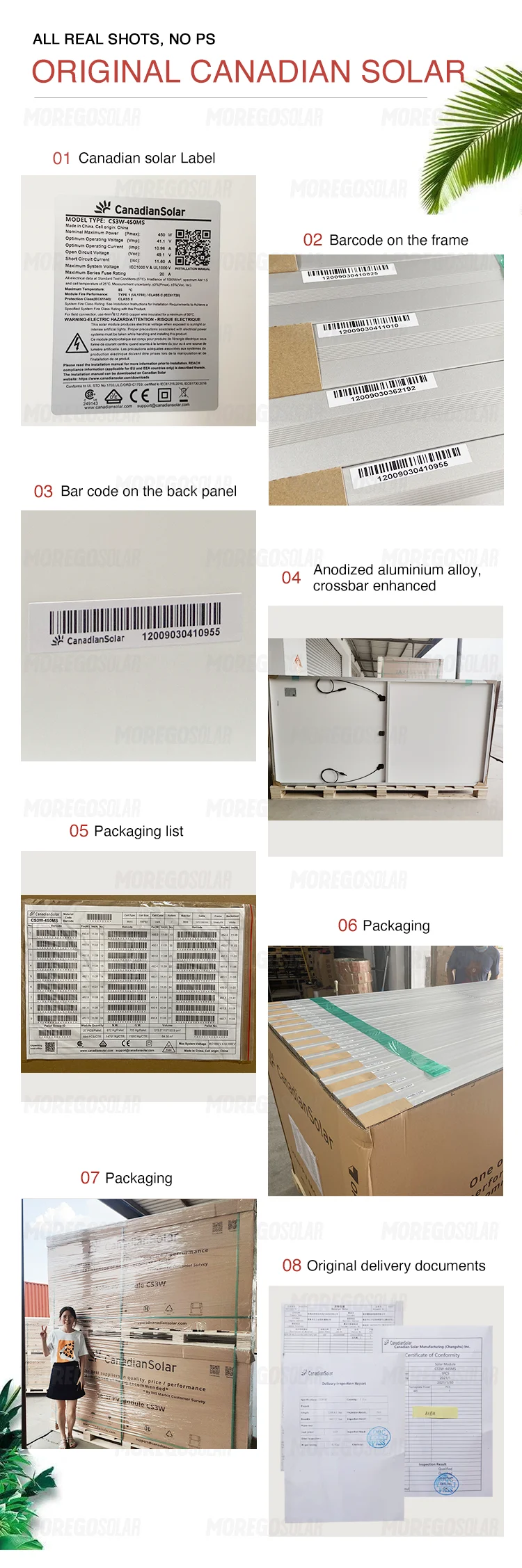

Real Shot
Company Profile

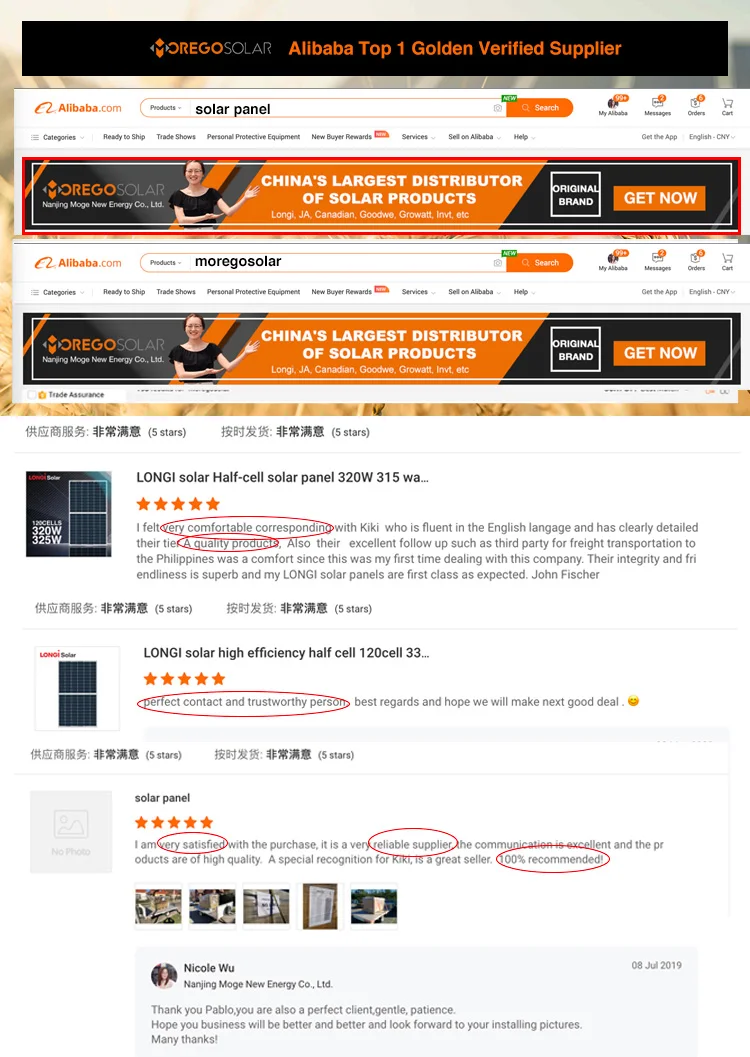

TOP 1 Solar Panel Supplier in Alibaba
Nanjing Moge New Energy CO., Ltd. is
the Largest Authorized Distributor of Branded Solar Panels in China
As a global strategic partner of more than 80% of PV brands,
We can meet you any needs of different brands, different types and different delivery time.
We accept various of inspection and payment way such as the third-party on-site inspection and Trade assurance of Alibaba.com.
We aim "Fast and Guaranteed Delivery Time and Competitive Price" to efficiently reduce your purchasing time and cost.
