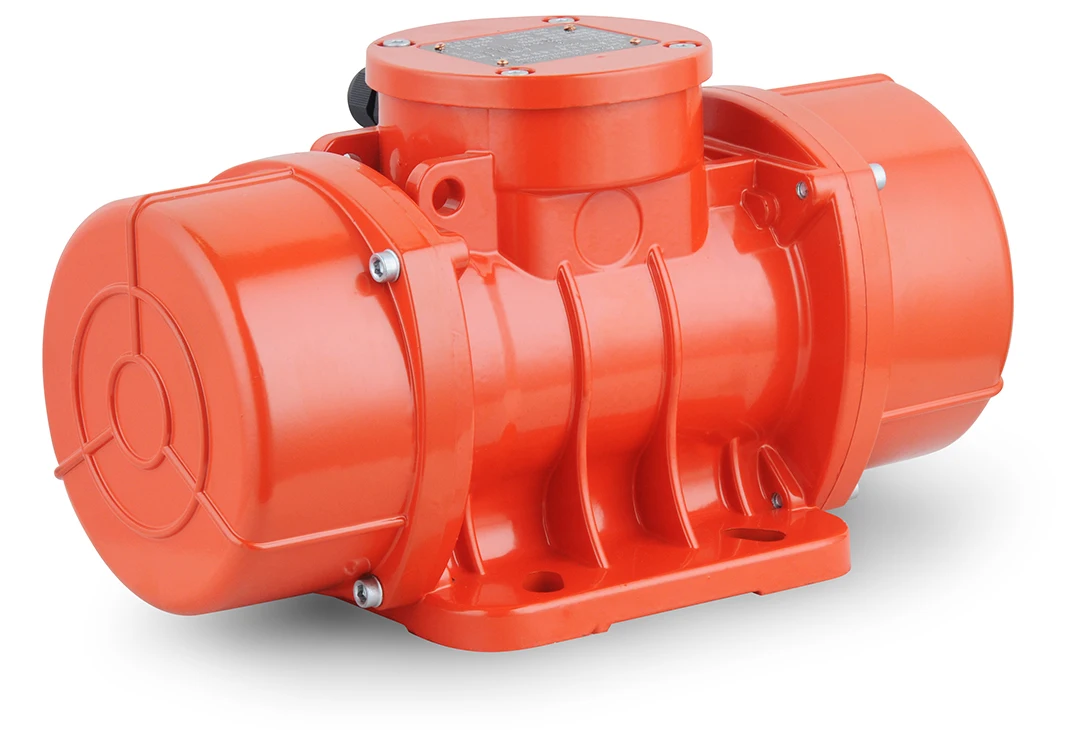

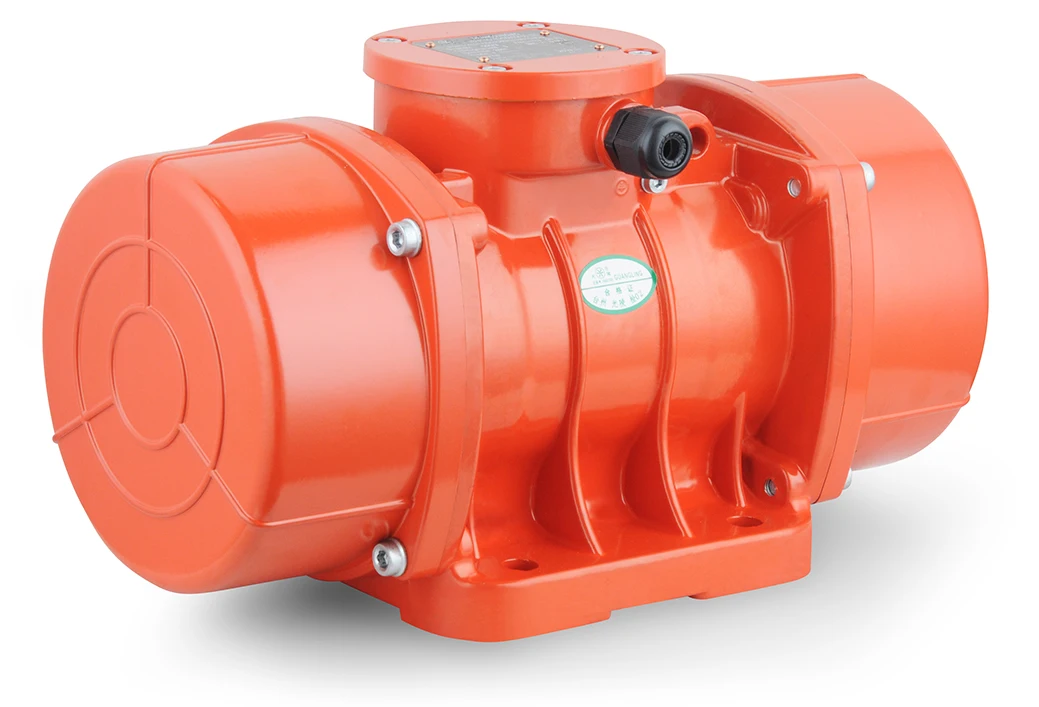

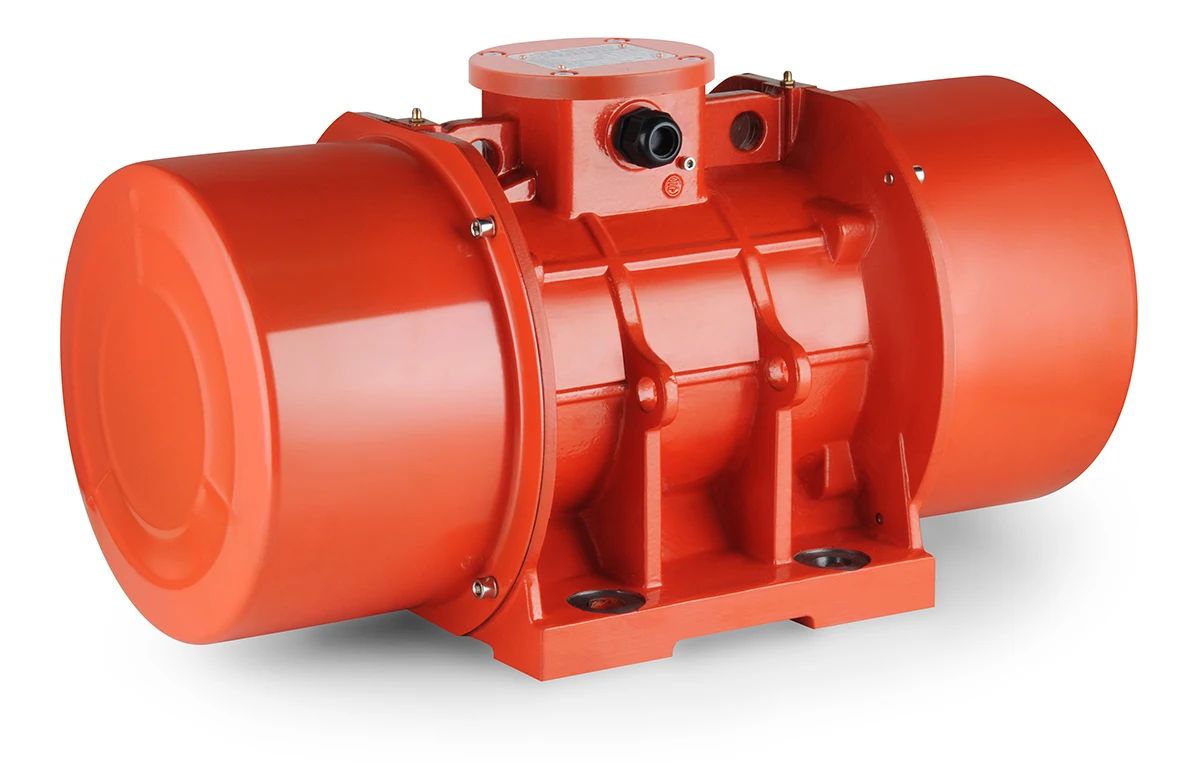

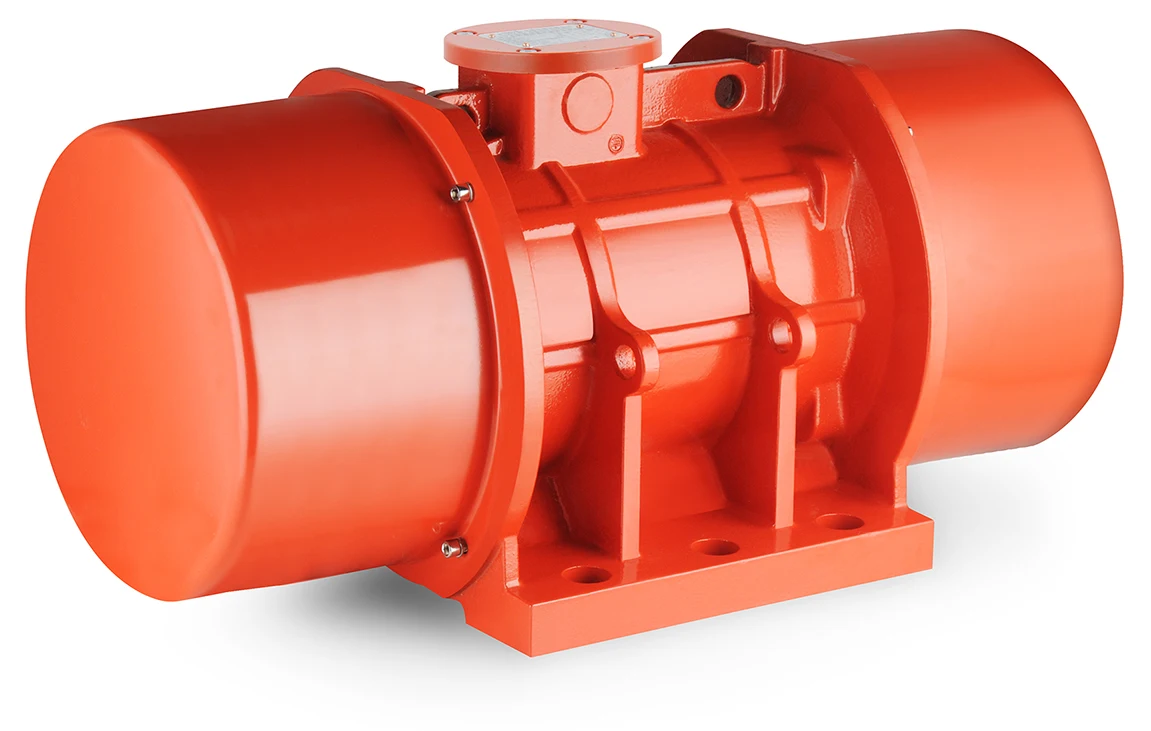

CE Approved MV3800/15 series Three phase220V/380V 4 pole 1500/1800RPM 50/60HZ sand/cement screen vibration motor
- Category: >>>
- Supplier: Zhejiang Guangling Vibrating Technology Co. Ltd.
Share on (62462827767):
Product Overview
Description
Product Description
MV series vibrator motors have been developed to be used on machines like screens, feeders, extractors,
separators construction works and other applications like hoppers, compactors conveyor etc.
separators construction works and other applications like hoppers, compactors conveyor etc.
MV 4poles220/380v 1500/1800rpm 50/60hz models
Model | Voltage | Current | input power | Force | G.W | Mounting | Size | Size | |
V | A.MAX | KW | KN | KG | A | B | |||
MV40/15 | 220/380 | 0.26 | 0.04 | 0.3 | 4.6 | 62-74 | 106 | SIZE10 | |
MV90/15 | 220/380 | 0.31 | 0.12 | 0.9 | 6.8 | 62-74 | 106 | SIZE20 | |
MV200/15 | 220/380 | 0.49 | 0.16 | 2 | 12.8 | 90 | 125 | SIZE30 | |
MV250/15 | 220/380 | 0.54 | 0.18 | 2.5 | 12.9 | 90 | 125 | SIZE30 | |
MV300/15 | 220/380 | 0.62 | 0.2 | 3 | 13.8 | 90 | 125 | SIZE30 | |
MV400/15 | 220/380 | 0.84 | 0.3 | 4 | 19.6 | 105 | 140 | SIZE40 | |
MV500/15 | 220/380 | 1.06 | 0.35 | 5 | 21 | 105 | 140 | SIZE40 | |
MV700/15 | 220/380 | 1.32 | 0.62 | 7 | 28.2 | 120 | 170 | SIZE50 | |
MV800/15 | 220/380 | 1.36 | 0.65 | 8 | 29.1 | 120 | 170 | SIZE50 | |
MV1100/15 | 220/380 | 1.4 | 0.65 | 11 | 36.5 | 120 | 170 | SIZE50 | |
MV1400/15 | 220/380 | 1.78 | 0.9 | 14 | 60.5 | 140 | 190 | SIZE60 | |
MV1700/15 | 220/380 | 2.09 | 1.15 | 17 | 62.5 | 140 | 190 | SIZE60 | |
MV2400/15 | 220/380 | 3.2 | 1.6 | 24 | 68 | 140 | 190 | SIZE60 | |
MV2500/15 | 220/380 | 3.4 | 1.8 | 25 | 97.5 | 155 | 255 | SIZE70 | |
MV3000/15 | 220/380 | 3.68 | 1.9 | 30 | 110 | 155 | 255 | SIZE70 | |
MV3800/15 | 220/380 | 4.15 | 2.2 | 38 | 130 | 155 | 255 | SIZE75 | |
MV4300/15 | 220/380 | 4.5 | 2.5 | 43 | 145 | 155 | 255 | SIZE75 | |
MV5500/15 | 220/380 | 6.5 | 3.6 | 55 | 193 | 180 | 280 | SIZE80 | |
MV7200/15 | 220/380 | 8.5 | 5 | 72 | 253 | 200 | 320 | SIZE85 | |
MV9000/15 | 220/380 | 13.4 | 7.5 | 90 | 269 | 200 | 320 | SIZE85 | |
MV10000/15 | 220/380 | 14.4 | 7.8 | 100 | 329 | 125 | 380 | SIZE90 | |
MV11500/15 | 220/380 | 15.5 | 9 | 116 | 445 | 140 | 440 | SIZE100 | |
MV14500/15 | 220/380 | 18.5 | 11.5 | 141 | 460 | 140 | 440 | SIZE100 | |
stator&rotor | cold rolled silicon steel 600 |
rotor | dynamic balance |
winding wire | 100% copper wire,Grade H,180℃ PTC , IP66,waterproof design |
bearing block | ductile iron |
shaft | heat treated,Strength is more than 45#steel |
bearing | C&U,NSK and SKF as requirement. |
mass | force can be adjustabled,mass with clear scale. |
housing | aluminum alloy,powder painting,spray painting. |
screw | alloy steel 10.9 |
junction box | filled with epoxy resin,terminal is brass |
force | true force,true power,competitive price. |
volt | AC-220/380V,110V/220V, DC-12v,24v |
HZ | 50/60hz |
Speed | 3000/3600rpm |
warrnty | 1 year warrnty, long service life. |
Quality Control | Raw material quality control,spare parts quality control,every work craft quality control, package quality control. |
Direction for use
Noise<= 70 dB (A) Insulation Class: F
Protection:IP66
Admitted Ambient Temperature: From -30˚C to +40˚.
s1 continuous duty
s1 continuous duty
Description of application effect
The vibration motor can be mounted in every position. The surface on which the vibrator is
placed must be plane, with-out any imperfection, which could preclude a correct fixing To bolt the vibration motor onto the structure always use new and high resistant screws and nuts
placed must be plane, with-out any imperfection, which could preclude a correct fixing To bolt the vibration motor onto the structure always use new and high resistant screws and nuts
Detailed Images
winding warehouse,balance rotor,Installation workshop
Related Products
Packing&Shipping
cartons, and wooden case with pallet
After Sales Service
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged
spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by
customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by
customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
Company Introduction
Zhejiang Guangling Vibrating Technology CO.,LTD.with 20 years’ manufacturing experience in vibrator motor,offer constant
reliability and long operating life with aesthetic design, solid raw material and strict quality control at each stage of
production.
Our company, by following the developments in the industry closely, manufactures the vibration motors needed in this area as more
economical, higher quality and more aesthetic products by using all the improving opportunities of technology. Superior quality
production is ensured through testing and meticulous quality control made by our experienced personnel at every stage of
production.
reliability and long operating life with aesthetic design, solid raw material and strict quality control at each stage of
production.
Our company, by following the developments in the industry closely, manufactures the vibration motors needed in this area as more
economical, higher quality and more aesthetic products by using all the improving opportunities of technology. Superior quality
production is ensured through testing and meticulous quality control made by our experienced personnel at every stage of
production.
Our Services & Strength
1). We are very glad that customer gives us some suggestion for price and products.
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying and paying processes.
4). Deliver goods to our customers all over the world with speed and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
FAQ
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make vibrator motor since 2000.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
4). Q: What are your payment terms?
A: 50% deposit by T/T in advance, pay 50% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make vibrator motor since 2000.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
4). Q: What are your payment terms?
A: 50% deposit by T/T in advance, pay 50% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
