PT001 Analog 4 20mA 0 10V Water Tank Pump Level Pressure Sensor Transmitter Transducer Price Waterproof 5V 12V 24Vdc (IBEST)

Product Overview

Description

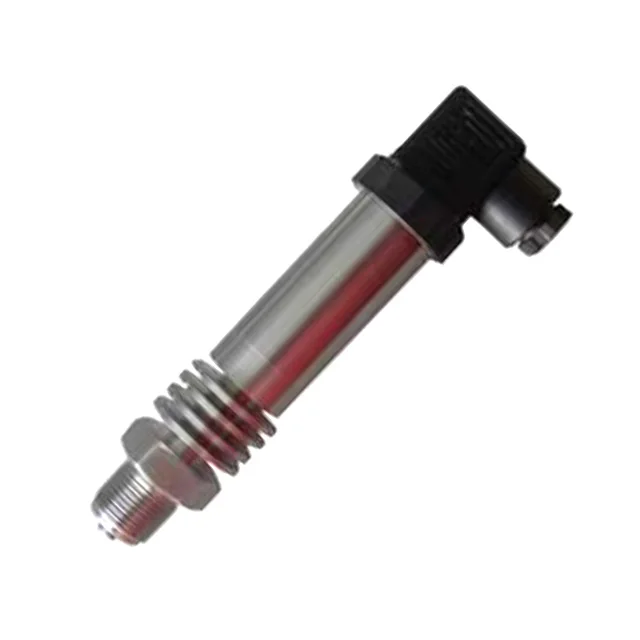

PT001 Stainless Steel  Water Pump Sensor Transmitter

4-20mA 2 Wire Or 0-10V  3 Wires Output

1.Features:
* Process media: gauge pressure of gases and liquids compatible with 316L.
* Range: 0.5, 1, 1.5, 10, 16, 25, 40, 60, 160, 250, 400, 600, 800 Kpa
1, 2, 5, 10, 20, 30, 50, 60, 80, 100 Mpa
* Output: 4~20mA DC (2wire) or 0~20mA or 0~5 DC (3 wires).
* Power: 10~30V DC (or DC5V).
* Accuracy: 0.5 or 0.3 class.
* Overload: 150%-200% of standard range.
* Housing material: stainless steel 304U.
* Pressure connection: M20×1.5; M12×1.0; G1/4; G1/8; 1/4 NPT.

* With 2M cable, or Hirsman connector or M12 4 pin connector.
* Electrical connection: cable or M12 connector or hirschmann.
* Long term stability: ≤0.2% F.S/Year; high anti-interference.
* Widely applied for measuring and controlling gases and liquids pressure in the fields of petroleum, Metallurgy, power system,

  Water cons ervancy, environmental protection...etc.compatible with 304U.

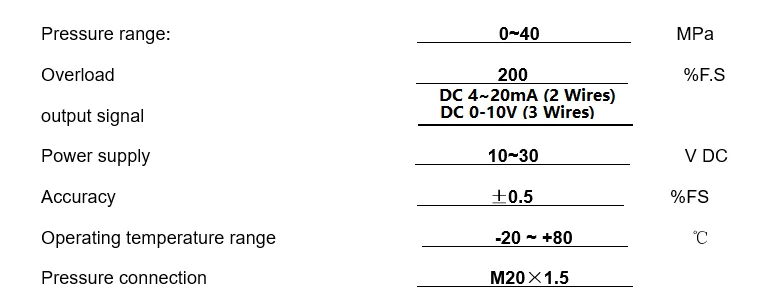

2.Technical Specification:

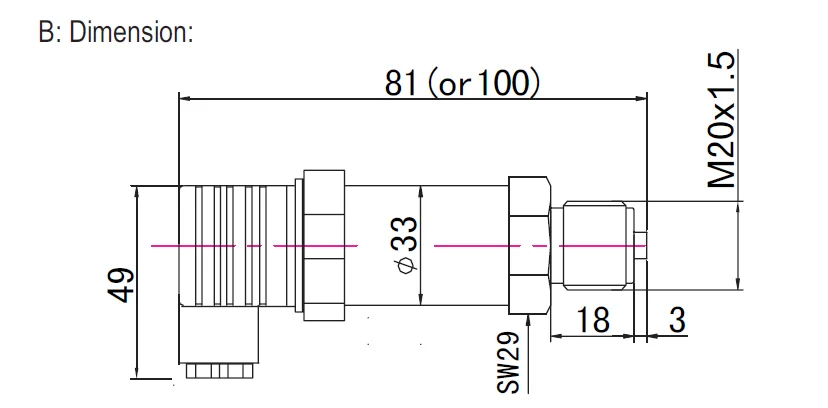

3. Size of sensor & technical wirings:

4. Thread & Connections:
