DS Series Cam indexer for conveyor line

Product Overview

Description

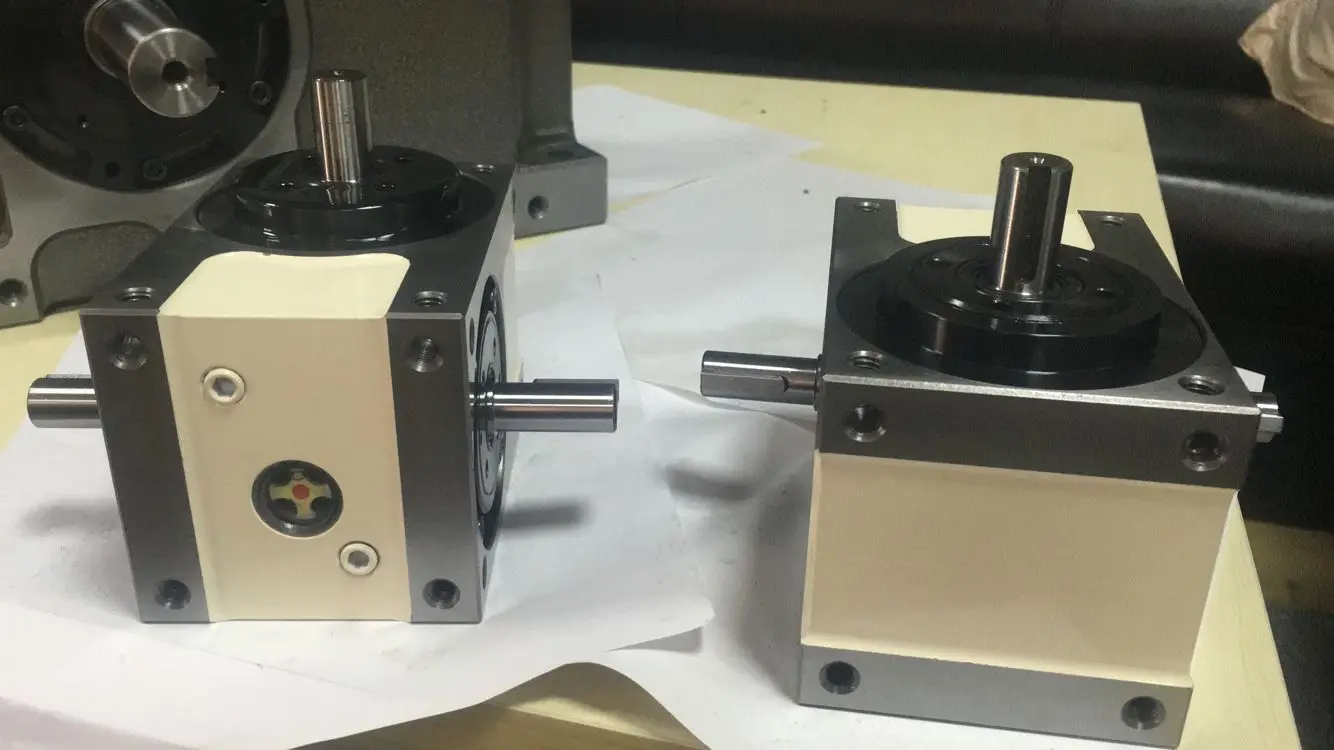

80DS series Cam indexer

Product Description:

<

Brand:chengchang	Product certification:ISO9001	Processing customization:Yes
Disk diameter:250-700mm	Bearing weight:0-45KG	Mainly applied to:Automatic assembly and testing
Location and segmentation of equal parts:2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48
Driving angle:90°,120°,150°‘180°,210°,240°,270°,300°
Cam curve: deformation curve, deformation sine curve and deformation velocity curve.
Rotation direction of cam: left and right.



Standard accuracy:±30 seconds, customizable±15 seconds high precision.

Weight: 18kg   torque limiter (TL): 250   lubricant: 90#

 Matching motor: 200W   motor speed at 1400 or 1450.

Advantage:

One. Durability

1. cam processing technology is carburizing and grinding, the hardened layer is about 5mm.

2. surface spray paint is diaphragm type dry antirust oil.

3. the internal bearing is imported from Japan, NSK/NTN.

Two. Price concessions. In the same quality, our price is the most favorable.

Three. Large quantities of stock.

Parameter table:

All    Allowable radial load of output shaft (C1):     220kgf	Max.repetitive torque on input shaft(C5): 18.5 kgf-m
All     Allowable axial load of output shaft (C2):      220 kgf	CD² on input shaft(Note1): 9*10-3kgf-m²
All     Allowable torque of output shaft (Ts): Reference torque table	Indexing accuracy: ±30 Sec.
All     Allowable  radial load of intake shaft (C3):      210 kgf	Weight: 32 kg
Ma    Max.repetitive bending force on input shaft (C4): 190 kgf

Note1:CD² on input shaft is value dwell ragne .           Note2:Value of c1 to c5 are those obtained for safety factor=2.

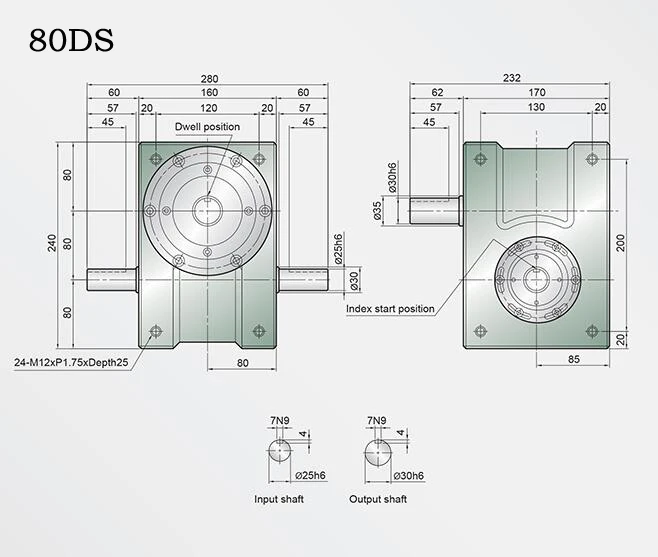

Size diagram:









Adequate Storage



Large scale standard industrial workshop



Advanced production equipment



Precision testing equipment

Application of cam indexer
