400 Ton Hydraulic Press HP 400 Electric Hydraulic Press machine Price

Product Overview

Description

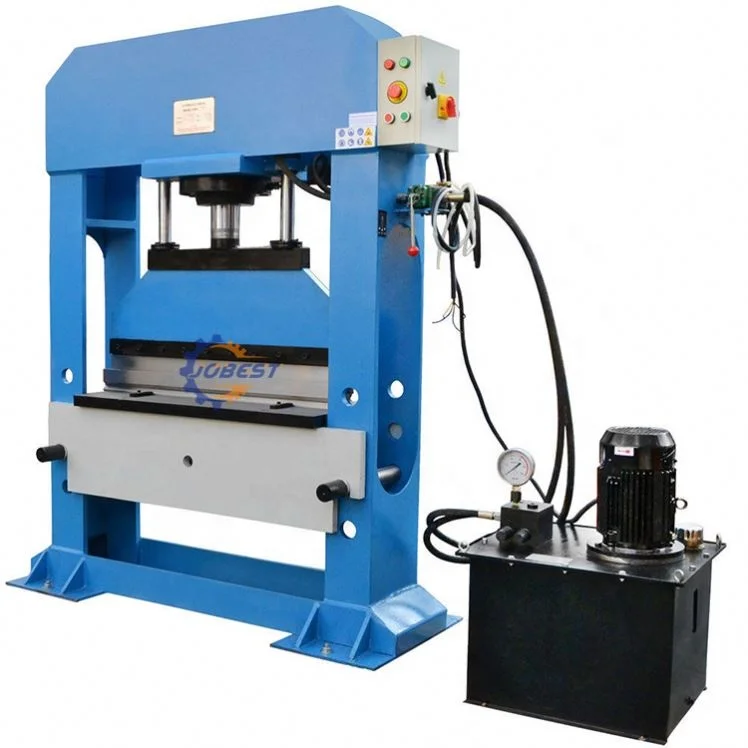

400 Ton Hydraulic Press HP-400 Electric Hydraulic Press machine Price

400 Ton Hydraulic Press HP-400 Electric Hydraulic Press machine Price

HP (HPB) series hydraulic press (bending machine) is ideal equipment for automotive service. It could be used for mounting, dismounting, alignment, calendaring, stretching, bending, punching, etc.

It adapted Italy CNK and CBZ pump, the double pump combined together to supply oil, so it could save energy 60% and improve efficiency 2-3 multiple compare with the traditional hydraulic press. It takes the advantages of simple structure, high pressure, small size and light weight.

The worktable could be reciprocate moving, so enlarged the open-close height of the machine, and make the machine easy operation.

400 Ton Hydraulic Press HP-400 Electric Hydraulic Press machine Price

Model	Capacity-(KN)	Pressure-(MPA)	Travel-(mm)	Weight-(kg)	Dimension-(mm)
HP-30T	300	25	220/405	720	1300*600*1200
HP-50T	500	25	220/405	1200	1650*700*2000
HP-63T	630	30	220/405	1600	1920*750*2100
HP-100T	1000	30	250/405	1650	1950*750*2200
HP-150T	1500	30	250/405	1900	1950*750*2200
HP-200T	2000	30	300/405	2520	2050*1000*2300
HP-300T	3000	30	300/405	4900	2100*1050*2700
HP-400T	4000	30	300/405	7000	2450*1100*2980
HP-500T	5000	30	300/405	9000	2600*1200*2980

Machine Characteristic

• High efficiency, low-noise;
• Foot pedal control;
• Well hydraulic control;
• Excellent quality;
• V-block;
• Can add press brake mould for bend plate;
• Table can be lifted through a chain driven by the main cylinder;

•HPB-Series Hydraulic Press Bending Machine(With bending mold for press brake function)

•HPB-Series Hydraulic Press Movable Machine(Movable cylinder from left to right, convenient for use).

•HPM-Series  Movable cylinder from left to right, convenient for use

•Wider design 2 hydraulic cylinders with hydraulic bending mold.

•Higher design taller deisgn as user's special require.

•Large model HPB-400T/3000, special for bend plate end for perfect circle.

1. WHY CHOOSE US - JOBEST GROUP?

Pre-sale:
(1) Regarding your demands, the best suitable machine will be recommend you, the customized machine also support;
(2) Regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A, FORM-E, FORM-F, original certificate signed by Embassy.etc.
(3) All the machine will be tested before delivery, and we will take the video and pictures to you. When you receive it , it can work directly.
After-sales
(1) We will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2) All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can’t solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
2. Guarantee
One year for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.

3. Are you factory or trading company?
We are factory in an industrial town near Shanghai city.
4. What shall we do if don't know how to operate your machine?
We can arrange our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached. It's very simple, we have telephone and Email support at 24hours per day.
5. What are your payment terms?
We support T/T, Western Union and so on. Other ways can also be accepted after we both sides' discussion and agreement.
