Нескользящий U образный рычажный зажим с удерживающей способностью, нажимной рычажный зажим вертикального/горизонтального типа для ручного инструмента

Product Overview

Description

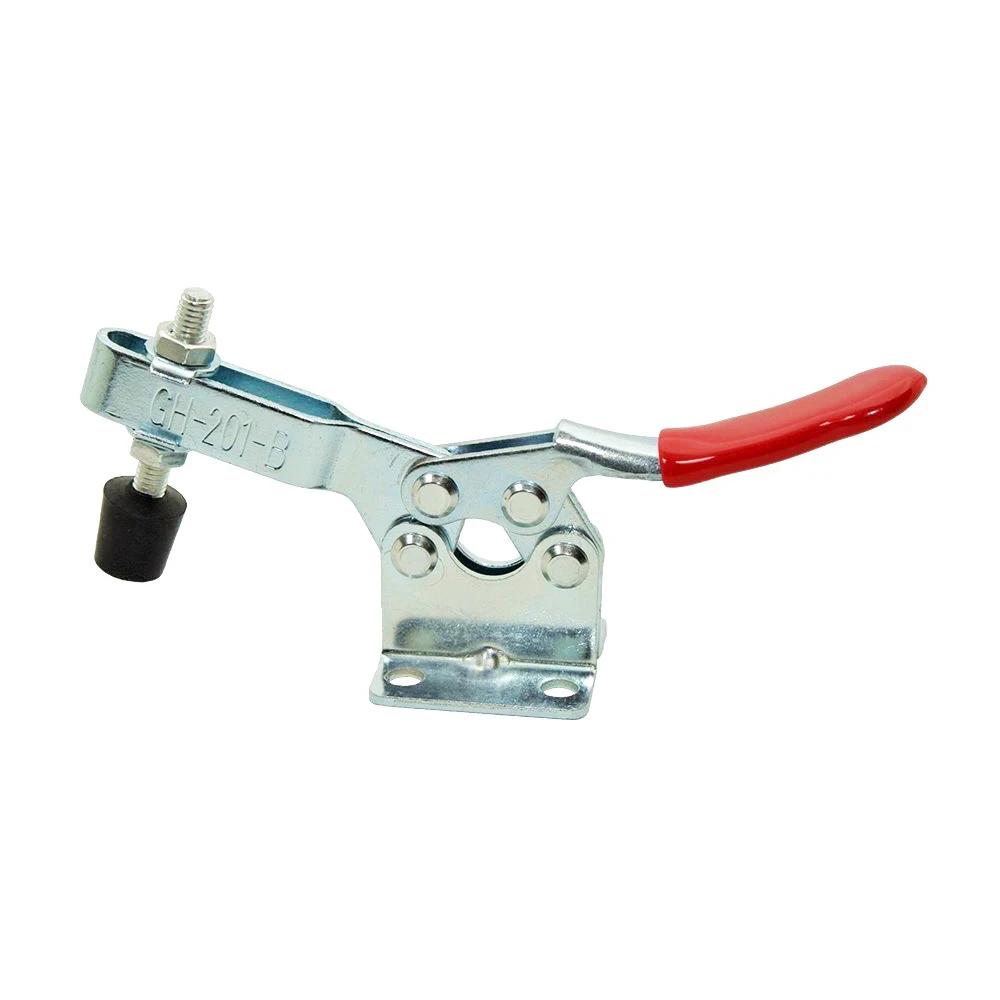

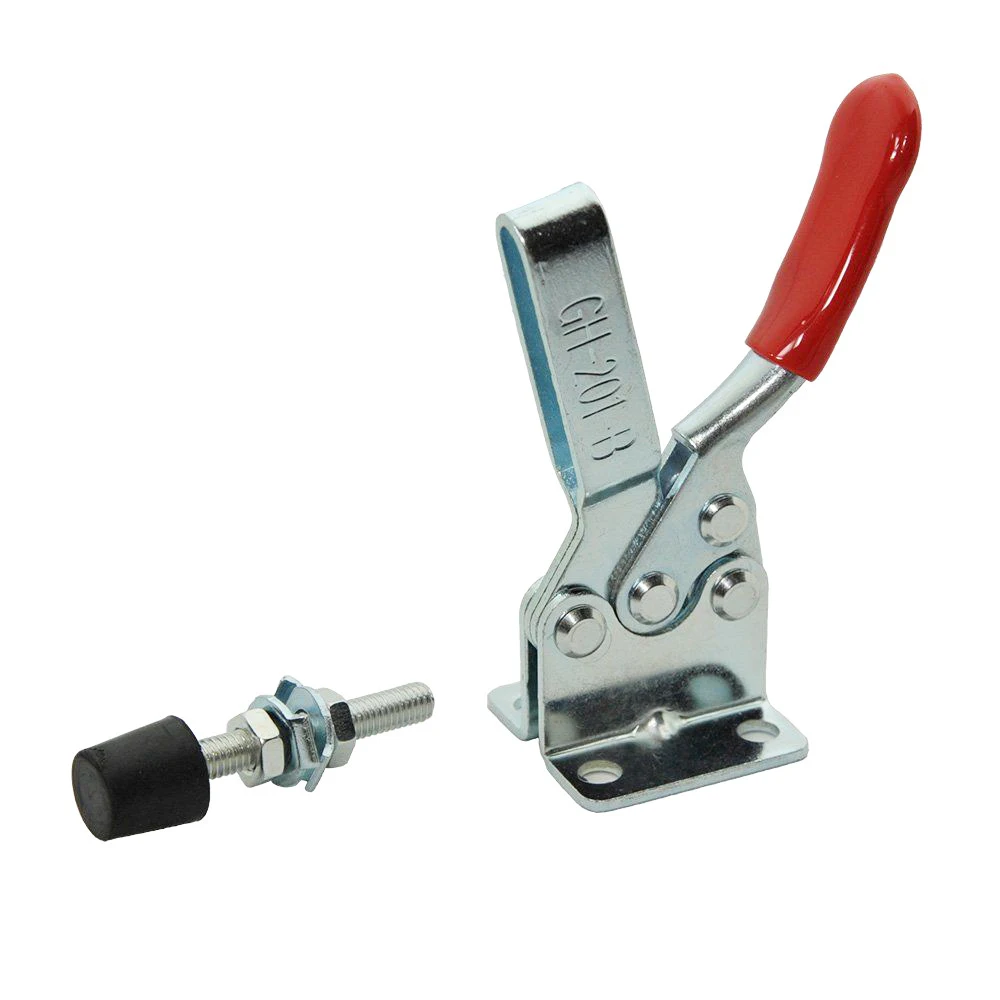

Anti-Slip U Shape Toggle Clamp Holding Capacity Push Pull Toggle Clamp Vertical/Horizontal Type for Hand Tool

Feature:

100% brand new and high quality.

Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance; Oil and Stain resistant red vinyl solid hand grips,

complete with adjustable rubber pressure tips.

Design: U bar, flanged base;Low height design. Retracted clamp will allow for vertical removal of clamped item, mechanism allows maximum clearance.

Application: A rock-solid grip to install on jigs, tool fixtures, or movable bases.



Specification:

Material: stainless steel

Color: red

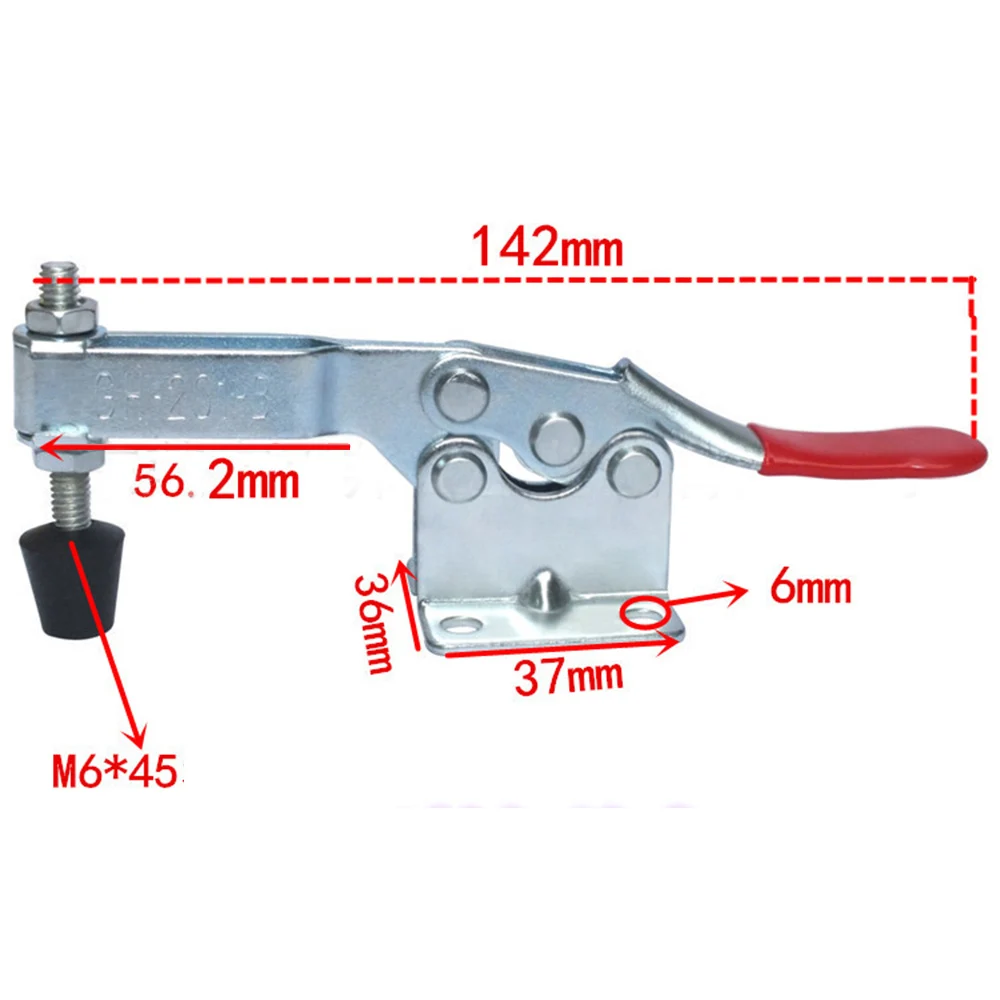

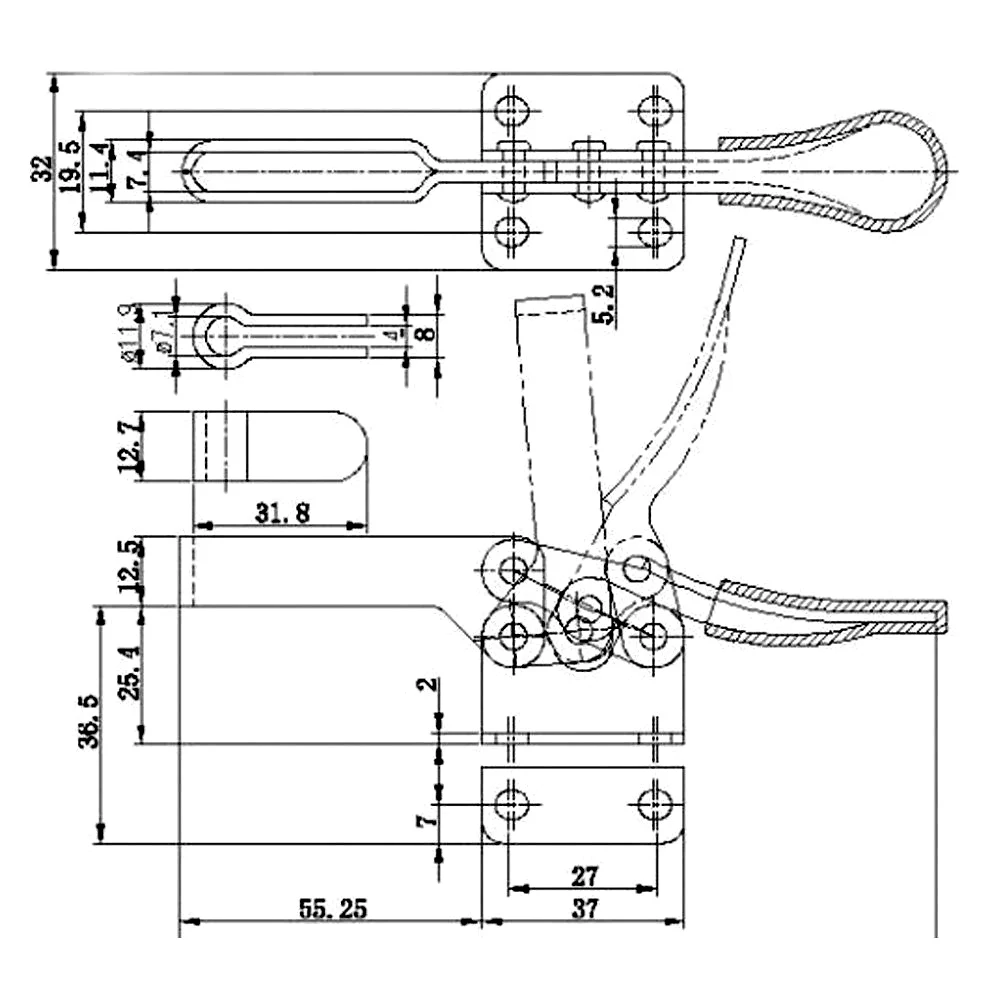

Size: specific size as picture shown

Holding capacity: 90kg

Spindle supplied: M6x45

Bar opens: 85 degree

Handle opens: 60 degree



(Note: Please allow 1-2mm error due to manual measurement, and slight color difference caused by light and screen.)

Package include:

1pc x Jig too
