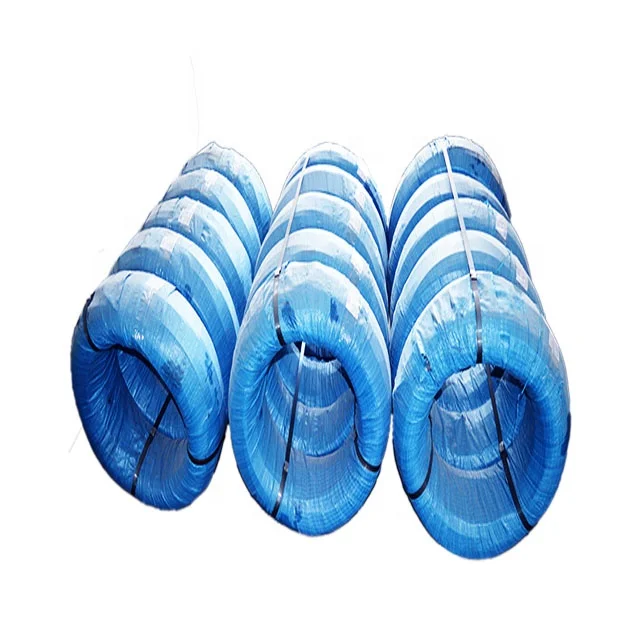

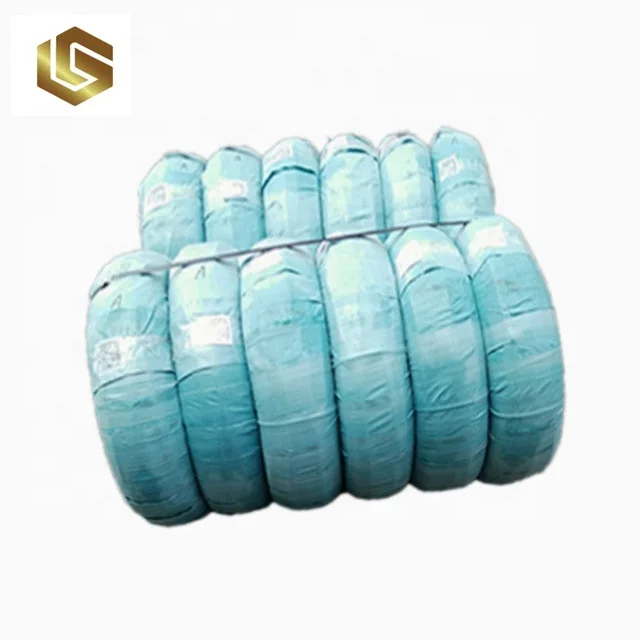

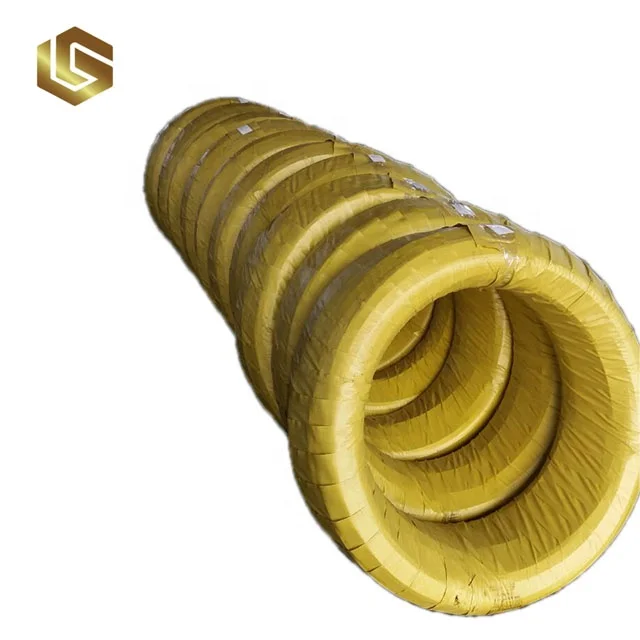

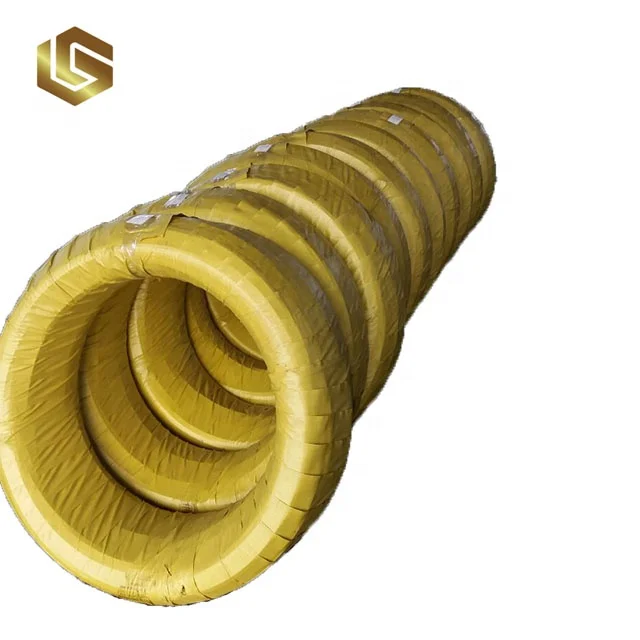

Motorcycle and Bicycle bike wheel spoke Wire steel wire JIS G 3521 SWB
- Category: >>>
- Supplier: Taizhou Jinyou Metal Products Co. Ltd.
Share on (62463230888):
Product Overview
Description
Products Description
Product Name | SAE1045 Motorcycle and Bicycle Spoke Steel Wire |
Wire Standard | JIS G 3521, ISO 8458-1, GB 3206, YB/T 5005 |
Raw material Standard | JIS G 3506, EN 10016-2, GB/T 699 |
Wire Size: | 1.90-3.85 mm |
Chinese Material | Q235, 1022, 22A, 40#, 45#, 42A, 42B, 47A, 47B |
Japanese Industrial Standard Steel Grade | SWRH 42A, SWRH 42B, SWRH 47A, SWRH 47B, S43C, S45C, S48C, S50C, S55C |
UNS Grade No.: | SAE1020, SAE1025, SAE1040, SAE1045,SAE1050, SAE1055 |
British Standard Steel Name: | C42D, C48D, C60D, C62D, C66D, C68D, C70D, C72D, C76D, C78D, C80D, C82D,C86D. |
Spokes Usage | Motorcycle Spokes, Bicycle Spokes, Motor Spokes, etc. |
Other Products Name | Motorcycle Spoke Steel Wire, Bicycle Spoke Steel Wire, Nipple Steel Wire, Black Steel Wire, Hard drawn steel wire, Phosphated steel wire, Ungalanized Steel Wire, Medium Carbon Steel Wire, etc. |
JIS G 3521 Hard Drawn Steel Wire | ||||||
Level | Diameter | Note | ||||
A | SW-A | From 0.08mm to 10.0mm | - | |||
B | SW-B | From 0.08mm to 13.0mm | Mainly for static load springs | |||
C | SW-C | |||||
Product Categories
Chemical Composition
Production Process
Our Advantages
Sales Network
Product packaging
Company Profile
Q:What is brand of your steel wire Material/rods?
A: The brand of our steel wire rods is Shagang.
Shagang Group is not only one of Fortune Global 500 enterprise, but also the biggest private steel enterprise in china.
Q: Could you please send us some samples?
A: Yes, Samples within 30 kgs can be sent to you for free.
you only need to arrange the shipment at your side.
Q:Could you please show us your Test Report?
A: Yes, we can send you our Test Report before you place the order, which including Chemical Composition, Tensile Strength, Torsion, Wrapping, Bend Data, etc.
Q: What is your Minimum Order Quantity?
A: in order to better support our new customer, we do not have any MOQ requirements for any new order.
