1000W Digital TV Transmitter
- Category: >>>
- Supplier: Anshan Yuexing Technology Electronics Co. Ltd.
Share on (62463410666):
Product Overview
Description
Details Images
Warranty：The warranty of all transmitters in our factory is 6 years.
Product Description
1KW Digital TV Transmitter
Module design
MCU controlled
RS485/232 interface
Professional performance
12.1-inch color LCD with touch panel
High reliability
low price
MCU controlled
RS485/232 interface
Professional performance
12.1-inch color LCD with touch panel
High reliability
low price
Overview:
This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the
single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias
(with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.

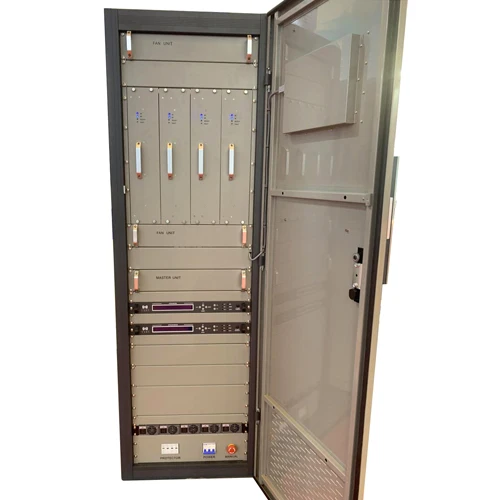

The 1000W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.
single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias
(with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.
The 1000W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.
Features:
Supported Standards DVB-T,DVB-T2,DVB-H,DTMB,ATSC,ISDB-T
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency
transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous
works.
All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
Pre-distortion correction, dual-exciters switch automatically.
High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency
transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous
works.
Technical Specifications:
1. Working frequency | UHF 13-48 channel arbitrary choice |
2. Output power | 1000W |
3. Output impedance | 50Ω |
4. Channel bandwidth | 8MHz |
5. Output interface | Φ40 |
6. Output load return loss | Normal |
7. operation | -32dB |
8. Allowed operation | -20dB |
9. Power input level | 0dBm |
10. Amplifier input impedance | 50Ω |
11.Amplifier input interface | L16 |
12. Useless transmission | ≤-60dB |
13. Band fluctuations | ±0.5dB |
14. Band shoulder | better than 36dB |
15. MER | better than 30dB |
16. Size | 1860mm×560mm×900 |
17. Weight | 150KG |
Certifications

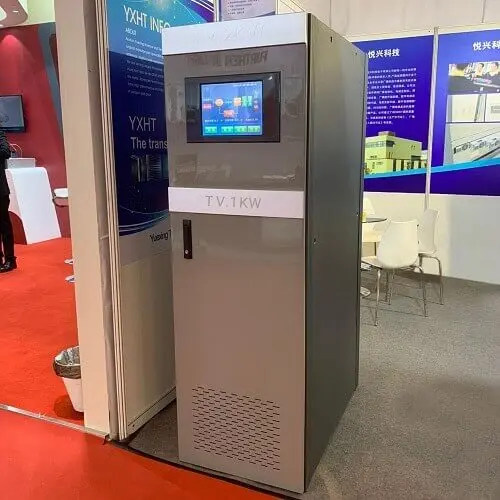

Exhibition
