Four post lift VFL 4T & Made in Korea

Product Overview

Description

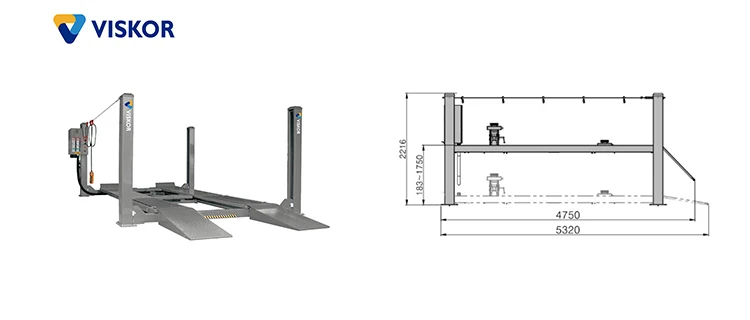

Four Post Lift VFL-4T



Features:

• Hydraulic cylinder located in the fixed platform and is thus perfectly protected.
• High resistance galvanized and pre-stretched lifting cable.
• Lock release lever for the emergency situation.
• Self lubricated large diameter pulleys and maintenance-free bushes
• Platform 4.5m



Technical data:

Model	VFL-4T
Load capacity	4,000kg
Platform length	4.,510 mm
Lifting height	1,750mm
Min. height	180 mm
Lifting speed	40-60 sec. / Jack 5-15 sec.
Motor	3PH, 2HP x 4P 1PH, 2.5HP x4P
Voltage	220V/380V, 50/60Hz
Control device	Control panel & wire remote controller
Dimension	5,859 x 3,406 x 2,216 mm
