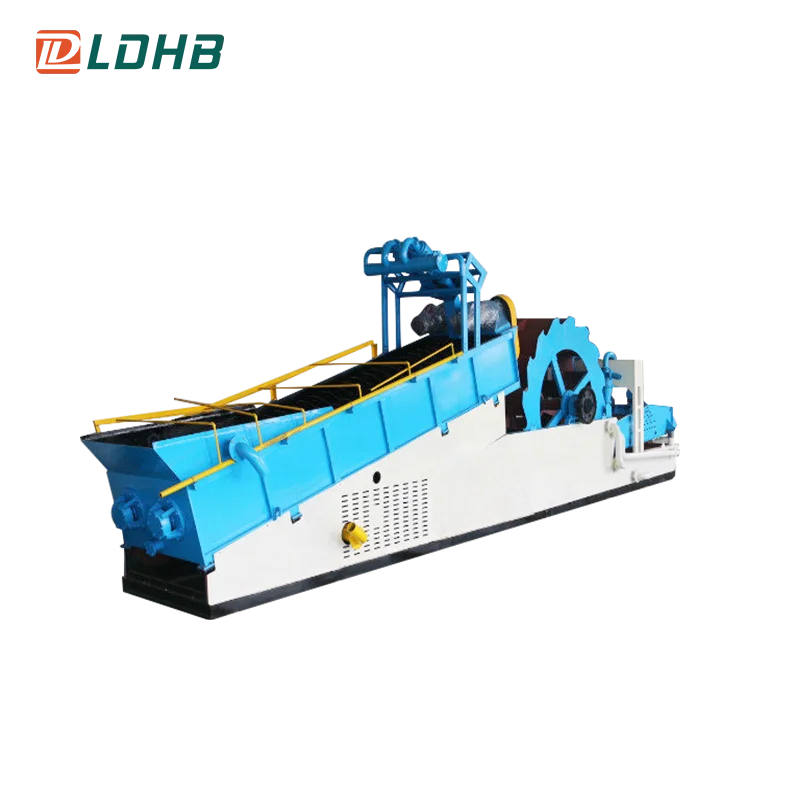

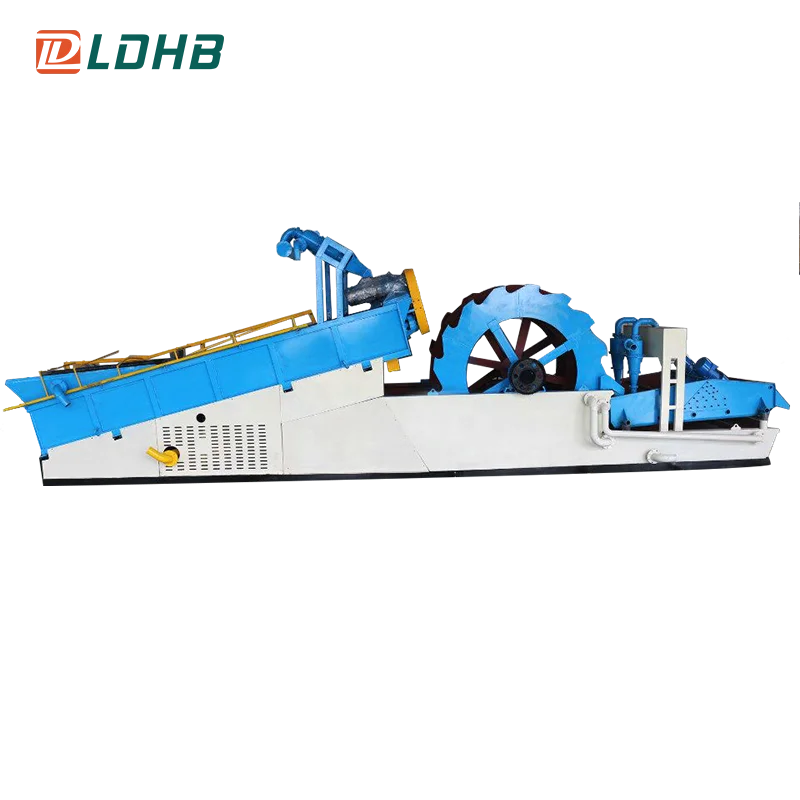

Wheel Bucket Sand Washer Mini Small Sand Washing Machine for Sand Making Line
- Category: Mining Machinery >>>
- Supplier: Luoyang Longding Environmental Protection Technology Co. Ltd
Share on (62463761072):
Product Overview
Description
Product Description
LDHB designed an advanced level of fine material extraction device according to the actual situation of the powder. Widely used in hydropower station aggregate processing system, glass raw material processing system, artificial sand production line, coarse coal slime recovery in coal preparation plant, environmental protection, engineering and other aspects. Effectively solve the problem of fine sand recycling.
Working Princple
The pump sends the sand-water mixture to the mud-sand high-pressure separator.The fine sand is collected by the centrifugal force of cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen. The waste water will flow back to the return box, through weld chute or pipes flowing to a settling pond.
Features
1.Recycling 0.16-3mm fine sand.
2. Recycling rate reaches above 95%.
3. The water content of final sand is within 12%-15%.
4.Sediment separator uses high wear-resistant raw materials, high elasticity, high strength, high wear resistance, tear resistance, cutting and other characteristics.
5.The vacuum high-pressure pump adopts the latest vacuum high-pressure pump, which has the power to reduce pressure and seal efficiently, and the slurry is not easy to leak.
2. Recycling rate reaches above 95%.
3. The water content of final sand is within 12%-15%.
4.Sediment separator uses high wear-resistant raw materials, high elasticity, high strength, high wear resistance, tear resistance, cutting and other characteristics.
5.The vacuum high-pressure pump adopts the latest vacuum high-pressure pump, which has the power to reduce pressure and seal efficiently, and the slurry is not easy to leak.

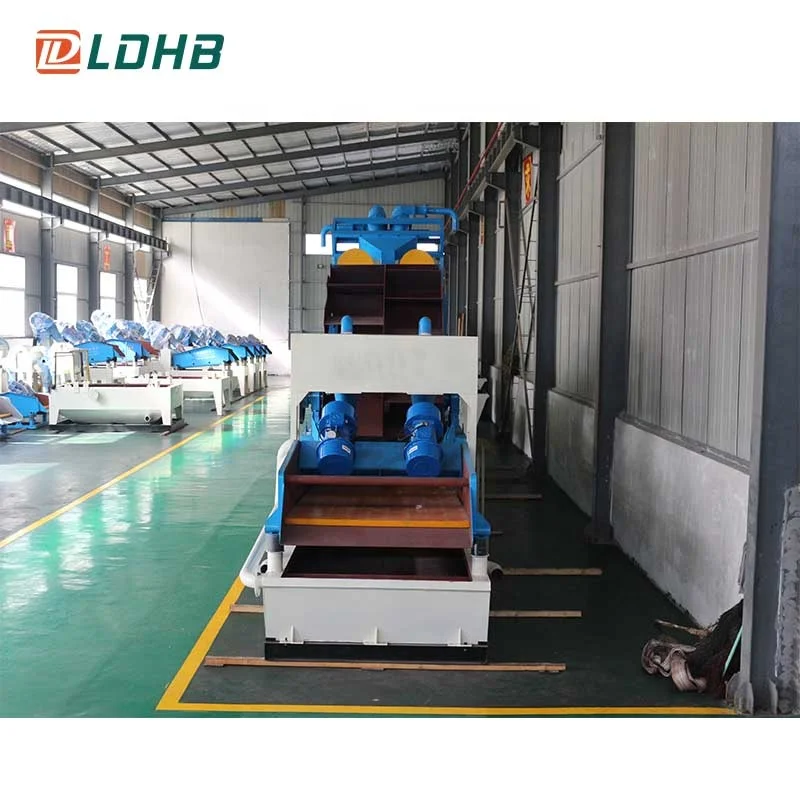

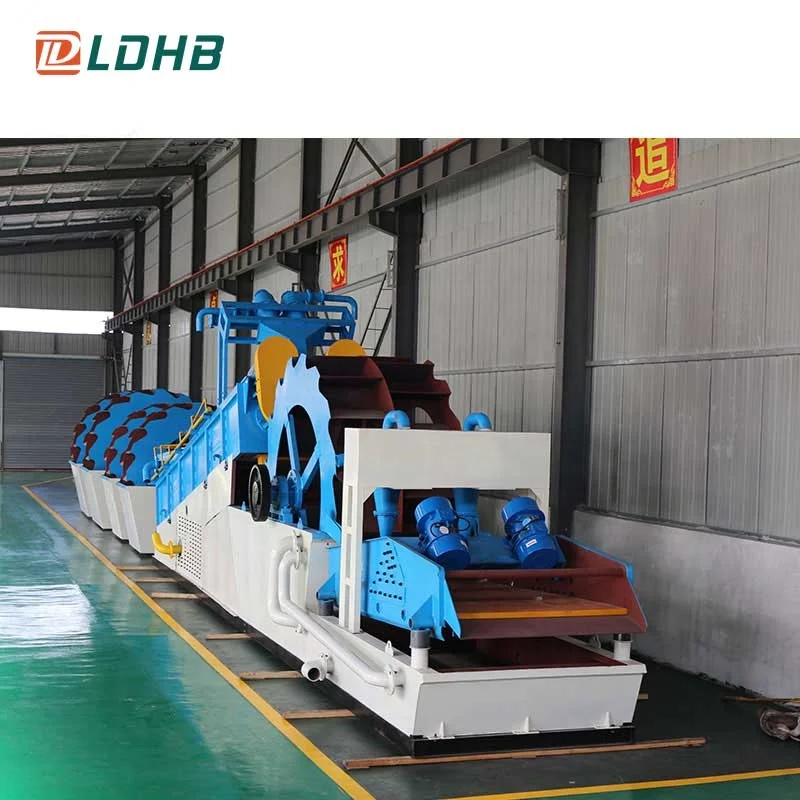

Detailed Images
Size Information
Model | Sieve plate size (mm) | Productivity (m³) | Cyclone size (mm) | Power (kw) | Weight (kg) | Overall Dimension (L*W*H) (mm) |
LD250 | 900*1800 | 50-70 | 250 | 13.2 | 1460 | 3120*1300*2721 |
LD300 | 900*1800 | 60-90 | 300 | 17.2 | 1510 | 3120*1300*2721 |
LD350 | 900*1800 | 80-120 | 350 | 20.7 | 1700 | 3120*1300*2721 |
LD550 | 1200*2400 | 100-140 | 250*2 | 26.4 | 2170 | 3630*1600*2773 |
LD650 | 1200*2400 | 120-180 | 300*2 | 34.4 | 2500 | 3630*1600*2773 |
LD750 | 1200*2400 | 160-240 | 350*2 | 41.4 | 2850 | 3630*1600*2773 |
LD900 | 1500*3000 | 180-270 | 300*3 | 51.0 | 3500 | 4600*1900*2612 |
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* 24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
Company Introduction
Longding Environmental Protection Technology Co., Ltd., abbreviated as LDHB, is a supplier specialized in solving the related issues of zero discharge of non-metallic tailings, purification of piling mud, slag treatment of waste incineration, zero discharge of sand washing tail water, dredging of rivers and lakes, etc. The company's products have passed ISO9001: 2008 international quality system certification, EU CE certification and Russian GOST quality certification, and successfully provided services to more than 20,000 customers in more than 30 countries and regions around the world.
