Changbao Cat5e 1000ft 305m FTP STP SFTP SSTP 4 Pair 24AWG BC/CCA Internet Lan Cable
- Category: >>>
- Supplier: Chang Bao Technology Co. Ltd.
Share on (62463763619):
Product Overview
Description

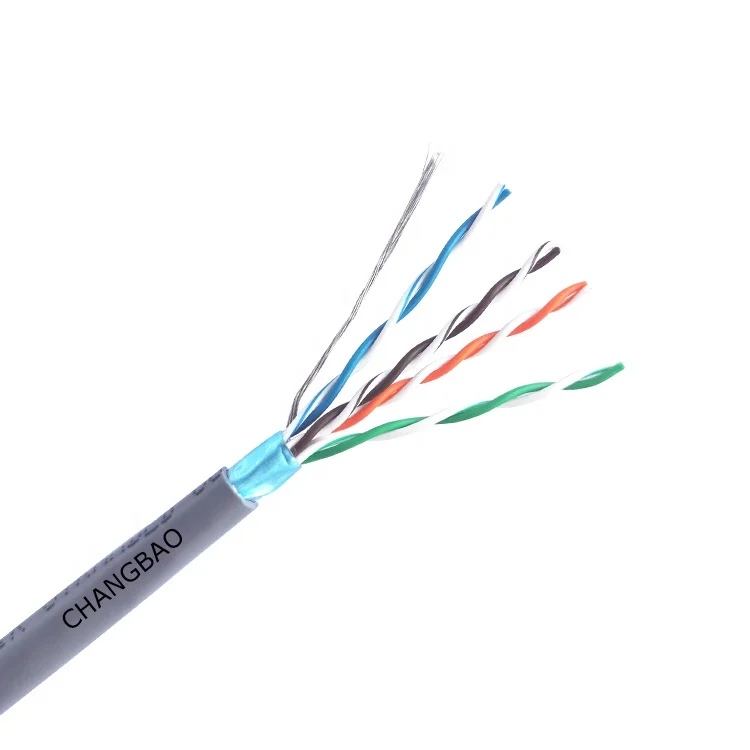

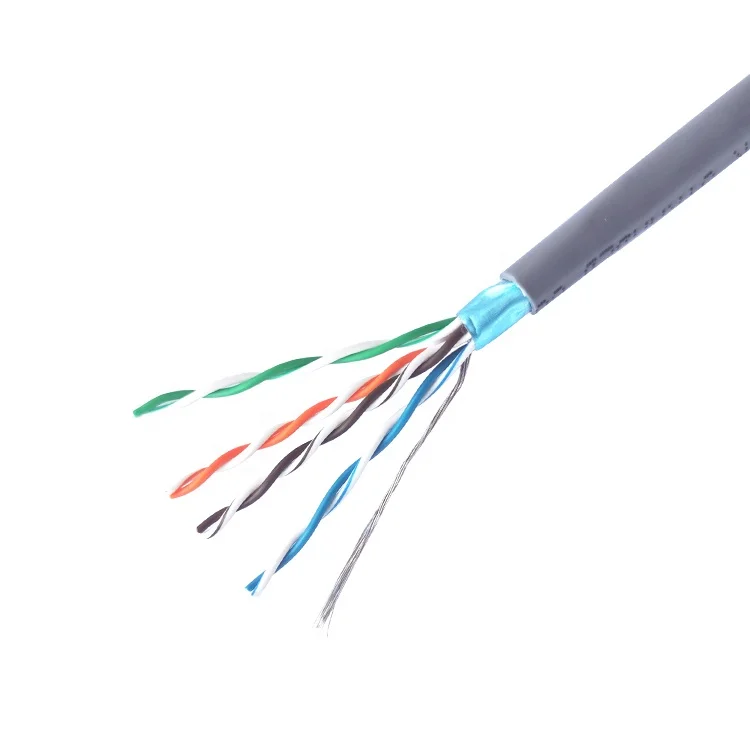

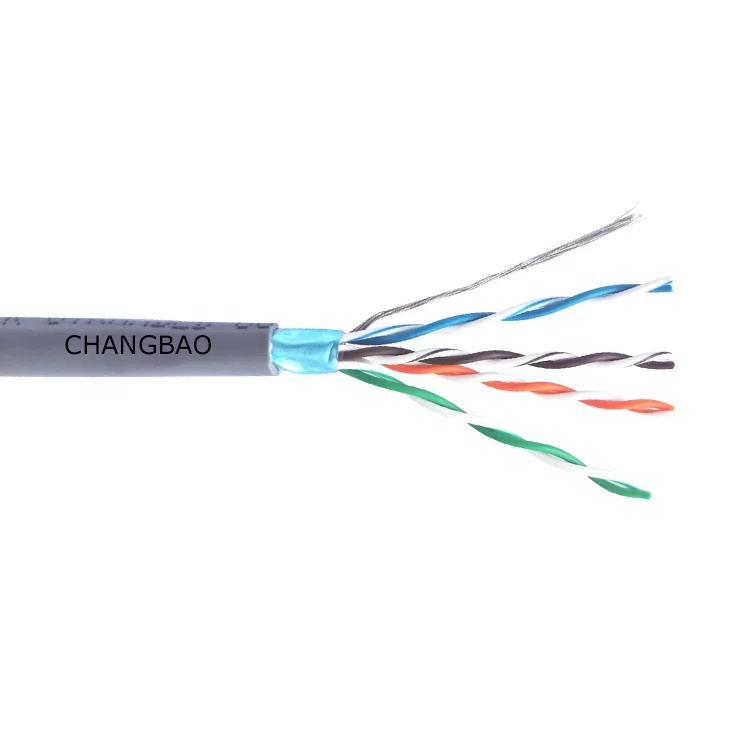

Changbao Cat5e 1000ft 305m FTP STP SFTP SSTP 4 Pair 24AWG BC/CCA Internet Lan Cable
- Features
* Cat5e FTP Shielded Twisted Pair Data Communication Cable
* Pass FLUKE Test High Performance Computer Networking Cable
* Supports Data Applications of up to 350MHz Bandwidth
* Exceeds TIA/EIA 568-C.2 , ISO/IEC 11801 Standards

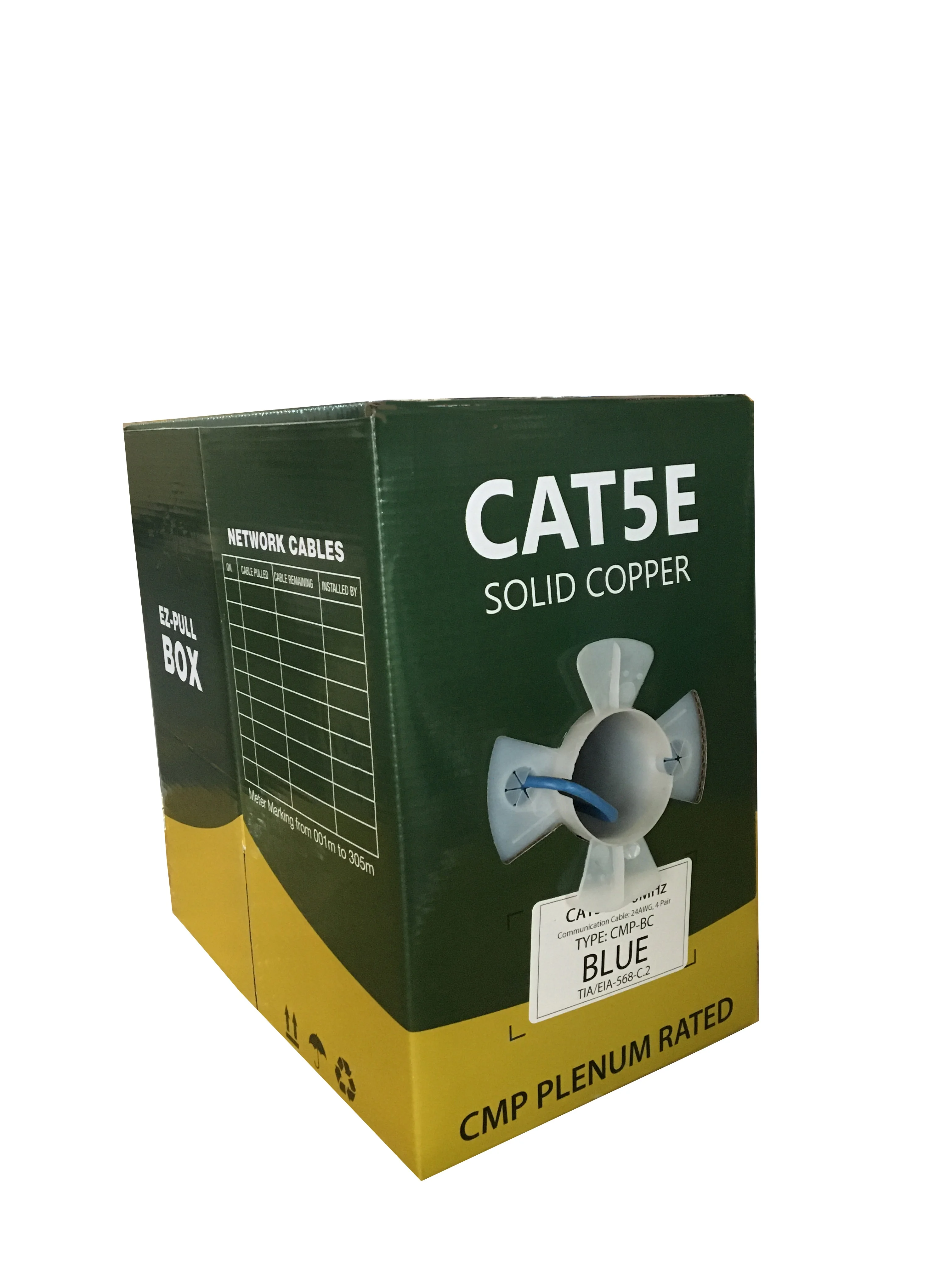

* Tangle Free Reelex and Easy Pull Box Packing
* ETL Listed,CMX/CM/CMG/CMR/FT4/CMP/FT6 Rated PVC or LSZH Jacket Use Indoors
* Pass FLUKE Test High Performance Computer Networking Cable
* Supports Data Applications of up to 350MHz Bandwidth
* Exceeds TIA/EIA 568-C.2 , ISO/IEC 11801 Standards
* Tangle Free Reelex and Easy Pull Box Packing
* ETL Listed,CMX/CM/CMG/CMR/FT4/CMP/FT6 Rated PVC or LSZH Jacket Use Indoors
Construction Characters:
Conductor | Material | Solid Bare Copper |
Size | 24AWG X 4Pairs | |
Insulation | Material | HDPE |
Diameter | 0.91mm | |
Colors | Blue-White/Blue | |
Orange-White/Orange | ||
Green-White/Green | ||
Brown-White/Brown | ||
Jacket | Material | PVC / LSZH |
Diameter | 5.10mm | |
Rip Cord | Nylon | |
Color | Blue / Pink or as required |
Performance:
Frequency | Return loss | Attenuation | NEXT | ACR | PSNEXT | ACR-F | PSACR-F |
(MHz) | (Min dB) | Max (dB/100m) | (Min dB) | (Min dB) | Min (dB) | Min (dB/100m) | Min (dB/100m) |
1 | 20.0 | 2.0 | 68.3 | 66.3 | 66.3 | 63.8 | 60.8 |
4 | 23.0 | 4.1 | 59.3 | 55.2 | 57.3 | 51.7 | 48.7 |
8 | 24.5 | 5.8 | 54.8 | 49.0 | 52.8 | 45.7 | 42.7 |
10 | 25.0 | 6.5 | 53.3 | 46.8 | 51.3 | 43.8 | 40.8 |
16 | 25.0 | 8.2 | 50.3 | 42.1 | 48.3 | 39.7 | 36.7 |
20 | 25.0 | 9.3 | 48.8 | 39.5 | 46.8 | 37.8 | 34.8 |
25 | 24.3 | 10.4 | 47.3 | 36.9 | 45.3 | 35.8 | 32.8 |
31.25 | 23.6 | 11.7 | 45.9 | 34.2 | 43.9 | 33.9 | 30.9 |
62.5 | 21.5 | 17.0 | 41.4 | 24.4 | 39.4 | 27.8 | 24.8 |
100 | 20.1 | 22.0 | 38.3 | 16.3 | 36.3 | 24.0 | 21.0 |
155 | 18.8 | 28.1 | 35.5 | 7.4 | 33.5 | 20.0 | 17.0 |
200 | 18.0 | 32.4 | 33.8 | 1.4 | 31.8 | 17.7 | 14.7 |
240 | 17.4 | 36.0 | 32.6 | --- | 30.6 | 16.2 | 13.2 |
300 | 16.8 | 41.0 | 31.2 | --- | 29.2 | 14.2 | 11.2 |
350 | 16.3 | 44.9 | 30.1 | --- | 28.1 | 12.9 | 9.9 |
Recommend Products
>>>Click Here To Get Price From Us Now
Company Introduction
CHANG BAO TECHNOLOGY CO., LTD,established in 2001, is a professional manufacturer engaged in the research, development, production, sale of Communication cables, Speaker & Audio cables, Security & Alarm cables, Telephone cables, Control & Automation cables, series of Composite cables and Electronic wires, etc.
We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.
Certifications

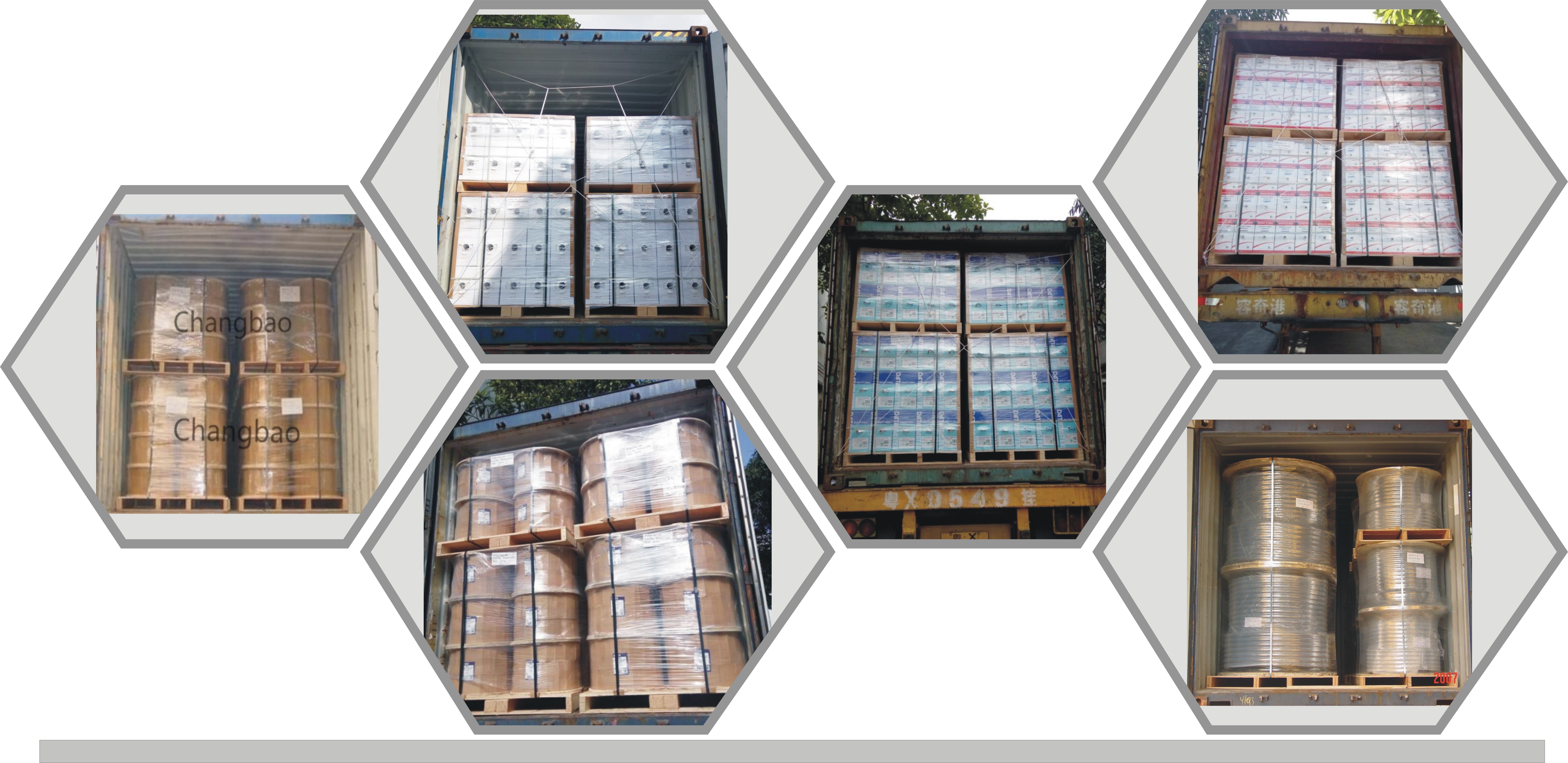

Packing&Shipping
