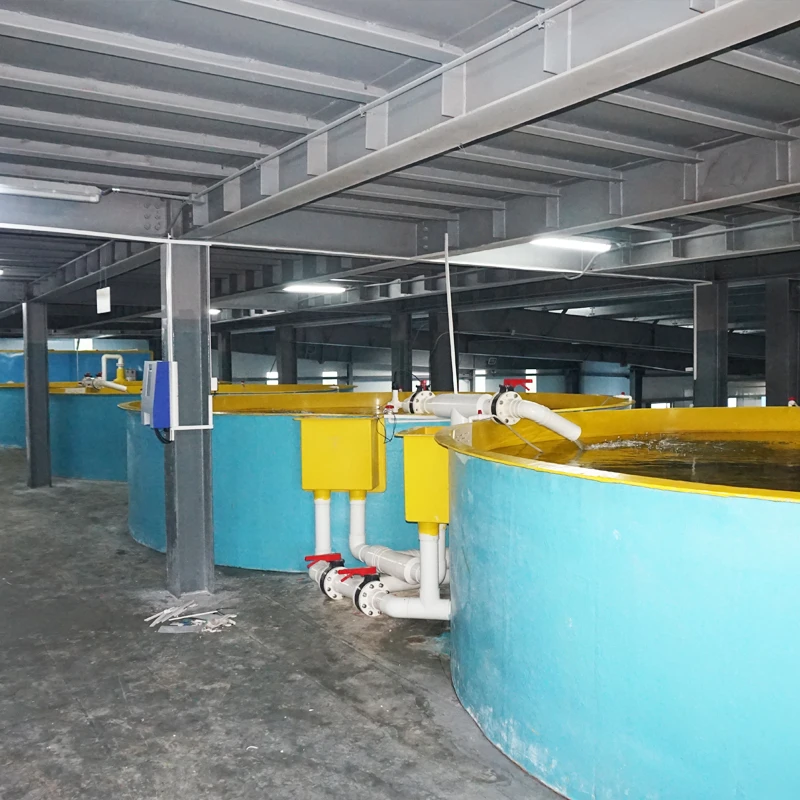

Indoor high density fish farm aquaculture system for grouper or seabass fish
- Category: >>>
- Supplier: Zhongshan Huron Environmental Technology Co. Ltd.
Share on (62463989266):
Product Overview
Description
\t\t\t\t\t\t\t\t\tRAS Description \t\t\t\t\t\t\t
Recirculating Aquaculture System
RAS are used in home aquaria and for fish production where water exchange is limited and the use of biofiltration is required to reduce ammonia toxicity. Other types of filtration and environmental control are often also necessary to maintain clean water and
provide a suitable habitat for fish. The main benefit of RAS is the ability to reduce the need for fresh, clean water while still maintaining a healthy environment for fish. To be operated economically commercial RAS must have high fish stocking densities, and many researchers are currently conducting studies to determine if RAS is a viable form of intensive aquaculture.
provide a suitable habitat for fish. The main benefit of RAS is the ability to reduce the need for fresh, clean water while still maintaining a healthy environment for fish. To be operated economically commercial RAS must have high fish stocking densities, and many researchers are currently conducting studies to determine if RAS is a viable form of intensive aquaculture.
eWater engineering team will design a solution based on customer's requirements with our technology and experience and provide the best system for a particular application based on:
1.Proven commercial production performance
2.Capital cost
3.Operational cost
4.Reliability and durability (lifespan of equipment)
5.Availability of backup and technical advice
6.Ease of associated support activities (maintenance, feeding, grading, harvesting)
8.Suitability for species cultured
9.Technology that fits technical ability
10.Redundancy/backup/unitisation so plant can continue to operate if there is an issue with part of it
11.Flexibility to make changes as required without compromising production
12.Expertise and experience of the operator
1.Proven commercial production performance
2.Capital cost
3.Operational cost
4.Reliability and durability (lifespan of equipment)
5.Availability of backup and technical advice
6.Ease of associated support activities (maintenance, feeding, grading, harvesting)
8.Suitability for species cultured
9.Technology that fits technical ability
10.Redundancy/backup/unitisation so plant can continue to operate if there is an issue with part of it
11.Flexibility to make changes as required without compromising production
12.Expertise and experience of the operator
Specification
The following parameters are for reference only, please contact us for more details.
Model # | Water flowrate | Water volume | Power consumption | Space required | Fish production |
RAS-60 | 60 m³ | 30~90 m³ | 5~10 kw | 60~150 m³ | ~10000 kg/cycle |
RAS-120 | 120 m³ | 50~180m³ | 11~20 kw | 120~240 m³ | ~20000 kg/cycle |
RAS-200 | 200 m³ | 100~300 m³ | 17~35 kw | 200~400 m² | ~35000 kg/cycle |
RAS-300 | 300 m³ | 150~450 m³ | 25~50 kw | 250~700 m² | ~45000 kg/cycle |
RAS-500 | 500 m³ | 250~ 750 m³ | 40~80 kw | 400~1100 m² | ~75000 kg/cycle |
RAS-800 | 800 m³ | 400~1200 m³ | 60~120 kw | 700~2000 m² | ~120000 kg/cycle |
\t\t\t\t\t\t\t\t\tRAS Process \t\t\t\t\t\t\t
Process
Our engineering team will design a solution based on customer's requirements together with our technology and experience. You will get a full picture of RAS solution which contains RAS process, RAS technical info ,annual fish
outcome, and the price.
outcome, and the price.

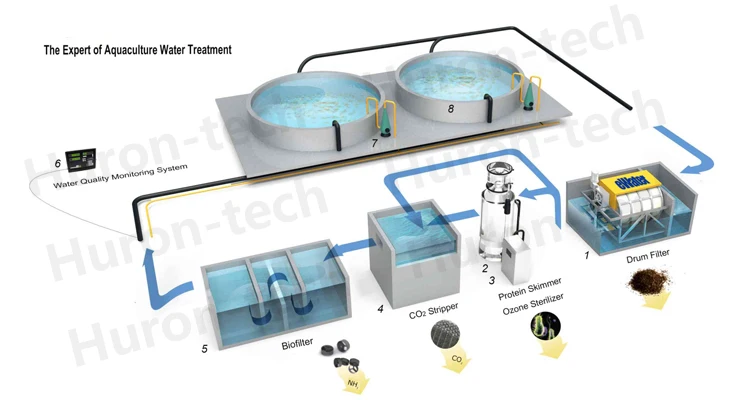

Key Components
A complete recirculating aquaculture system (RAS) normally contains the following equipment.
● Particle Settling Device
● Drum Filter
● Protein Skimmer
● Ozone Generator (Ozone Disinfection)
● Bio-filter
● Degasser (Remove carbon dioxide)
● UV Sterilizer (UV Disinfection)
● Oxygen Generator
● Oxygen Cone (or Low Pressure Oxygenation Device)
● Lift Pump
● Roots Blower
● Tanks
● Electrical Control System(PDC)
● Water Quality Mornitoring System
● Pipes & Fittings
Protein Skimmer
PP material and durable,skimming the protein through
the microfoam.Improving water quality by removing the
fine organic matters.

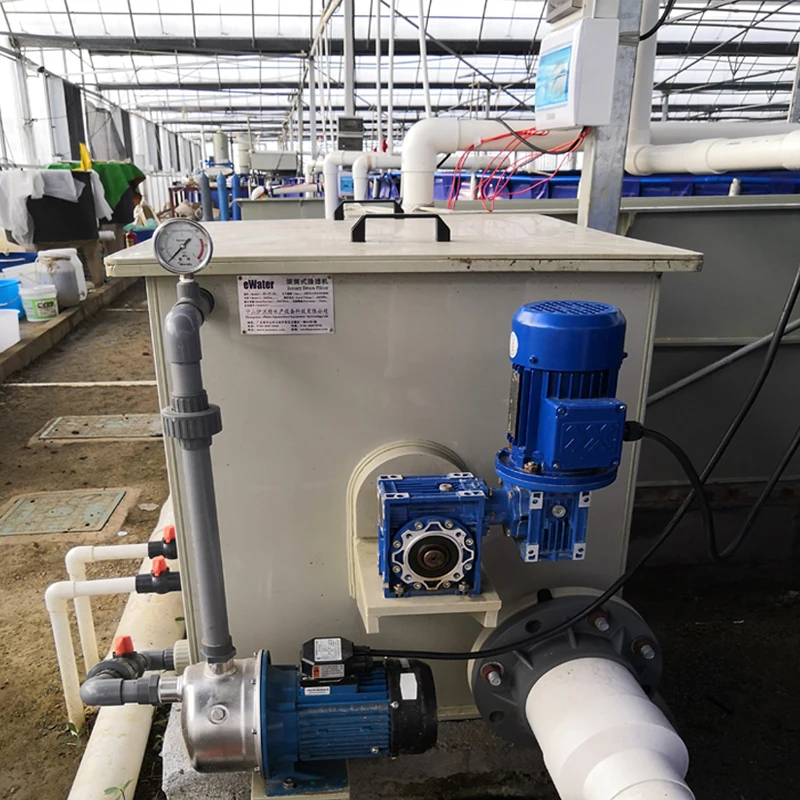

Drum Filter
Effectively remove organic compounds from outlet water coming from fish tanks.Able to remove 42%~75% of the
total particles from the aquaculture water volume
\t\t\t\t\t\t\t\t\tRAS Applications \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tSuccessful Project \t\t\t\t\t\t\t
RAS for Lobster in Australia
200 m³ Recirculating Aquaculture System
RAS for Turbot in Saudi Arabia
120 m³ Recirculating Aquaculture System
RAS for Sea Grouper in Canada
300 m³ cement fish pond Recirculating Aquaculture
System
RAS for Penaeus Japonicus in Shanghai, China
60 m³ Recirculating Aquaculture System
\t\t\t\t\t\t\t\t\tAbout Huron \t\t\t\t\t\t\t
Zhongshan Huron Environmental Technology Co., Ltd., headquartered in the Torch Industrial Park of Zhongshan City of Guangdong Province, is an integrated high-tech environmental-friendly enterprise supported by the government. As an environmental-friendly equipment manufacturer and solutions designer, we focus on advanced oxidation technologies. The company has introduced and absorbed the cutting-edge technologies from both home and abroad, and holds many patents for its independent development of a series of disinfection products, such as UV sterilizer, ozone generator, PSA high purity oxygen generator, sodium hypochlorite generator, photocatalytic oxidation exhaust gas treatment device, etc.
Certifications and Honor
The Workshop
\t\t\t\t\t\t\t\t\tTrade Show \t\t\t\t\t\t\t
Provide technical consultation, and assist customers on continuous quality improvement.
International customers consult business and seek common development with us.
Our company on the IE expo China 2018
Customers are consulting with us on site of the IE expo China 2018
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Packing
We will send the pictures of the machines you order before we pack them with standard export wooden boxes.
We supply different standard export wooden boxes for different size products. All the details will be sent to you by email.
Delivery
1. Delivery by sea
When the products are delivered to seaport, the time of shipping and arrival will be confirmed with you. All the origin documents will be sent to you by Express .
2. Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport is optional.The Express tracking number will be send to you.
3.Delivery to the warehouse on your demand is optional. The express tracking number will email to you.
\t\t\t\t\t\t\t\t\tOur Services \t\t\t\t\t\t\t
. Consulting service available and custom designs are welcomed!
. We offer practical solutions, premium quality products along side competitive prices and prompt delivery.
. All the equipment are guaranteed for 2 years and life-time warranty,except for the wearing parts.
. Support onsite installation and sending engineer for debugging on demands.
. After-sales service and content: If the quality problems occur; even the equipment lose the ability of working, the supplier will repair or replace them free of charge during the warranty period. The product is life-long maintenance and the supplier provides all-round services. (except for factors such as artificial damage or irresistible force)
