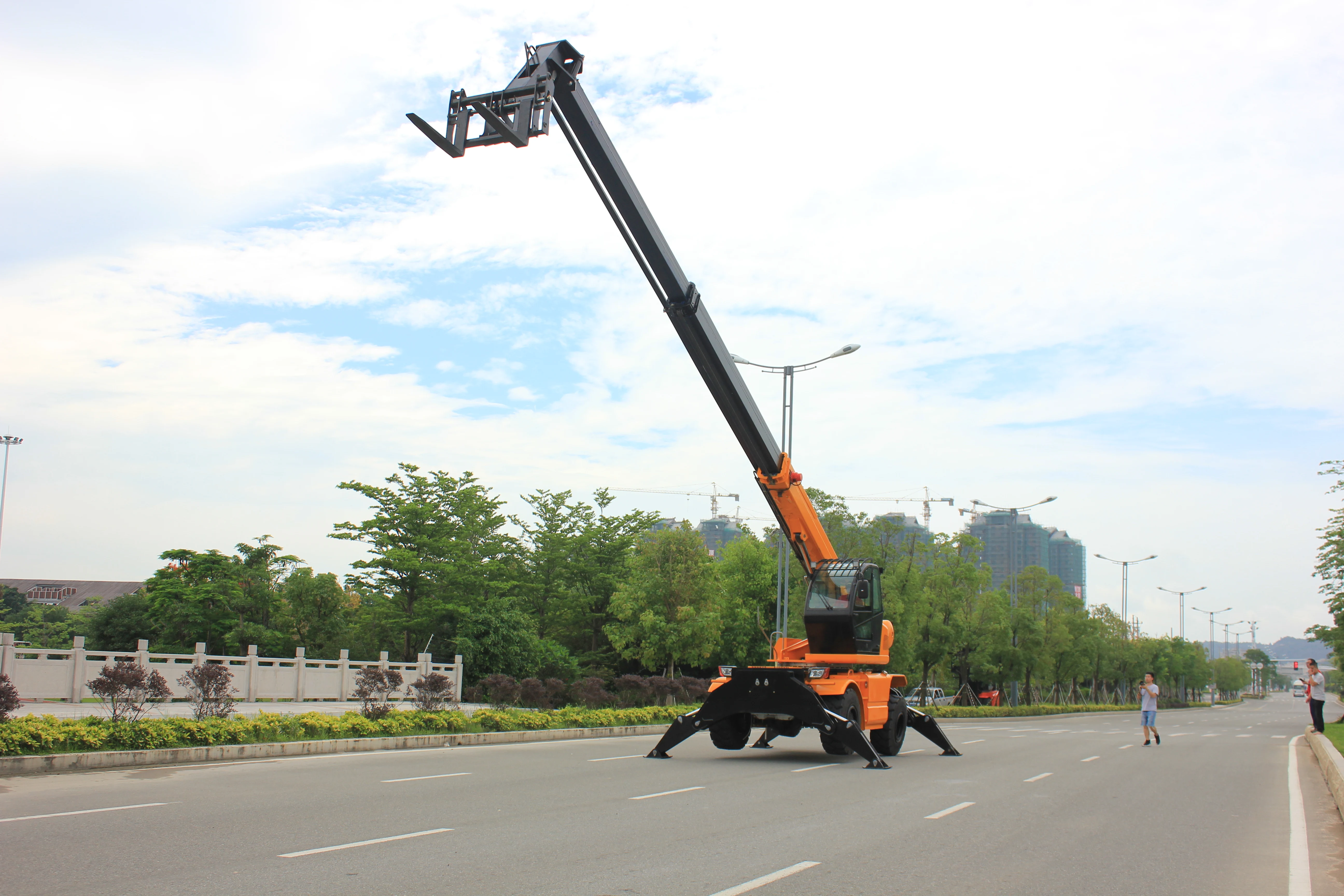

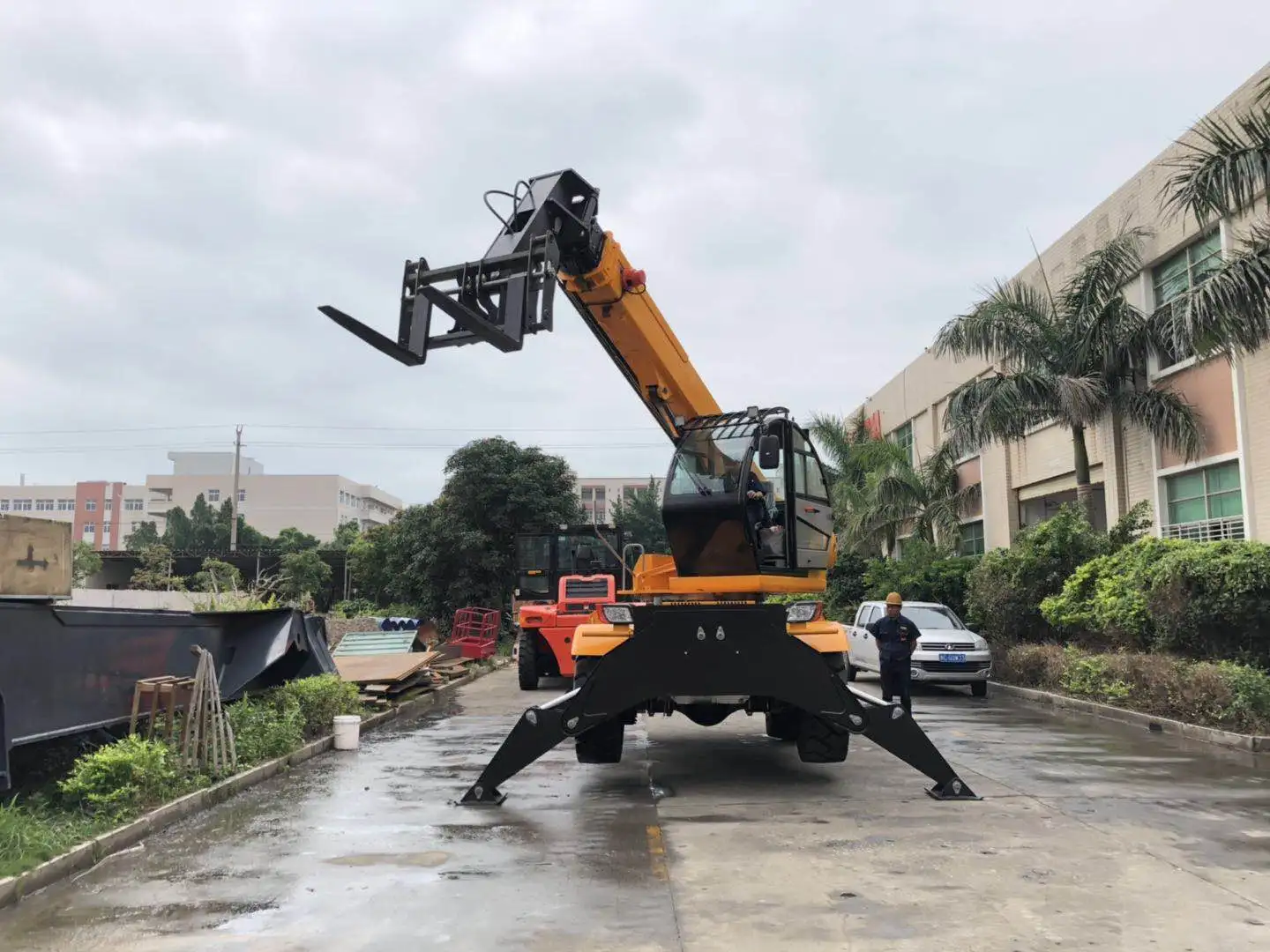

4 ton rotary telescopic handler, 15m telehandler

Performance

Technical data

Basic parameter

Max. Lifting height (without trigger)

15m

Rated load capacity (lifting)

4000kg

Max. Horizontal reach

10.5m

Rated load @ Max. Horizontal reach (with out trigger)

800kg

Load center

500mm

Operating weight (unloaded with fork)

16000 kg

Max. Travailing speed (km/hour)

28 km/h

Swinging speed

3 rpm(1500rpm)

Transmission system

Transmission type

Hydraulic static transmission

Hydraulic (high speed / low speed)

2 / 2

Transmission gears

2F/2R

Gradeability

30%

Traction force

80kN

System capacity

Hydraulic oil tank capacity

300L

Fuel tank capacity

200L

Engine

Model

QSB3.9-C125-30

Rated power

93kW/2200rpm

Torque

480 Nm / 1350r/min

Fuel type

Diesel

Emission standard

National Ⅲ

Intake cooling

Air cooled

Hydraulic system

Pressure

28 MPa

flow

300 L/min

Steering system

Steering gear type

load sensing full hydraulic steering

Pressure

16 MPa

Rear axle steering type

Transverse hydraulic cylinder steering structure

Steering angle

40°

Brake type

Service brake

Clamp-disc brake

Brake air pressure

0.684-0.785 MPa

Parking brake

Air push drum brake

Main dimension

Overall height

3515mm

Overall width

2550mm

Overall length(with fork)

7638mm

Wheel base

2800mm

Front wheel tread

2030mm

Rear wheel tread

2030mm

Ground clearance (out trigger)

340mm

Turning radius (out side)

≥5800mm

Operating position

Central

Seating type

Car type

Aerial working platform

Length*width*height

1200×800×970mm

Out trigger type

Hydraulic out trigger No.

2F/2R

Working boom

Telescopic working boom

3-setion

Fork

Length*width*thickness

1000×122×50mm

Max. Distance between two forks

710mm

Front/Rear tilt degree

12°/ 120°

Standard tire(inflatable)

(Front/Rear) Wheel Number

2/2

(Front/Rear) driving wheel Number

2/0

(Front/Rear) tire dimension

45×16-20 (36PR)
