4U Rackmount Industrial Computer with 6th, 7th I3 I5 I7 CPU
- Category: >>>
- Supplier: Shanghai NODKA Automation Technology Co. Ltd.
Share on (62464102199):
Product Overview
Description
Product Description
Processor | Core 6th/7th i7 / i5 / i3 / Pentium / Celeron, LGA1155 |
Chipset | In-tel H110 |
Capacity | up to 32GB |
Storage | 1 x 2.5" HDD Bay, 1 x 3.5" HDD Bay 1 * full size mSATA SSD |
Display | Integrated Graphics,support VGA,DVI, HD-MI |
Watchdog | Programmable from 1 to 255 seconds |
OS | Support Win7/win8/win10, Server 2008/2012, Linux |
LAN1 LAN2 | In-tel I219-LM for 1000Mbps In-tel I211 AT for 1000Mbps |
USB | 4*USB 3.0/2.0/1.1, 2*USB2.0/1.1 |
COM | 4xRS232, 2 x RS232 or RS485 |

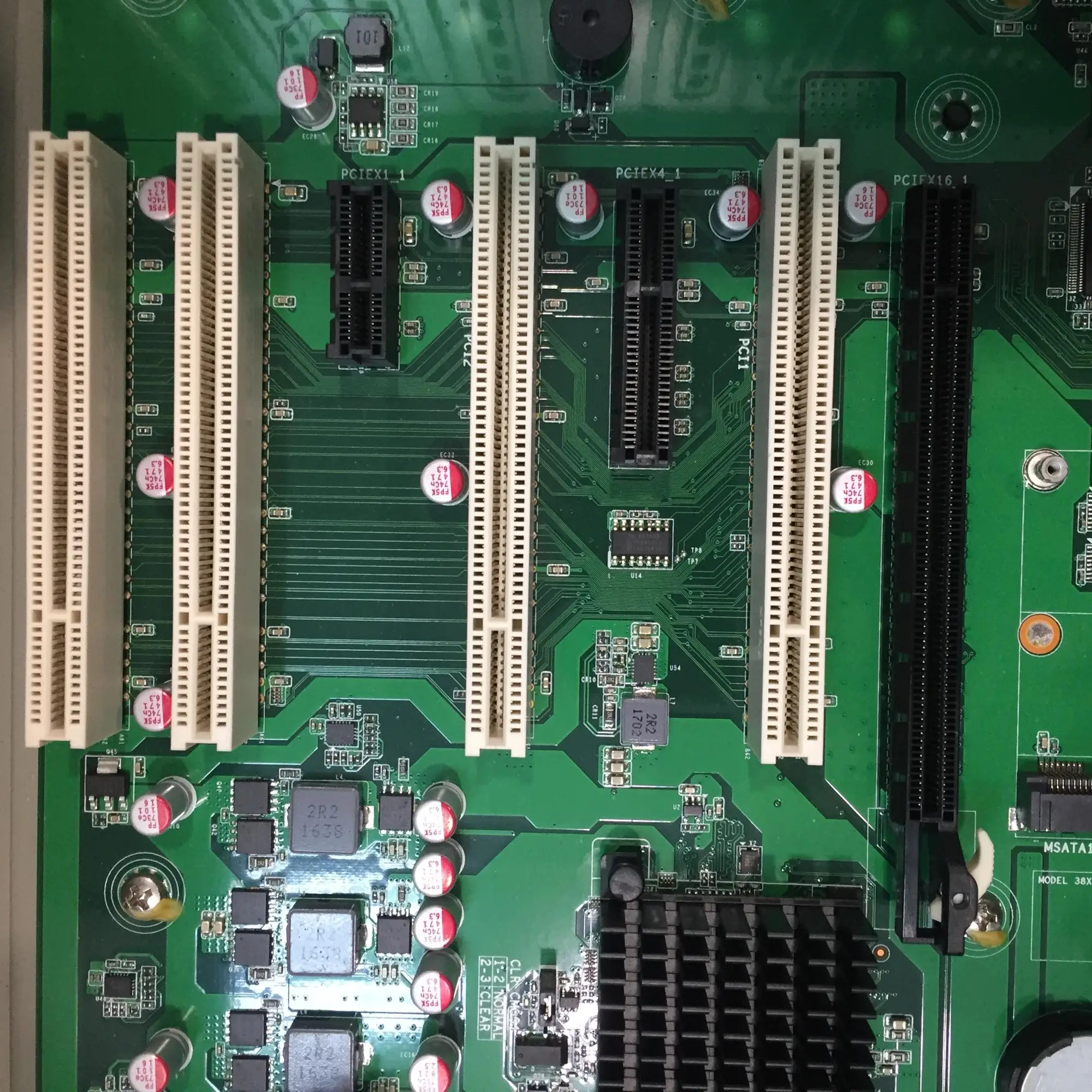

PCIe Expansion PCI Expansion | 1 x PCIe x16 slot, 1 x PCIe x4 slot， 1 x PCIe x1 slot 4 x 32bits PCI slot |
DVD | 1* 5.25" DVD-RW |
Box structure | Hot dip galvanized sheet steel shel |
Mounting | 19" s tandard rack-mount IPC |
Power Input | AC180~264V |
Power Dissipation | Depending on the CPU（Default built-in 400W power） |
Dimension | 481mm x 430mm x 177mm (18.9" * 16.9" * 6.9") |
Weight | 9.62 kg |
Working temp. | -20 ~ 60° C (-4℉~140℉) （Using Wide Temperature Grade Solid State Hard DisK） 0 ~ 45° C (32 ℉ ~113 ℉ ) (Use normal temperature grade mechanical hard disk ) |
Storage Temp. | -40~+80℃ |
Relative humidity | 5~95%@40℃(No condensation) |
Shake | SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
Shock | SSD applied: 10 G, IEC 60068-2-64, Half sine wave, Continuous 11ms |
EMC | CE FCC Class A, CCC |
Ordering information
Our Service
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
ODM OEM service
Set up with excellent design and development capabilities of customized services team.
Assurance Supplier
I am an Alibaba.com Trade Assurance Supplier.You can place an order with me on Alibaba
Our Company
WHAT WE DO
Nodka is specialized in Industrial solutions, including:
Industrial Panel PC
Touch Monitor
Industrial computer (Mini PC)
OEM and ODM service
Factory
Our Factory located in Suzhou city, about 5000 sq.m.
Workshop
5 production lines and 1OEM production line
Team
This is a vibrant team, believe we can do it
Warehouse
Include materials, semi-finished products, finished products and samples
Packing & Delivery
Packing Details : Carton
Delivery Details : 3-30 days after received the payment
1. Mini pc, Panel PC, Monitor
2. Box of accessories
3. Fixed shock absorber foam
4. Put into the carton
5. Carton sealing
6. Complete package
Our Certifications
Achievement
NODKA is qualified enterprise for ISO9001 quality management system, and products not only to obtain various certifications in China, but also be involved with promotion and development for various Industrial applications
Exhibition Photo
Embedded World
Embedded world show was hold in March in Nuremberg, it gathered from all over the world in the field of embedded professional manufacturers, agents,and attract visitors.Nodka is a professional manufacturer which has established a good reputation and quality in China market,to enter the overseas market is the inevitable trend of the development of the company.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC
Industrial Automation Show
CIF was hold on November in Shanghai National Convention and Exhibition Center every year, and Nodka attend the exhibitions every time since 2012.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC
SIMM in Shenzhen of China
The 18th Shenzhen International Machinery Manufacturing Industry Exhibition (SIMM) held in Shenzhen Convention and Exhibition Center.This is the 1st time that Nodka show on SIMM, and the new product based on Skylake-U platform is the first show in China market.Shower:Panel PC,LCD Monitor,Mini PC,Industrial PC
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not for free charge.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
If you have another question, pls feel free to contact us as below:
