Автоматическая индукция 709AD многоимпульсная точность 18650 батарея точечная сварочная машина с 70B ручка для точечной сварки паяльник
- Category: Spot Welders >>>
- Supplier: Shenzhen Fundar Technology Limited
Share on (62464255248):
Product Overview
Description

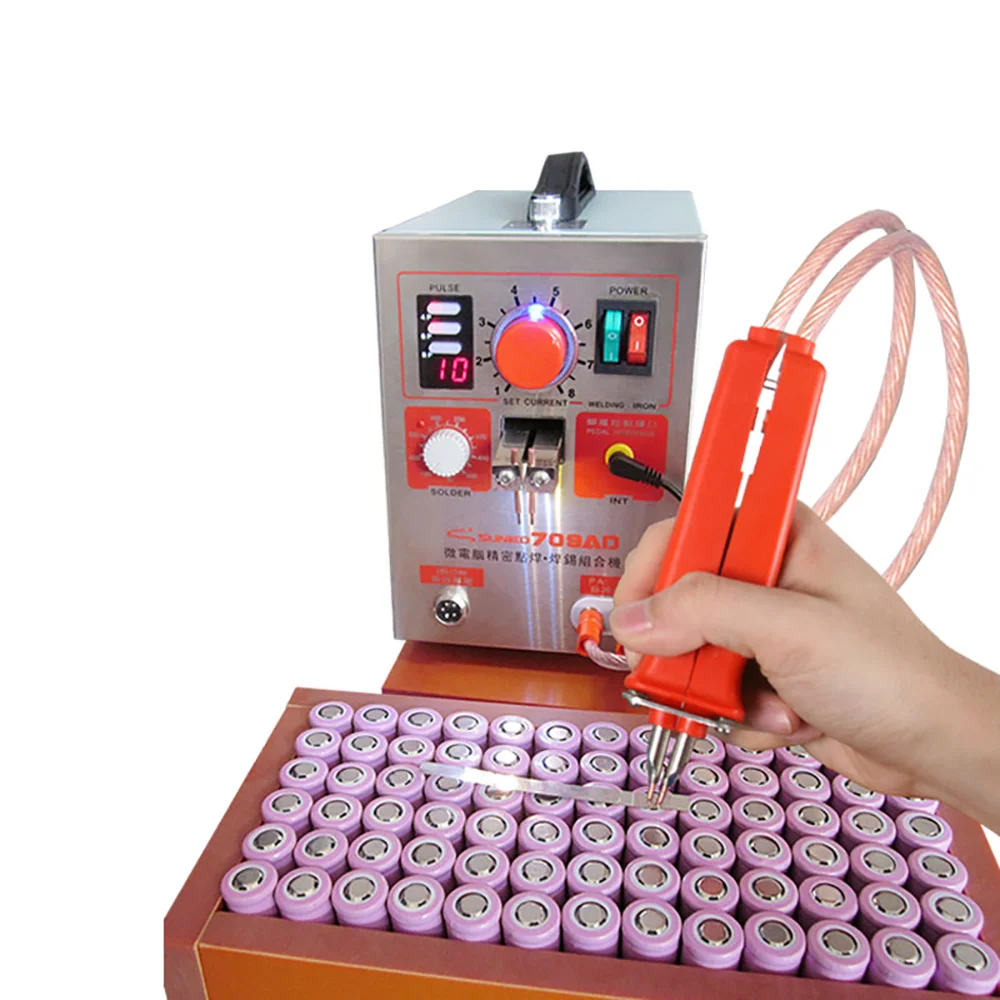

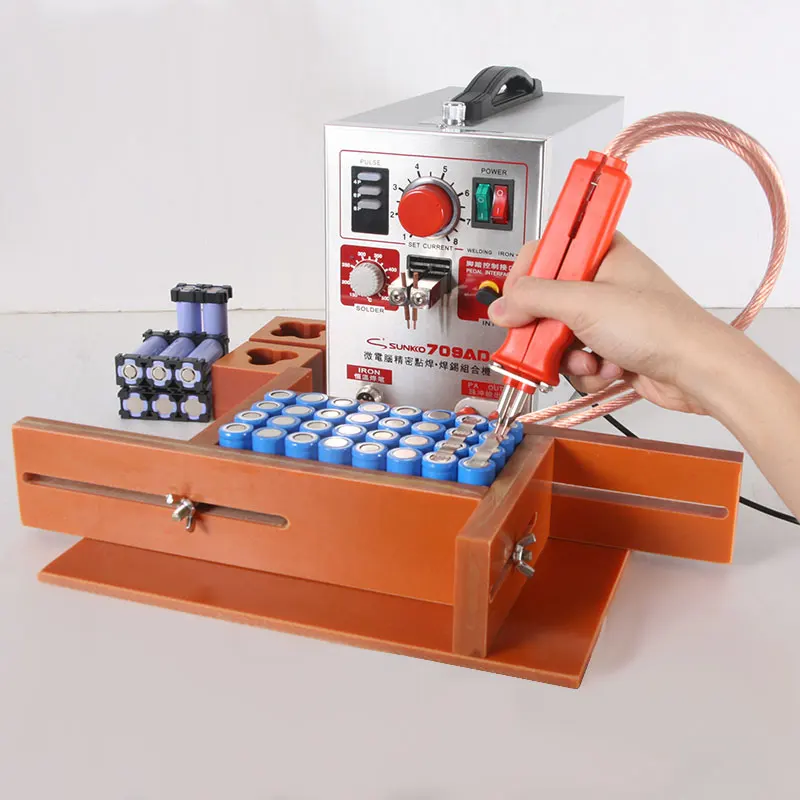

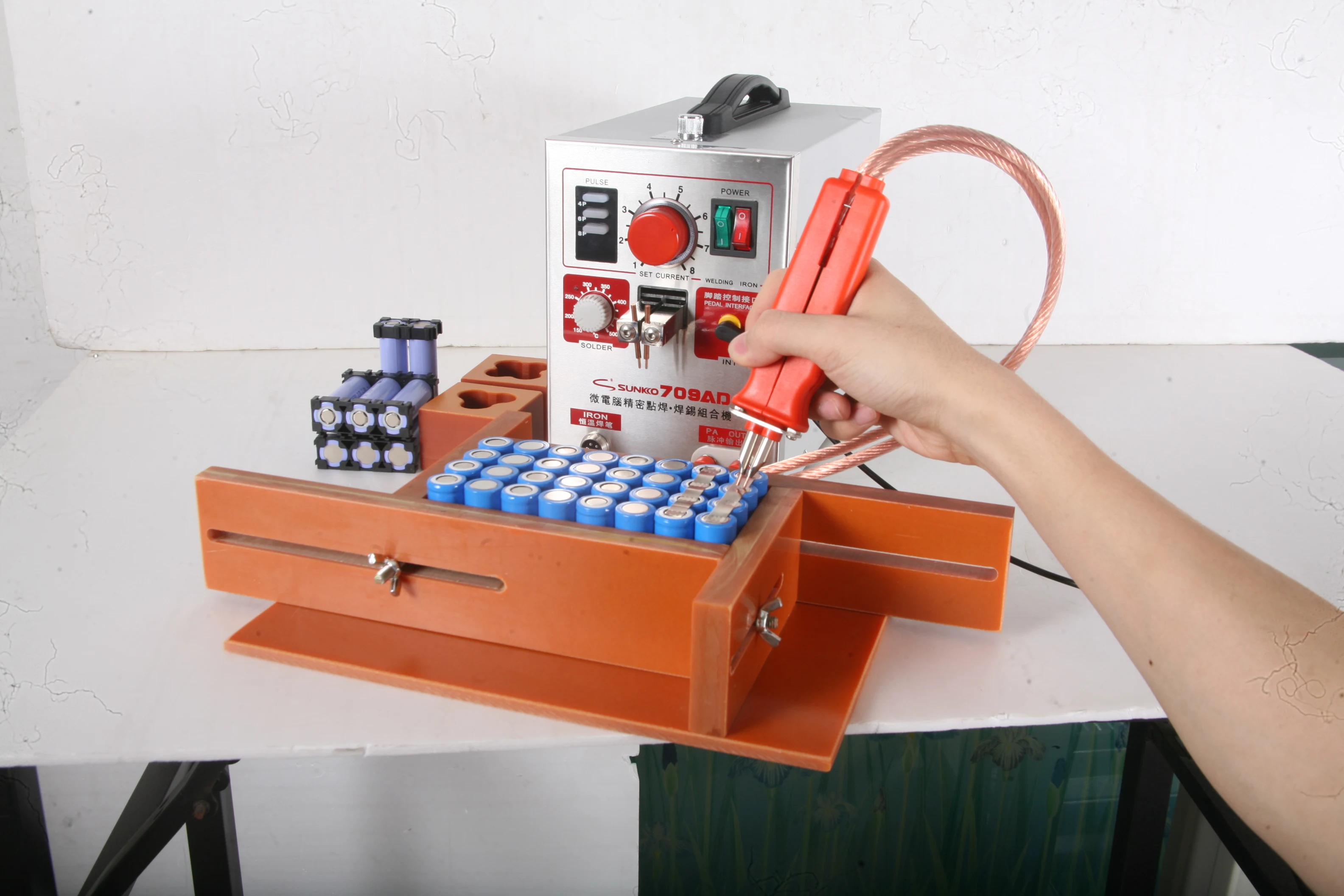

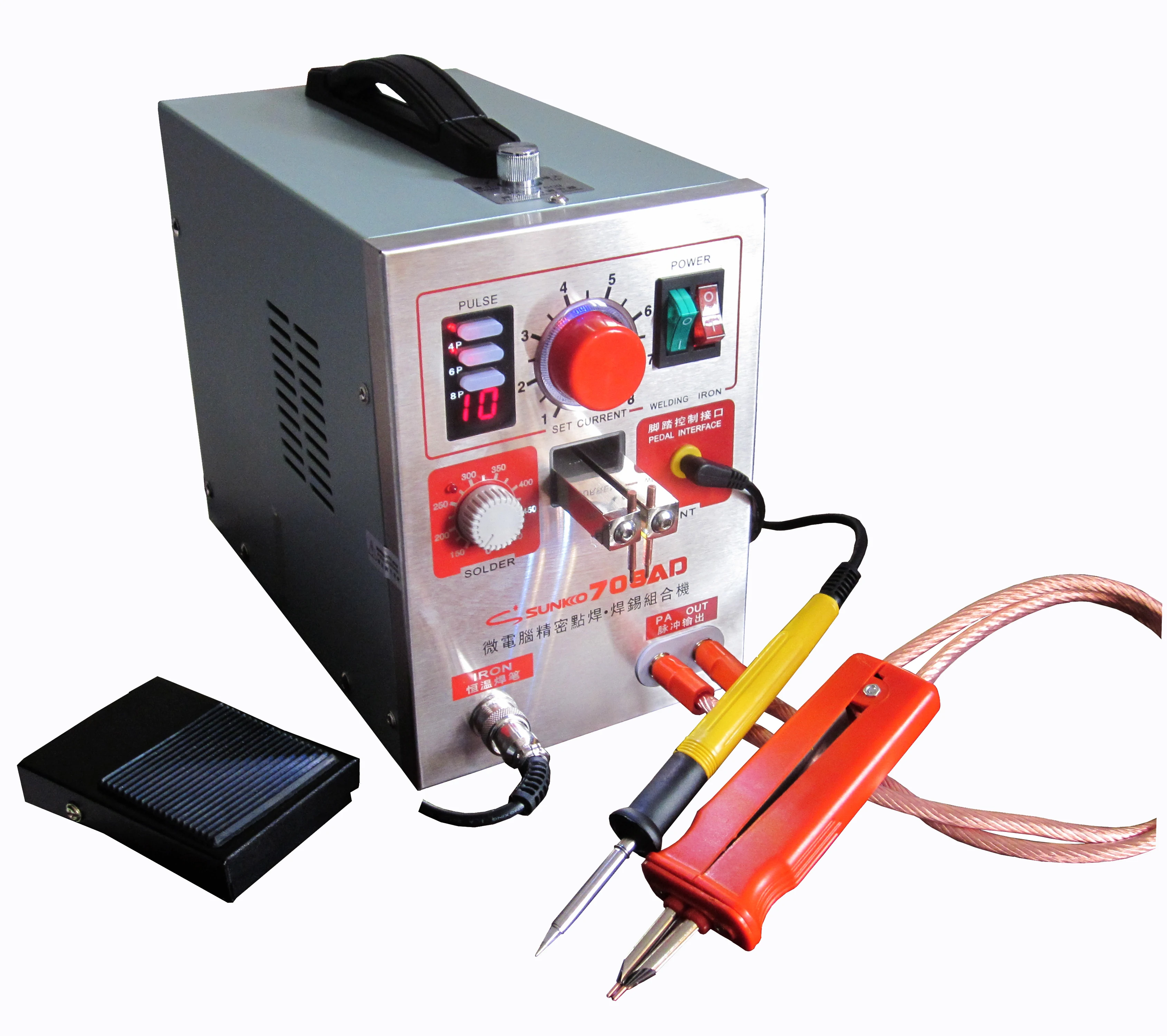

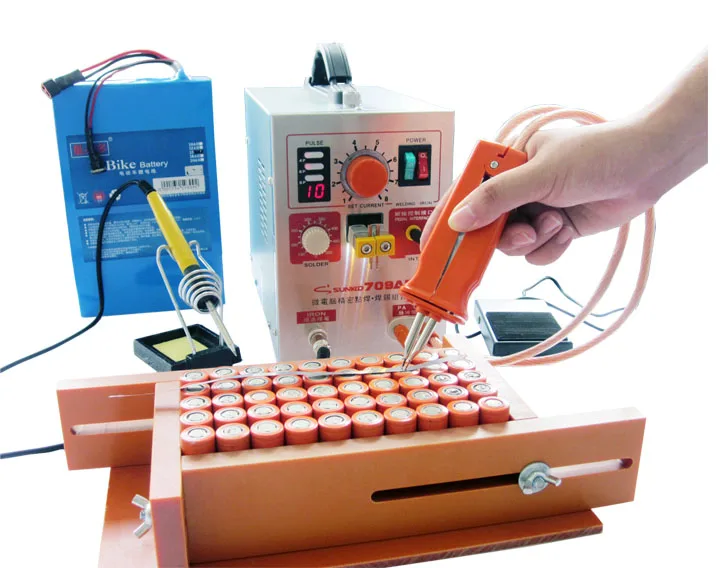

Automatic Induction 709AD+ Multi-pulse Precision 18650 Battery Spot Welding Machine with 70B Spot Welding Pen Soldering Iron
Product Description
709AD precision battery spot welder microcomputer fixed pulse welding + mobile pulse welding + thermostat soldering triad
Suitable for electronics, electrical appliances industry for electronic components production welding, electric stainless steel (iron) wire welding, all kinds of wire (sheet material)
Welding, electronic circuit boards fast welding, electronic components and circuit board of the constant temperature welding, etc.
Microcomputer chip control precision management and pulse welding energy manager, improve the consistency of welding.
Sanhe unibody design, regardless of the pulse welding or soldering tin, one machine can complete electronic process.
Fixed spot welding and the dual mode mobile spot welding, from small parts to adapt the big welding accessories, space is infinite.
2 ~ 16 chooses to discharge pulse energy, wide range of welding energy, suitable welding sex is stronger, is welding materials range is wider.

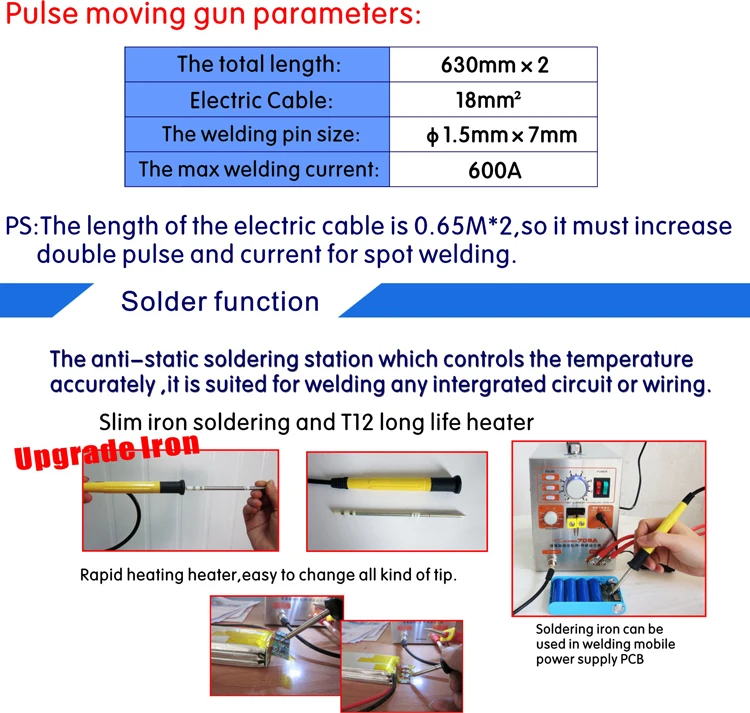

Equipped with professional self balancing pressure of slender mobile soldering pen, convenient control, weldable everywhere, at any point.
Foot line control triggering discharge, precise registration without the difficulty of manual trigger.
Rapid adjustment knob design of discharge pulse current, convenient for the user at any time change the pulse current.
Double LED digital display, pulse number to each spot welding monitoring test, loud and clear.
White light T12 antistatic high temperature soldering pen, super fast temperature, longer service life.
Precision constant temperature controller, constant temperature range is wide, suitable for all kinds of plastic copper wire, tin and other materials welding processing.

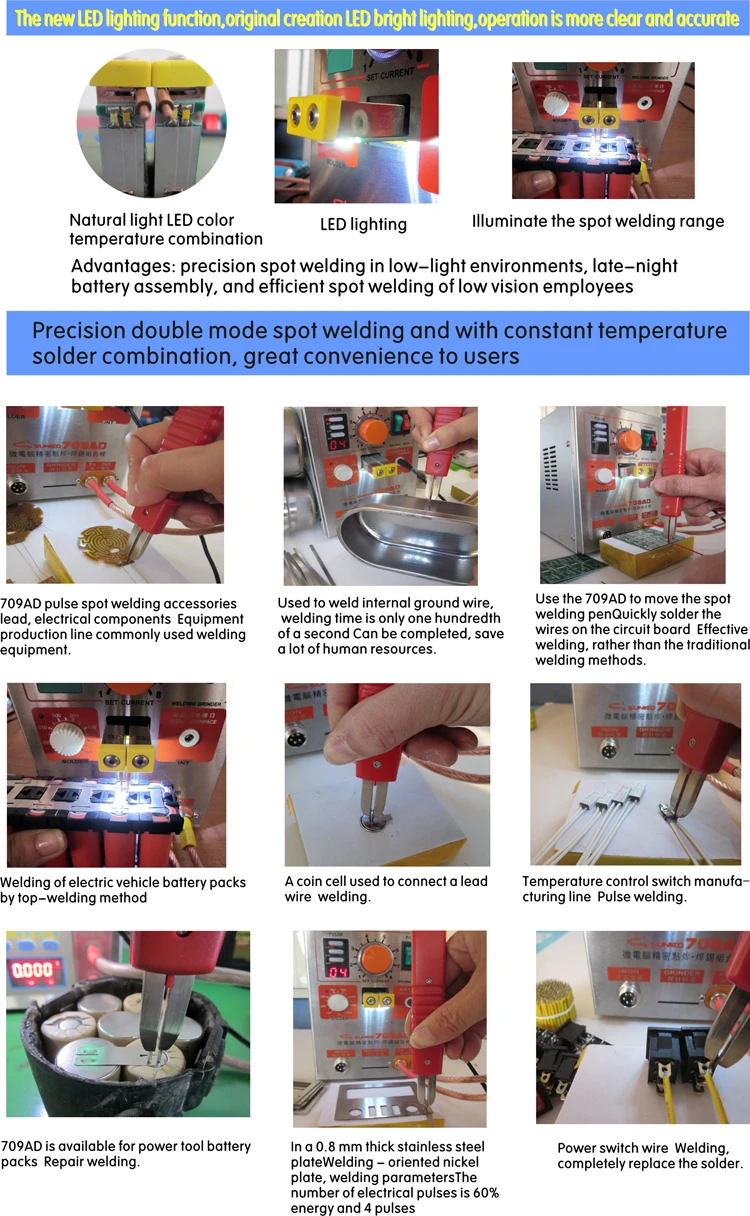

Humanized welding needle LED lighting, operation is bright, suitable for any environment brightness.
Highlights

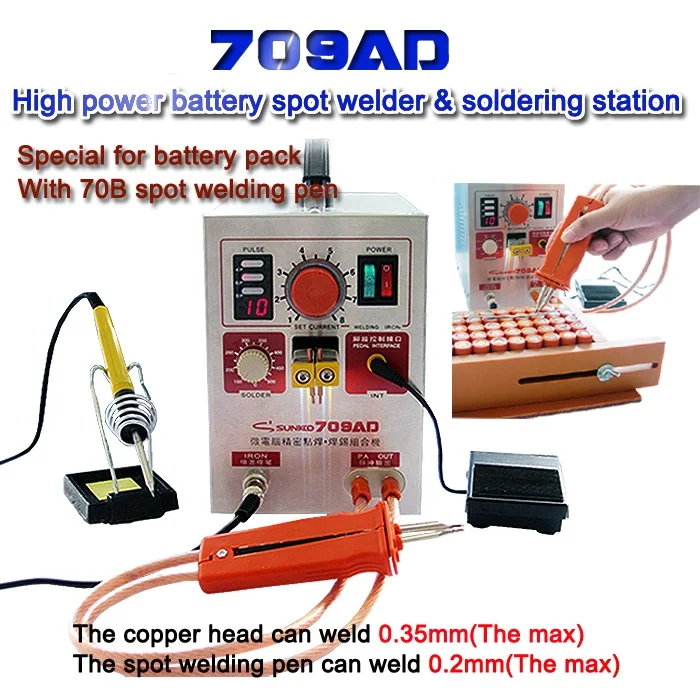

1.The machine is a combination of battery spot welding and circuit board solder, which makes your work more convenient.
2.Fixed spot-welding head and mobile spot-welding pen are combined together in one machine,so that the welding will become flexible.
3.Possess the function of 2,4,6,8 welding pulses selection, make the solder joint reliable.
4.Possess welding current rapid regulator, selecting the current will become quick and efficient.
5.The anti-static soldering station which controls the temperature accurately ,it is suited for welding any intergrated circuit or wiring.
6.The removable footswitches can satisfy the reqirement of welding position or sophisticated technology.
7.The fixed spot-welding head has pressure regulating device which makes the solder connections more reliable.
Attention: For the requirement for electric leakage switch is more than 60 A, it is not recommended to use at home.
Attention:
1. This spot welder can be used to weld the nickel,
nickel plated steel, nickel plated iron, iron and other alloys, but it
can't be used to weld metal including copper and aluminum.
2. The welding thickness 0.03 - 0.3 mm indicates the
thickness range of all alloy it can be weld, for nickel or nickel plated
steel, the range is 0.08 - 0.3 mm.
3. Rated current of tripping device of the leakage
protection switch should be up to 60A.

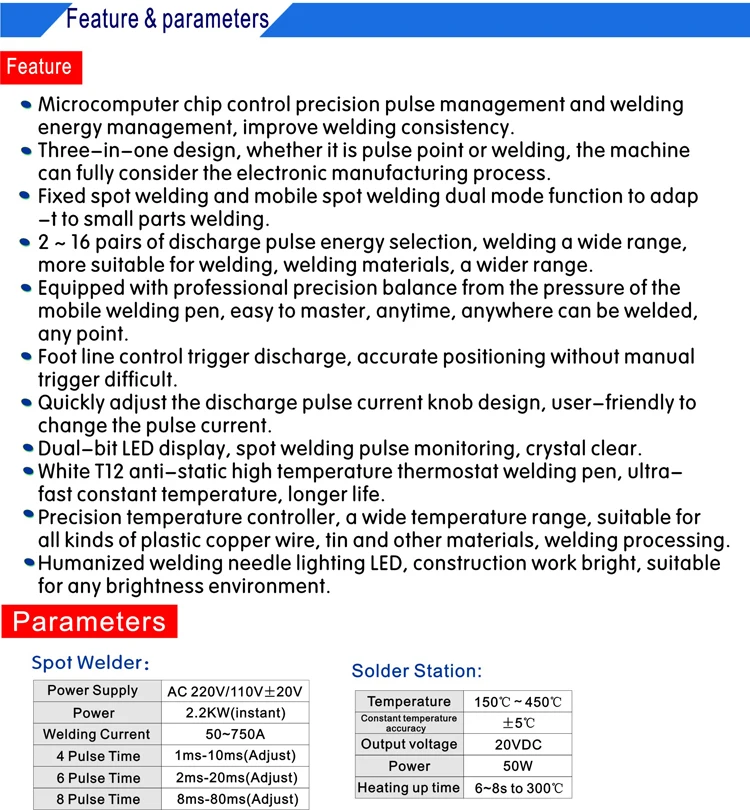

Specifications
| ||||||||||||||||||||||||||||||||

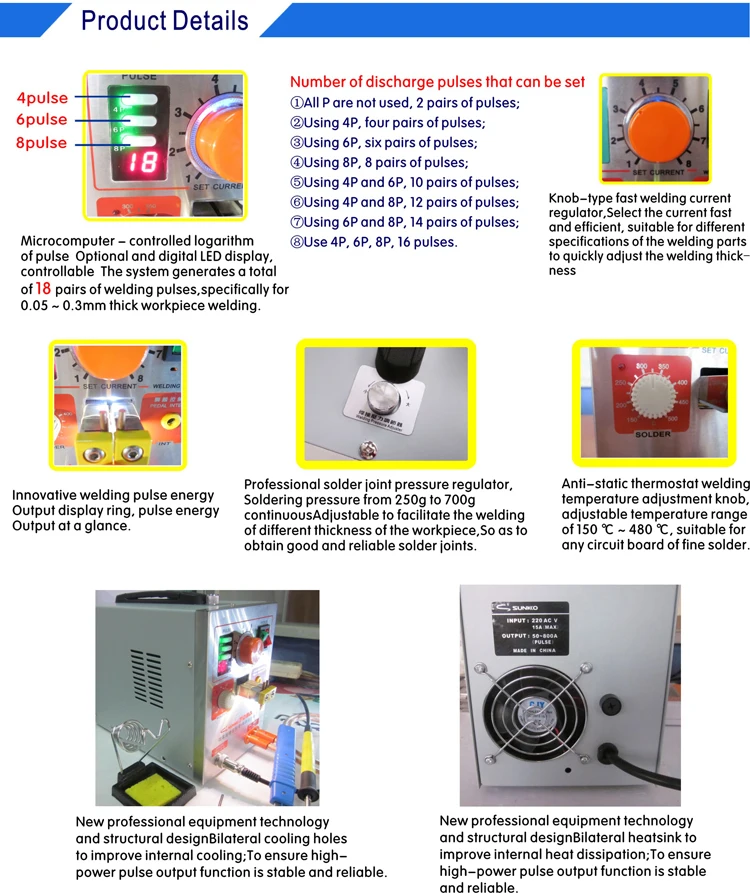

Detailed Images

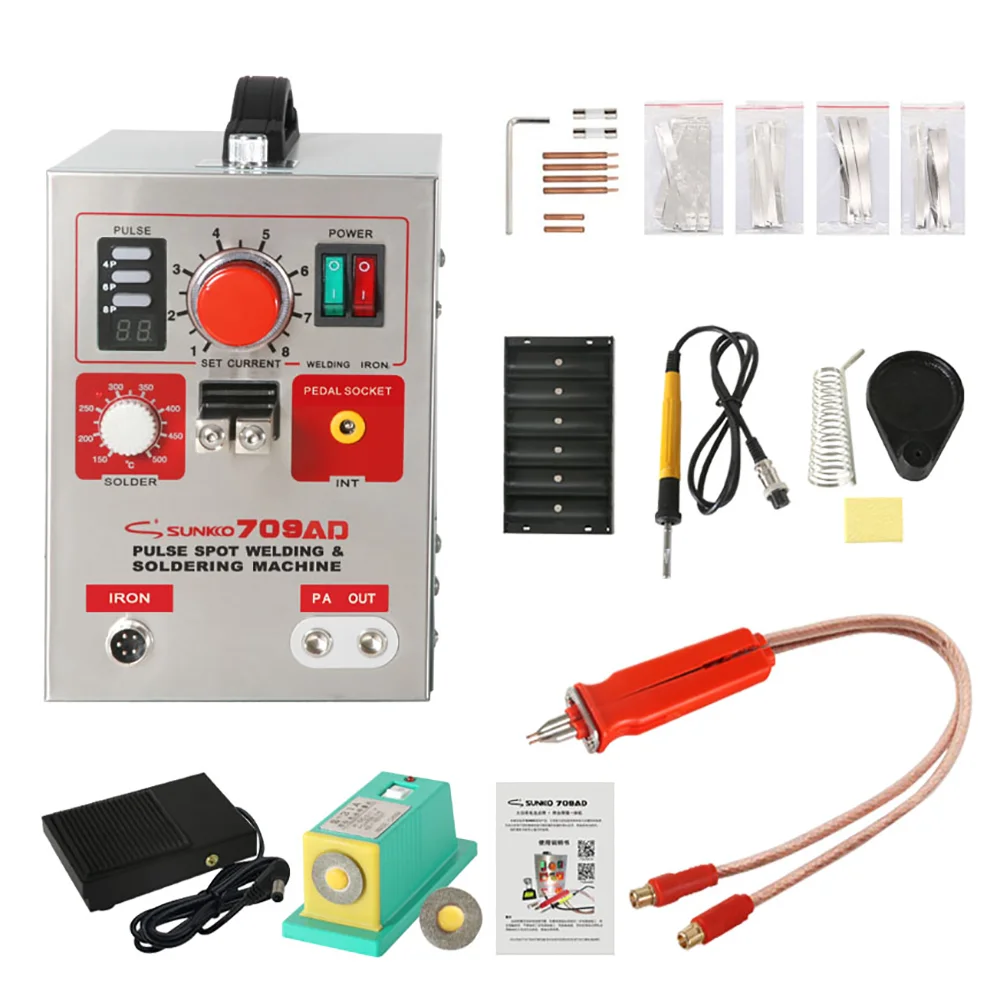

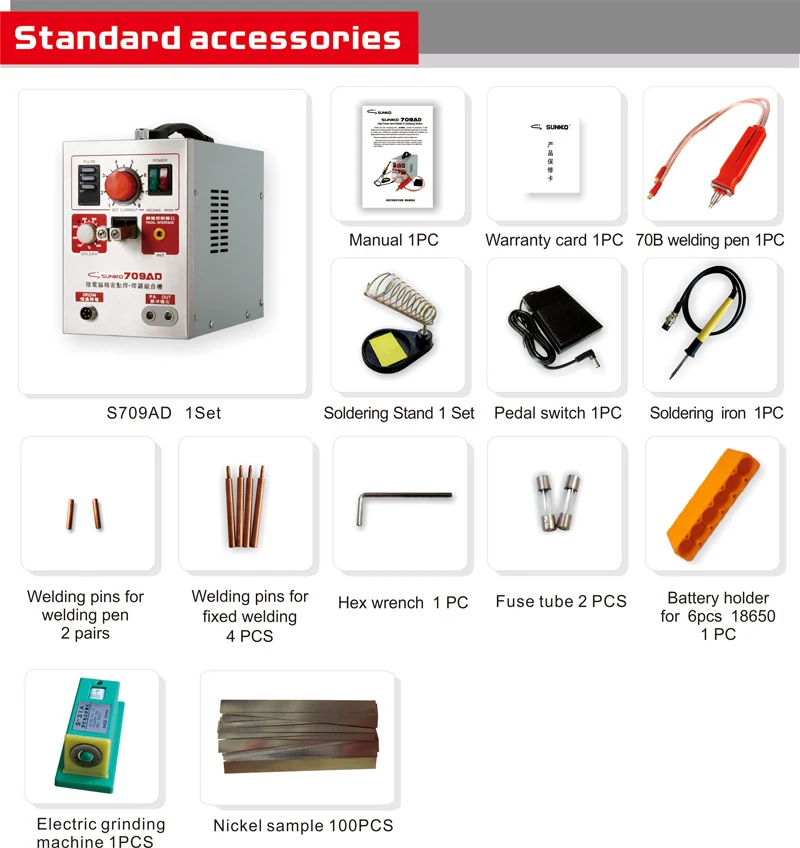

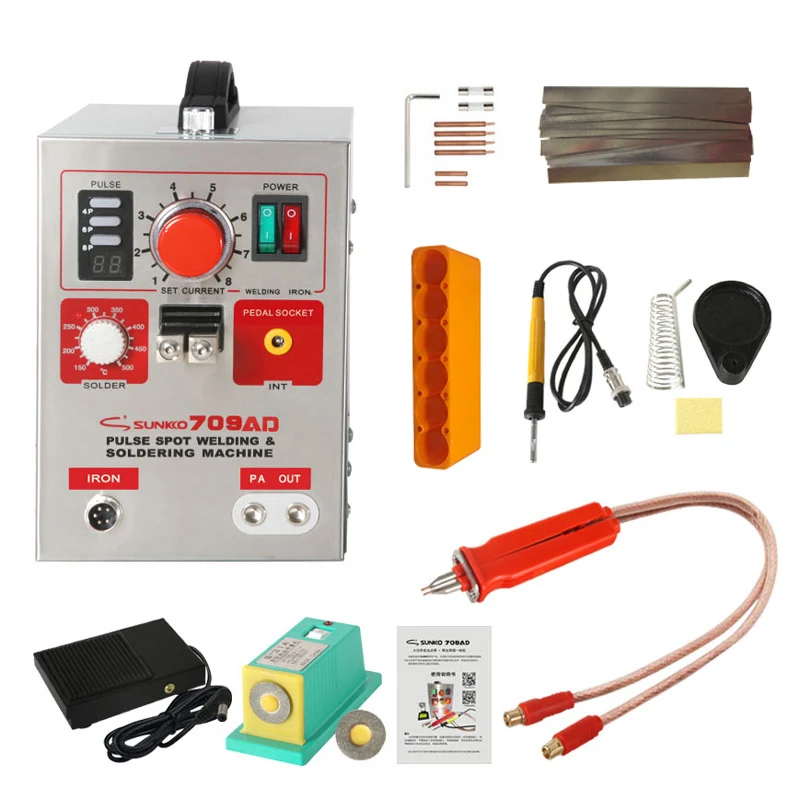

Packaging list
1 x 709AD Pulse Spot Welder
1 x Soldering Iron
1 x 70B Welding Pen
1 x Foot Switch
2 x Fuse(20 A)
4 pair x Welding Rod
1 x Spanner
1 x Soldering Iron Stand
1 x Battery Fixture
100 pcs x Nickel samples
