China Manufacturer Pcb Board Cutting Pcba Cutter V Scoring Machine V Cut Pcb For Led Pcb Light Assembly Line

Product Overview

Description

China Manufacturer Pcb Board Cutting Pcba Cutter V Scoring Machine V Cut Pcb For Led Pcb Light Assembly Line

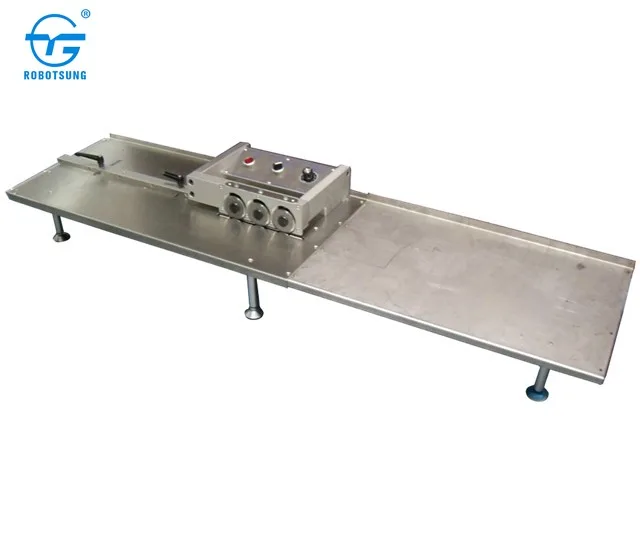

YS-830 PCB separator

Usage:

Be dedicated to the separating of aluminum based light bar, high efficiency, long life, without deformation and burrs, greatly saving labor and improving company benefits.



Parameters:

Maximum Cutting length: Unlimited

Cutting thickness: 0.5-3.0 mm

Materials:led light strip. aluminum based board, FR-4, glass fibre board and PCB, etc.

Feeding efficiency: 2.5 pcs in a minute(1200mm pcb with 10 pcs pcb board).

Machine Size: 300*230*220 mm

Whole Size: 800*370*220 mm.(Feeding plate can be customed)

Blade material: SKD-11 high-speed steel material from Japan

Power: 220V 50HZ

Voltage: 40W

Weight: about 36kg

Storage temperature: -20~50℃

Working temperature: 10~35℃

Limited: the distance between the parts on board and the microgroove should be above 1mm; the side width is unlimited.





Features:

1. The board-cutting is done by 6 blades, and the upside one and the downside one for a cutting unit. So there are Group A, B and C. The whole cutting process is divided into 4 stages. The stress of the cutting process can be reduced by 80% than the traditional one-cut process for the small cutting quantity each time. And the edges of the board are quite smooth after cutting.

2. The cutting process is very stable because of multiple cutting. Even for circuit boards with shallow microgroove.

3. As the low cutting force of the blade, it can prolong the working life of the blades and reduce the cost.

4. Suit for cutting LED aluminum based board, copper substrate, light-emitting tube, light board, display pane, etc.









Shenzhen Robotsung Automation Technology Co., Ltd was incorporated in January 2001, now has offices in Shenzhen, Suzhou, Guangzhou, Chongqing and Qingdao, placed a leading role in China market for the automation equipment. Our products including Full automatic and semi automatic Screwdriver Machine, PCB cutting machine, SMD components counter, pipe cutting machine, Glue Dispenser and paste mixer.



Our company has a team of experienced system engineers, advanced programmers, circuit designers, precision machinery designers, structural engineers and mechatronics engineers. They are engaged in researching and developing the software and hardware of industry control system, have committed to the development, production, sales and service of new automation system and automation equipment. Now we have made outstanding achievement in CNC technology, automation control, equipment intelligent, remote monitoring and industry data network development.

To ensure quality, we have more than 15 QC members to carry out strict inspection at each stage: incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC). We have also introduced 10 sets of inspection machines, which allow us to make products meet international standards.
