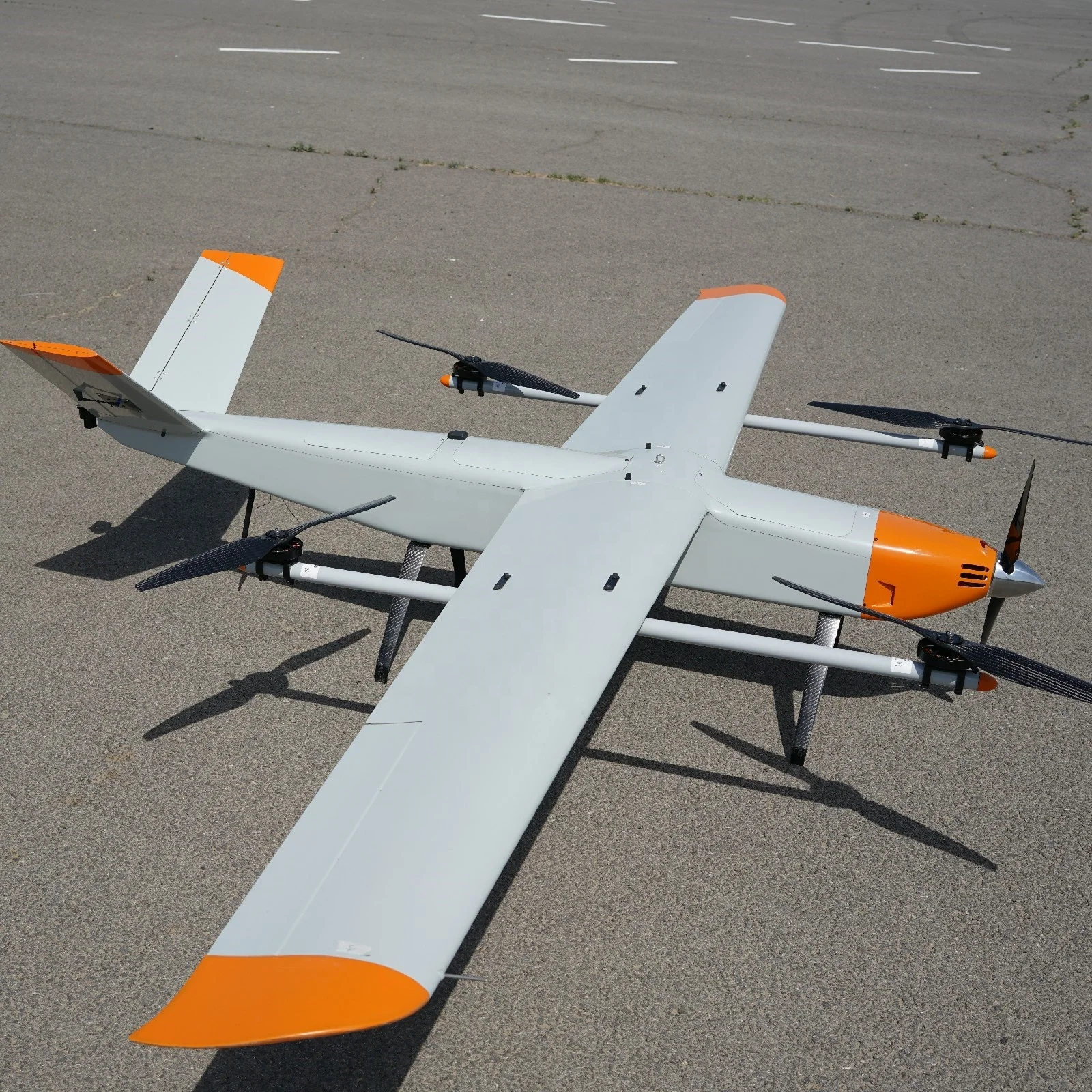

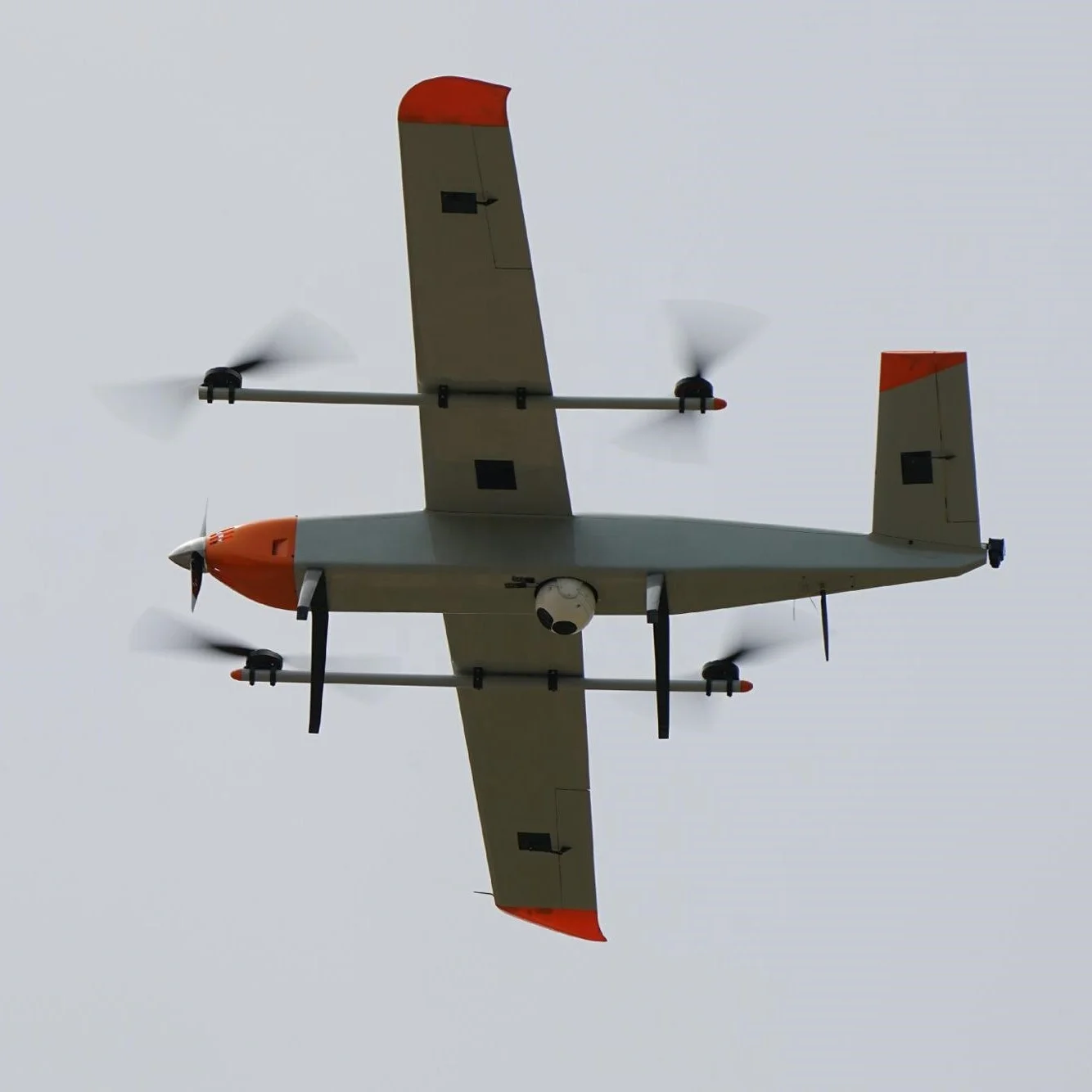

HC-521H vertical take-off and landing fixed-wing Hybrid-Electric UAV is a high-performance multi-purpose UAV product designed and developed by Honeycomb Aerospace Technologies (Beijing) Co., Ltd. The whole product is made of carbon fiber composite material, which is easy to disassemble and assemble.
HC-521 has the application characteristics of multi-rotor and fixed-wing without limit by landing site, flight endurance can be up to 8 hours. With relevant payload equipment, HC-521 can carry out power grid inspection, pipeline inspection, land mapping, forest fire-prevention, reconnaissance and patrol, and other tasks.

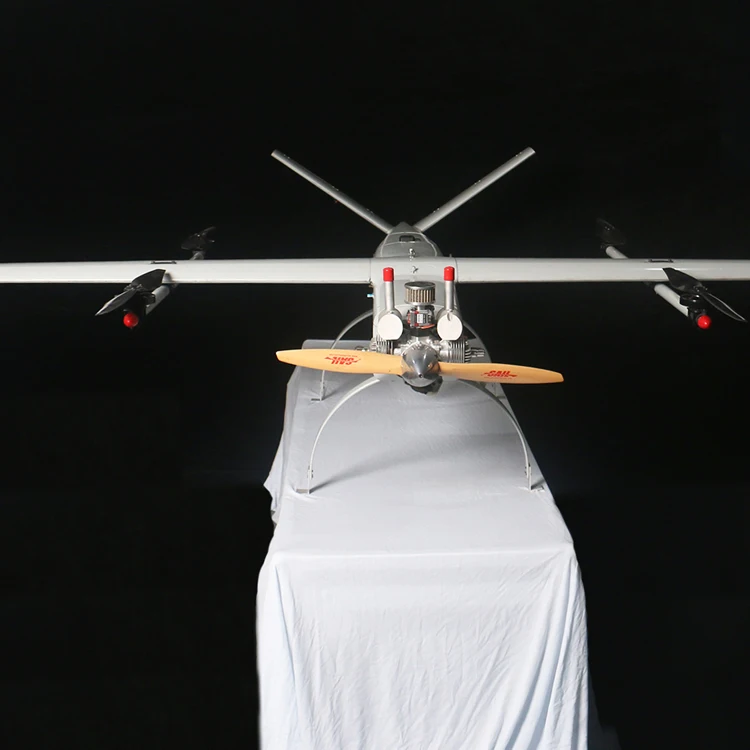

Front View
Side View
Isometric View
Power System
Avionics
Payload
Connection
Transmitter & Ground Station
Specifications
Category
Specification
Parameter
Flight System
Body length
1970mm
Wingspan
3625mm
Manufacture material
Carbon fiber composite
Empty weight
16.5kg
Max take-off weight (sea level)
26kg
Standard payload
2kg
Max payload
3kg
Cruising speed
80 ~ 100km/h
Max flight speed
120km/h
Standard propeller
22inch + 26inch
Max Altitude
4500m (Above sea level)
Max climb rate
6m/s
Endurance
4h (piston gasoline engine)
up to 8h (EFI Gasoline Engine)

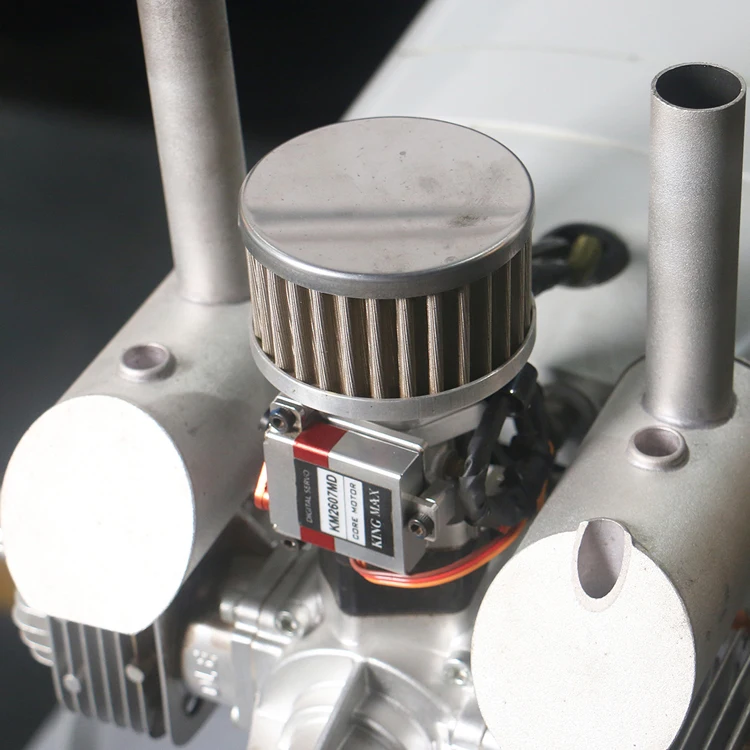

Powerplant
Front gasoline engine + vertical motor
Front engine
DLE60CC
Vertical motor
HC-8010
Fuel tank capacity
6L
Specific fuel consumption (SFC)
0.6~1.5L/h
Assembly way
Detachable
Flight Control System
Aircraft layout
VTOL Fixed-Wing
Attitude angle navigation accuracy
Static 0.5˚ / Dynamic 1˚
Positioning accuracy
2.5m
Attitude control accuracy
±1˚
Direction control accuracy
±2˚
Position control accuracy
±0.2m
Altitude control accuracy
±0.5m
Positioning algorithm
GPS+RTK, Selective (GPS/ Glonass/ BeiDou)
Operating temperature range
-40˚C ~ 60˚C
Flight mode
Manual / Auto
Emergency measure
Out-of-control return, fault alarm
Link system
Control radius
10km (no obstacles)
Video Output resolution
1080P@60fps
Operational environment
Wind resistance level
Level 5
Operating temperature
-20˚C ~ 60˚C
Rain resistance level
Light rainfall
Aircraft Logistics
Take-off and landing mode
VTOL
Preparation time
Take-off preparation ≤ 30min
Landing ≤ 20min
Remote Controller
Model
FUTABA T8FG
Work frequency
2.4 GHz
Remote Controller
Max signal effective distance (no interference, no occlusion)
2km
Model
IB-25H
Quantity
1
Capacity
25000mAh
Voltage
52.2V（4.35V/cell）
Battery type
LiPo 6S
Size
244.8×174.5×111.4mm
Net weight
6kg
Operating temperature
-10°C ~ 60° C
Storage ambient temperature
-20°C ~ 35° C
Charging ambient temperature
0°C ~ 45° C
Max Charge current
Continuous current 20.0A
Continuous discharge current
Continuous current: 60A
Cut-off voltage: 36.0V
Peak discharge current
Peak current: 90A
Duration: ≤3S
Payload
CAM-M18 Photoelectric pod
Three-axis photoelectric pod
Operating voltage
3S～6S
Size
144×151×158mm
Weight
798g
Pitch angle range
-90˚ ~ +90˚
Roll angle range
-85˚ ~ +85˚
Direction angle range
-150˚ ~ +150˚ endless rotation
Pixel
4Mp
Output Video resolution
1920×1080P@60fps
Optical zoom
18x
Focal length / Aperture
F=4.85 ~ 82mm /φ16.0
Dynamic range
105dB
Focus time
<1S
Operating temperature
-20℃～80℃
Infrared (30x zoom) pod
Thermal imaging camera
Multispectral camera
Company Profile
Packaging & Delivery
We will offer the industrial level packaging for all the products.
Supply Ability
Supply Ability： 10 Set per Month
Technical Training
Training Objectives
In order to make our clients involved in the project, fully understand all the equipment provided by us and enhance the operational skills of the equipment, we will be responsible for organizing comprehensive and high-quality training for equipment operations and management maintenance personnel. In addition to providing the users with technical instructions, operation instructions and relevant documents of the whole equipment.
The company provide One year of warranty for all Drone Products. Base maintenance is carried out by professional maintenance personnel. Our company will handle free of cost malfunction guidance, online support and on-site support during the warranty period. For on-site support the client will be responsible for (Air-ticket, Hotel reservation, Food, Daily expenses) of technicians and engineers.
Click here to get details.
FAQ
Q: How will you deliver the goods to me?
A: Alibaba platform will arrange the delivery, and we can negotiate about the transportation (by air, by sea or by express) together. And you can also arrange the delivery yourself if you have a reliable logistics company with which is cooperating steady for a long time.
Q: What are your terms of payment?
A: We support transfers both on Alibaba platform online and company account to company account offline. As for the payment method, we support all such as Visa, Mastercard, T&T.
Q: Can I get an invoice?
A: Alibaba will offer you a PI (Proforma Invoice).
Q. Do you test your aircrafts before delivery?
A: Yes, we have 100% test before delivery, and we will offer you a test report.
Q: What is your warranty and after-services?
A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service. Click here to get the details.
Q: Can you provide OEM services?
A: We can negotiate for OEM services.
Q: What is the lead time? (How long will it take to prepare my order?)
A: The exact time will be based on quantity, your specific requirements and area of delivery. (normally 10 to 90 days). You can directly contact us and we will give you exact timing.
Q: Do you accept the order which requires some modifications on your drones or customized design?
A: Yes, we do
Q: Can you offer some other payloads meeting my requirements?
A: Yes, we can. We can offer solutions of the payloads based on your specific requirements. You can also buy our flight platform and integrate the payload by yourself.
Q: Is there any tracking number for my order?
A: Yes, we ship every order with unique Tracking number, and you can view the shipment status on corresponding website.
