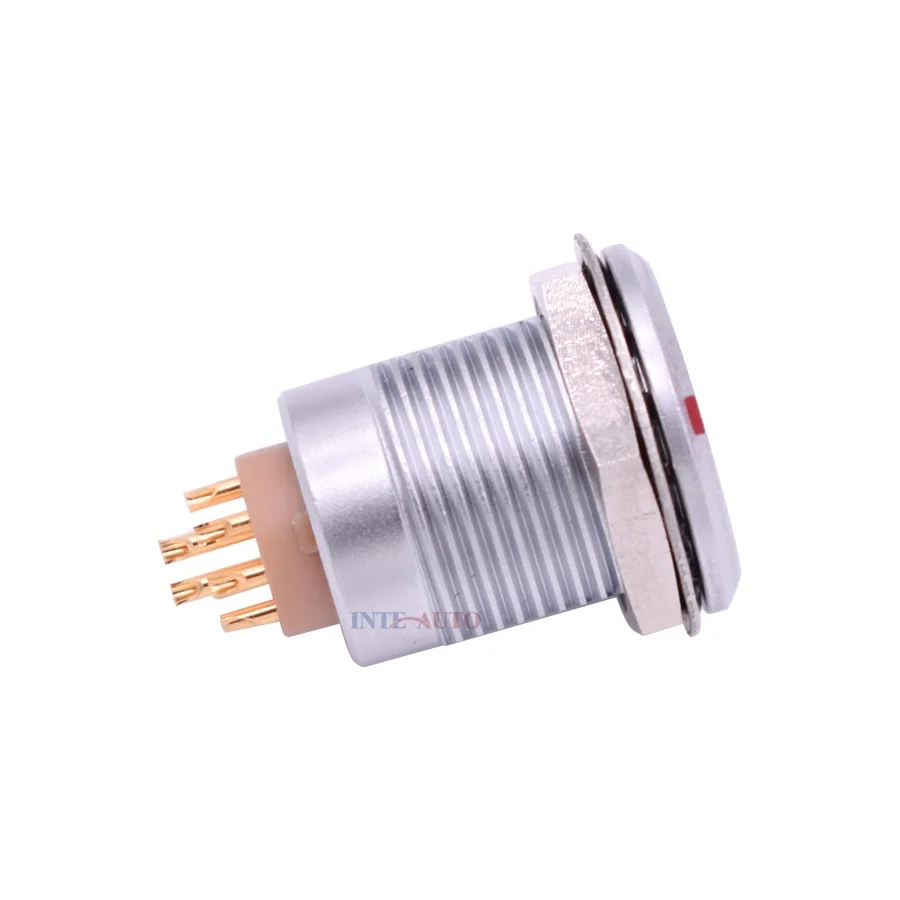

12 pole 3B 12 pin M18 circular female connector fixed socket camera connector

*Sample Free:1-2 PCS.

*Fast lead time: 3-5 work days if the QTY is under 200 PCS.

*Flexiblity payment way:T/T,PayPal,West union,Credit card.

*24 hours service for clients.

*Competitive price & stable production.

*Certified TUV CE and RoHS.

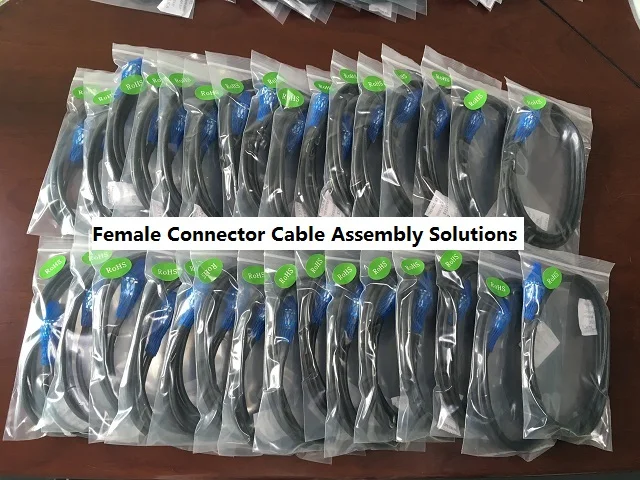

*OEM/ODM/Cable Assemble.

*World-class customer service;

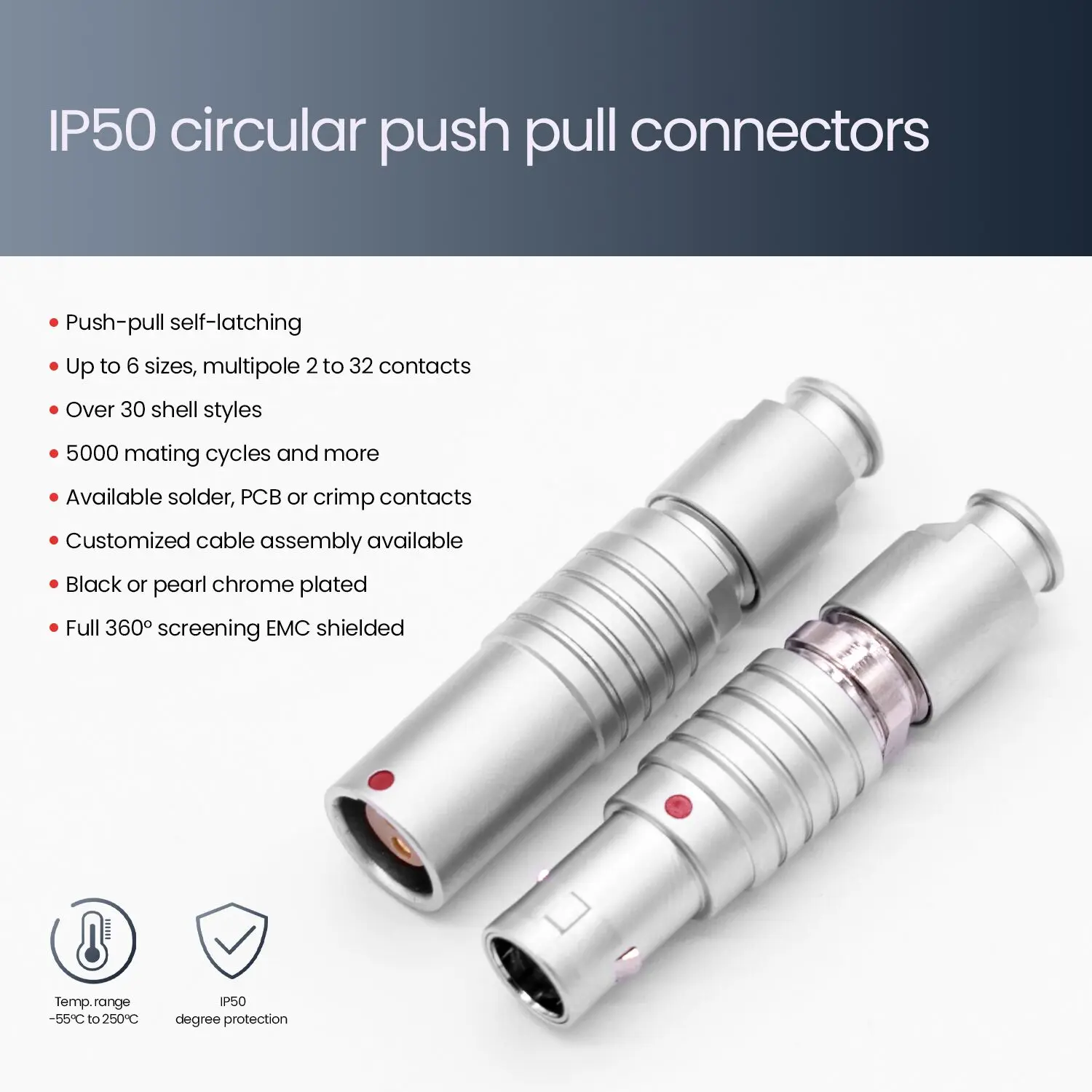

B series connectors provide the following main features:
1.Security of the Push-Pull self-latching system
2.Multiple key options to avoid cross mating
3.keying system ("G" key standard)of similar connectors for connector alignment
4.360°screening for full EMC shielding.
5.multipole types 2 to 32 contacts
6.Solder,print contacts (straight or elbow)
7.High packing density for space savings

Technical characteristics:
Mechanical and Climatically
1.Endurance:>5000 mating cycles;
2.Humidity :Up to 95% at 60ºC;
3.Temperature range:-40ºC, +250ºC;
4.Resistance to vibration :15g(10Hz-2000Hz)
5.Shock resistance:100g,6MS
6.Salt spray corrosion test :>48h;
7.Protection index (mated) :IP50.

Industry Application:
It is widely used on all kinds of medical equipment's,specially for the signal transmission,Medical Equipment, Audio/Video,Test and Measurement, Communications product line.

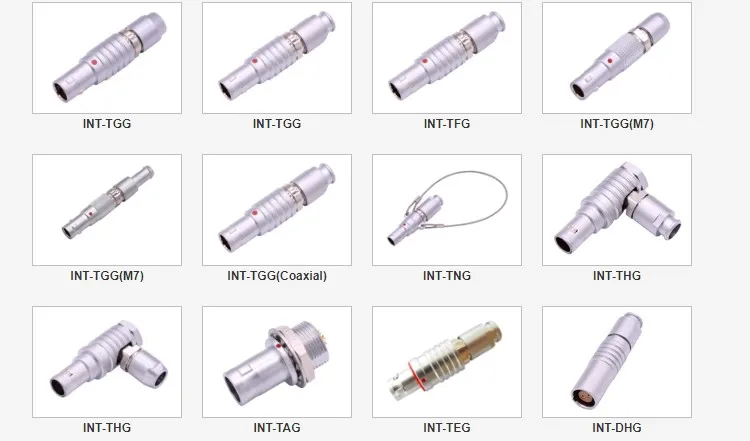

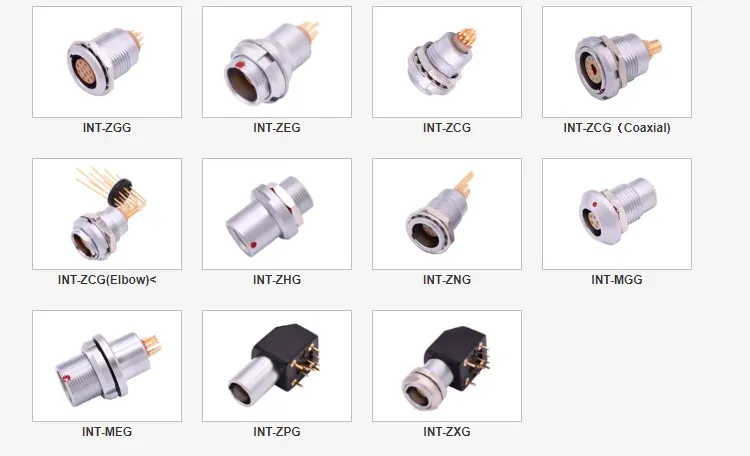

Series B Metal Connector with Multiple pins for your selection:
00B Series:2,3,4 Pins
0B Series:2,3,4,5,6,7,9 Pins
1B Series:2,3,4,5,6,7,8,10,14,16 Pins
2B Series:2,3,4,5,6,7,8,10,12,14,16,18,19,26,32 Pins
3B Series:2,3,4,5,6,7,8,9,10,12,14,16,18,20,22,24,26,30Pins

(Shenzhen INTE-AUTO Technology Co.,LTD)

Expert in making high quality push pull connector & cable assemble.

Promotion items with more than 8 years’ experience!

Our goal is to provide customers with the best service possible and to produce excellent quality.

Brand identification products will meet or exceed your expectations.
All items coming with certification and we have excellent team offering best connector solution for your application.

FAQ:

Q1: Why choose us?

A: 100% homemade, competitive price and fast delivery.

   one-year warranty for ≥6000 mating cycles.

   Strictly quality control, connectors certified by TUV/CE/ROHS.

Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.
 Proofing fee & shipping cost will be charged in sample new design.


Q3: How long is your delivery time?

A: Sample is 1-3 work days; Mass is 5-15 work days.

Q4. What kind of connectors you could supply?

A: Metal and plastic push pull self-locking connectors, actual or picture or part No. will assist to get a competitive price soon.

Q5: What’s the connector made of?

Metal type materials as below:

Out-shell: Brass plated pearl chrome

collet nut: Brass plated pearl chrome

insulator: PPS

collet: Brass plated nickel

contact: Brass, gold plated

split insert carrier: Brass plated nickel

Bend relief: PSU

Plastic type materials as below:

Out-shell: PC

Insulator: PPS

Contacts: Brass

Gold plated is not less than 0.2μ

Bend relief: PSU

Q6: What are the payment methods?

A: T/T, PayPal, Western Union, Ali trade assurance.

Q7: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.

Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
