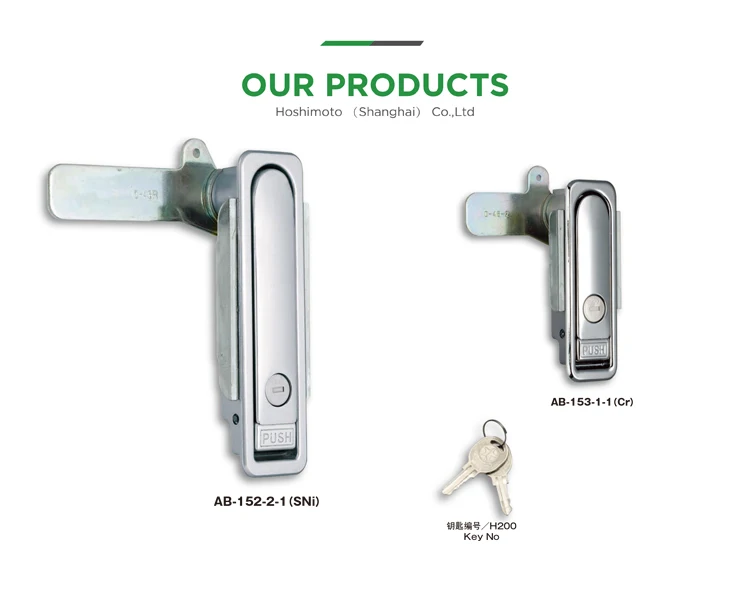

AB 150 series zinc alloy satellite chrome plating waterproof electronic cabinet panel swing push button door lock

Product Overview

Description

AB-150 series zinc alloy satellite chrome plating waterproof electronic cabinet panel swing push button door lock

Product No	Remarks	Weight(g)	Lot
AB-151-1-1	Chrome plating/With key	680	36
AB-151-1-2	Chrome plating/Without key	666	36
AB-151-2-1	Satellite chrome plating/With key	680	36
AB-151-2-2	Satellite chrome plating/Without key	666	36
AB-152-1-1	Chrome plating/With key	540	40
AB-152-1-2	Chrome plating/Without key	520	40
AB-152-2-1	Satellite chrome plating/With key	540	40
AB-152-2-2	Satellite chrome plating/Without key	520	40
AB-153-1-1	Chrome plating/With key	425	40
AB-153-1-2	Chrome plating/Without key	390	40
AB-153-2-1	Satellite chrome plating/With key	425	40
AB-153-2-2	Satellite chrome plating/Without key	390	40
AB-154-1-1	Chrome plating/With key	280	72
AB-154-1-2	Chrome plating/Without key	255	72
AB-154-2-1	Satellite chrome plating/With key	280	72
AB-154-2-2	Satellite chrome plating/Without key	255	72

1.The mechanism is incorporated that the handle is forced out by pressing the button.

2.Waterproof. (Using O-ring and sheet packing )

3.For both left-hand and right-hand use. (The left-hand or right-hand use can be changed by reversing the cam and stopper plate)

4.Please specify satelite chrome plating or chrome plating when ordering.



Material	Zinc Alloy(ZDC)
Finish	Satellite chrome plating/ Chrome plating
Specific Use	electrical box, distribution box, various cabinet
Remarks	Key NO/ H200 Baked finish of the black type is collected
