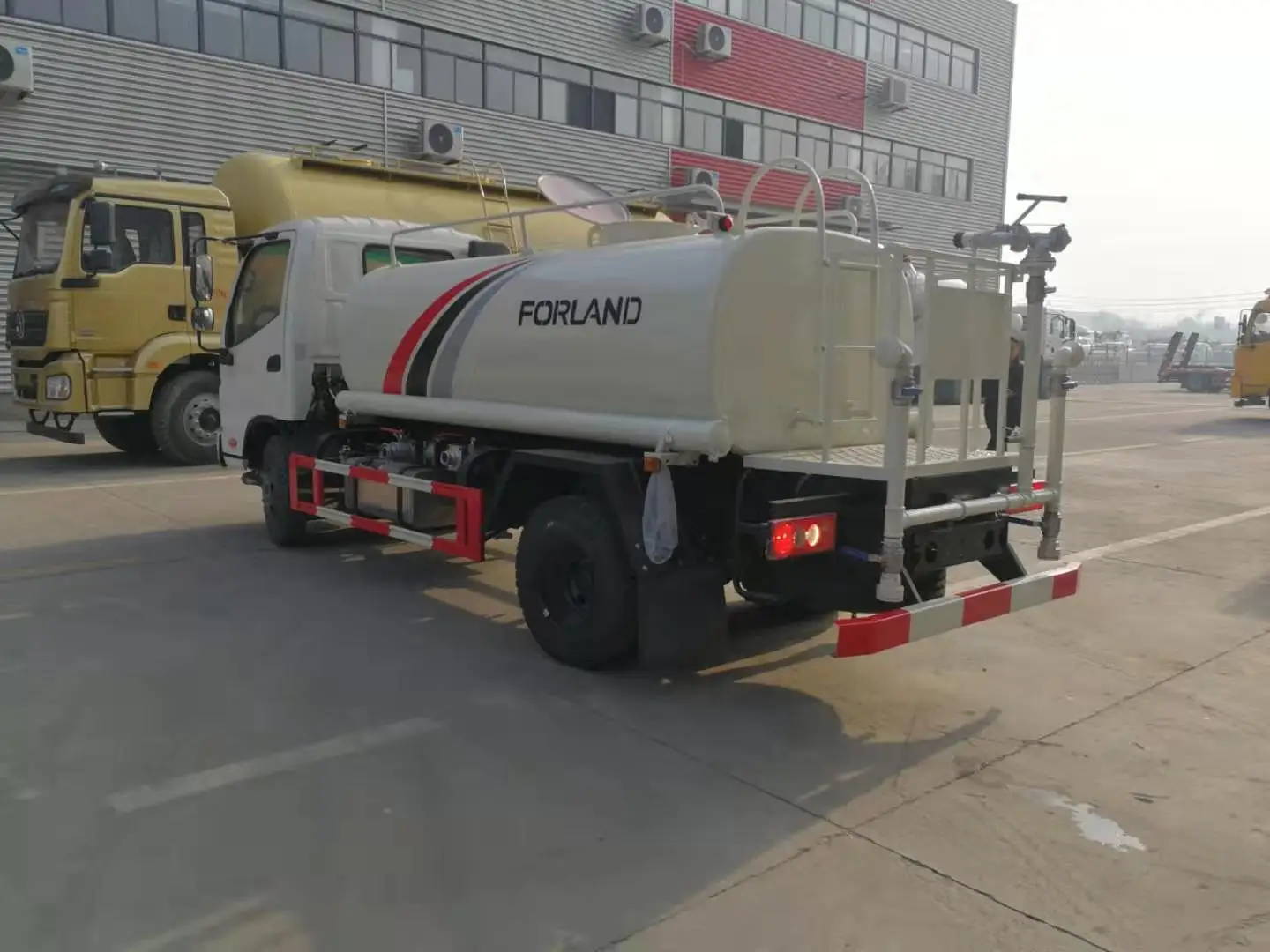

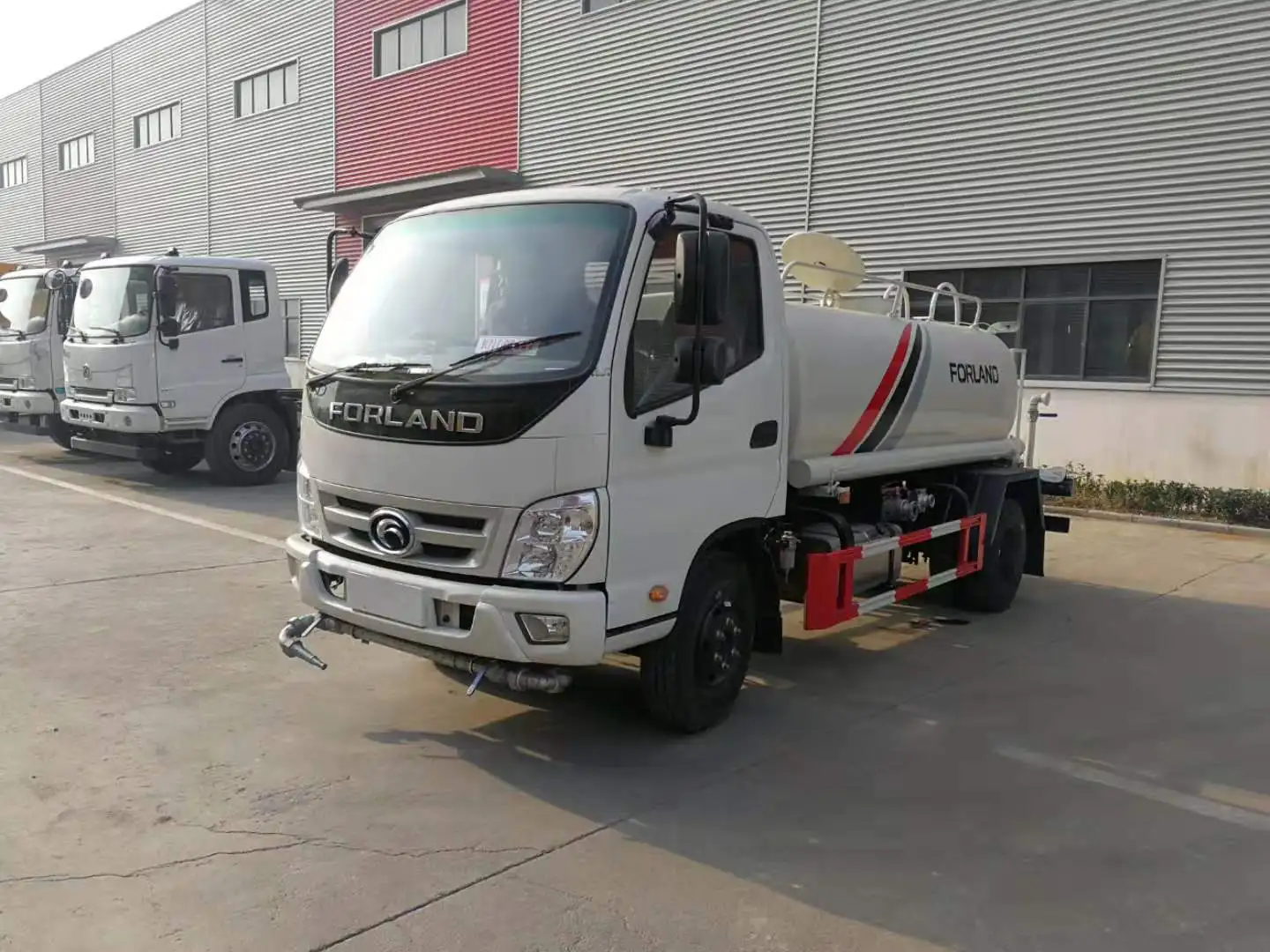

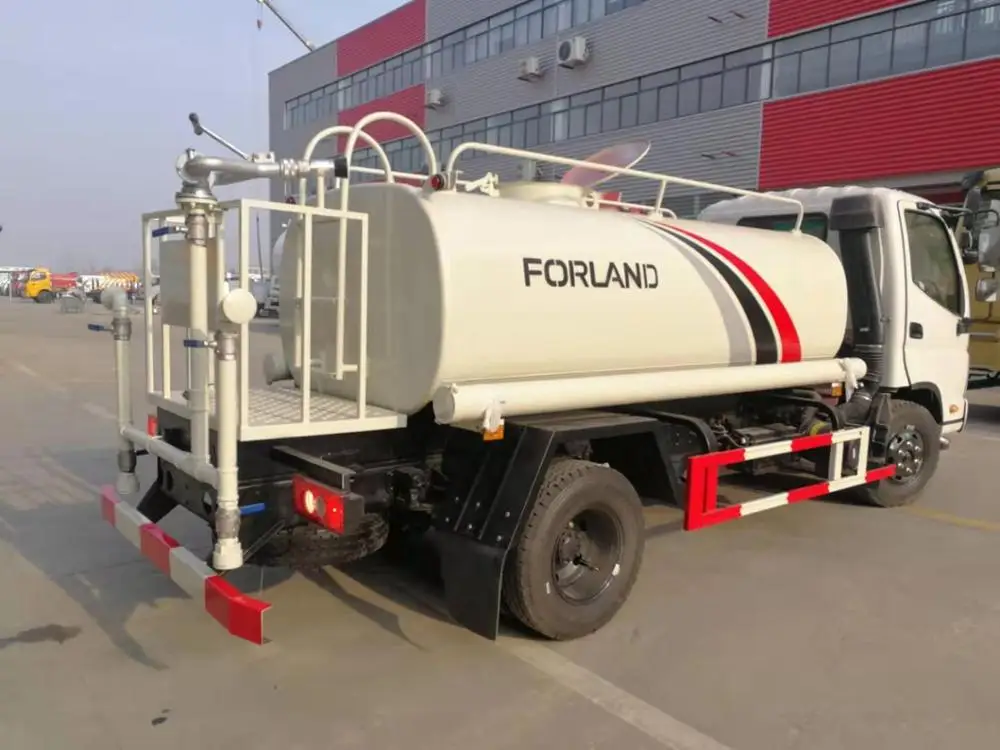

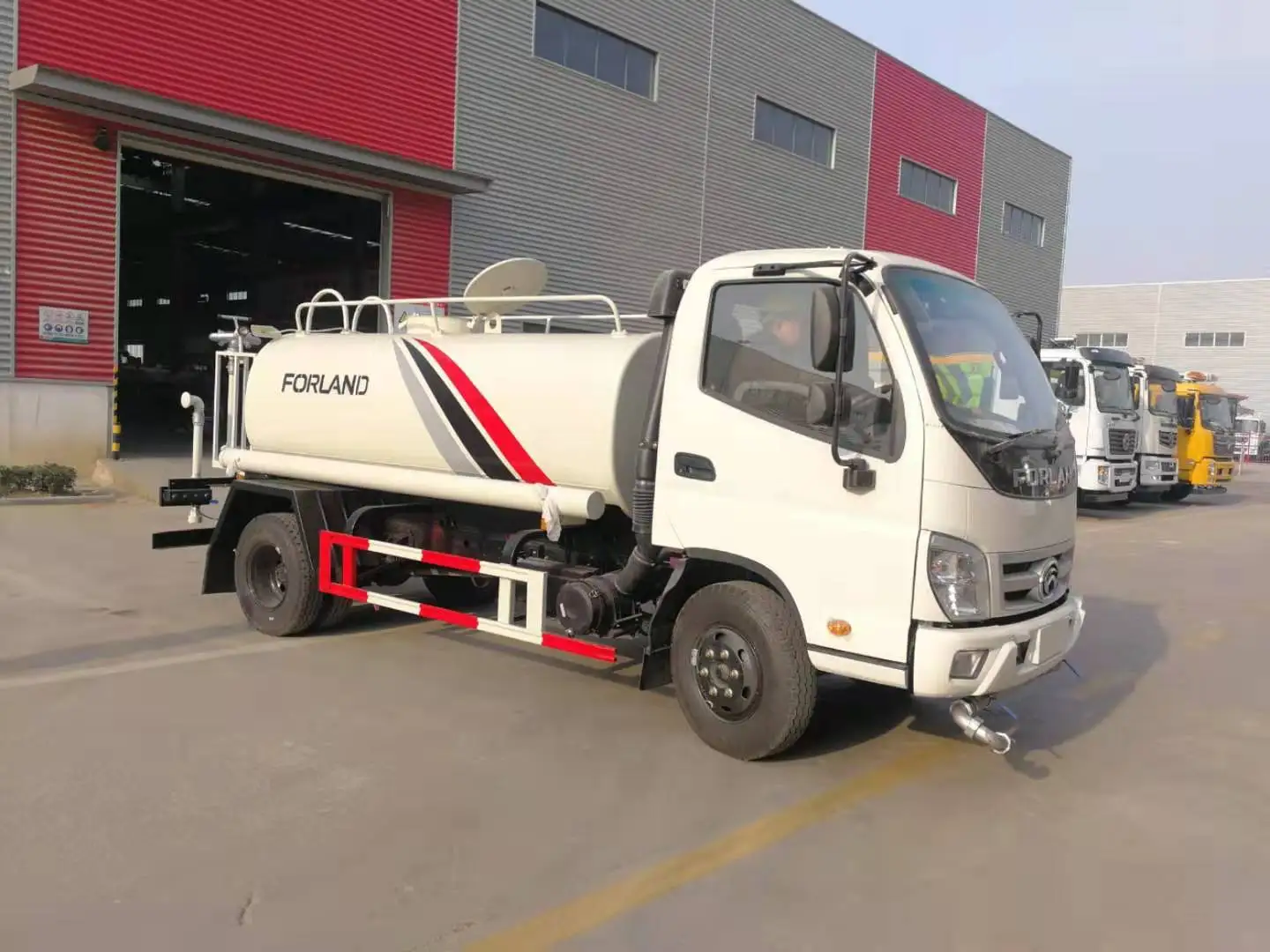

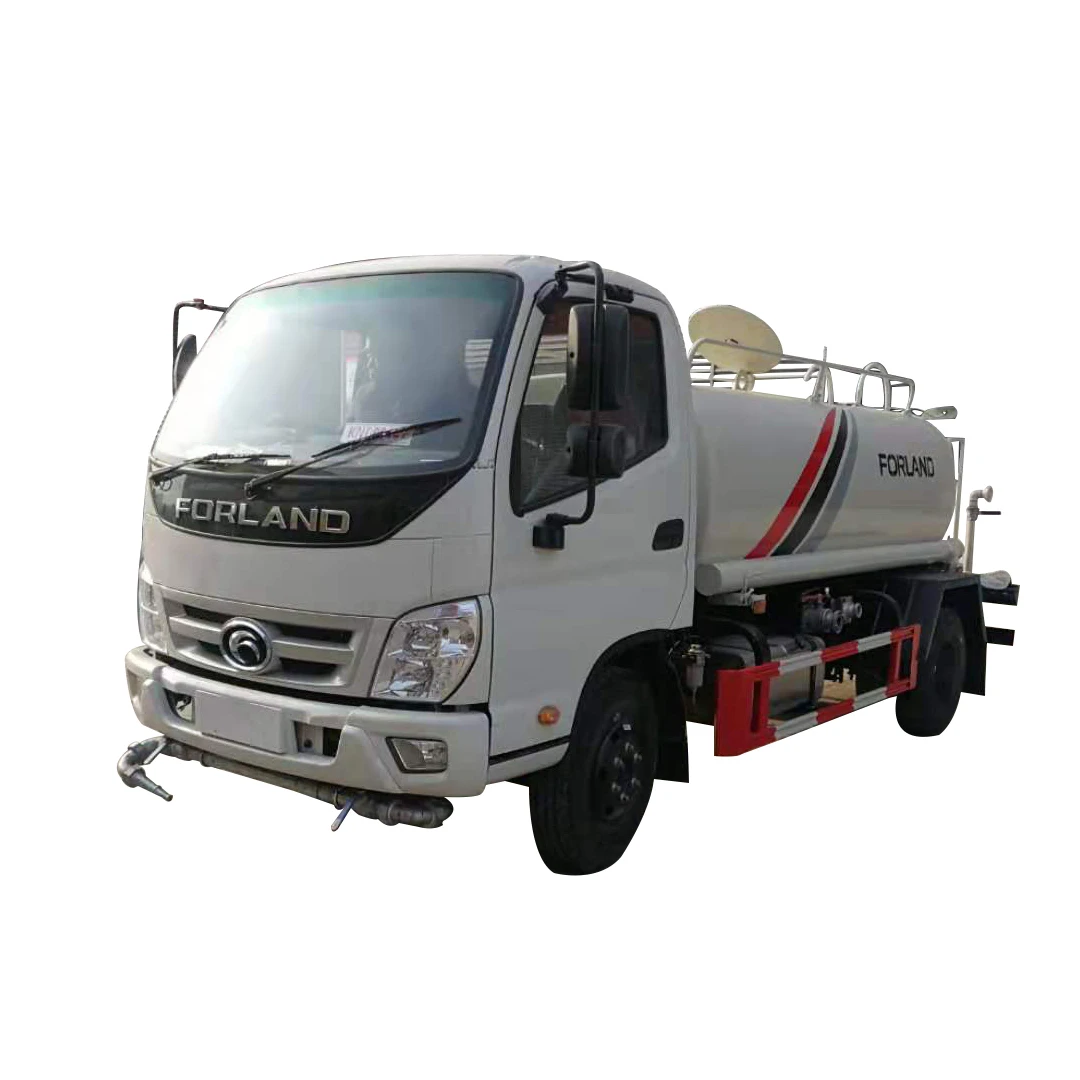

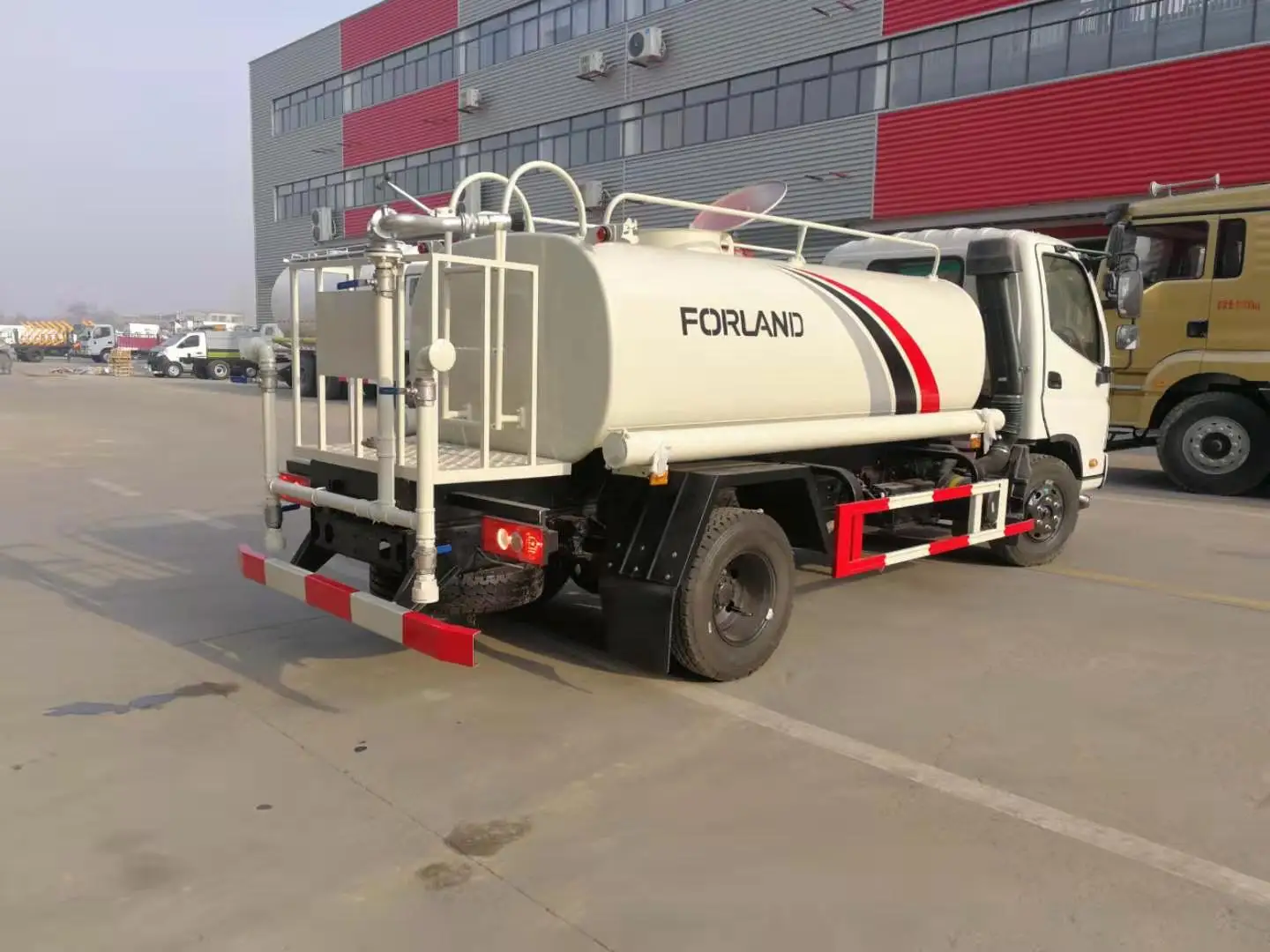

Foton 4*2 Wheelbase Water Tanker Truck Watering Cart
Product Description
Specifications
Item
Specifications
Item
Specifications
Truck
Name
Foton 4*2 Wheelbase Water Tanker Truck Watering Cart
Model
WLW5070GPSB
Gross Weight
7360kg
Overall dimensions
5995*2035*2380mm
Curb Weight
3445kg
Wheelbase
3360mm
Approach angle
21°
Front Track
1715mm
Departure Angle
14°
Rear Track
1590mm
Front Overhang
1120mm
Number of axles
2
Rear Overhang
1470mm
Max speed
95km/h
Number of Tyres
6
Traction system
4×2
Tyre
7.50R16LT 12PR
Transmission
manual
Allowable Cab Passengers
3
Chassis
Model
BJ1073VDJDA-01
Leaf Spring
3/6+6
Engine (Motor)
Brand
Chuanchai
Type
Diesel
Model
Q28-130E60
Displacement
2800ml
Horse power
130hp
Emission standard
Euro 6
Equipment
Tanker
5 tons
Tanker Material
stainless steel
Cabin
metal-enclosed cab two door panoramic curved windshield
Front(rear,side) sprinkler
Sprinkling width>14m
Rear working platform with water cannon
Range>28m
Water valve
1
Fire valve
1
Pipeline
3m*2
sprinkler
2
Chinese brand Weilong pump
Suction lift >6m
1.Choose and install the new front grille and front LOGO. The effective volume of the tank is 4.11 cubic meters, and the relationship between the shape and size of the tank (long × long axis × short axis) is (mm): 3400 × 1600 × 1080;
2.The side protection is Q235 and the bolt is connected; the rear protection is Q235, the welding connection is adopted, the height dimension of the rear protection section is 100mm, the width of the section is 50 mm, and the ground height of the lower edge is 450 mm;
3.ABS model is CM4XL-4S/4M, the manufacturer is Guangzhou Ruilikomi Automotive Electronics Co. Ltd.
4.Special device: tank, pipeline system, mainly used for sprinkler and landscaping.
